Inflatable Restraint Side Impact Module Connector End Views

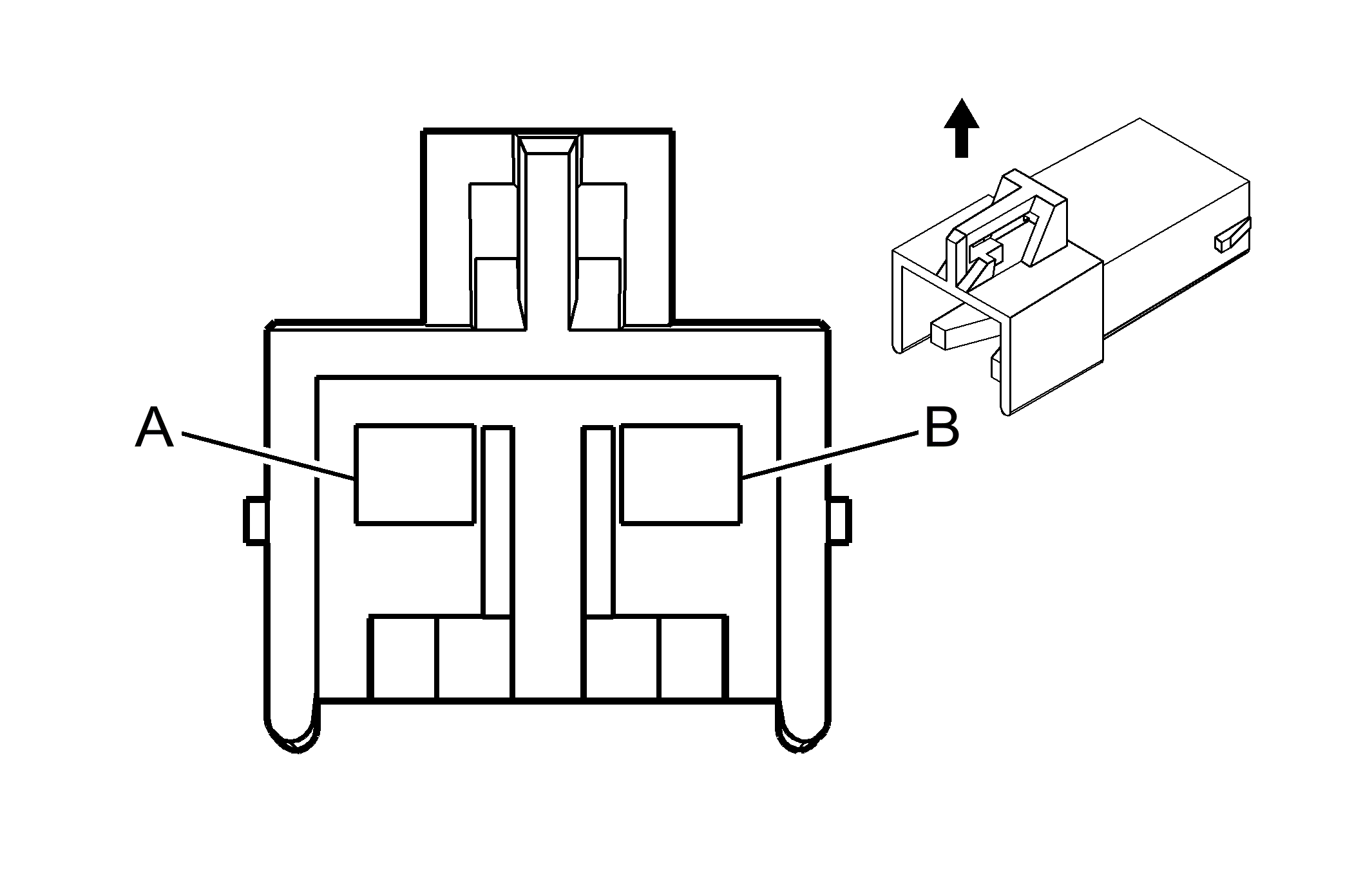

Inflatable Restraint Side Impact Module - Left

GM130685Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110288
  • 2-Way F Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function
A D GN 2105 Side Impact Module - Left - High Control
B BN 2106 Side Impact Module - Left - Low Control
Inflatable Restraint Side Impact Module - Right

GM130685Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110288
  • 2-Way F Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function
A GY 2103 Side Impact Module - Right - High Control
B D BU 2104 Side Impact Module - Right - Low Control
