Inflatable Restraint Steering Wheel Module Connector End Views

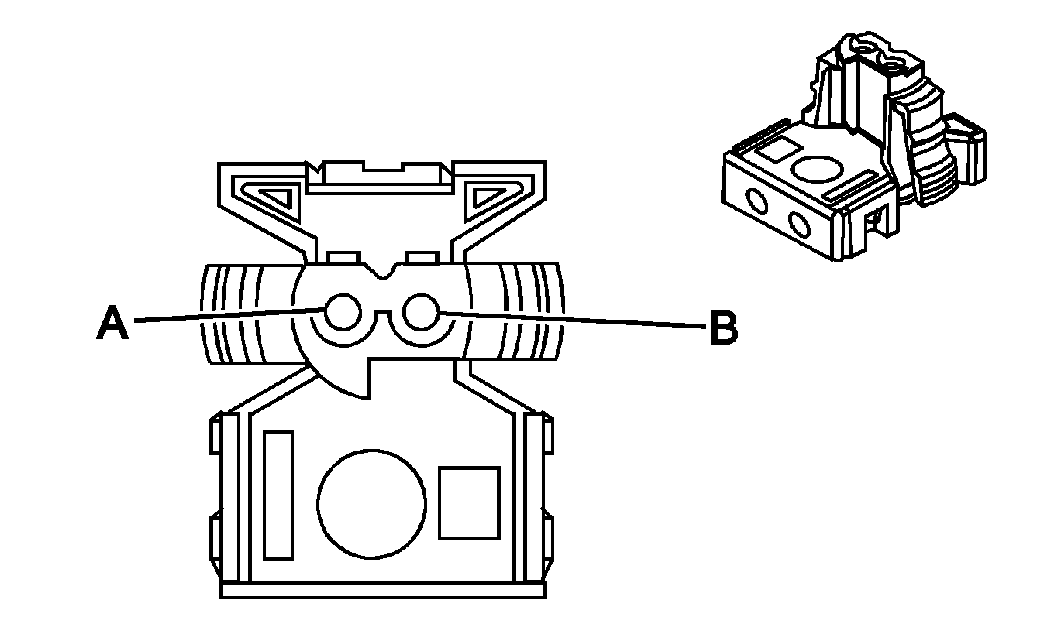

Inflatable Restraint Steering Wheel Module C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		54560208 2-Way F ABX-3 Code B (WH)
Pin	Wire Color	Circuit No.	Function
A	TN	3021	Steering Wheel Module - Stage 1 - High Control
B	BN	3020	Steering Wheel Module - Stage 1 - Low Control

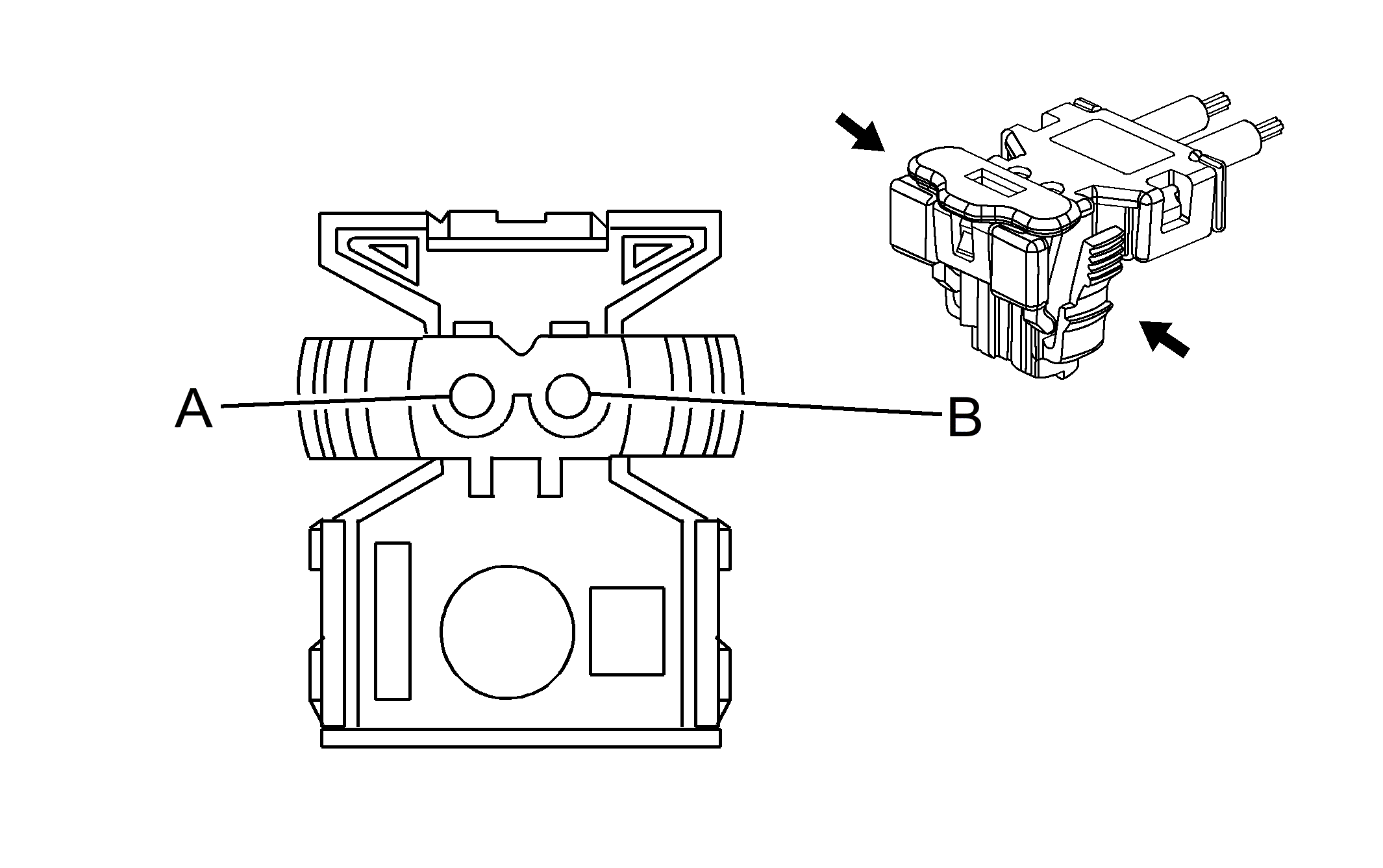

Inflatable Restraint Steering Wheel Module C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		54550271 2-Way F ABX-3 Code G (PK)
Pin	Wire Color	Circuit No.	Function
A	WH	3023	Steering Wheel Module - Stage 2 - High Control
B	PK	3022	Steering Wheel Module - Stage 2 - Low Control

Inflatable Restraint Steering Wheel Module C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		54560208 2-Way F ABX-3 Code B (WH)
Pin	Wire Color	Circuit No.	Function
A	TN	3021	Steering Wheel Module - Stage 1 - High Control
B	BN	3020	Steering Wheel Module - Stage 1 - Low Control

Inflatable Restraint Steering Wheel Module C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		54550271 2-Way F ABX-3 Code G (PK)
Pin	Wire Color	Circuit No.	Function
A	WH	3023	Steering Wheel Module - Stage 2 - High Control
B	PK	3022	Steering Wheel Module - Stage 2 - Low Control
