Propshaft Speed Sensor Connector End Views

Propshaft Speed Sensor - Front

GM666646Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336024
  • 2-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 YE 400 Signal High - Front
2 PU 401 Signal Low - Front
Propshaft Speed Sensor - Rear

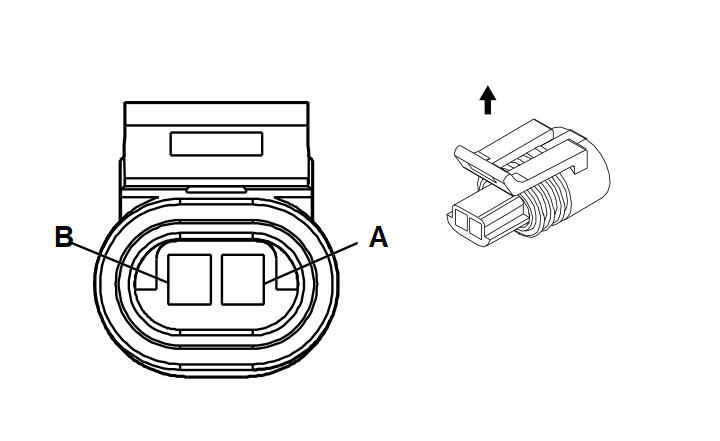

GM655692Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336024
  • 2-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A L BU 2221 Signal High - Rear
B D GN 2222 Signal Low - Rear
