Body Control System Schematics

Fig 1: Power, Ground, and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

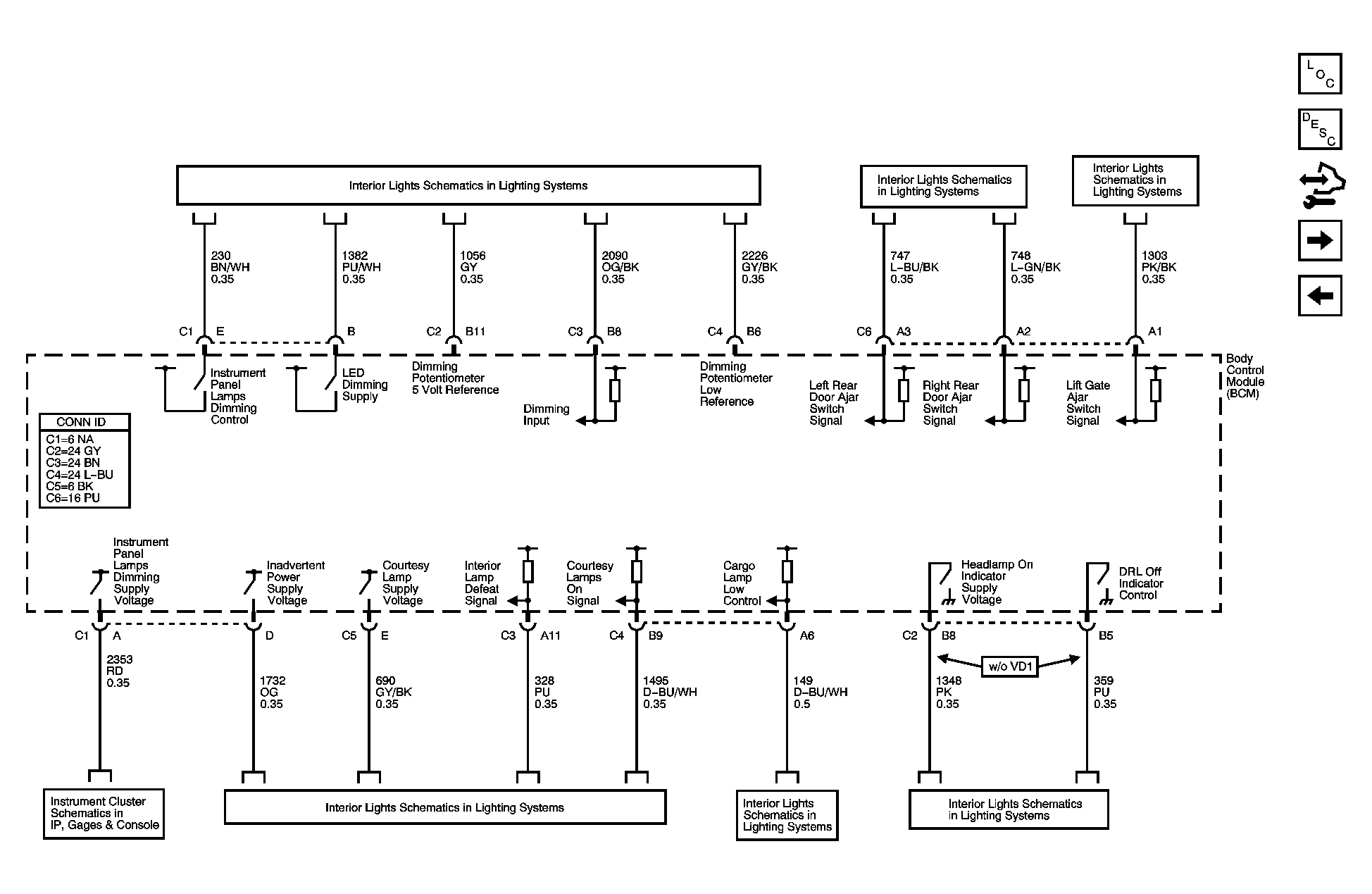

Fig 2: Interior Lights System References Schematics

Courtesy of GENERAL MOTORS CORP.

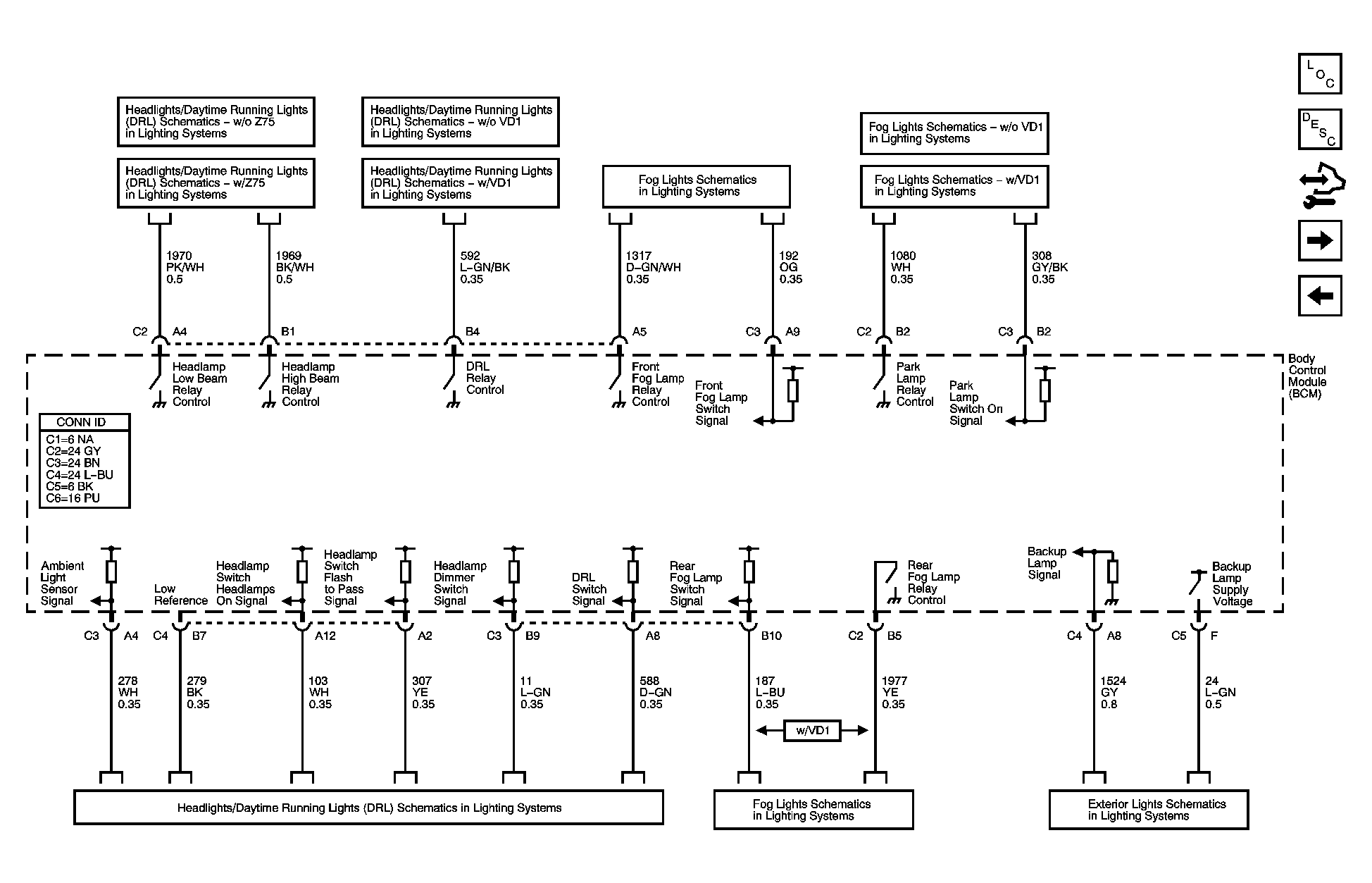

Fig 3: Exterior Lights System References Schematics

Courtesy of GENERAL MOTORS CORP.

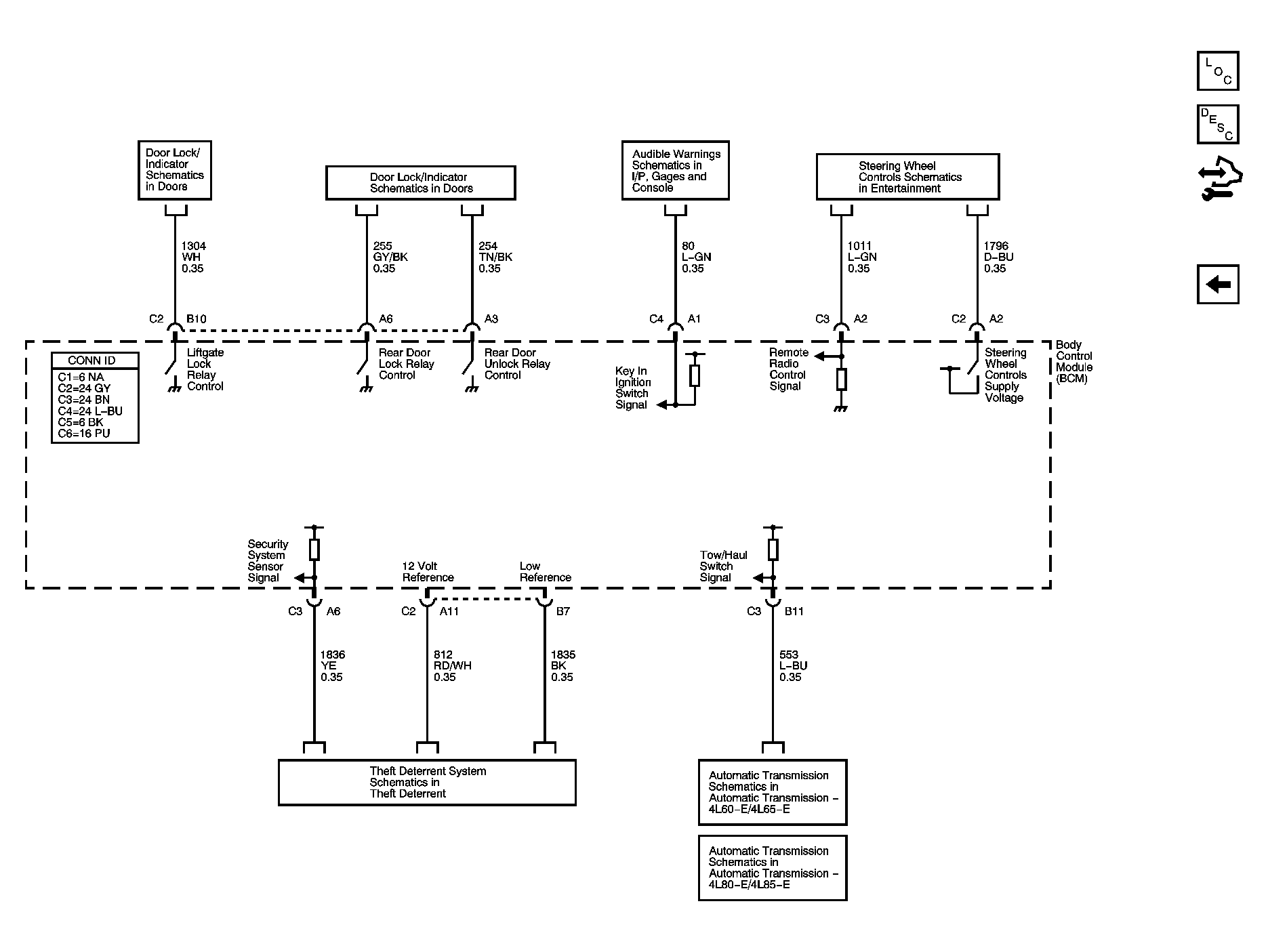

Fig 4: Controlled/Monitored Subsystem References Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

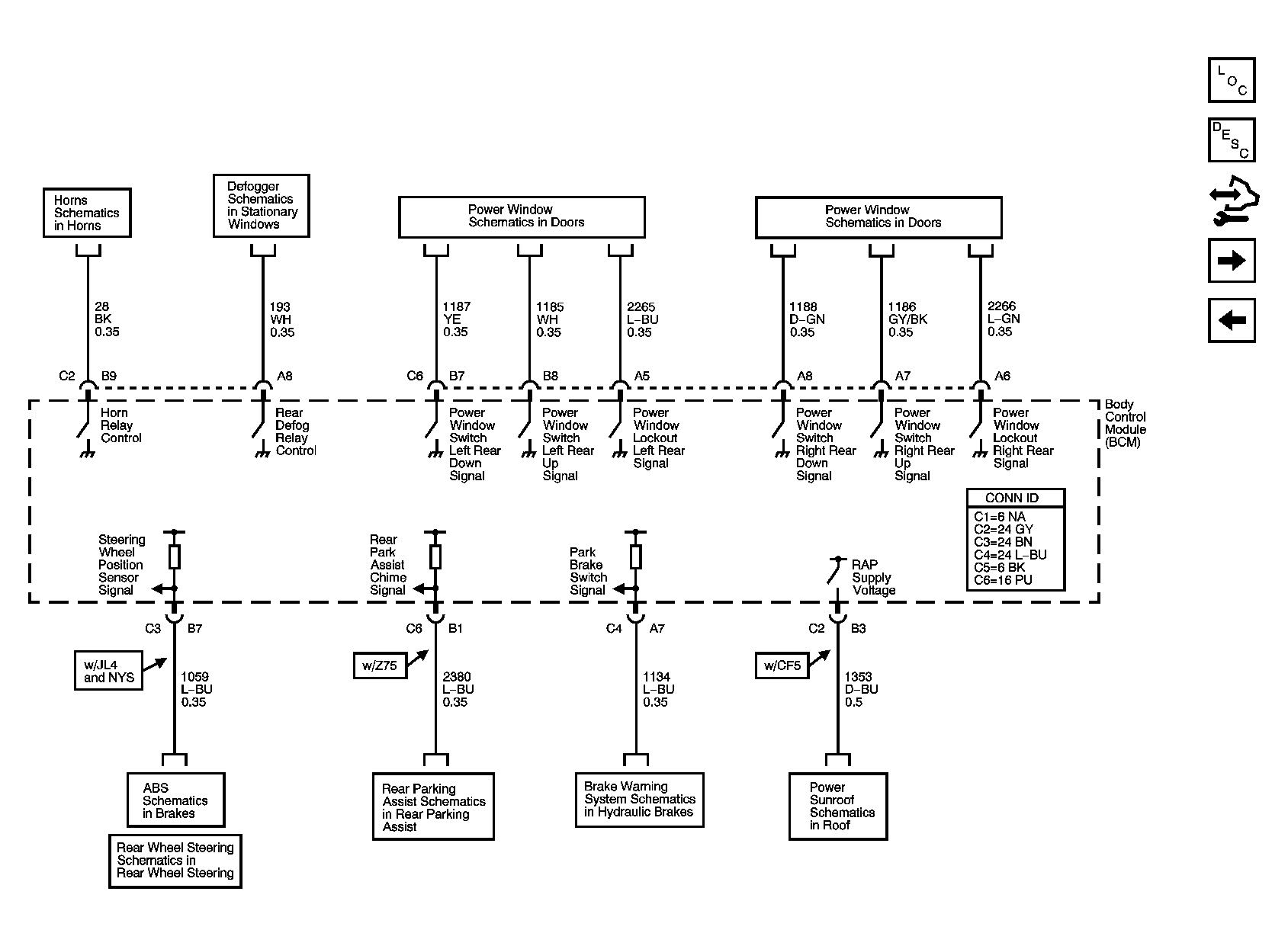

Fig 5: Controlled/Monitored Subsystem References Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.
