Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab) .
Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Crew Cab) .
Remove the window glass. Refer to Window Replacement - Rear Door .
Remove the window sash.
Remove the glass weatherstrip.
Remove the module from the door.

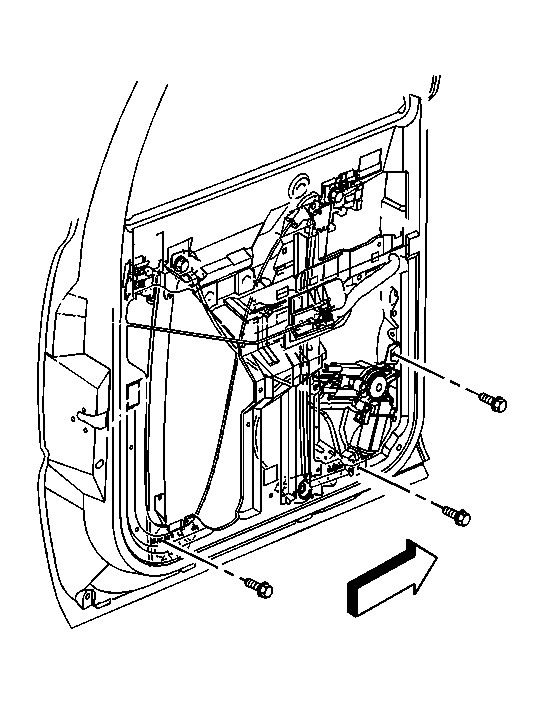

Fig 1: Removing Rear Power Window Module

Courtesy of GENERAL MOTORS CORP.
