Entertainment Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

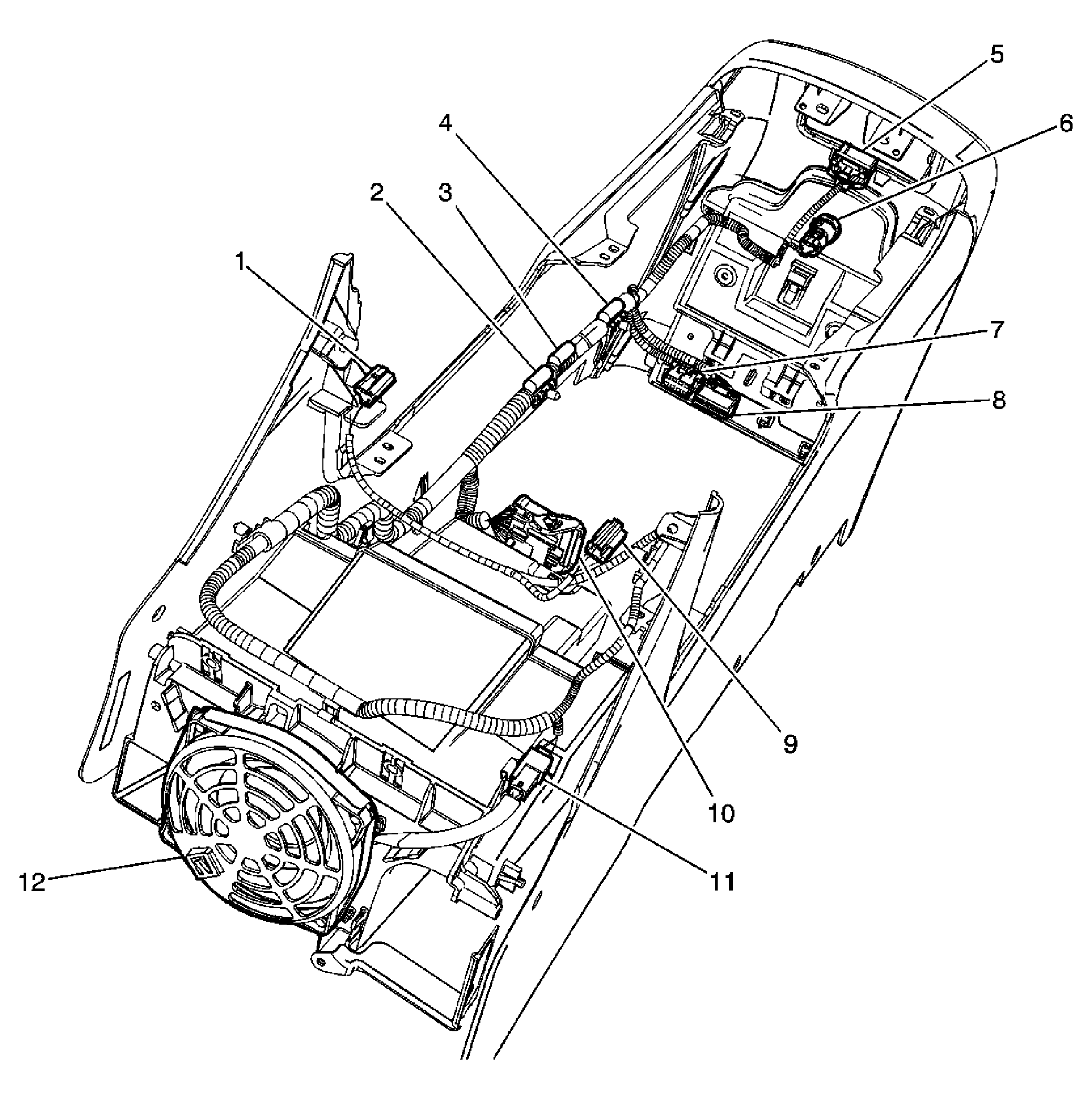

Fig 1: Console Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Front Connector
2	S333
3	S307
4	S303
5	Rear Seat Audio (RSA) Controller Connector
6	Auxiliary Power Outlet - Console Connector
7	Audio Amplifier Connector C2
8	Audio Amplifier Connector C1
9	Cigar Lighter
10	C306
11	Speaker - Subwoofer Connector
12	Speaker - Subwoofer (UQ7)

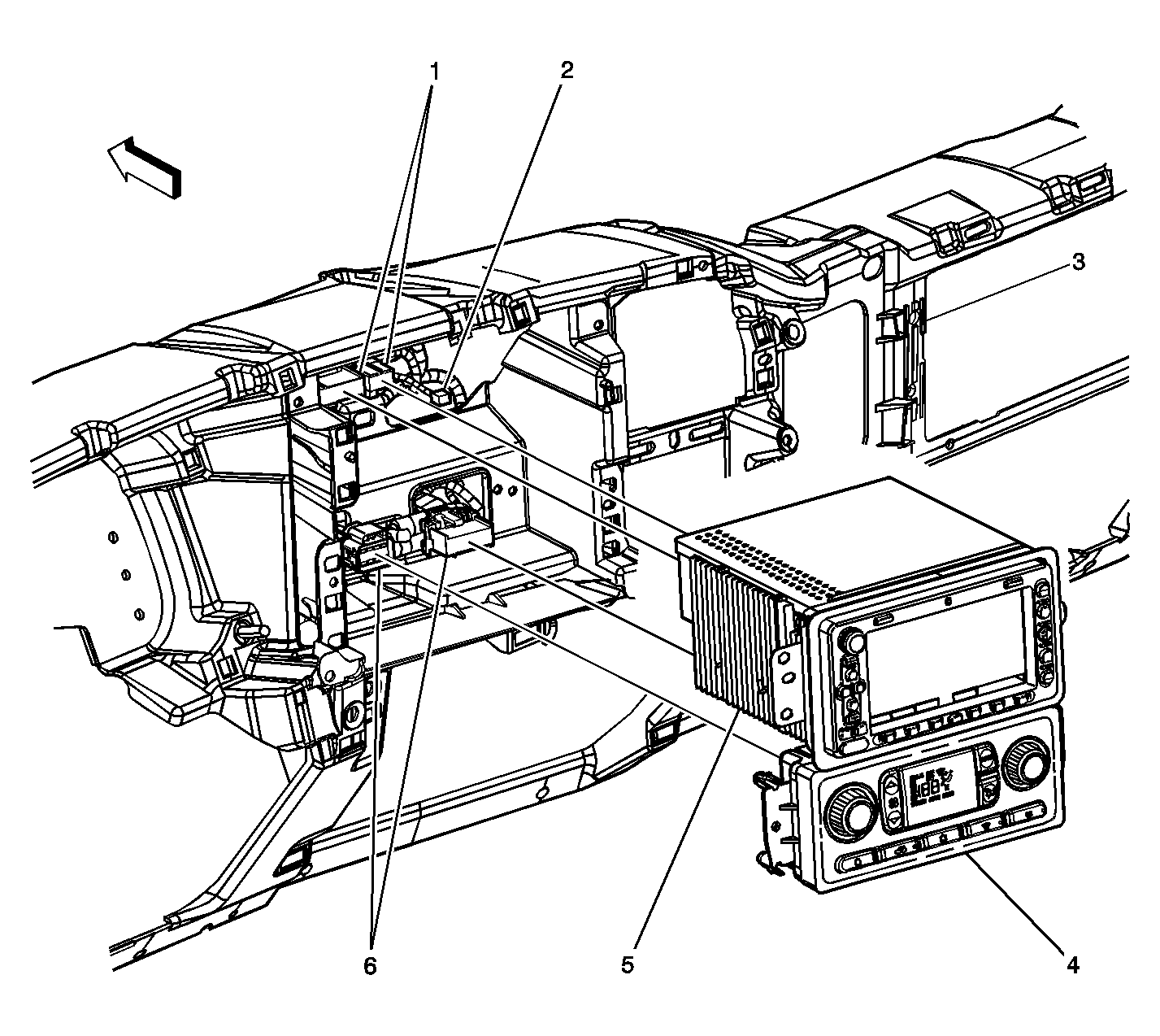

Fig 2: Radio (RPO Code UB7 w/Y91 Shown, Others Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Connectors
2	Radio Antenna
3	Instrument Panel
4	HVAC Control Module
5	Radio
6	HVAC Control Module Connectors

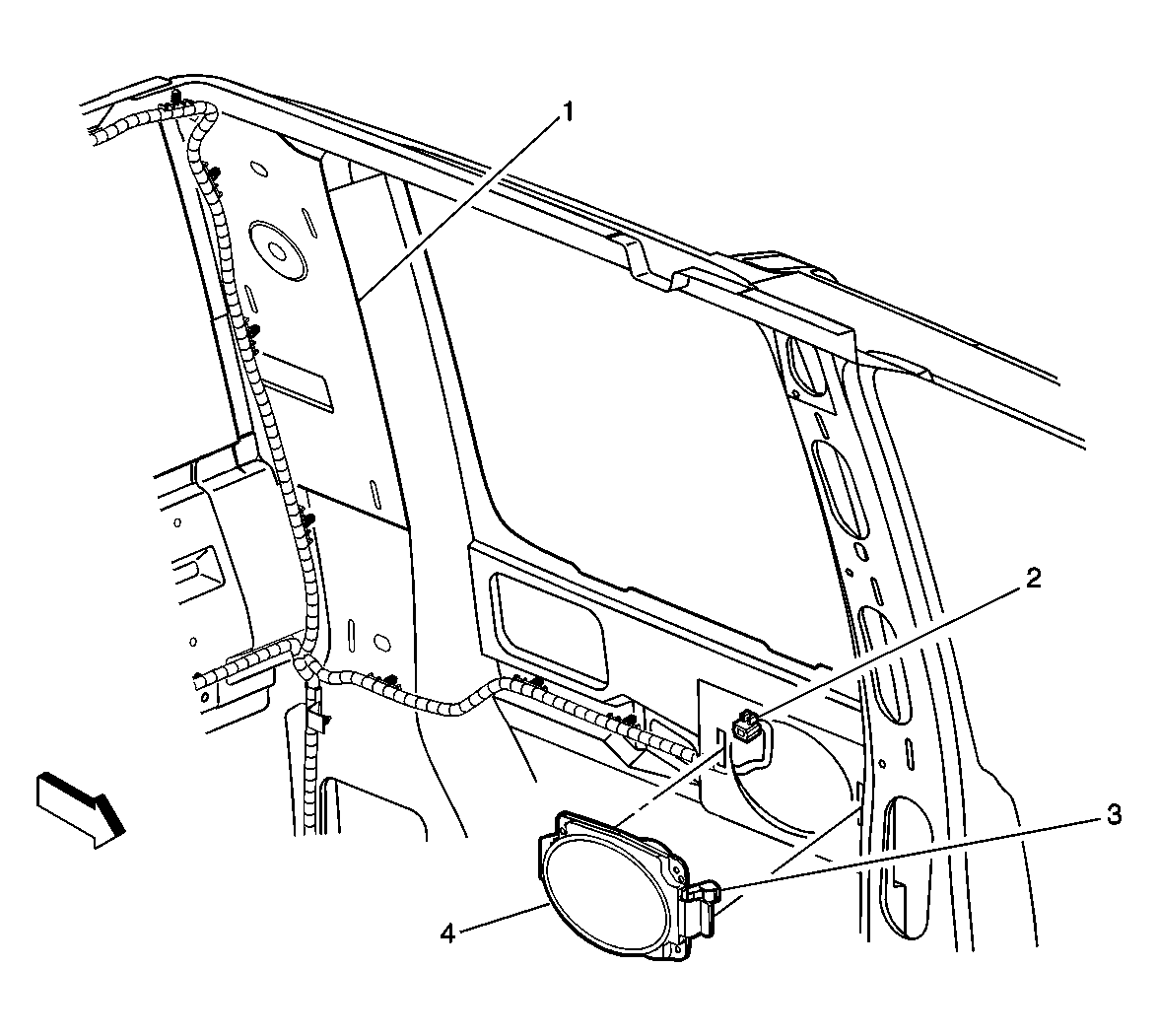

Fig 3: Speaker - LR (Extended Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inner Body Panel-LH
2	Speaker Connector - Harness
3	Electrical Connector - Speaker
4	Speaker-LR

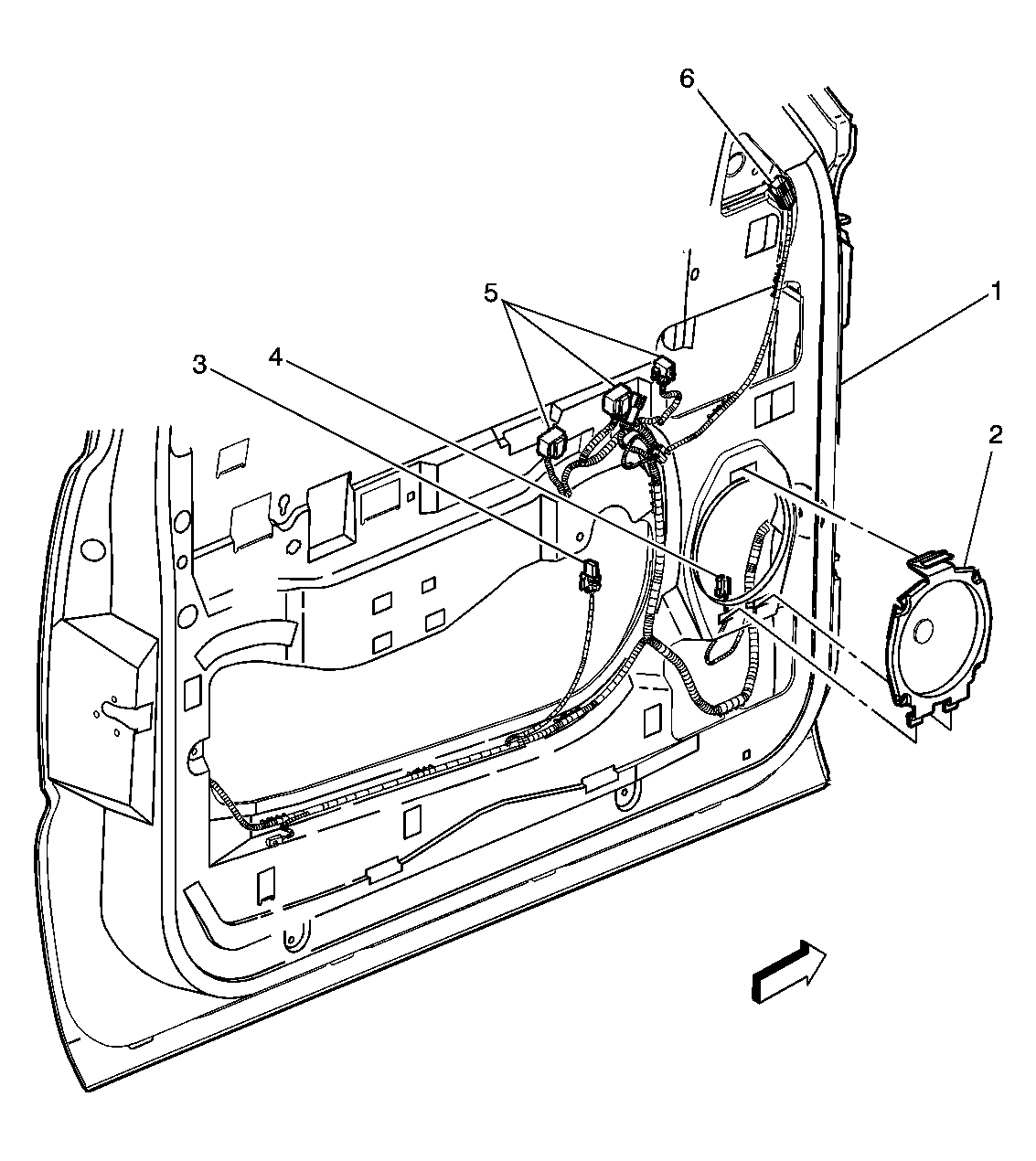

Fig 4: Speaker - RF Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door-RF
2	Speaker-RF Door
3	Speaker-RF Door Connector

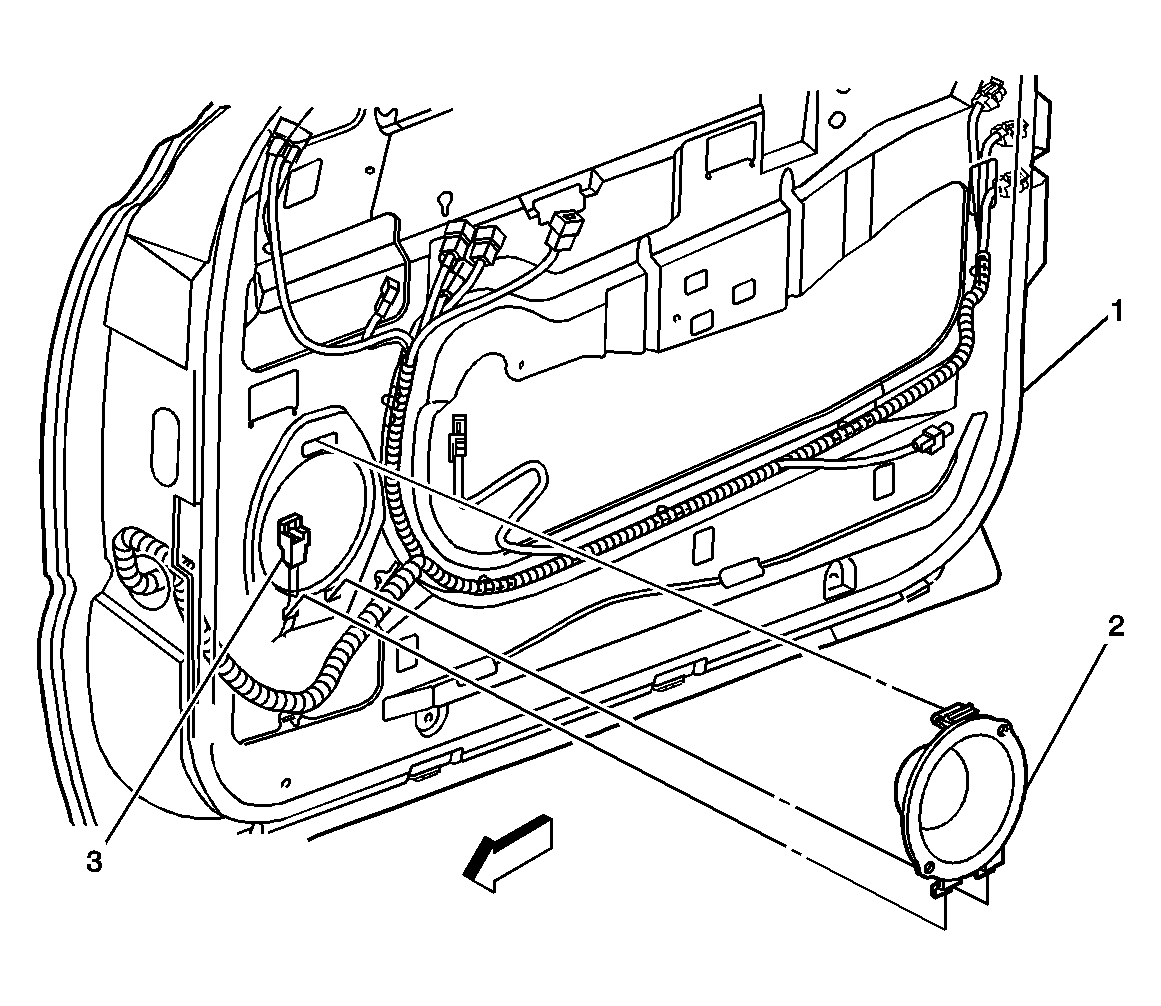

Fig 5: Speaker - LF Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door-LF
2	Speaker-LF Door
3	Window Motor-Driver Connector
4	Speaker-LF Door Connector
5	Driver Door Module (DDM) Connectors
6	Outside Rearview Mirror-Left Connector

Fig 6: Speaker - LF Tweeter (RF Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left A-Pillar Trim Panel
2	Speaker-LF Tweeter
3	Speaker-LF Tweeter Connector

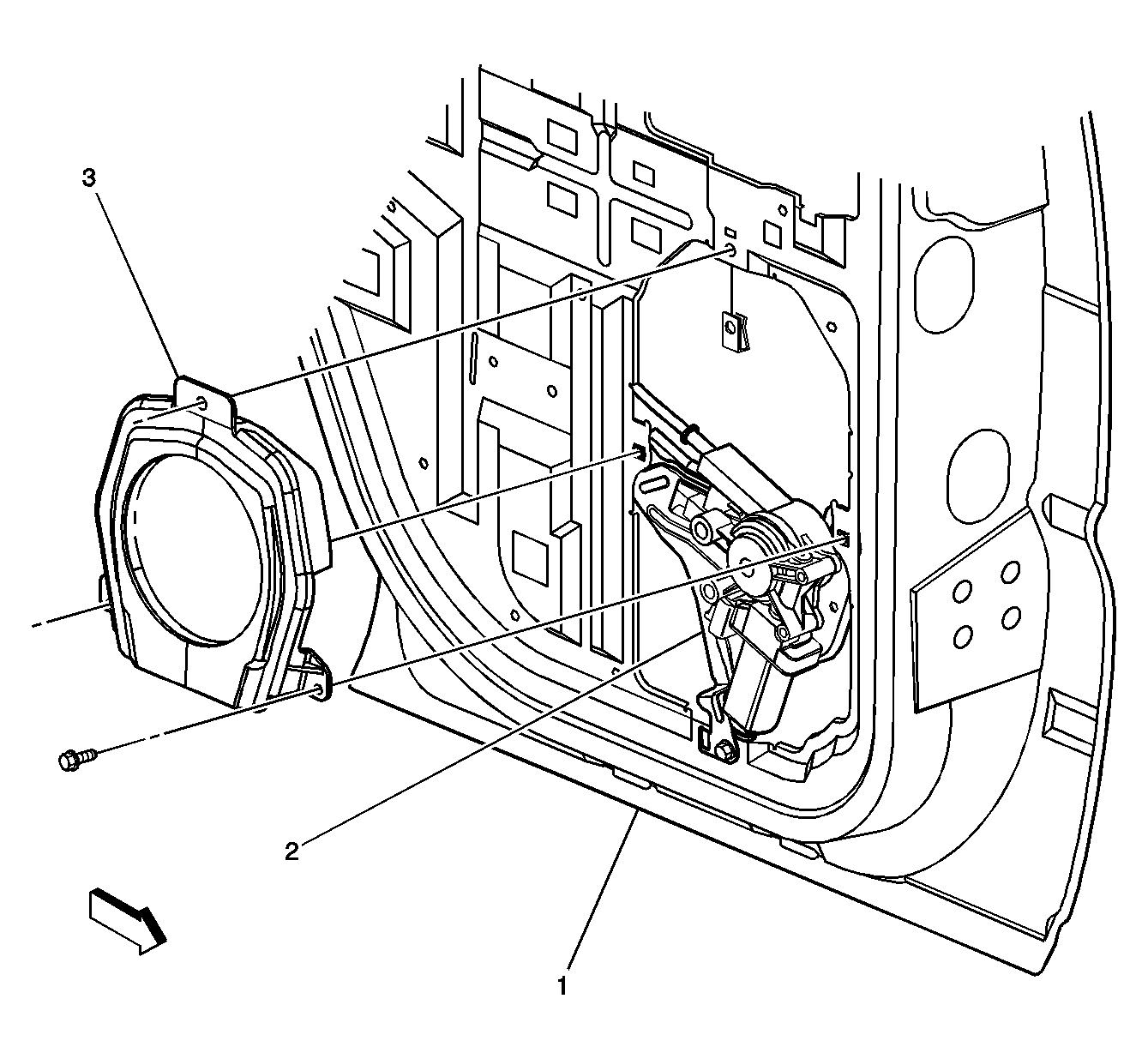

Fig 7: Speaker - LR Door (RR Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door-LR
2	Window Motor-LR
3	Speaker-LR

Fig 8: Splice Pack SP250 (RPO Code UQ7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	C202
3	SP250

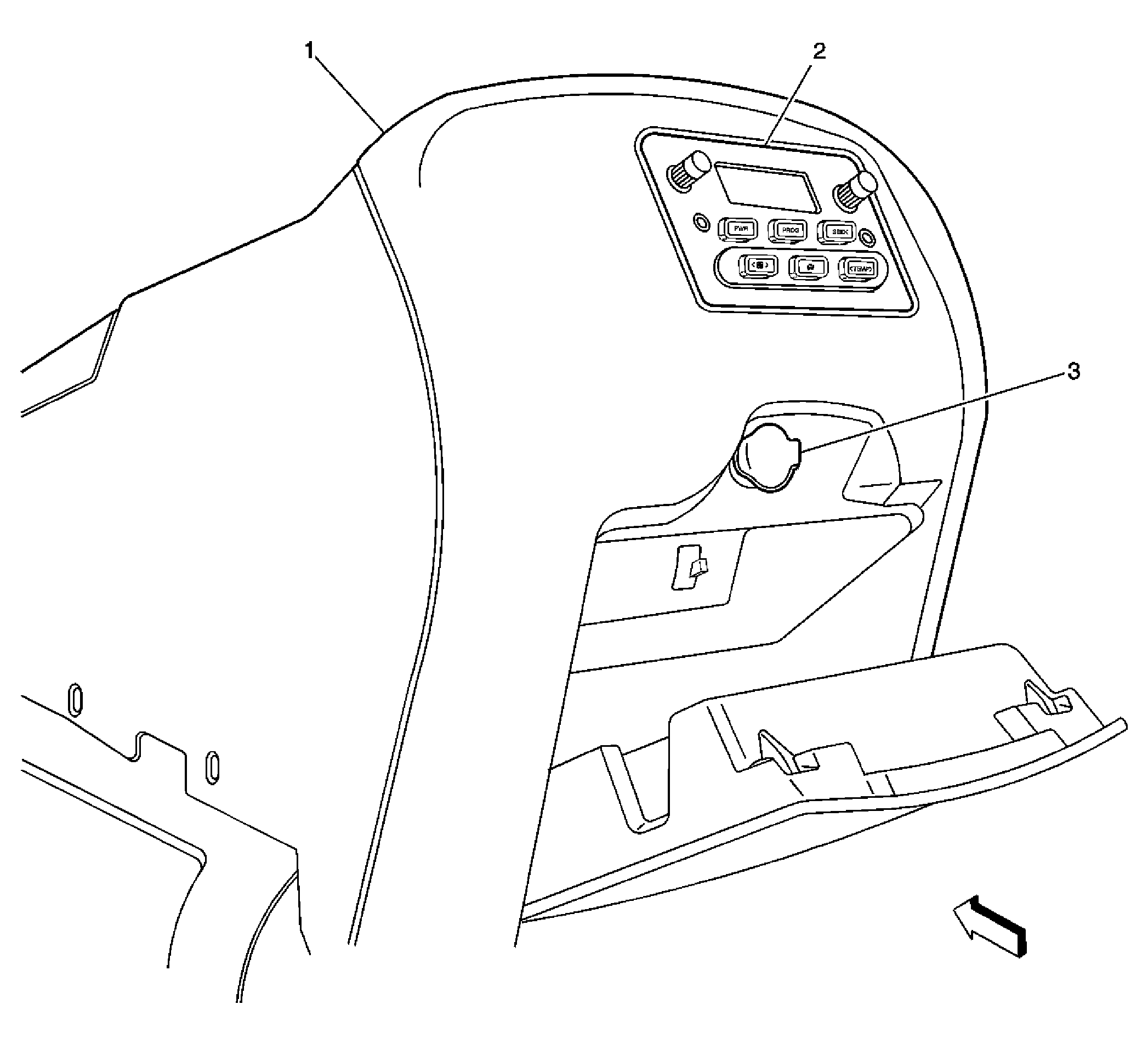

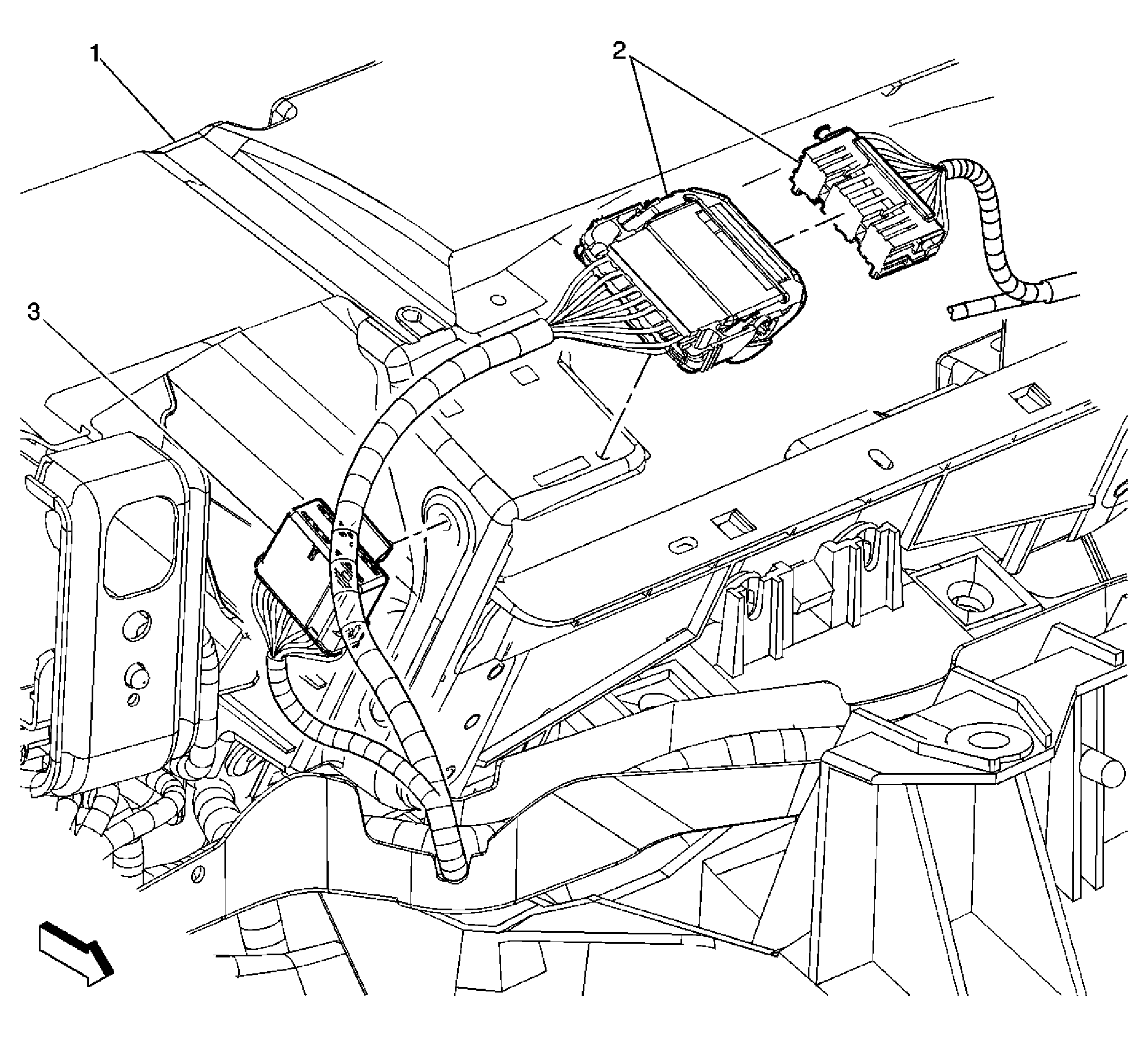

Fig 9: Rear of Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Console
2	Rear Seat Audio (RSA)/Rear HVAC Controller
3	Auxiliary Power Outlet-Console

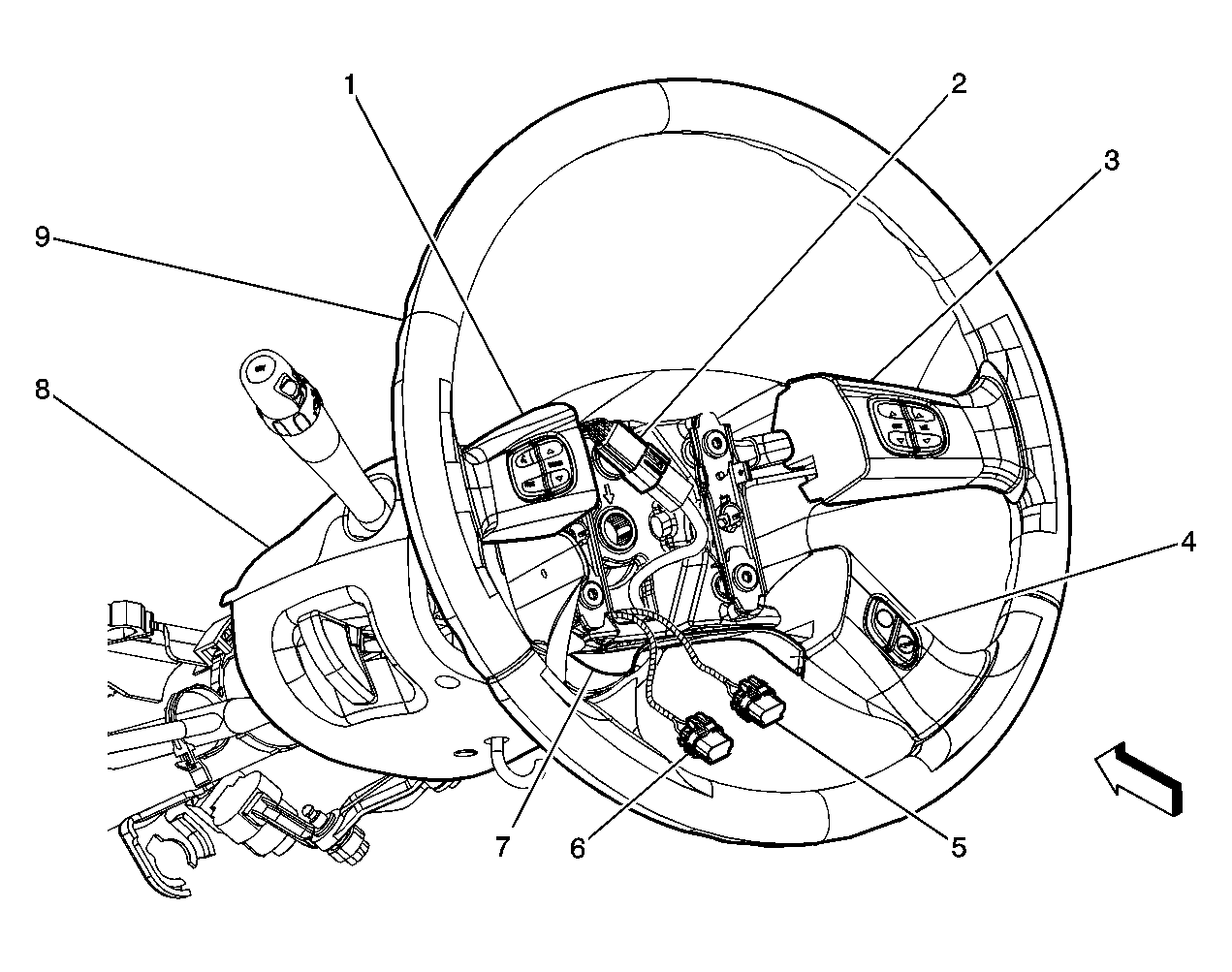

Fig 10: Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Audio Controls-Left
2	Inflatable Restraint Steering Wheel Module - C4
3	Steering Wheel Audio Controls-Right
4	Steering Wheel Driver Information Center (DIC) Controls-Right
5	Inflatable Restraint Steering Wheel Module - C3
6	Inflatable Restraint Steering Wheel Module - C2
7	Steering Wheel Driver Information Center (DIC) Controls-Left
8	Steering Column
9	Steering Wheel

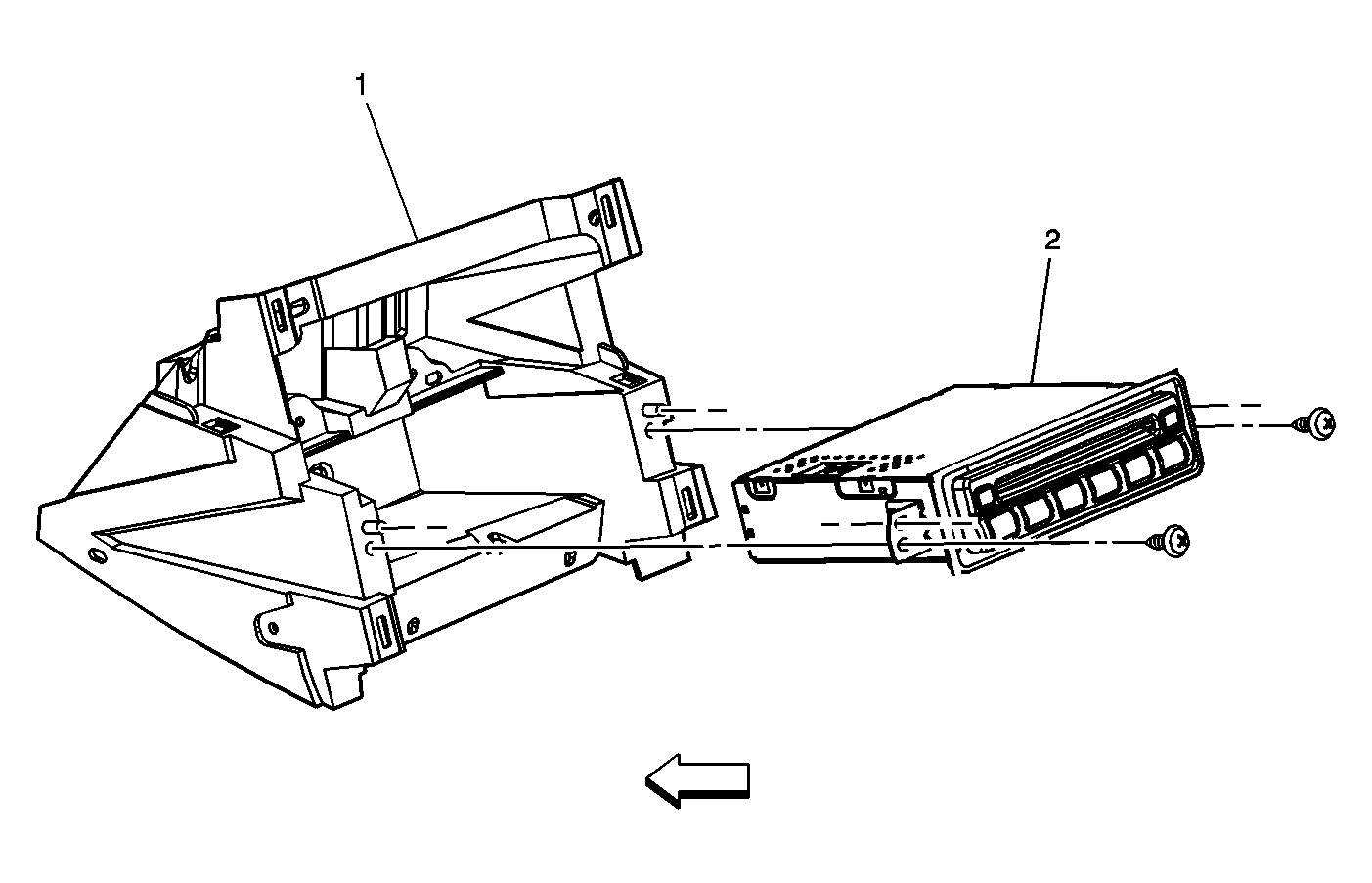

Fig 11: Remote Playback Device - CD Player

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower I/P Bezel
2	Remote Playback Device-CD Player

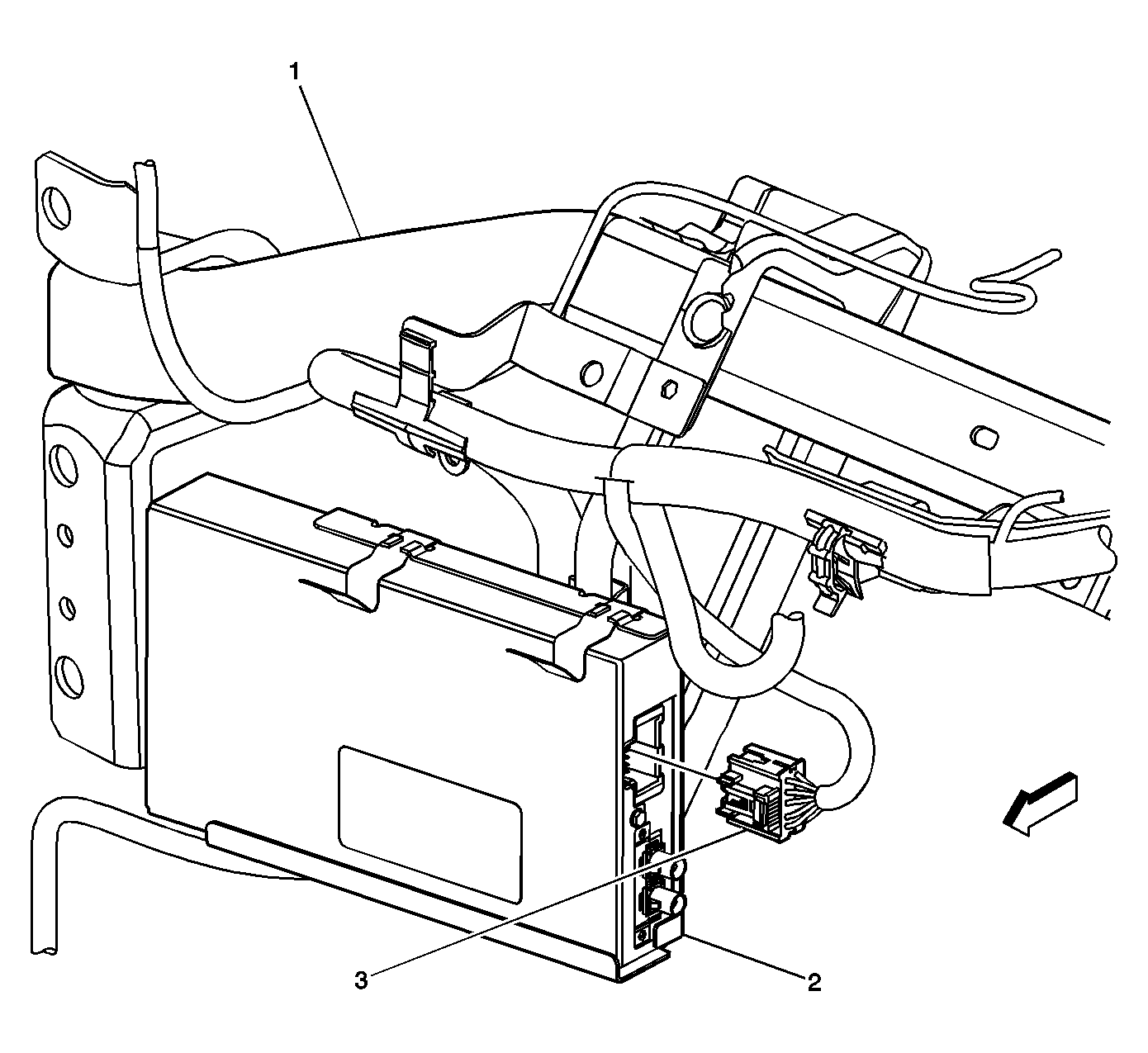

Fig 12: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Side of Instrument Panel
2	Digital Radio Receiver
3	Digital Radio Receiver Connector

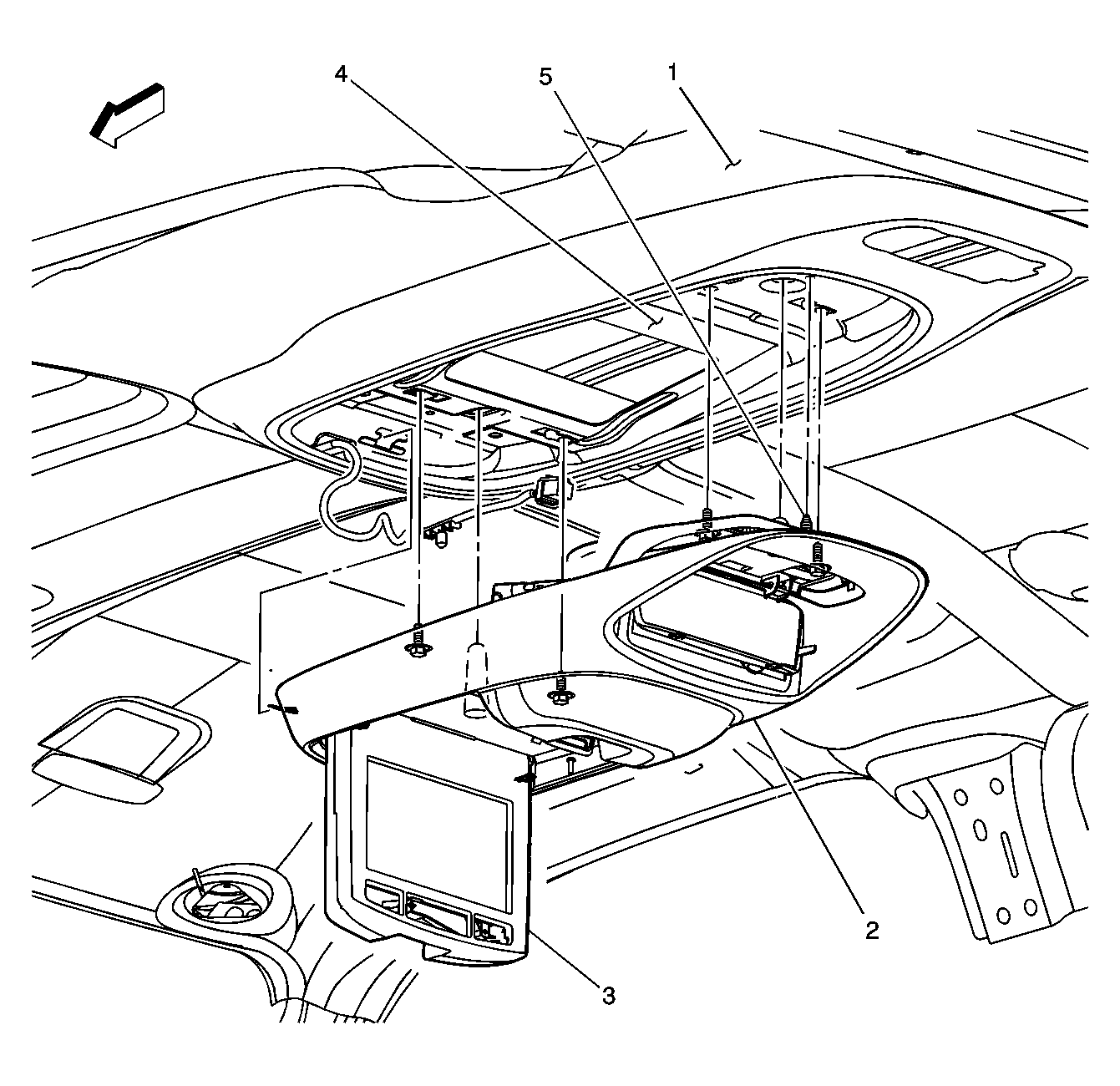

Fig 13: Rear Seat Entertainment (RSE) Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Rear Seat Entertainment (RSE) Assembly
3	Rear Seat Entertainment (RSE) Display
4	Intermediate Bracket
5	Fir Tree Retainer

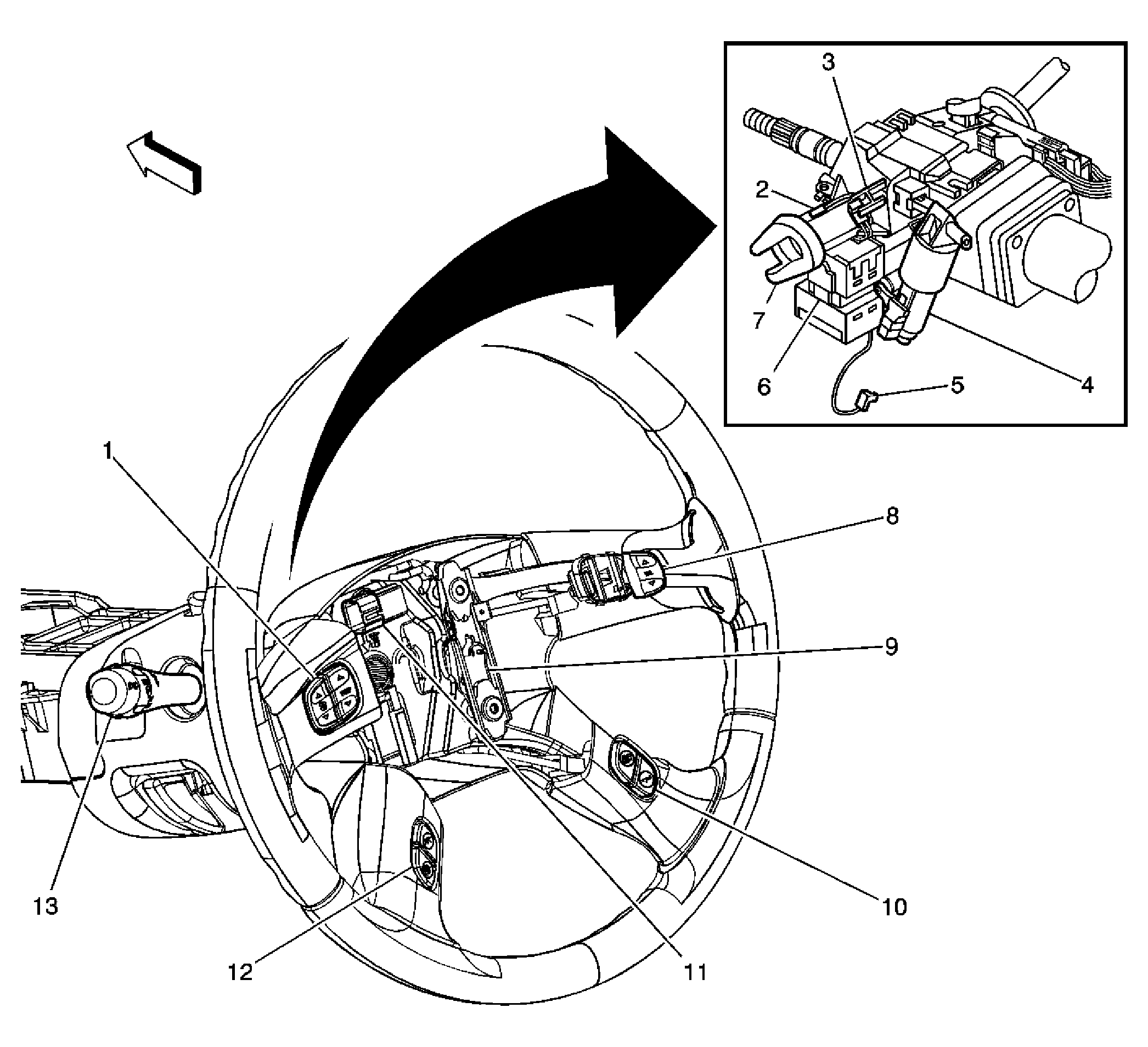

Fig 14: Steering Wheel and Column Sub-System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Audio Controls - Left
2	Passlock Sensor Connector
3	Ignition Key Alarm Switch
4	Ignition Lock Cylinder Control Actuator
5	Ignition Lock Cylinder Control Actuator Connector
6	Ignition Switch
7	Ignition Key Cylinder
8	Steering Wheel Audio Controls - Right
9	Horn Switch
10	Steering Wheel Driver Information (DIC) Controls - Right
11	C277
12	Steering Wheel Driver Information Center (DIC) Controls - Left
13	Turn Signal/Multifunction Switch
