Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the CD player to the console till the tabs locks in place.

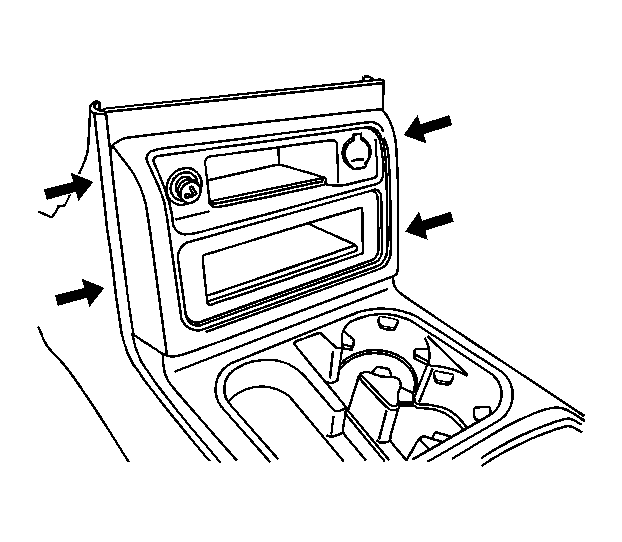

    2. Fig 1: Installing Bezel To Console
    GM882679Courtesy of GENERAL MOTORS CORP.
  2. Place the bezel to the console.
  3. Connect the electrical connectors.
  4. Install the bezel to the console by pushing on the corners till the retainers clicks in place.
  5. Install the I/P cluster bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
