Cruise Control Schematics

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

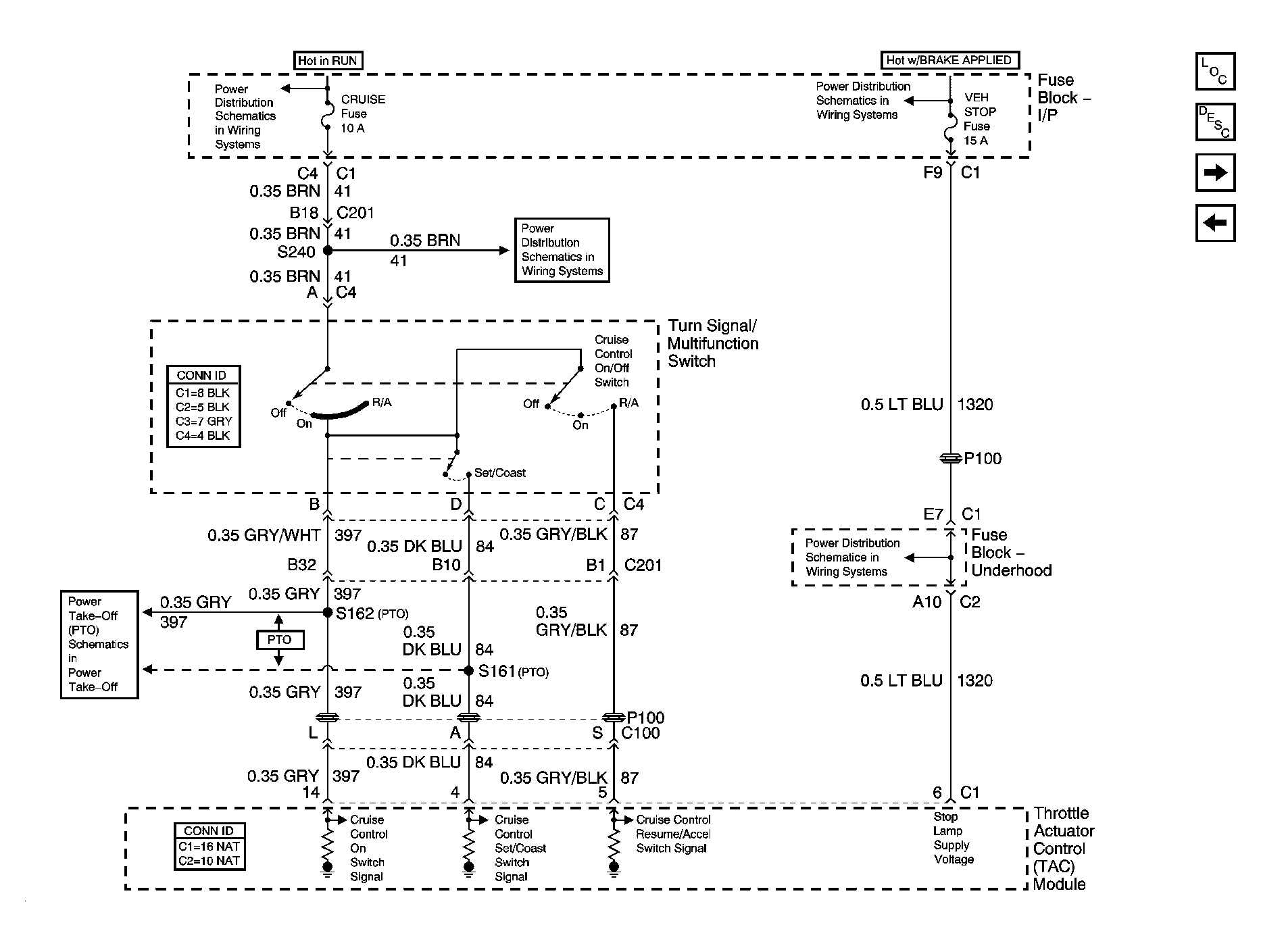

Fig 1: Cruise Control Schematic: 4.3L - 1 of 2

Courtesy of GENERAL MOTORS CORP.

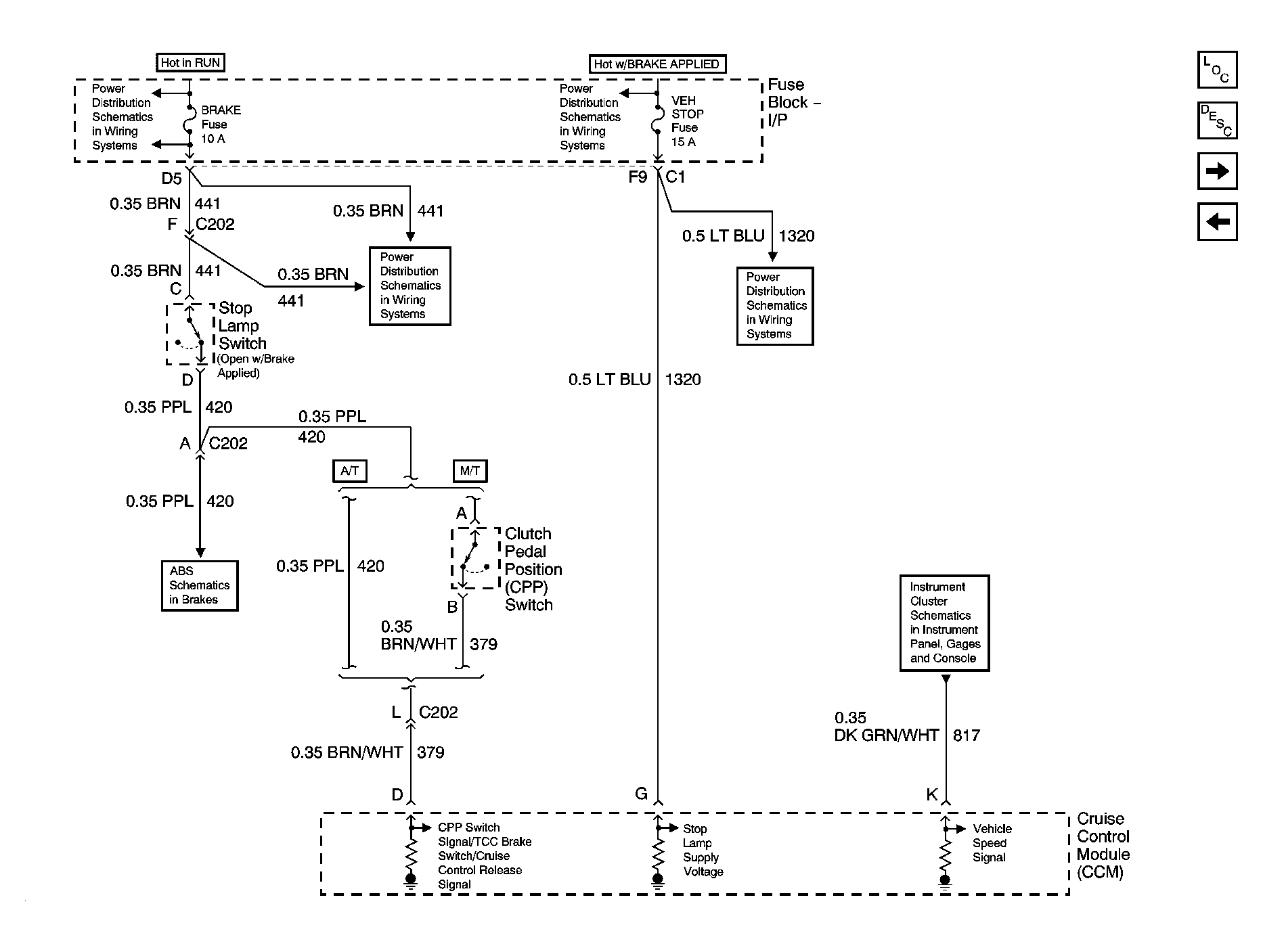

Fig 2: Cruise Control Schematic: 4.3L - 2 of 2

Courtesy of GENERAL MOTORS CORP.

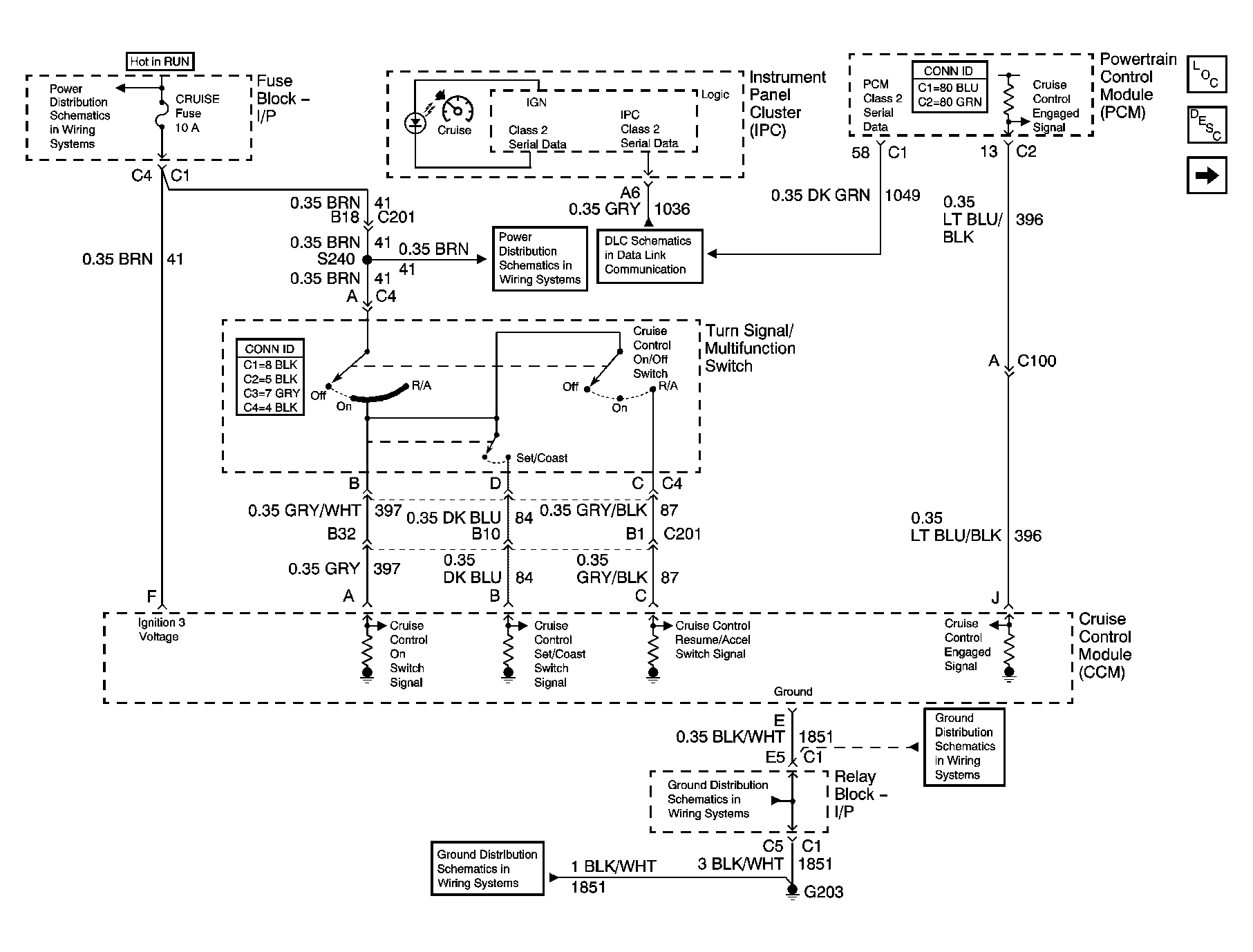

Fig 3: Cruise Control Schematic: 4.8, 5.3, 6.0, and 8.1L - 1 of 2

Courtesy of GENERAL MOTORS CORP.

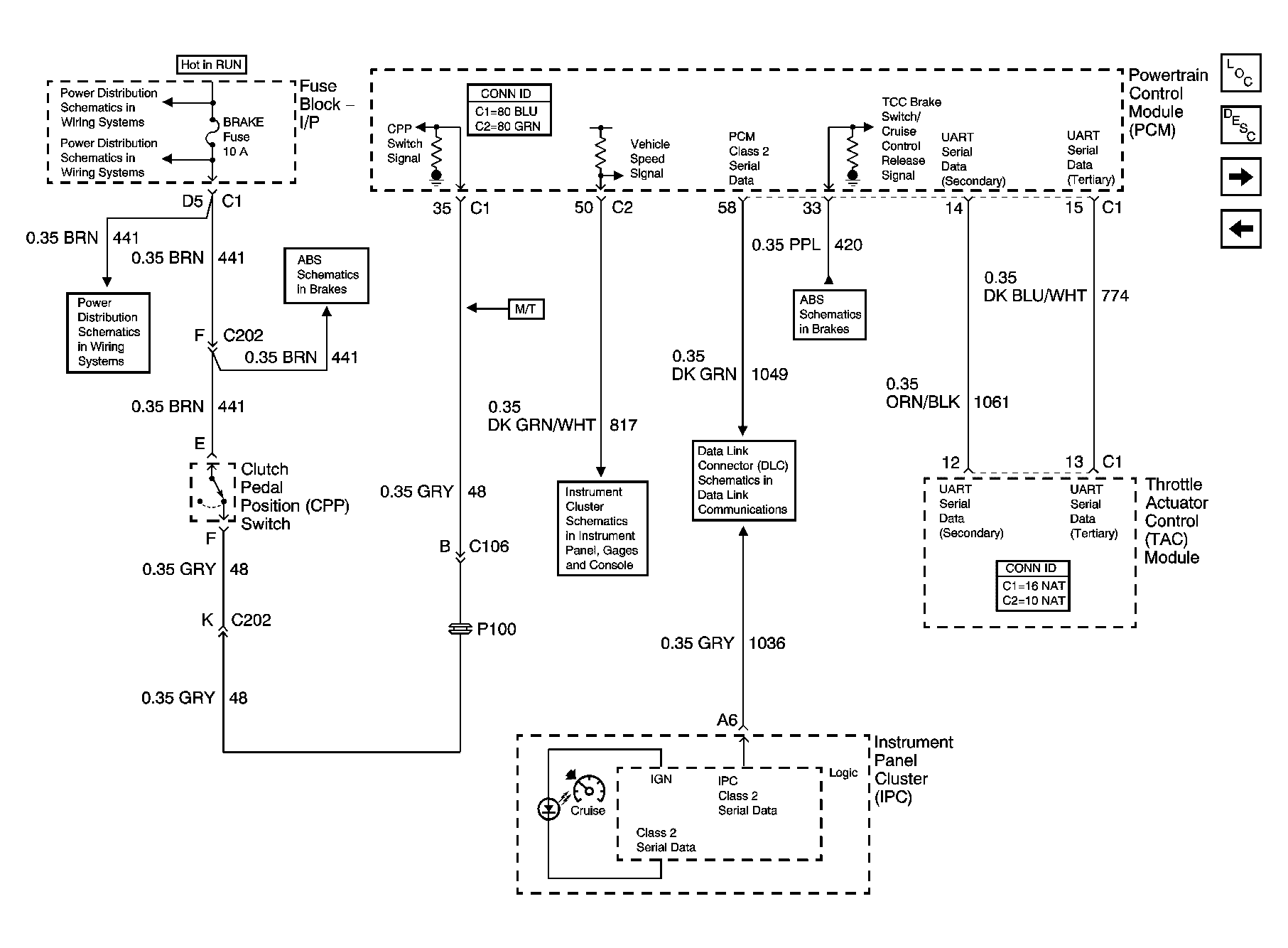

Fig 4: Cruise Control Schematic: 4.8, 5.3, 6.0, and 8.1L - 2 of 2

Courtesy of GENERAL MOTORS CORP.

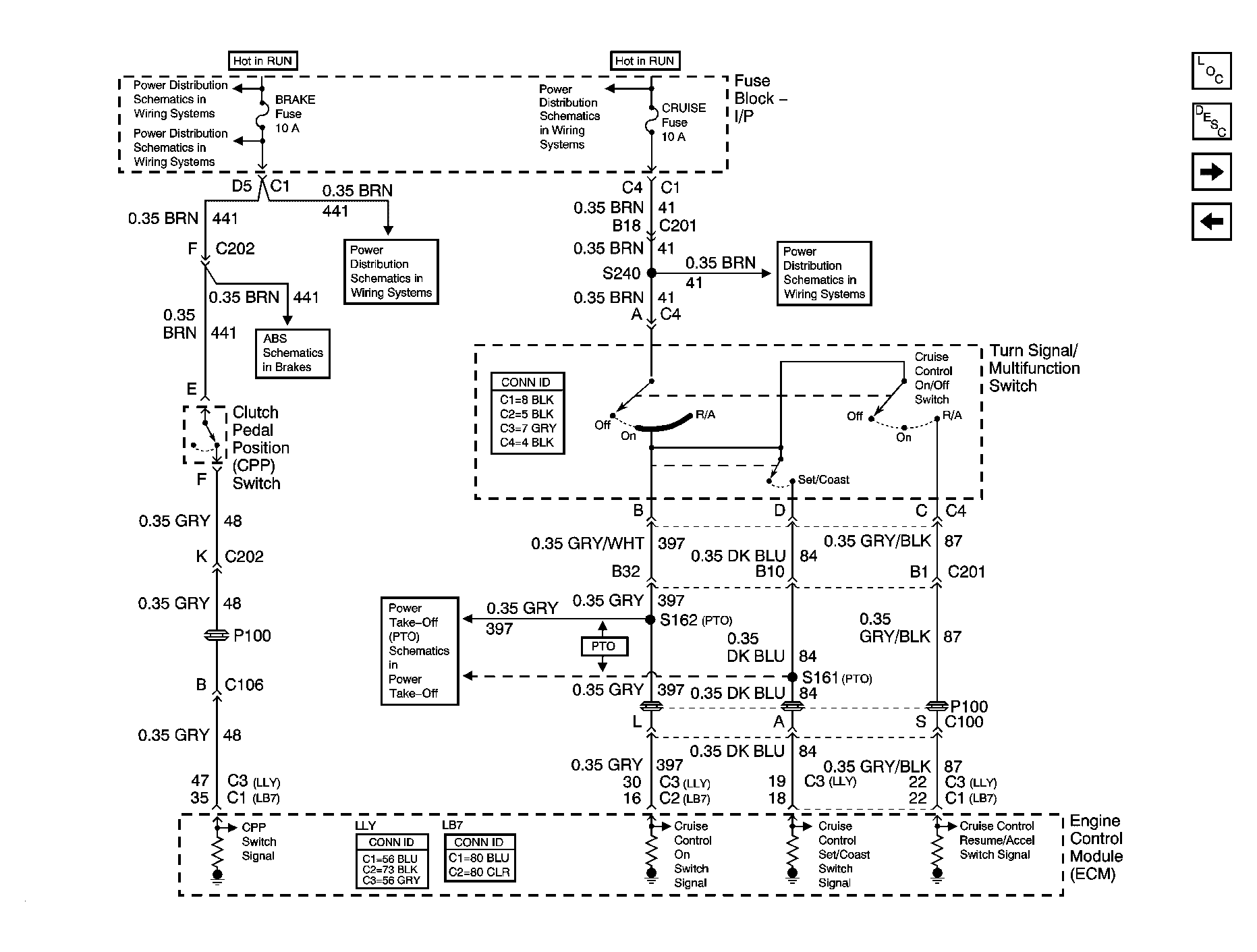

Fig 5: Cruise Control Schematic: Diesel - 1 of 2

Courtesy of GENERAL MOTORS CORP.

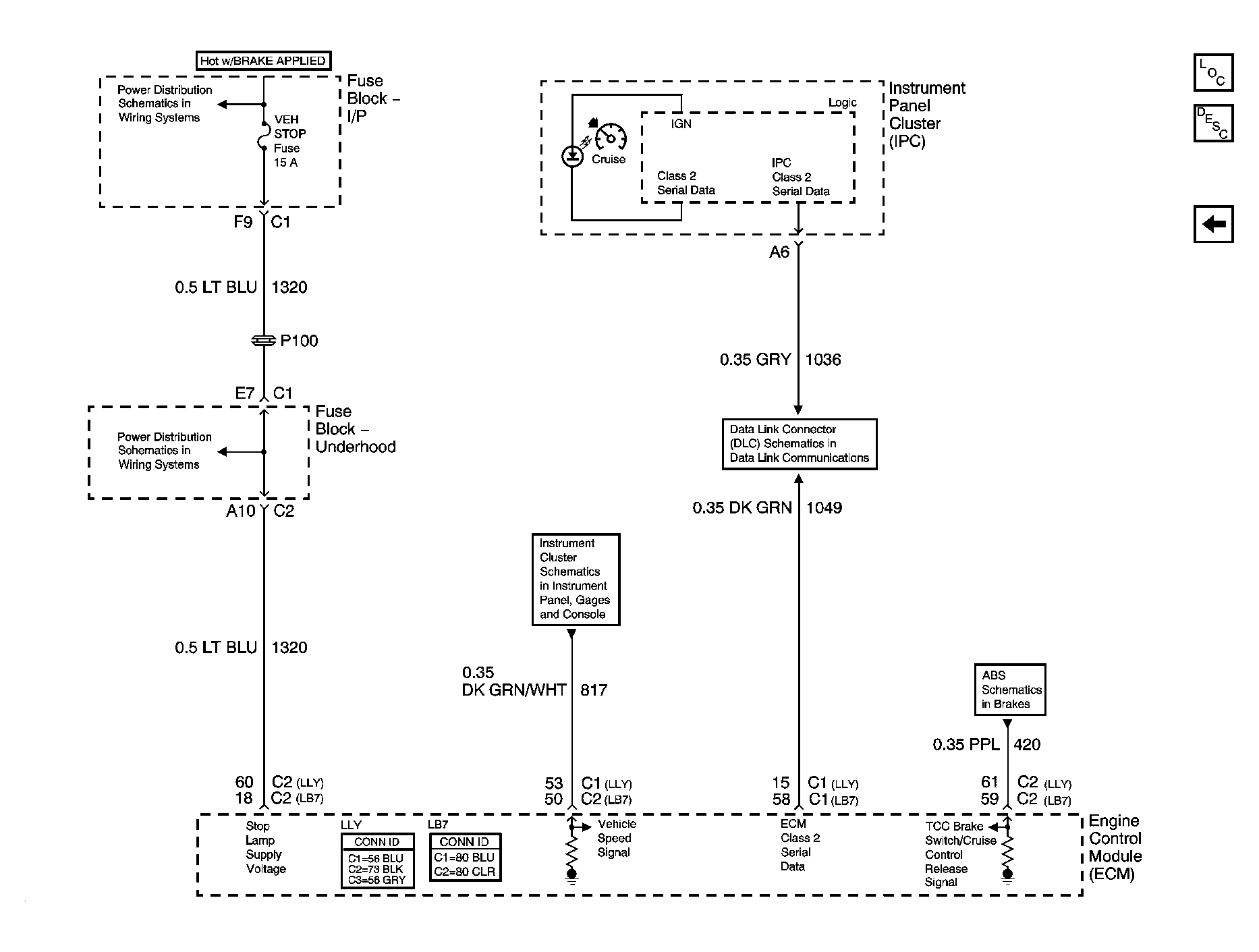

Fig 6: Cruise Control Schematic: Diesel - 2 of 2

Courtesy of GENERAL MOTORS CORP.
