Steering Controls Connector End Views

Steering Angle Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 12064978 Service: 12125678 6-Way F Micro-Pack 100 Series (GY)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function
1	GY/BK	1337	5 Volt Reference
2	L-GN/BK	1338	Low Reference
3-4	-	-	Not Used
5	L-GN	1763	Steering Wheel Position Signal A
6	L-BU	1764	Steering Wheel Position Signal B

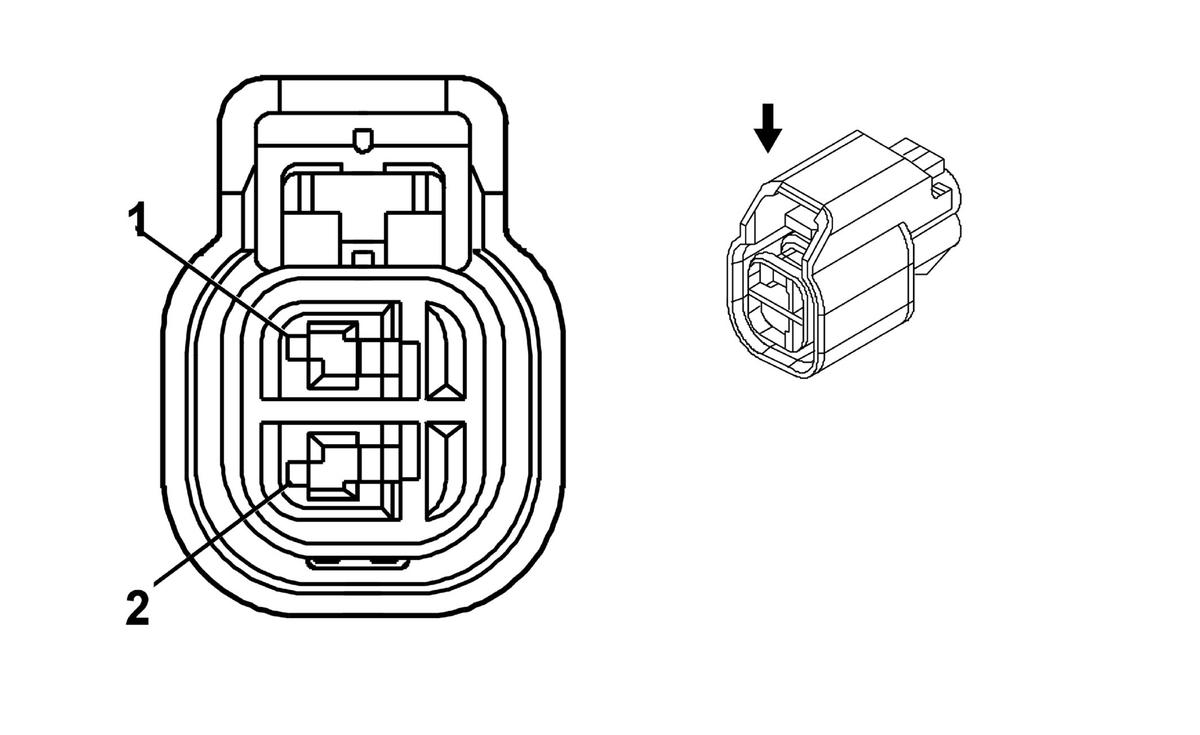

Variable Effort Steering Actuator Connector End View (w/NV7)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 963040-1 Service: 2-Way F Junior Power Timer Series (BU)
Pin	Wire Color	Circuit No.	Function
1	GY	1787	Variable Effort Steering Actuator High Effort Control
2	WH	345	Variable Effort Steering Actuator Low Effort Control

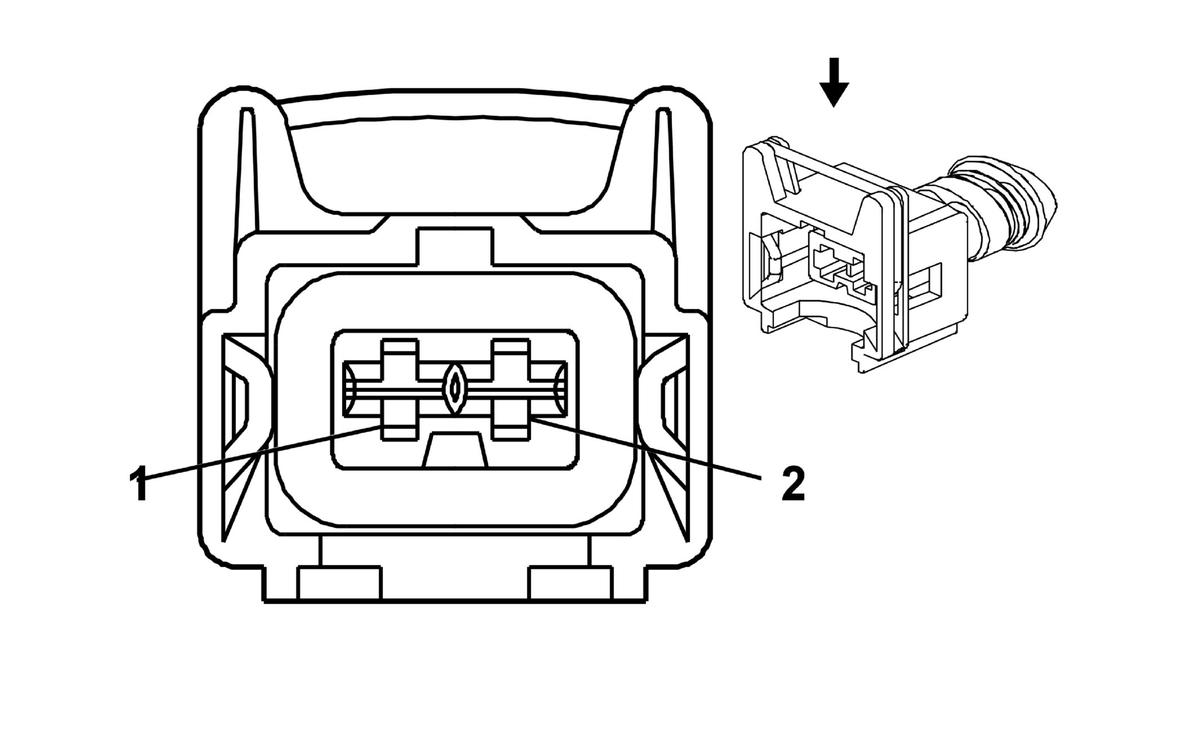

Variable Effort Steering Actuator Connector End View (w/o NV7)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: E3550 Service: 2-Way F Sealed 1.5 mm (BK)
Pin	Wire Color	Circuit No.	Function
1	GY	1787	Variable Effort Steering Actuator High Effort Control
2	WH	345	Variable Effort Steering Actuator Low Effort Control
