Installation Procedure

  1. Install the traction control switch (2) to the trim plate.

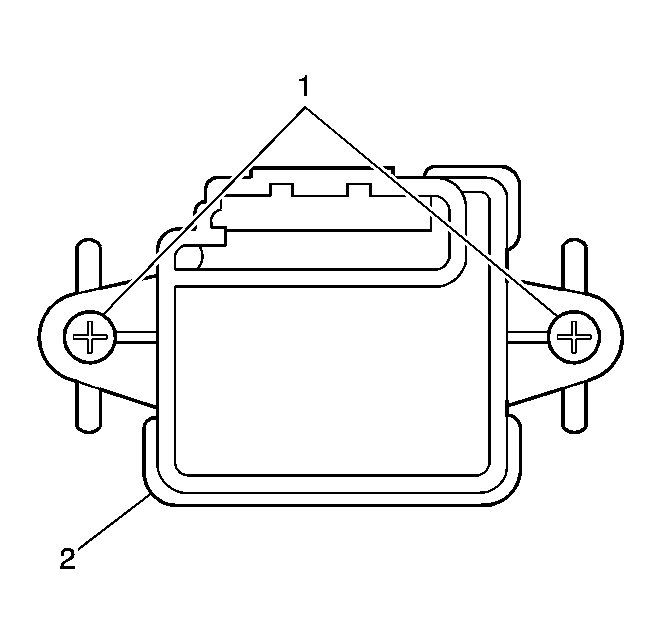

    2. Fig 1: View Of Traction Control Switch & Mounting Screws
    GM1250989Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the two traction control mounting screws (1).

    Tighten:  Tighten the two traction control mounting screws to 2 N.m (18 lb in).

  3. Connect the traction control electrical connector.
  4. Install the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement in Instrument Panel, Gages, and Console.
