Installation Procedure

    Fig 1: View Of Left Ignition Coil Assembly, Bolts & Ball Studs
    GM928220Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the spark plug seals are in place when installing the ignition module assembly.
  1. Install the ignition module assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the ignition module retaining bolts.

    Tighten:  Tighten the ignition module retaining bolts and studs to 10 N.m (89 lb in).

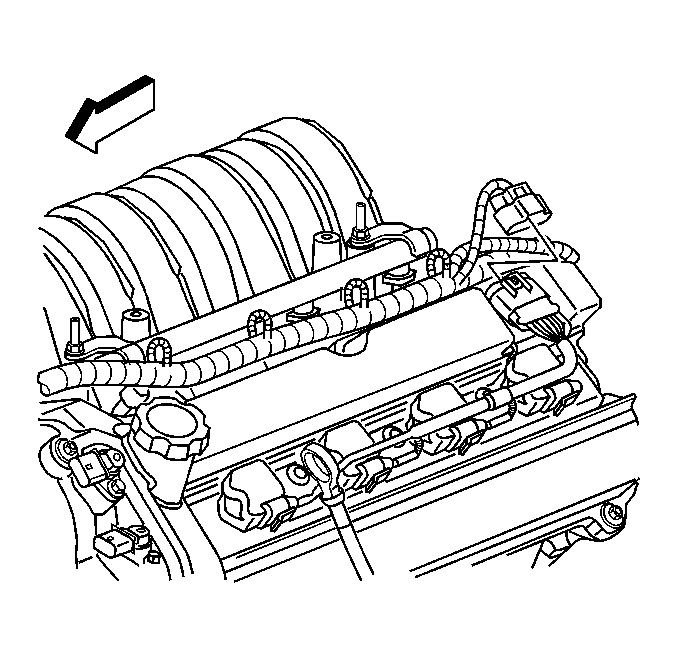

    3. Fig 2: View Of Ignition Module Assembly Wiring Harness Electrical Connector - Bank 2
    GM887911Courtesy of GENERAL MOTORS CORP.
  3. Reconnect the ignition module electrical connector.

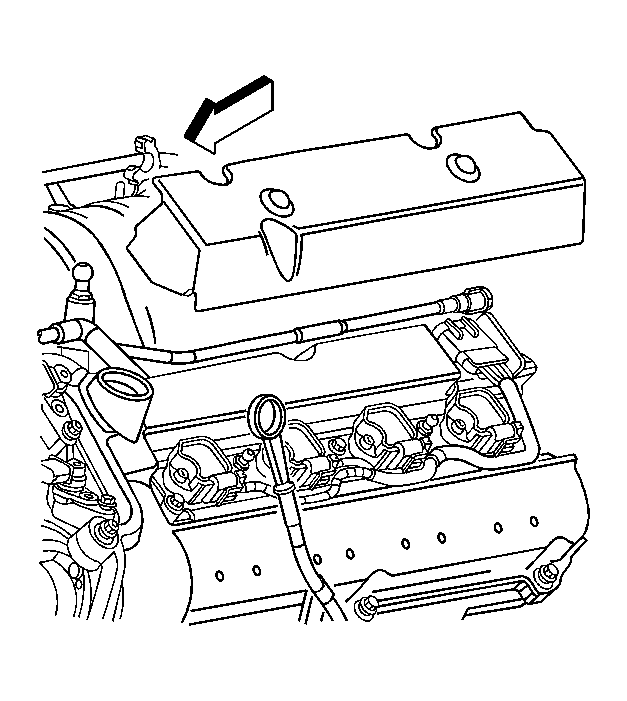

    4. Fig 3: View Of Ignition Coil Cover - Bank 2
    GM1235153Courtesy of GENERAL MOTORS CORP.
  4. Install the ignition coil cover to the cam cover.
  5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 4.6L (LH2).
