Control Module, A/T

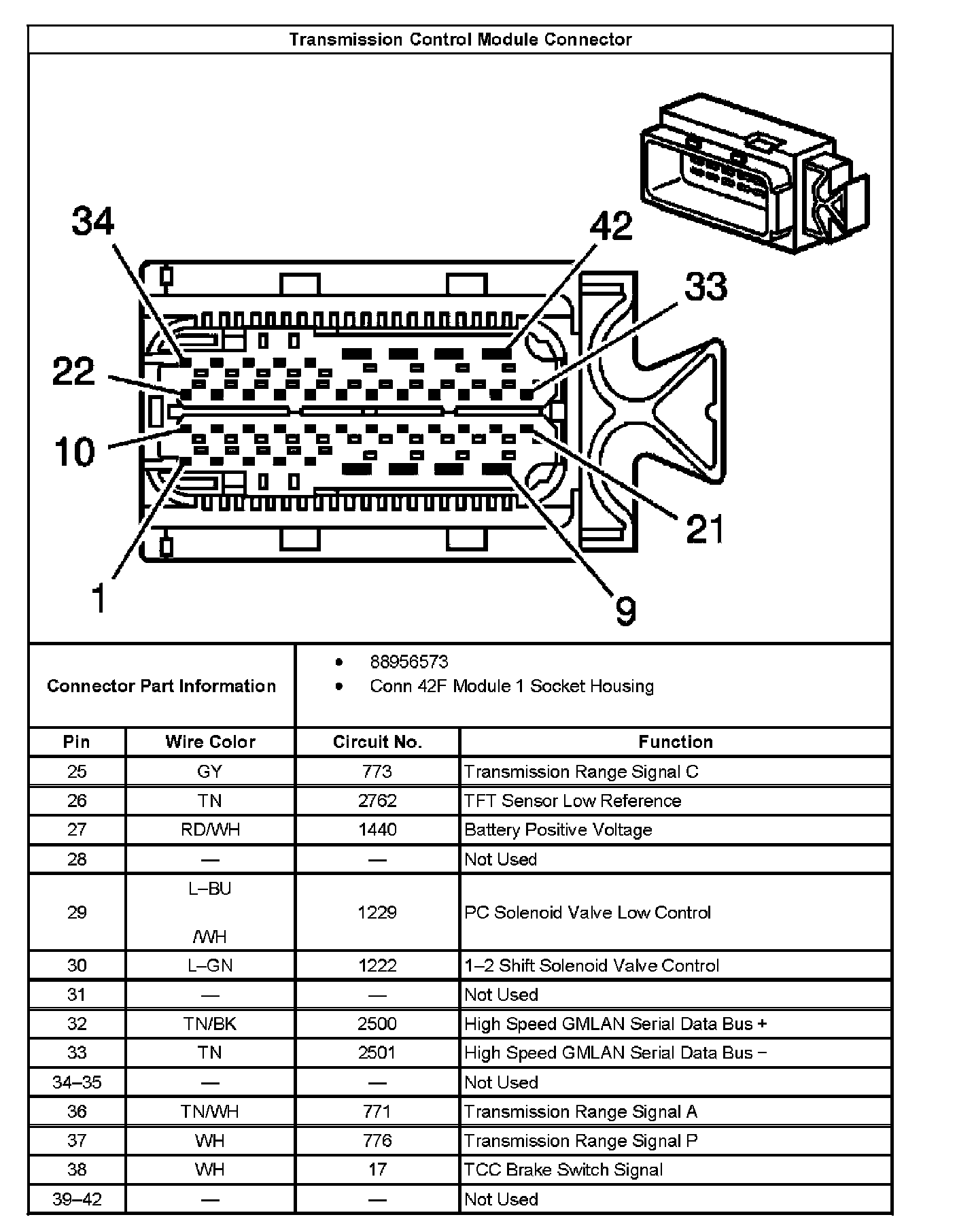

Transmission Control Module Connector:

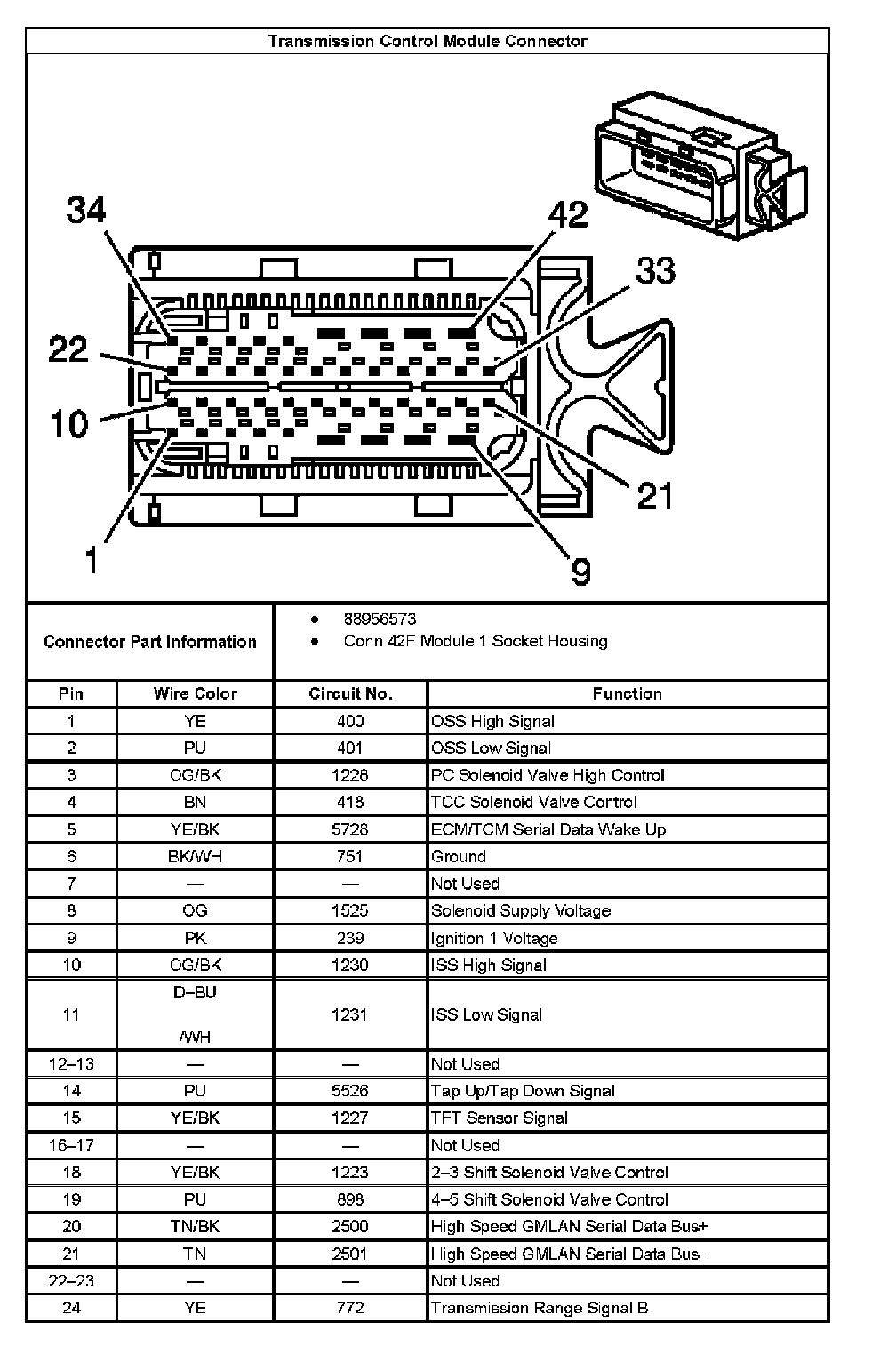

Transmission Control Module Connector:

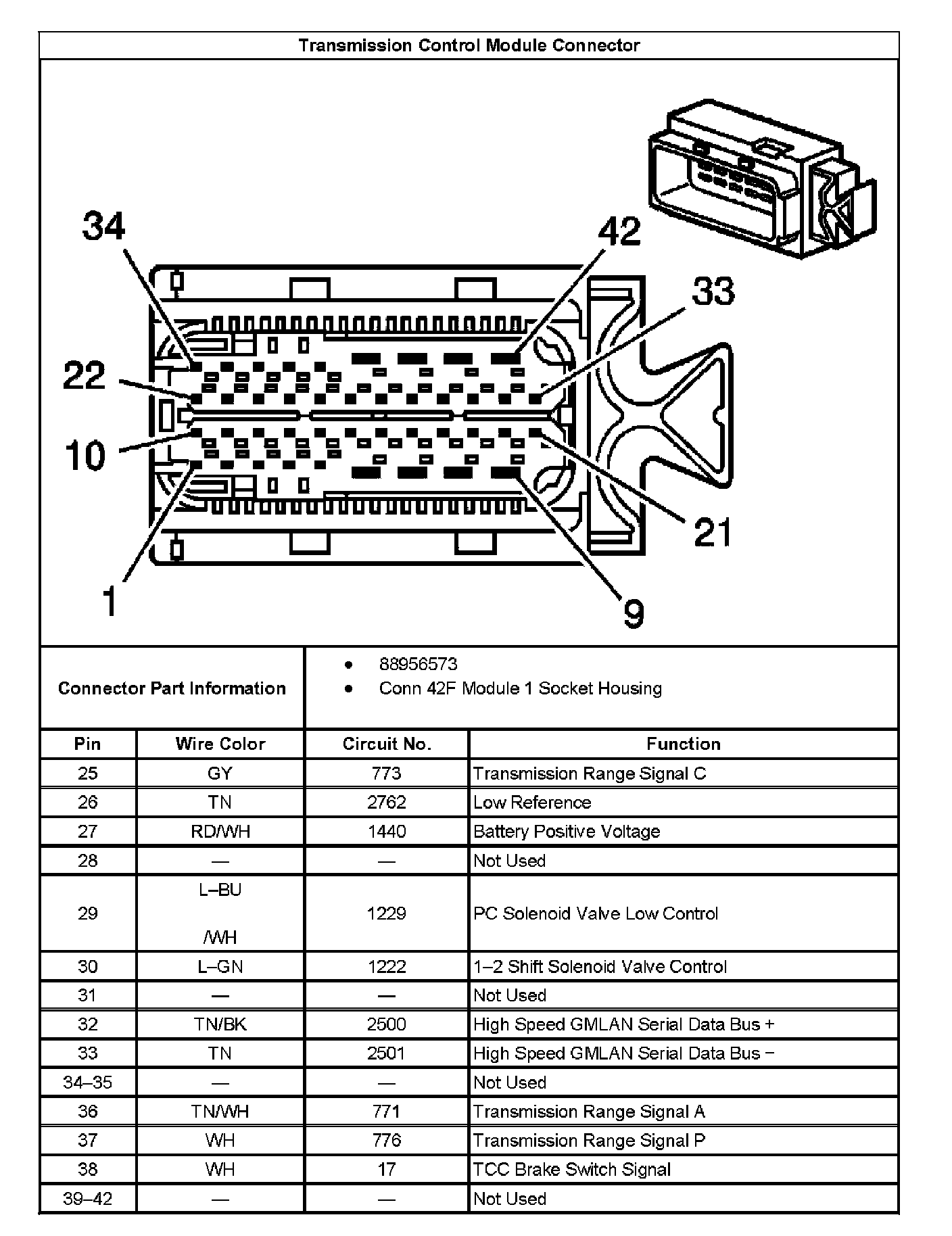

Transmission Control Module Connector:

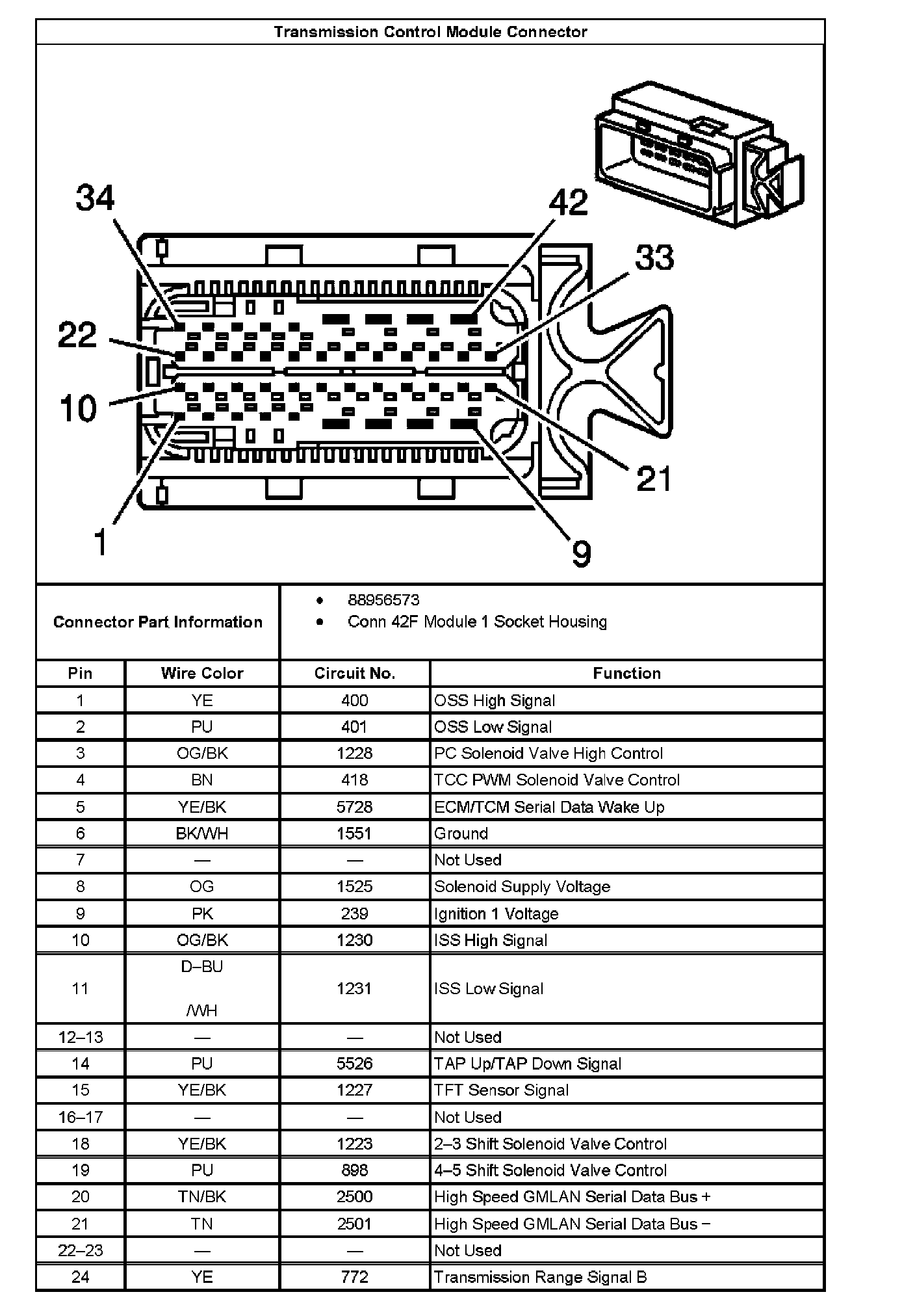

Transmission Control Module Connector:
