Electronic Brake Control Module

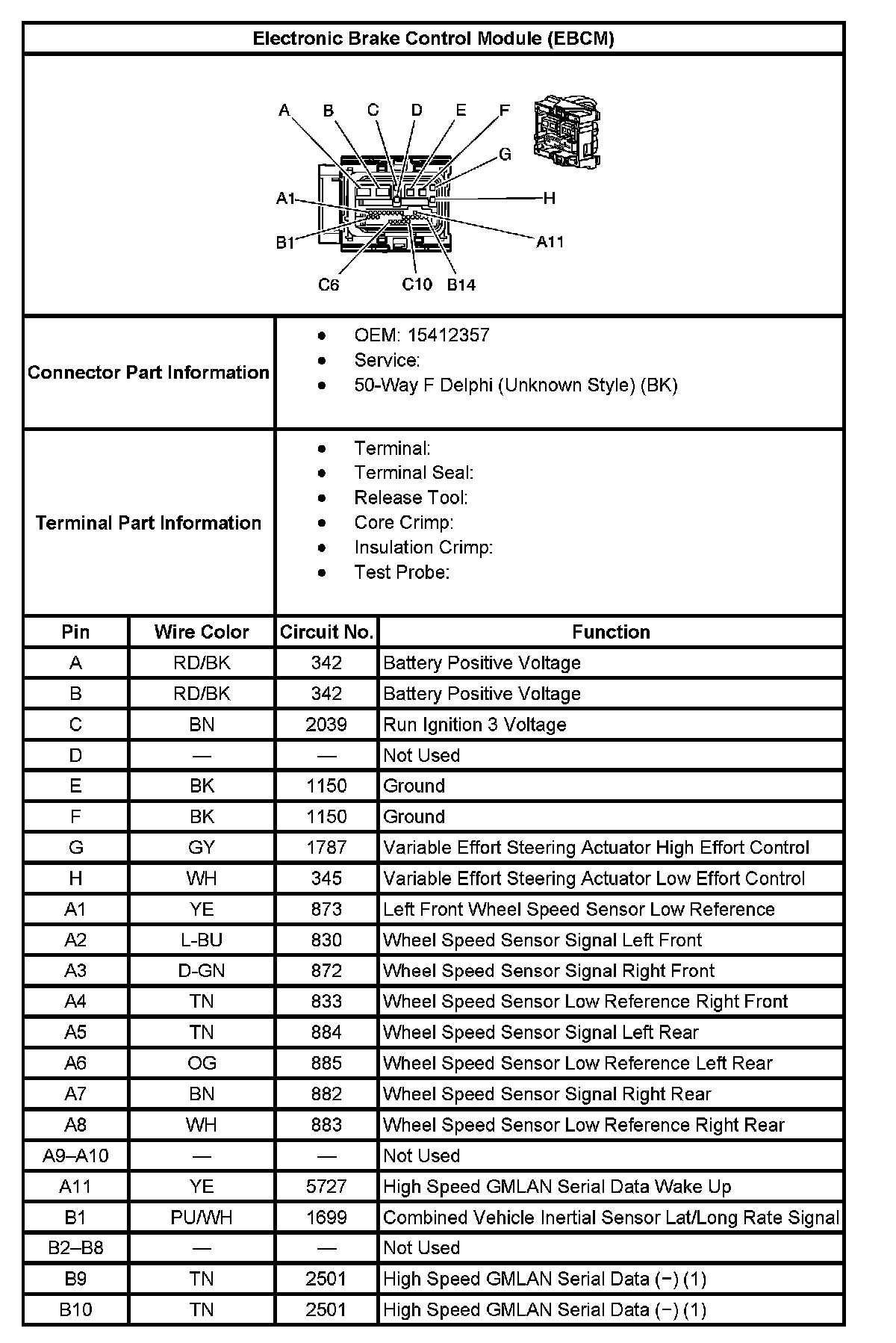

Electronic Brake Control Module (EBCM):

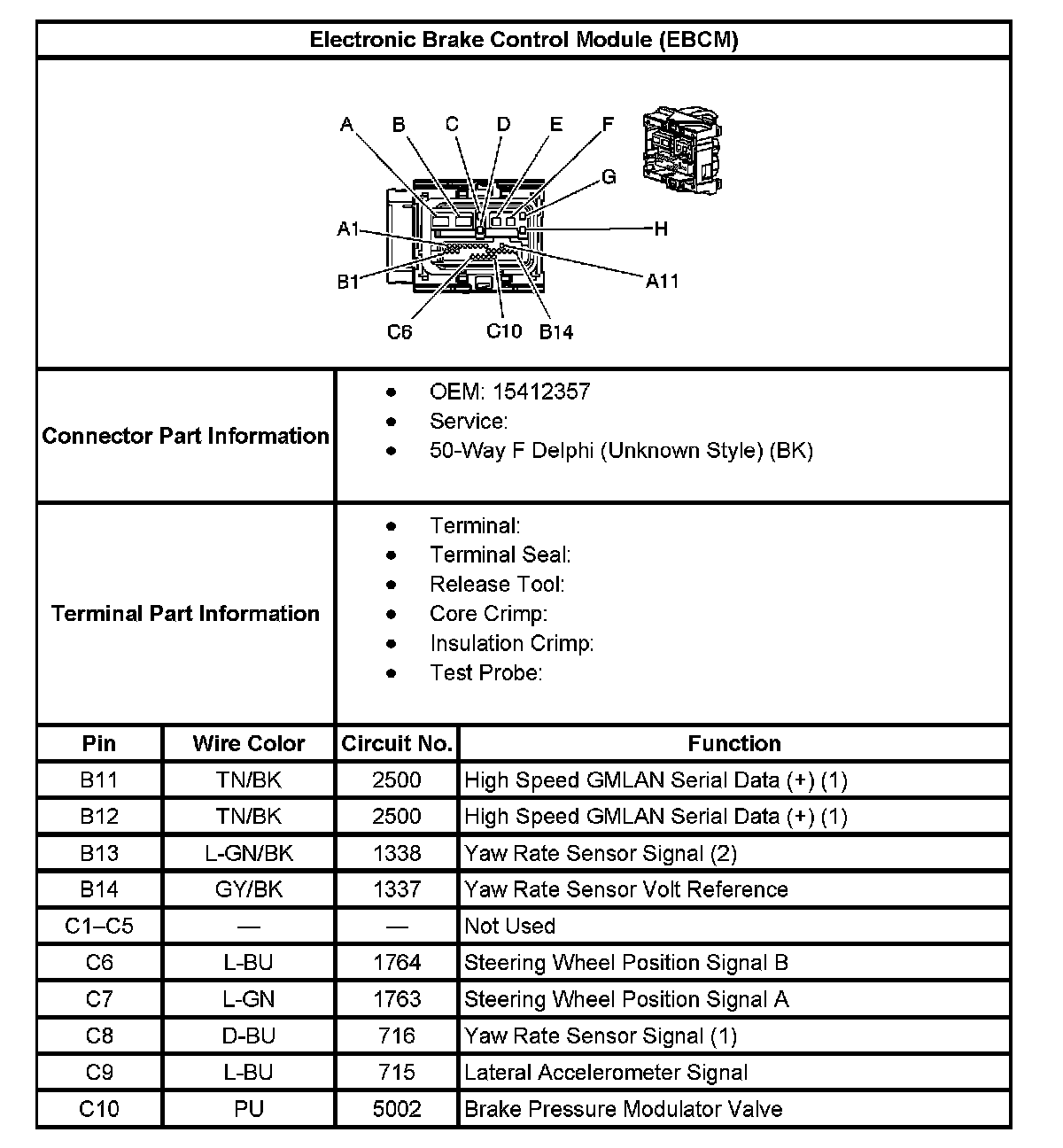

Electronic Brake Control Module (EBCM):
