Engine Control Module (ECM) C1

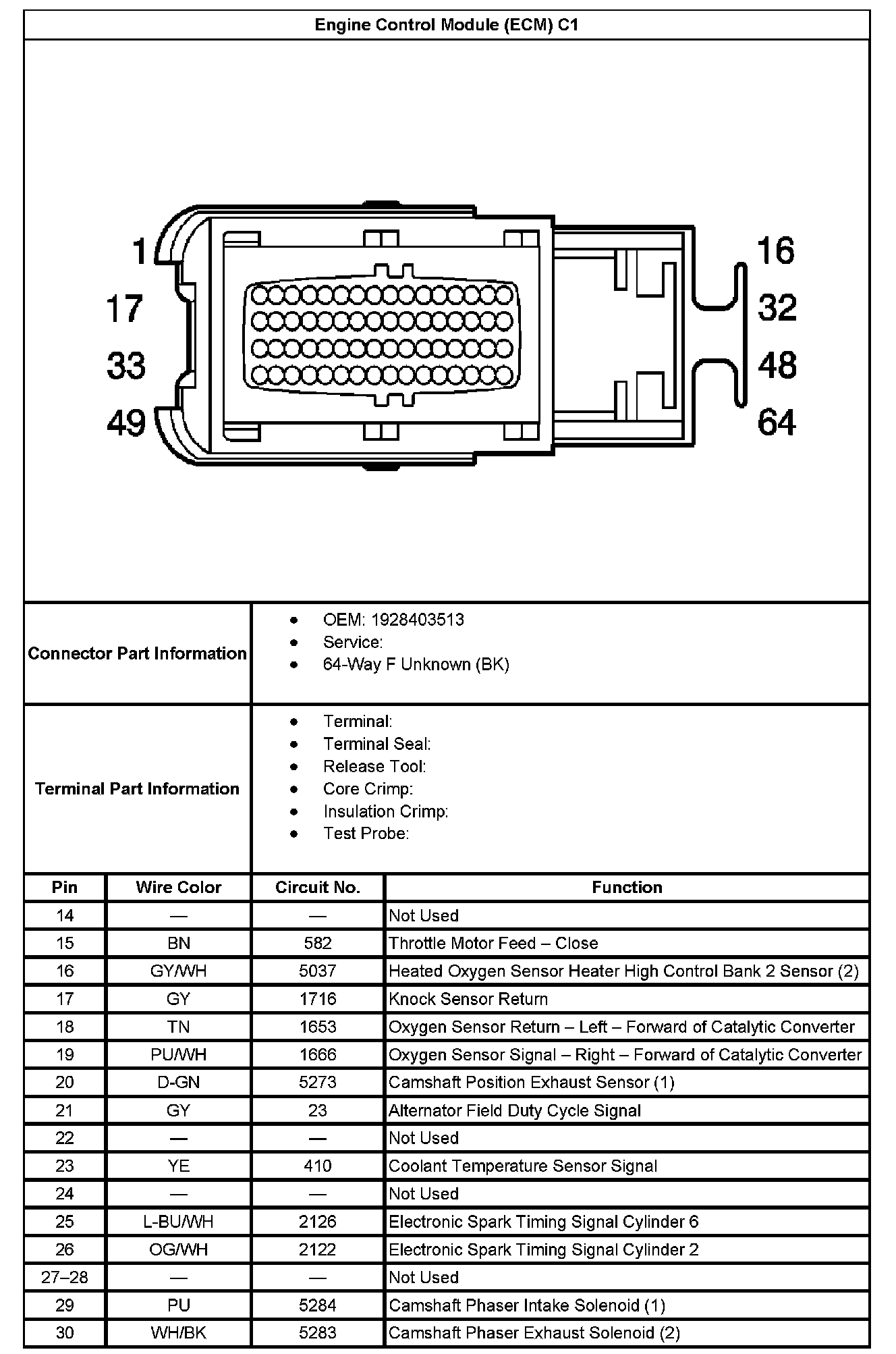

Engine Control Module (ECM) C1 Part 1:

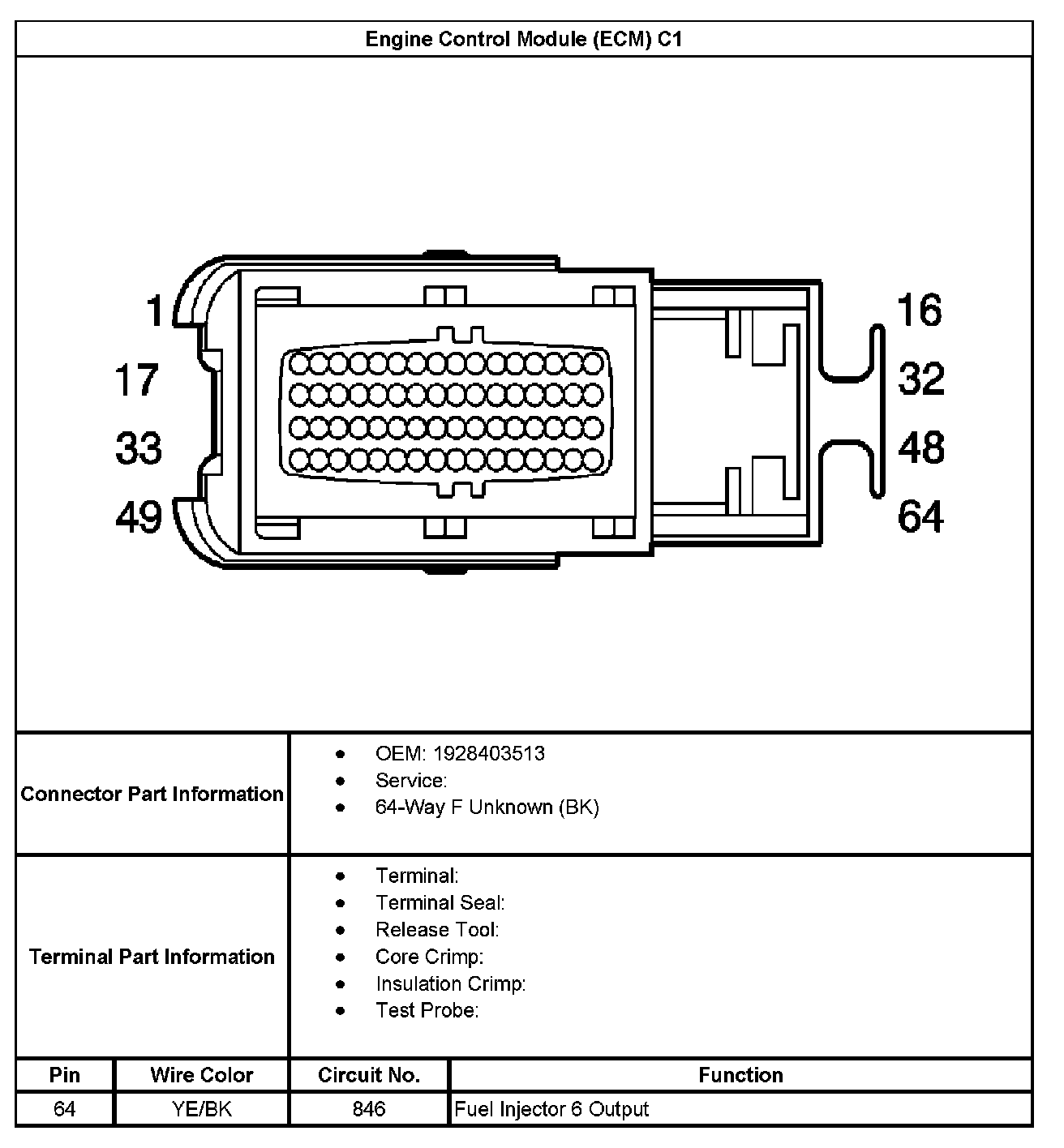

Engine Control Module (ECM) C1 Part 2:

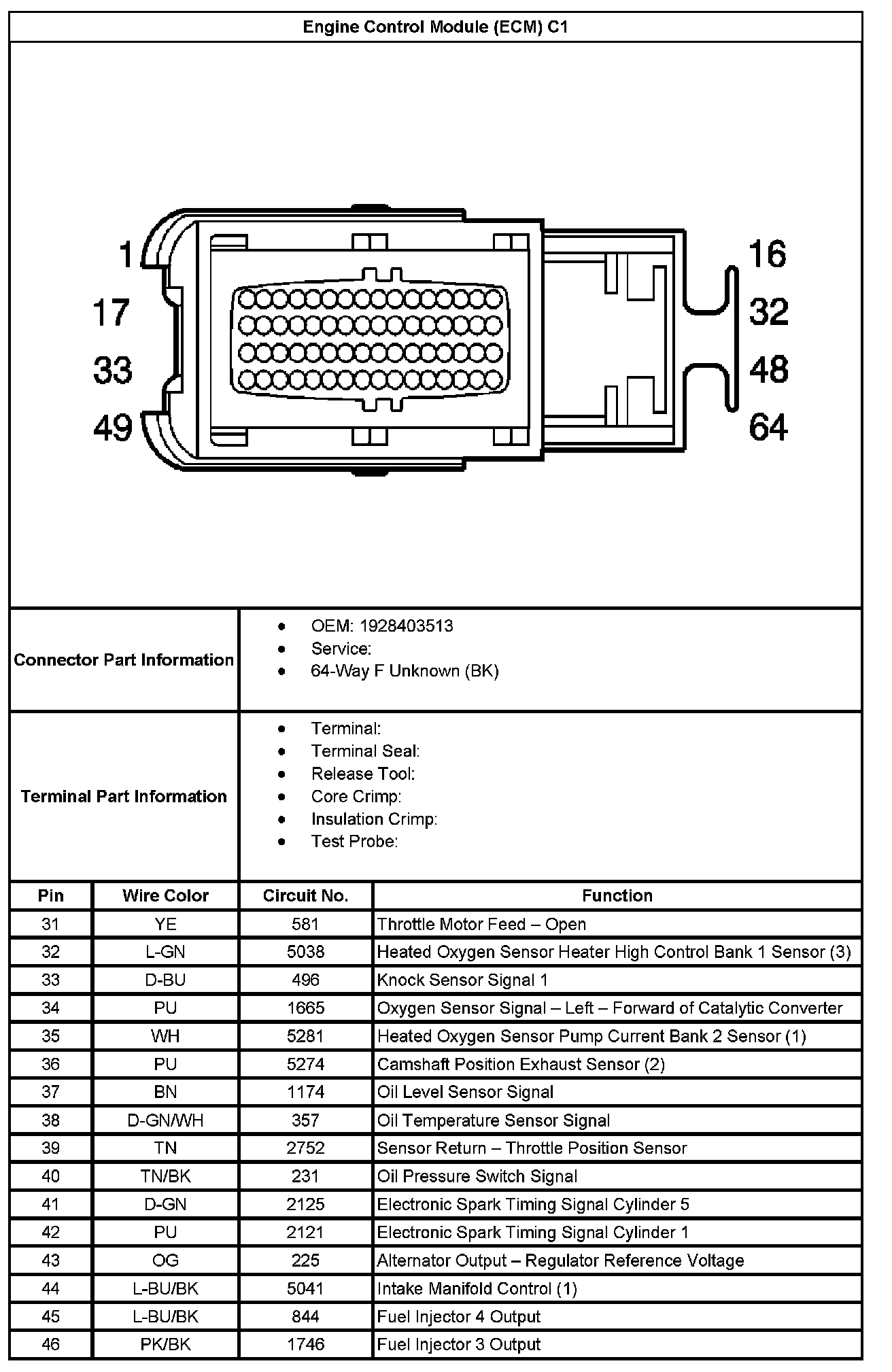

Engine Control Module (ECM) C1 Part 3:

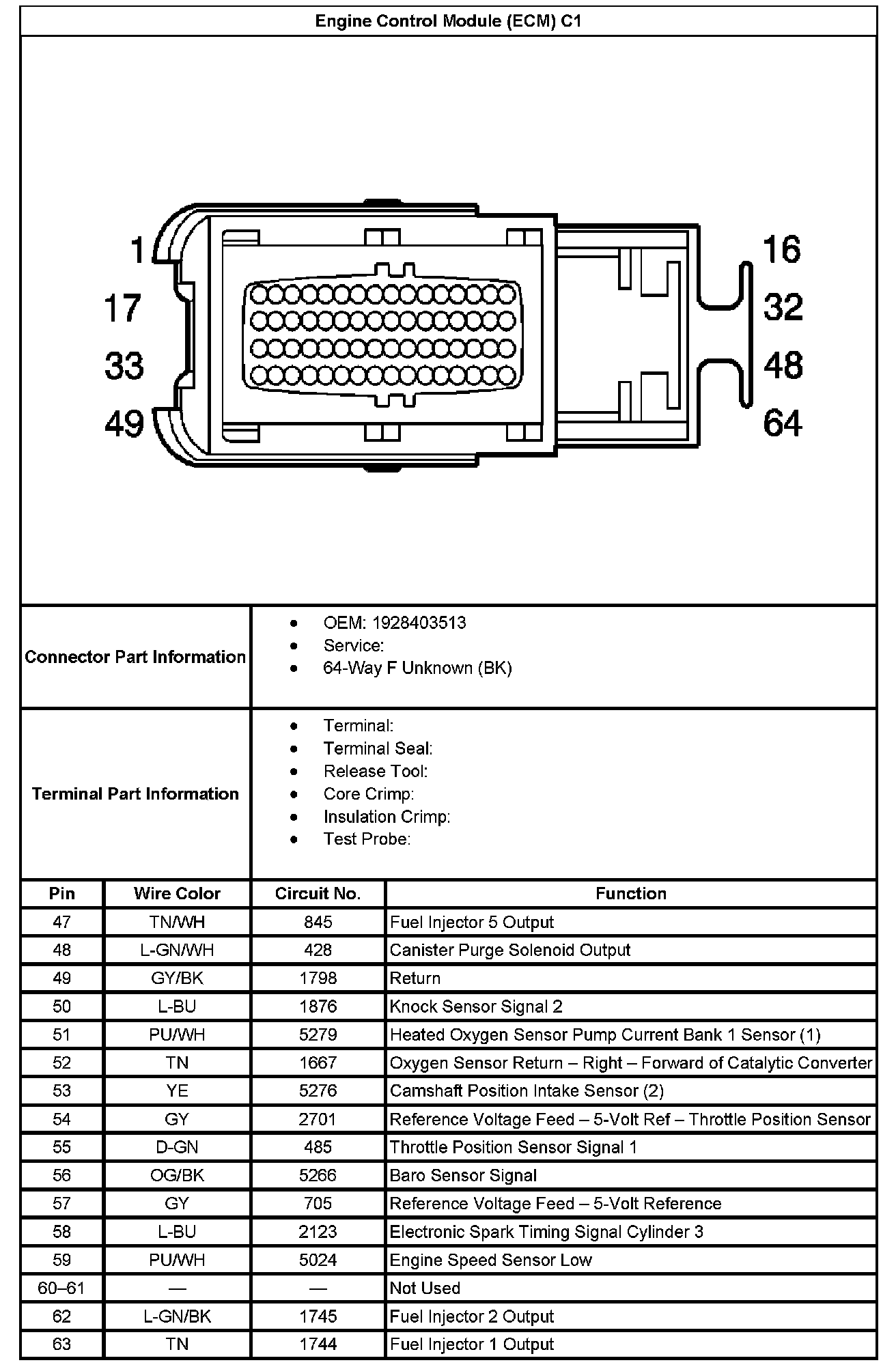

Engine Control Module (ECM) C1 Part 4:

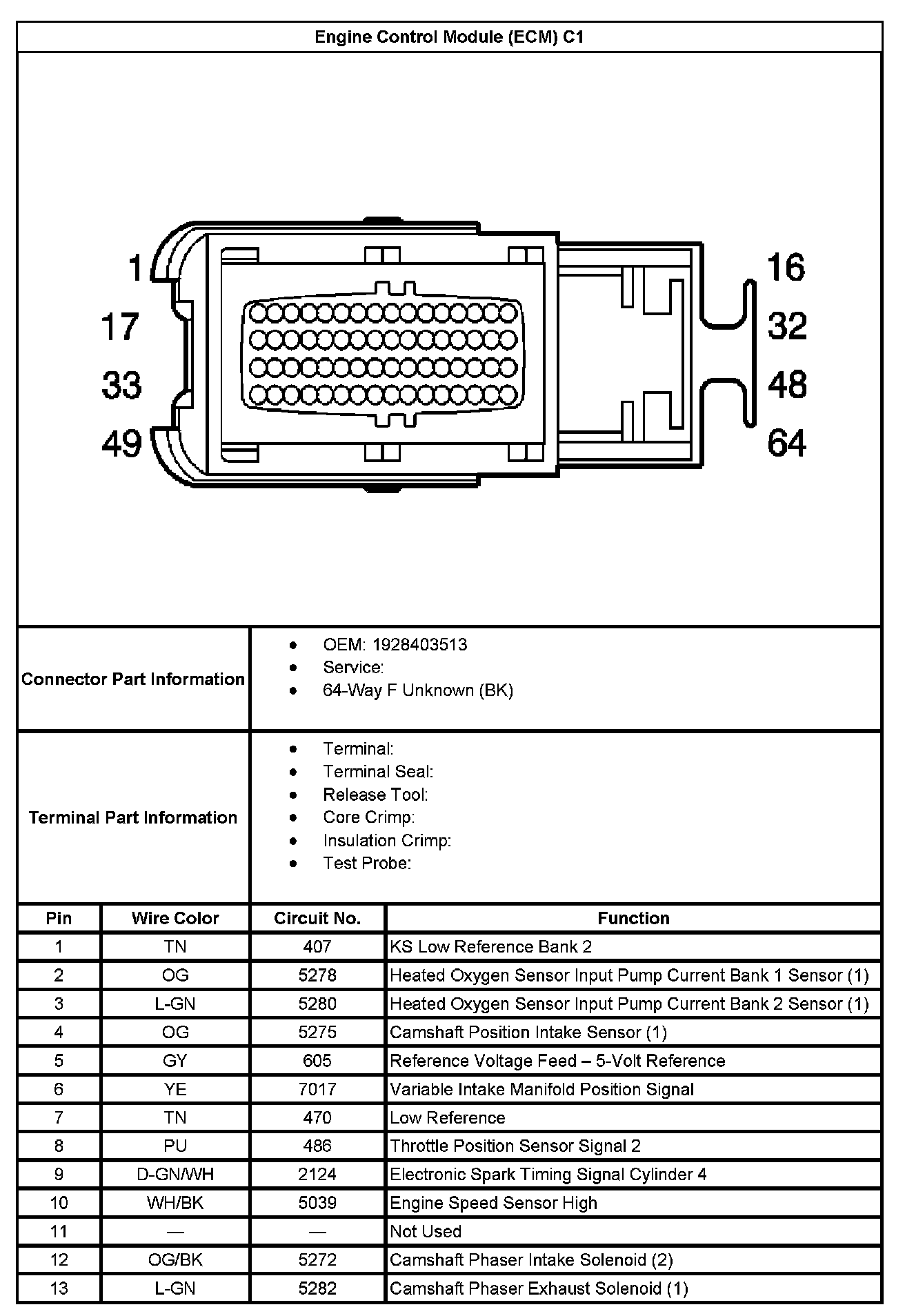

Engine Control Module (ECM) C1 Part 5:
