Engine Control Module (ECM) C2

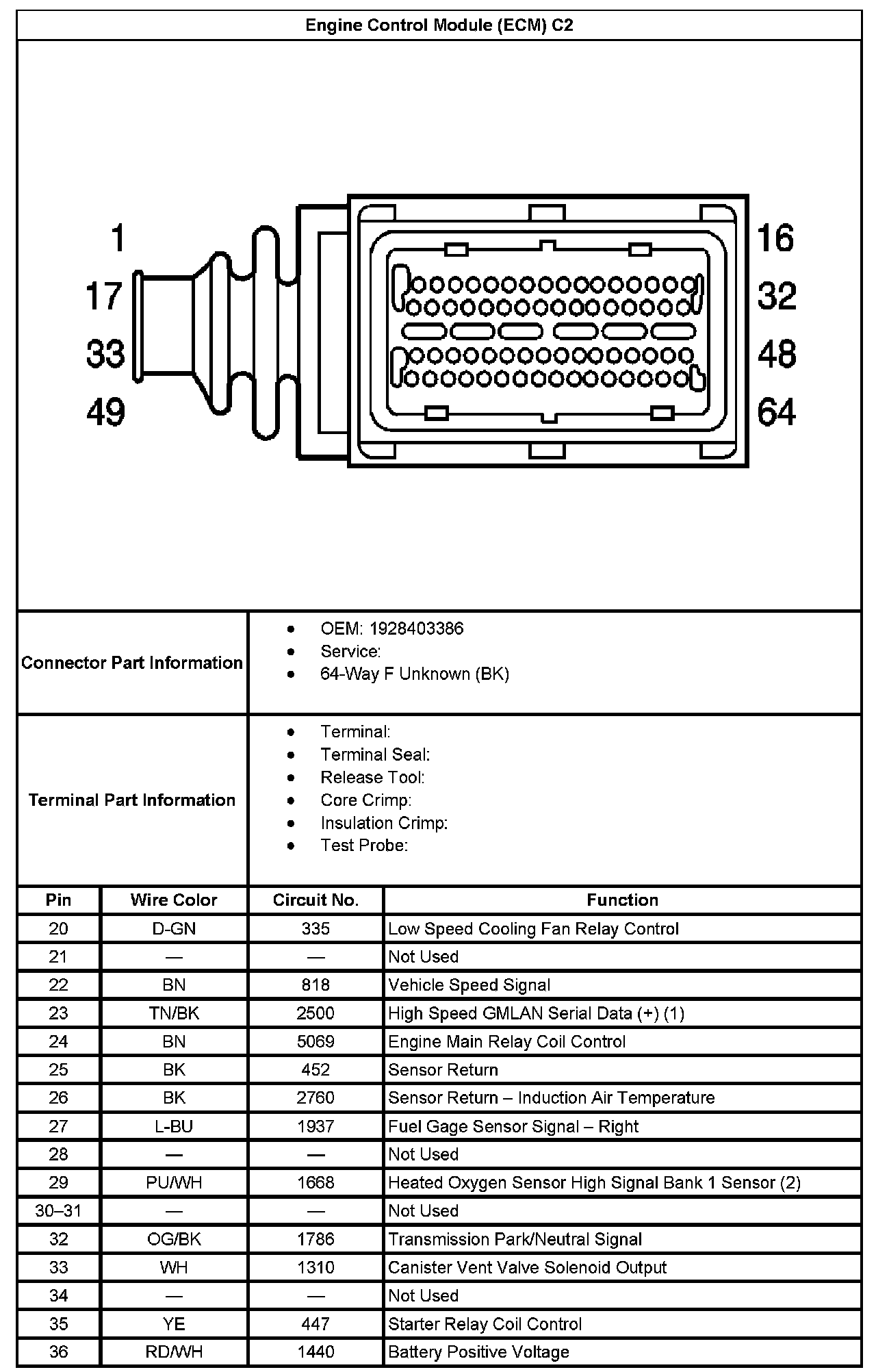

Engine Control Module (ECM) C2 Part 1:

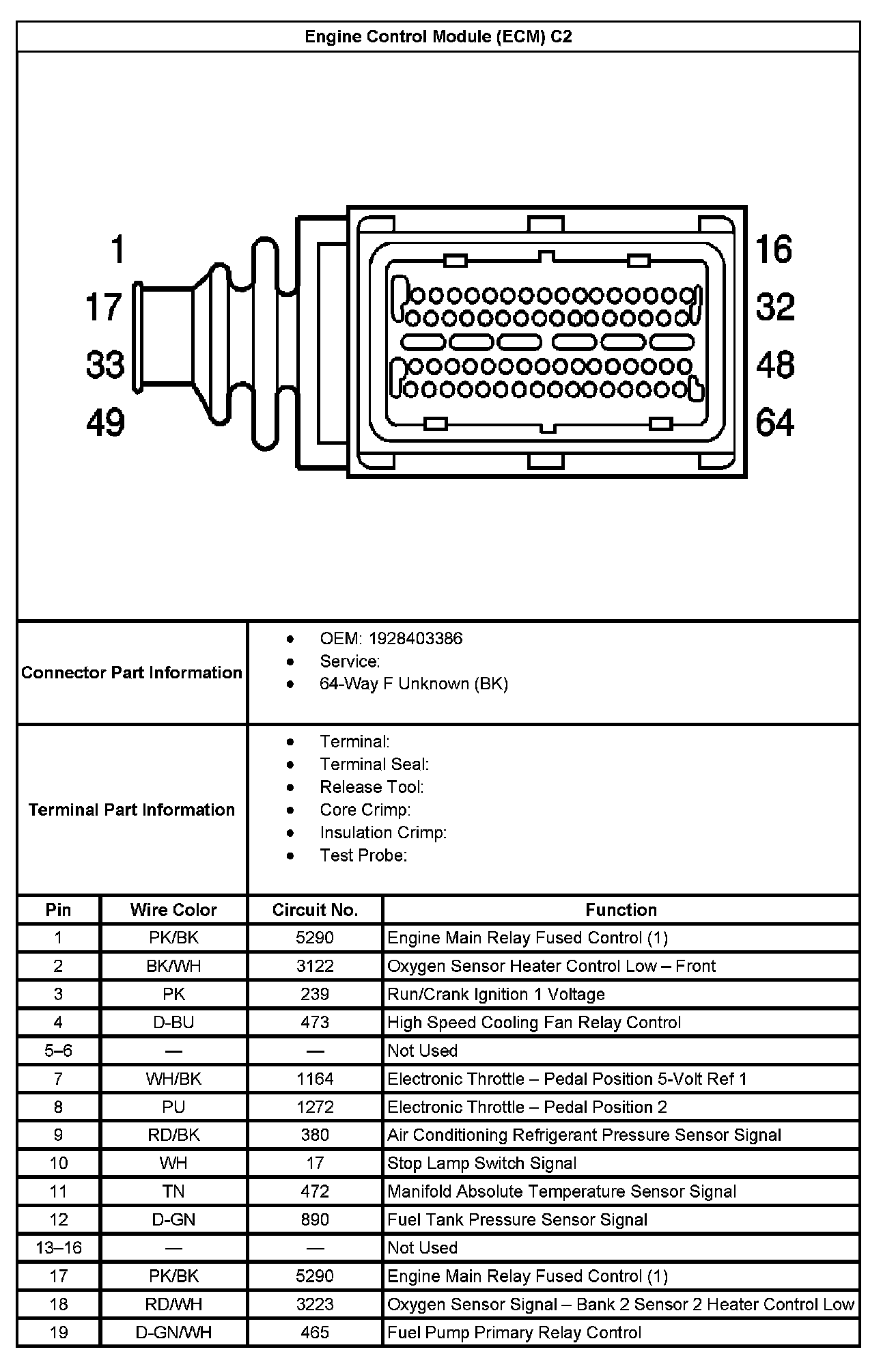

Engine Control Module (ECM) C2 Part 2:

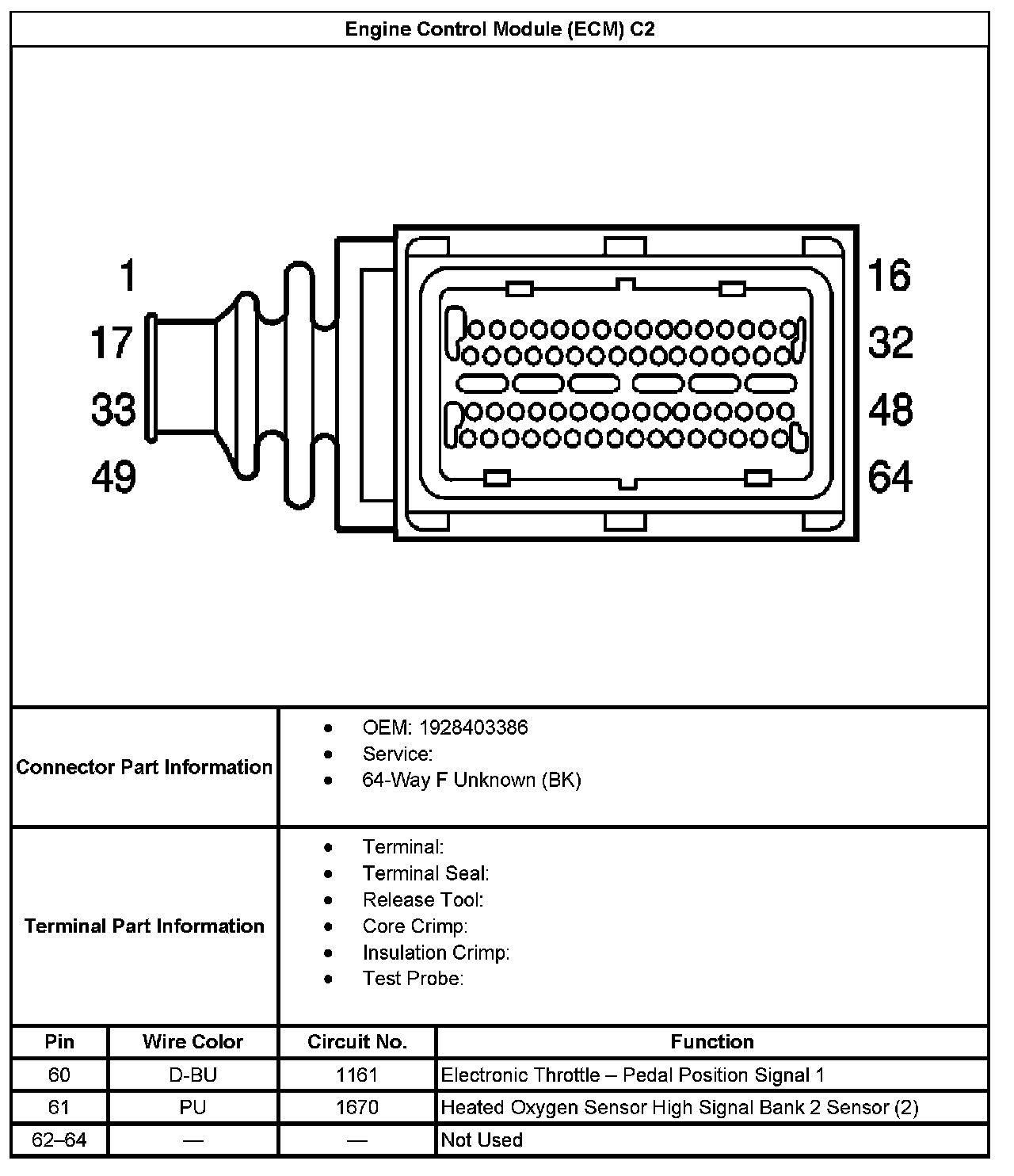

Engine Control Module (ECM) C2 Part 3:

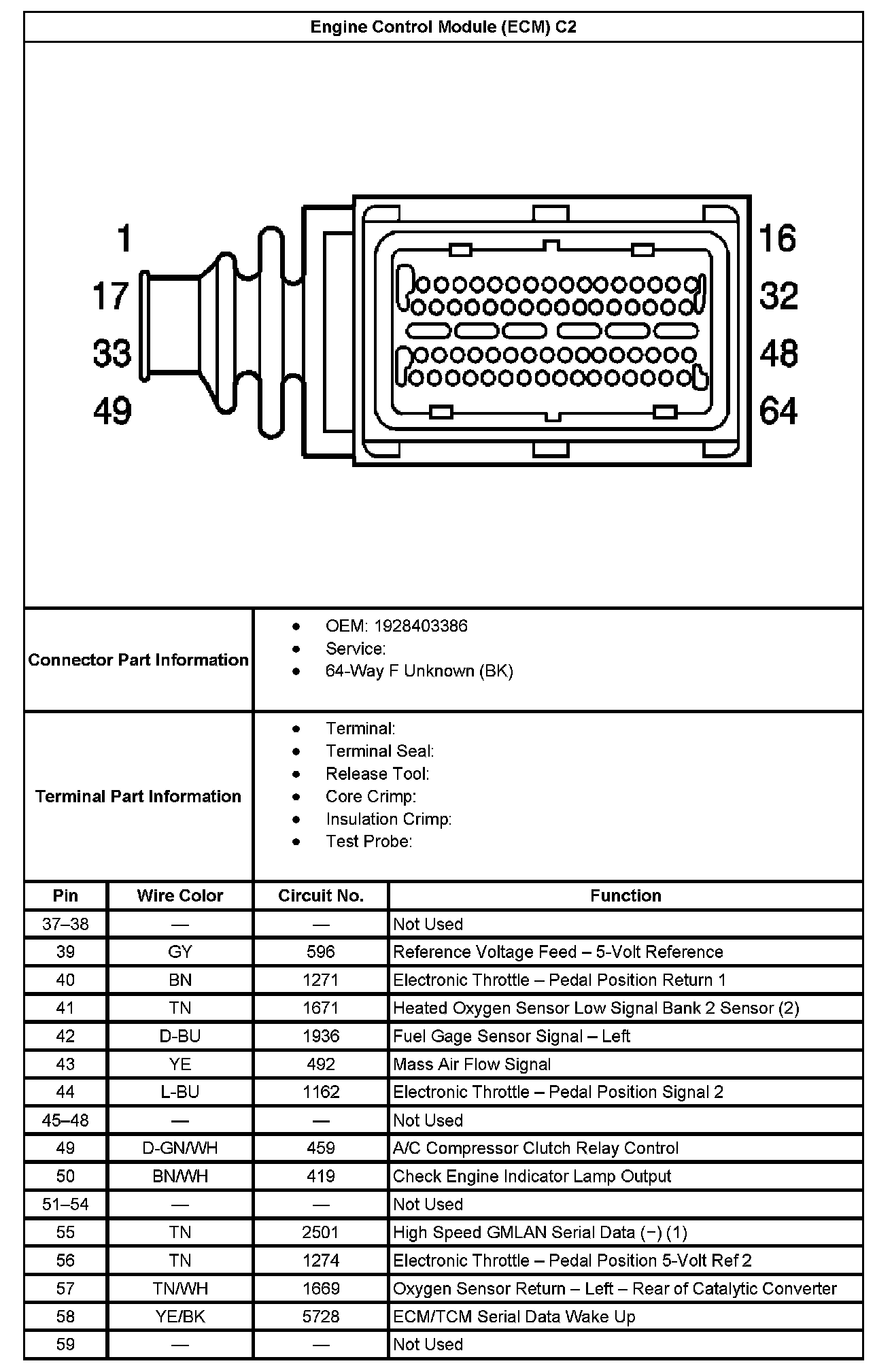

Engine Control Module (ECM) C2 Part 4:
