Transmission Control Systems

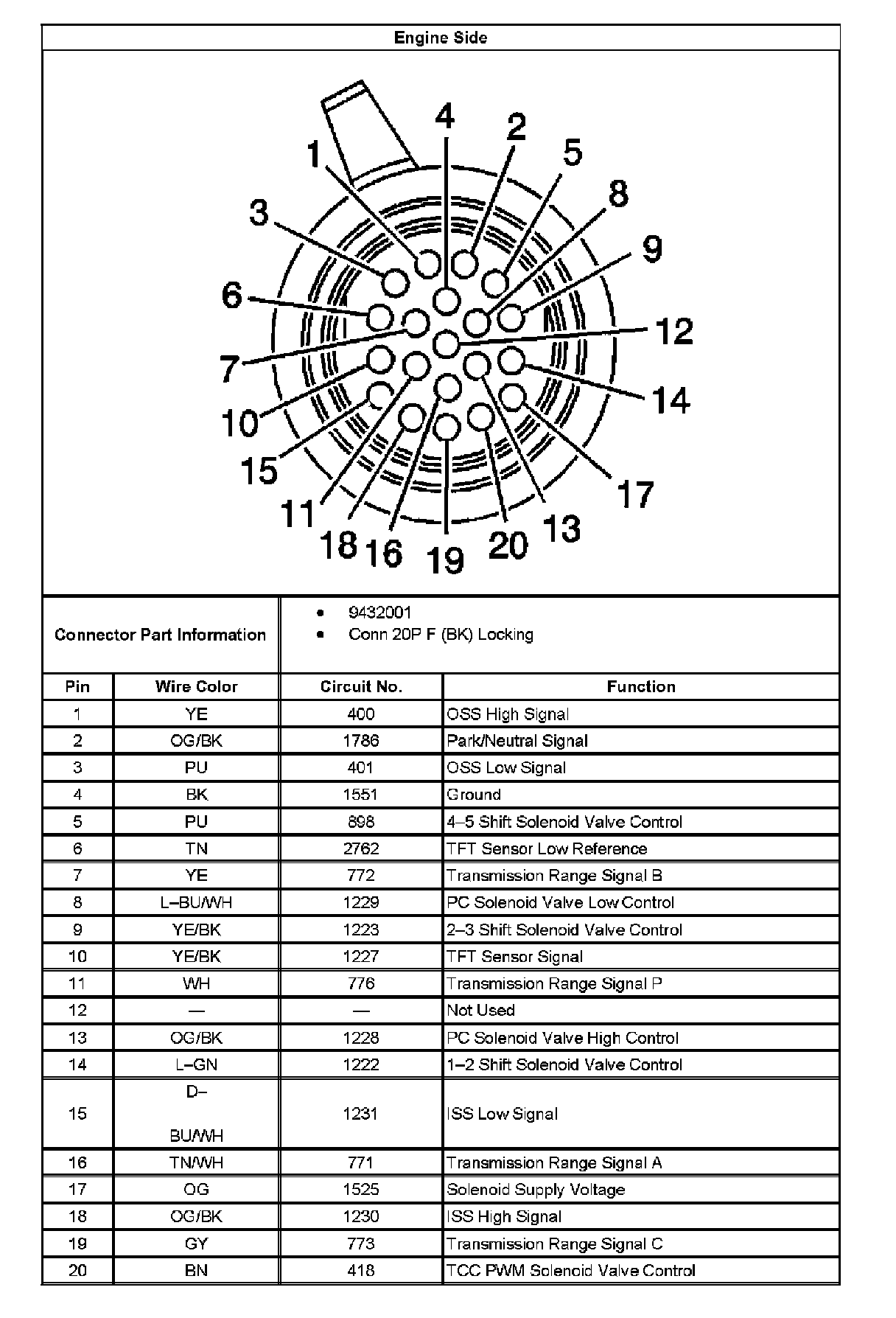

Engine Side (5L40-E):

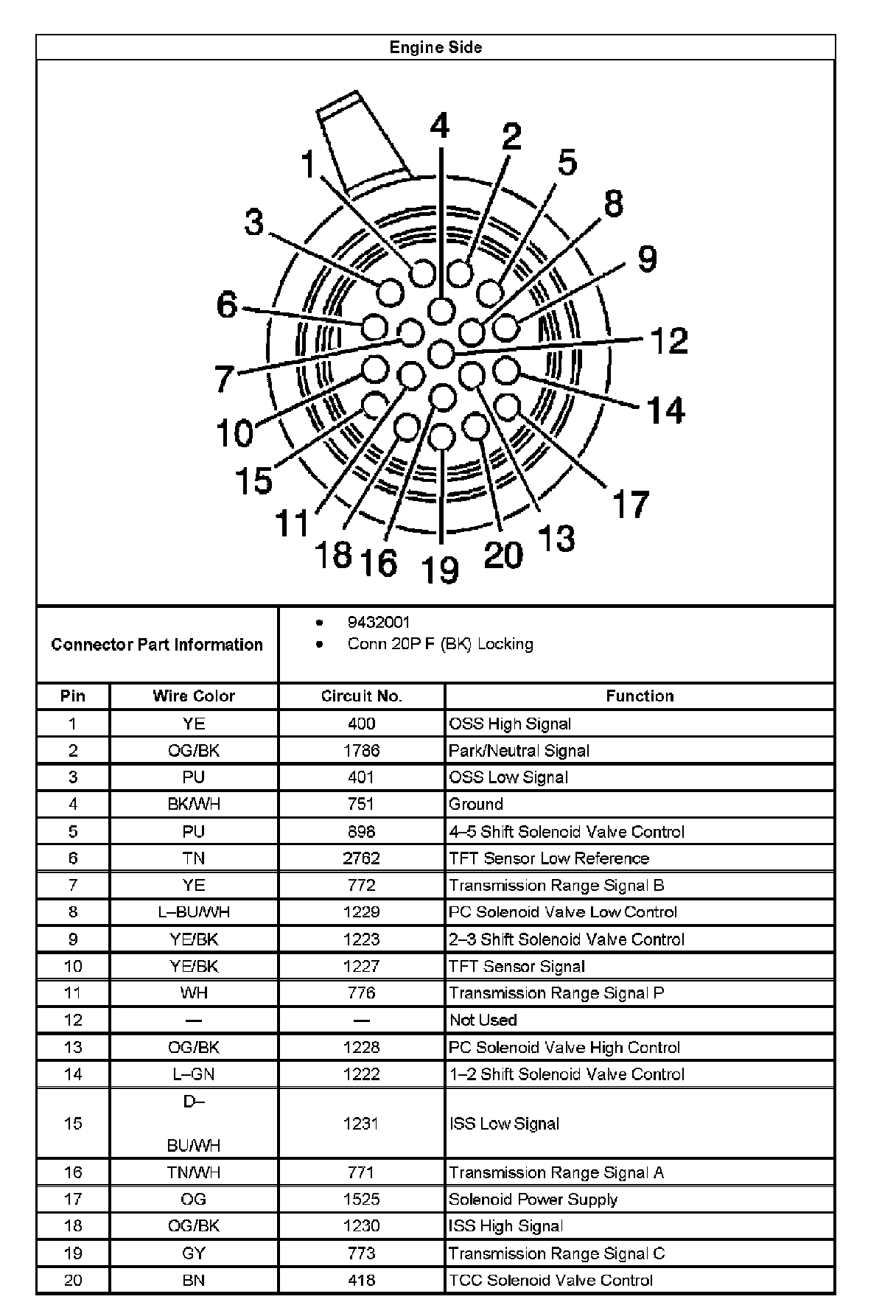

Engine Side (5L50-E):

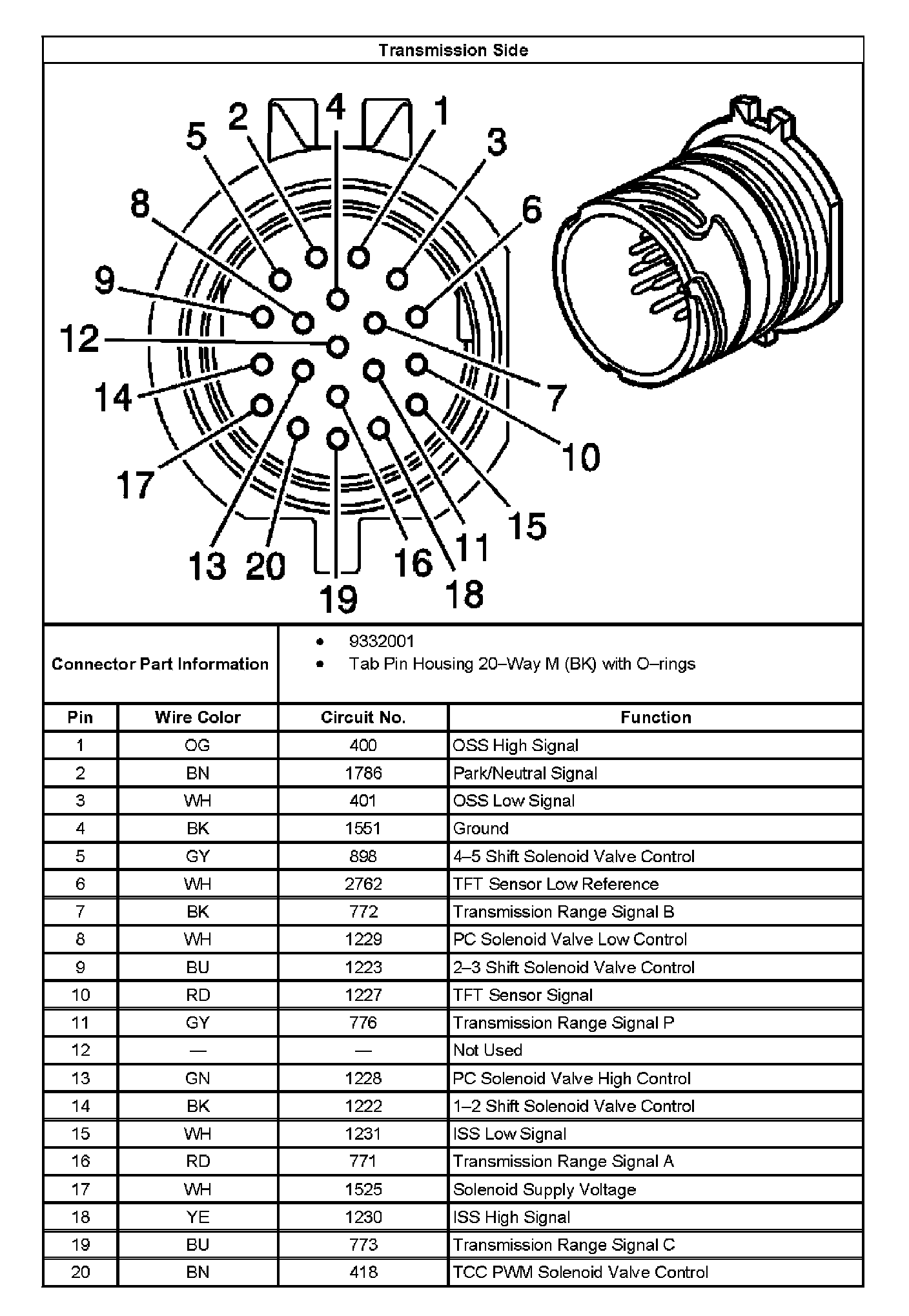

Transmission Side (5L40-E):

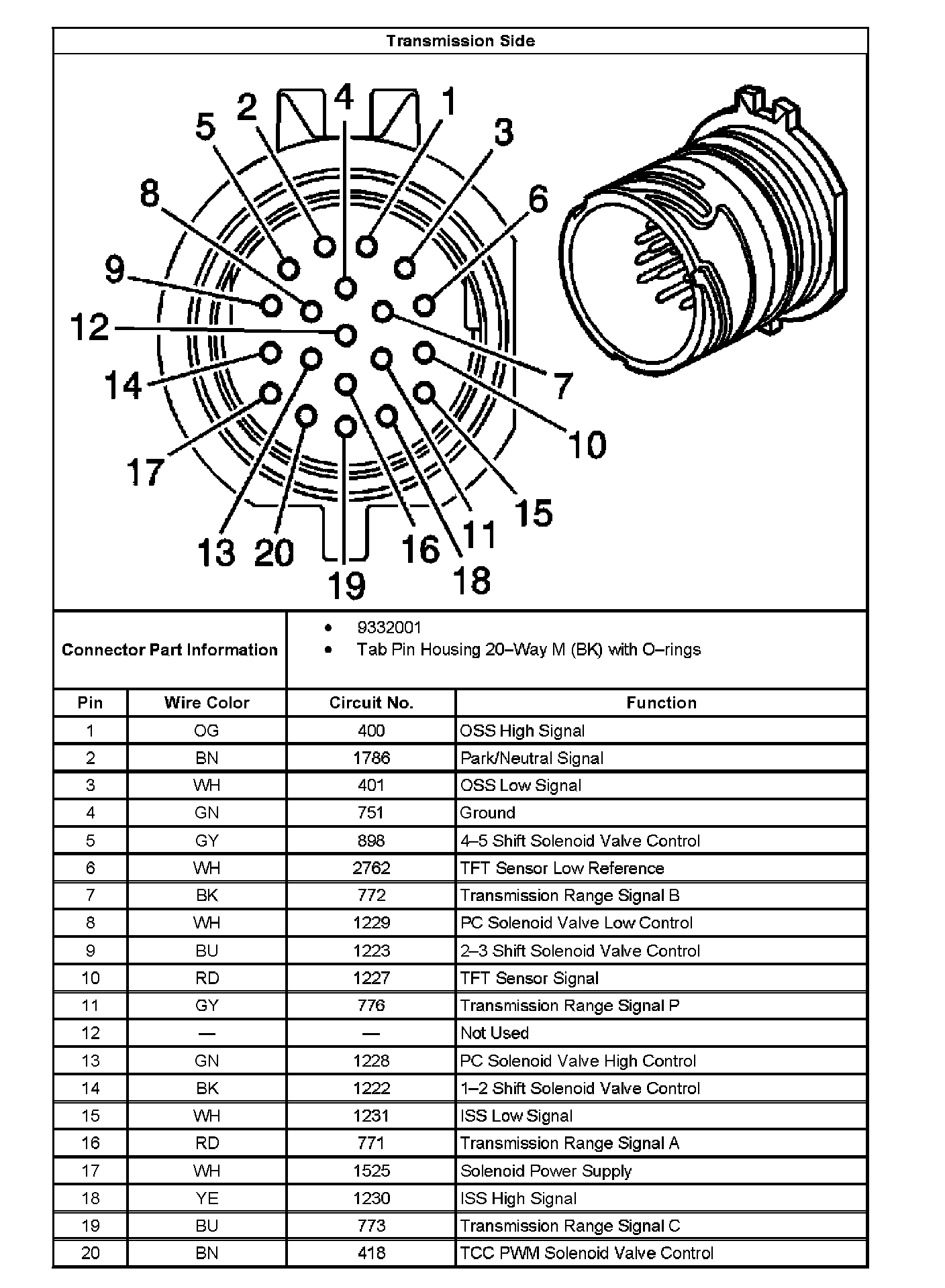

Transmission Side (5L50-E):

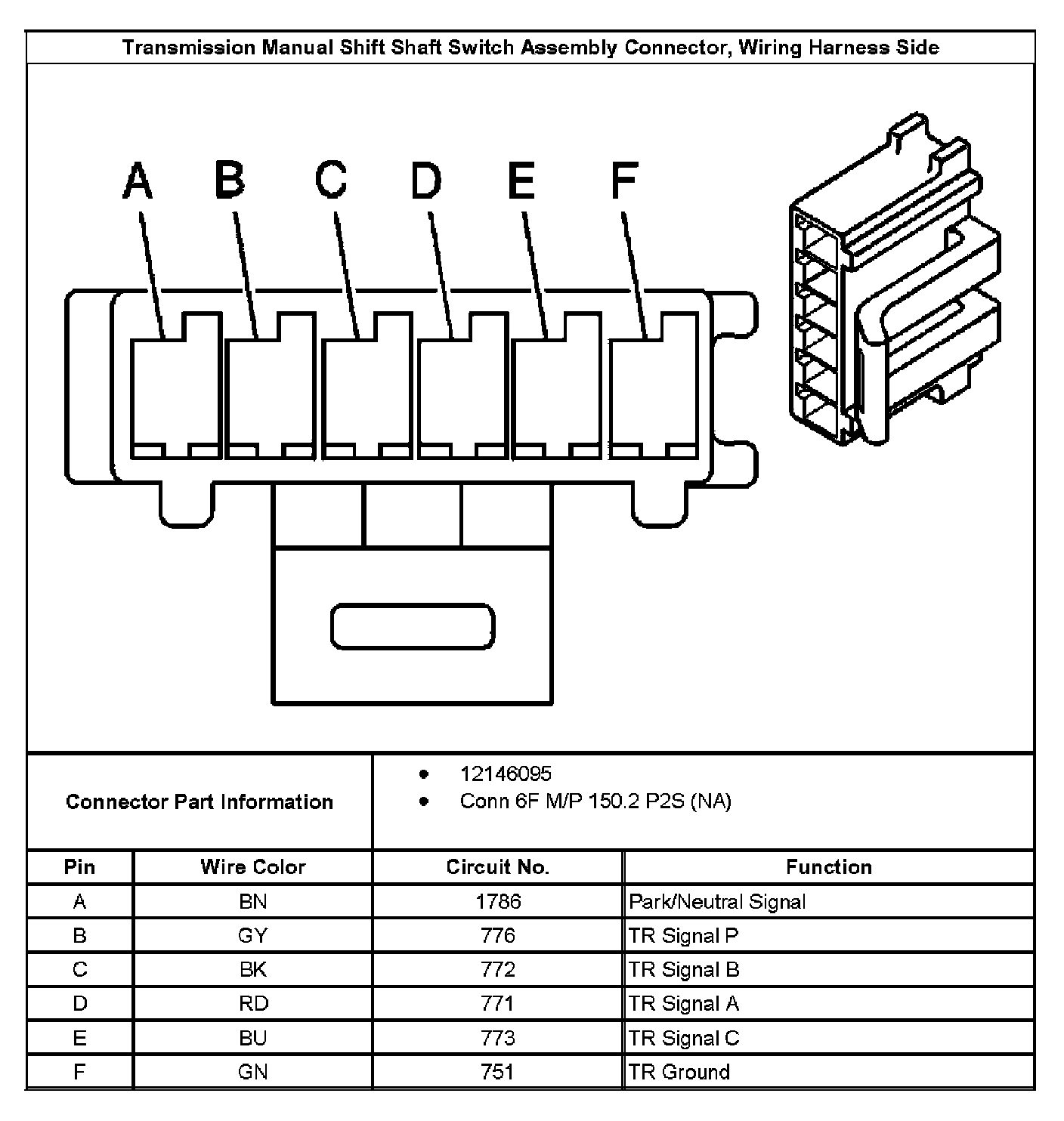

Transmission Manual Shift Shaft Switch Assembly Connector, Wiring Harness (5L40-E):

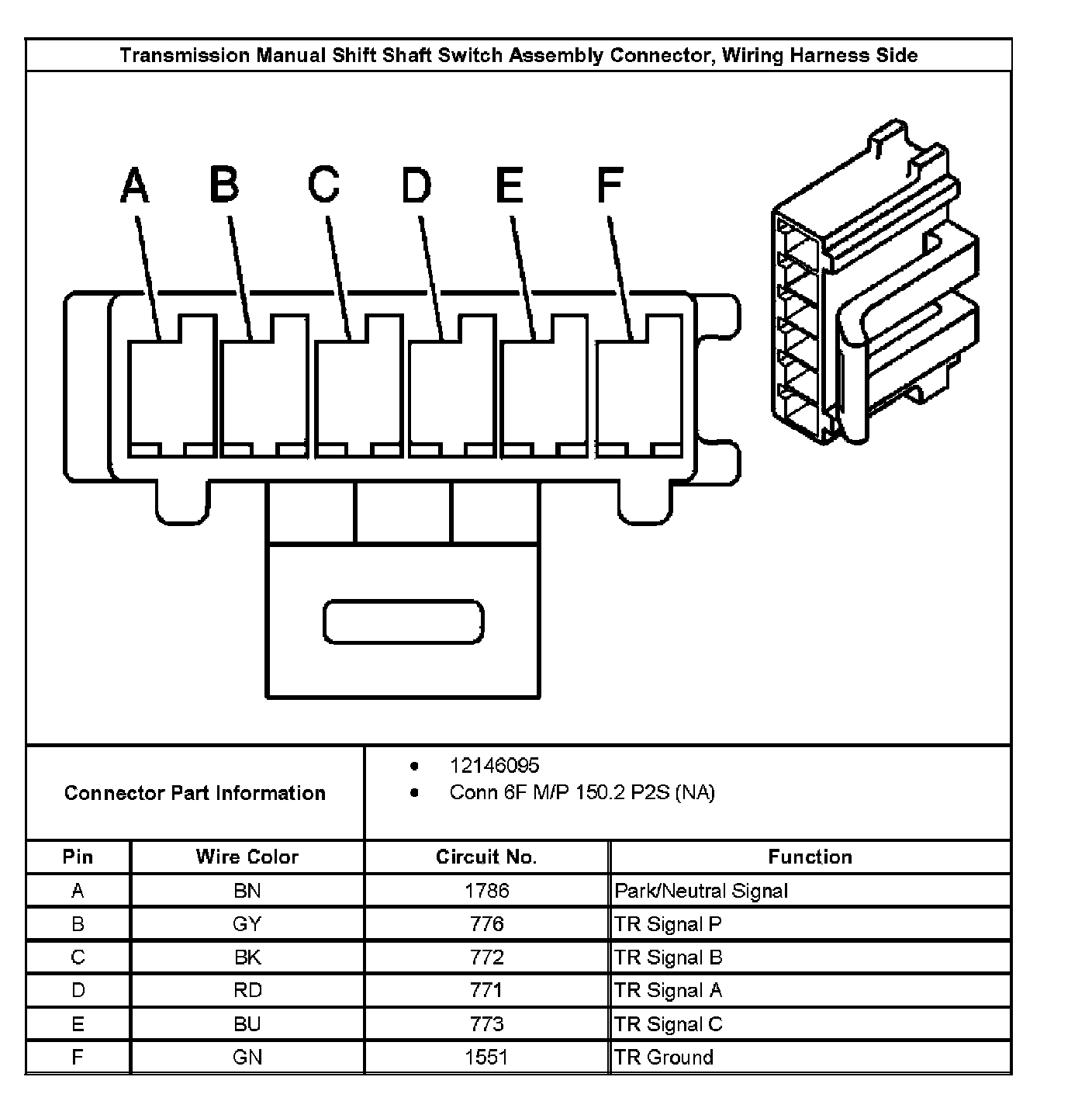

Transmission Manual Shift Shaft Switch Assembly Connector, Wiring Harness (5L50-E):
