Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

REMOVAL PROCEDURE




- Turn the ignition OFF.
- Remove the mass air flow (MAF) electrical connector.
- Remove the air cleaner intake duct.

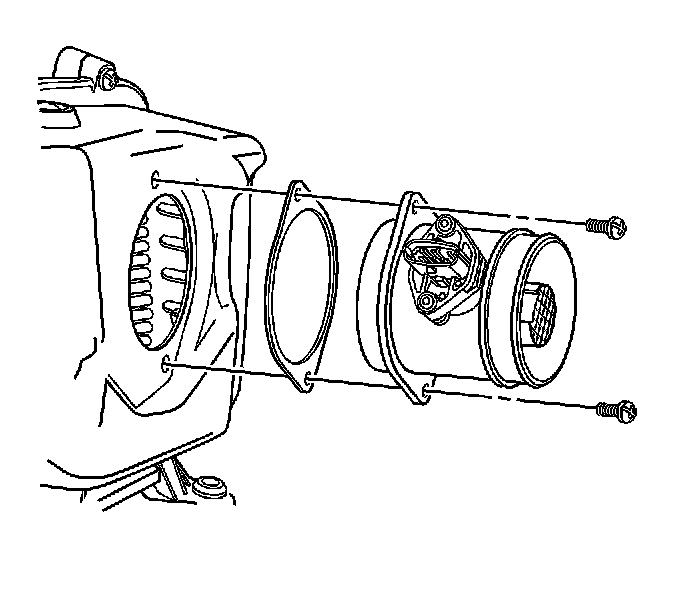

- Remove the MAF sensor fasteners.
- Remove the MAF sensor and the MAF sensor seal.
- Discard the MAF sensor seal.

INSTALLATION PROCEDURE




- Install the new MAF sensor seal and the MAF sensor.
- Install the MAF sensor screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the MAF sensor screws to 4 N.m (35 lb in).

- Install the air cleaner intake duct.
- Install the MAF electrical connector.
