Data Link Connector: Service and Repair

DATA LINK CONNECTOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the knee bolster trim.

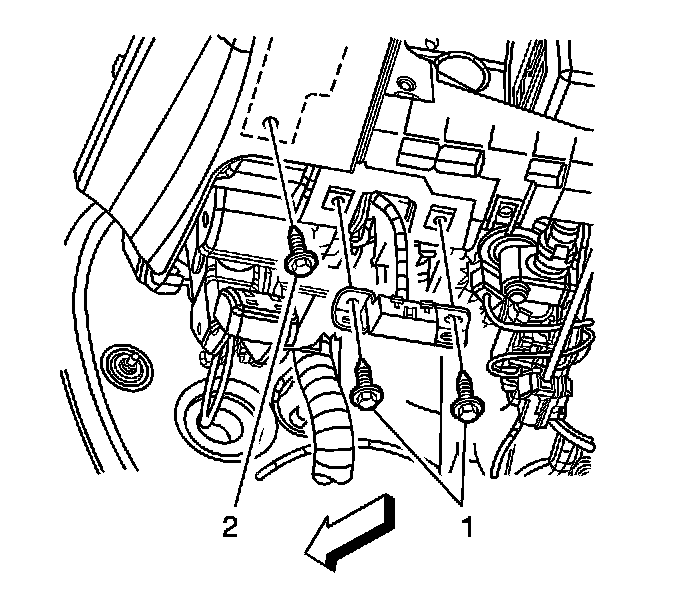

2. Remove the screws (1) securing the data link connector to the instrument panel (I/P).

INSTALLATION PROCEDURE




1. Locate the connector to the I/P.
2. Install the screws (1) securing the connector to the I/P.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws (1) to 2 N.m (18 lb in).

3. Install the knee bolster trim.
