Fuel Level Sensor: Service and Repair

FUEL LEVEL SENSOR REPLACEMENT - PRIMARY

REMOVAL PROCEDURE

CAUTION: Refer to Gasoline/Gasoline Vapors Caution in Service Precautions.

- Remove the primary fuel tank module.

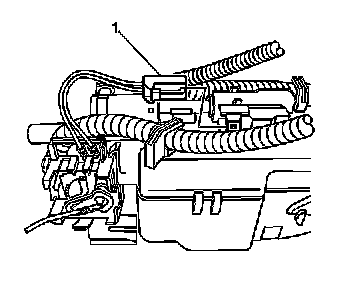

- Disconnect the fuel level sensor electrical connector (1) from the module.

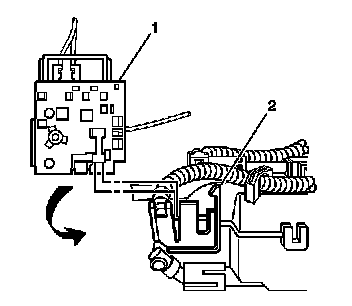

- Complete the following in order to remove the fuel level sensor (1) from the module assembly:
- Pull the locking tab (2) away from the sensor (1).
- Slide the sensor (1) away from the module assembly.

INSTALLATION PROCEDURE




- Complete the following in order to install the fuel level sensor (1) to the module assembly:
- Align the tabs of the sensor (1) with the slots in the module assembly.
- Slide the sensor (1) fully into position, ensure the locking tab (2) is engaged.




- Connect the fuel level sensor electrical connector (1) to the module.
- Install the primary fuel tank module.
