Thread Repair Specifications

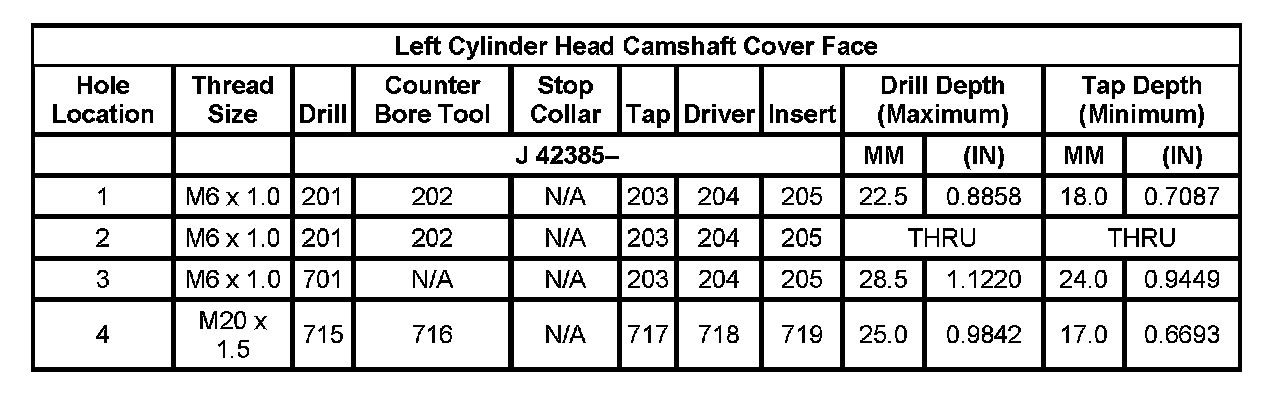

Left Cylinder Head Camshaft Cover Face:

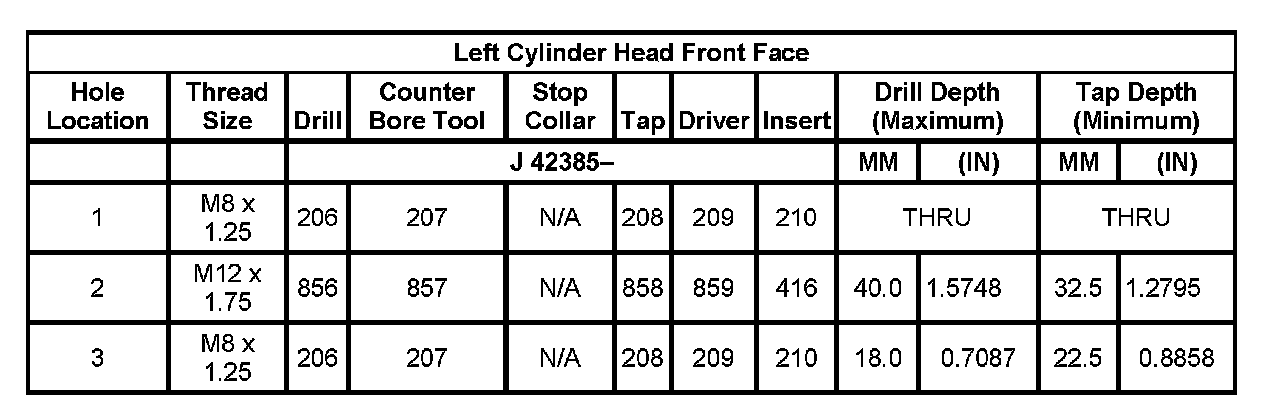

Left Cylinder Head Front Face:

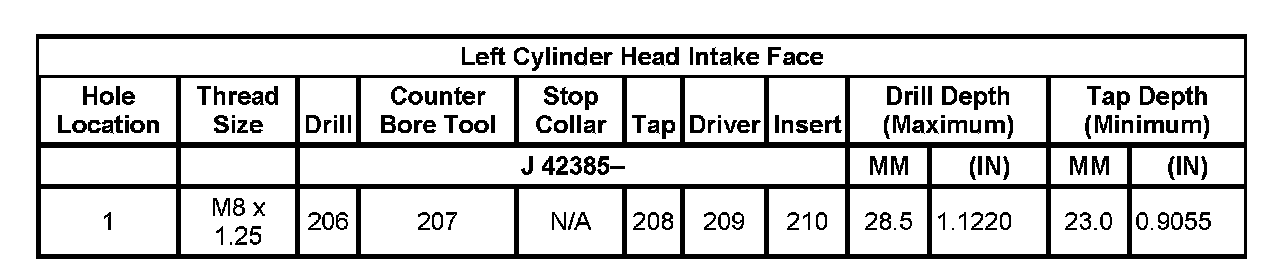

Left Cylinder Head Intake Face:

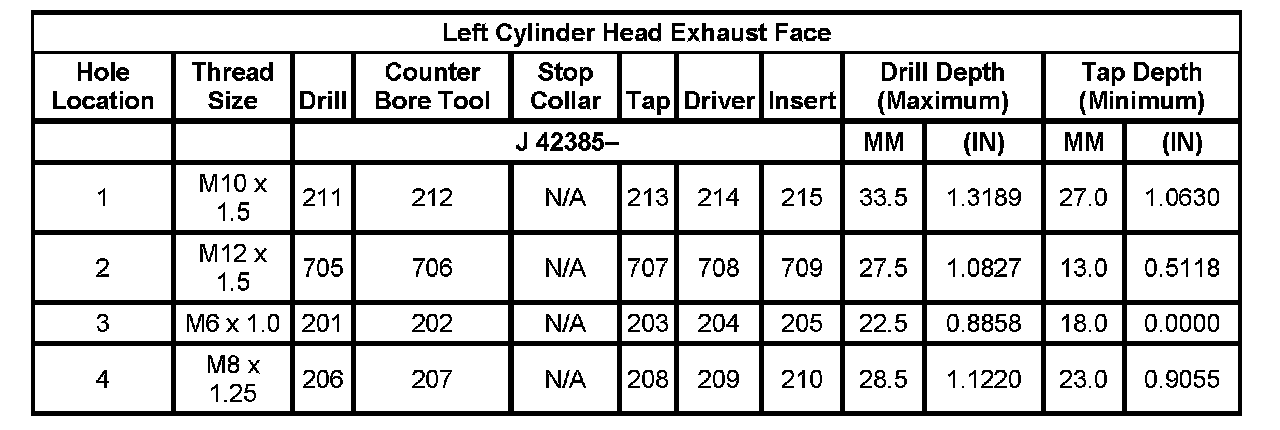

Left Cylinder Head Exhaust Face:

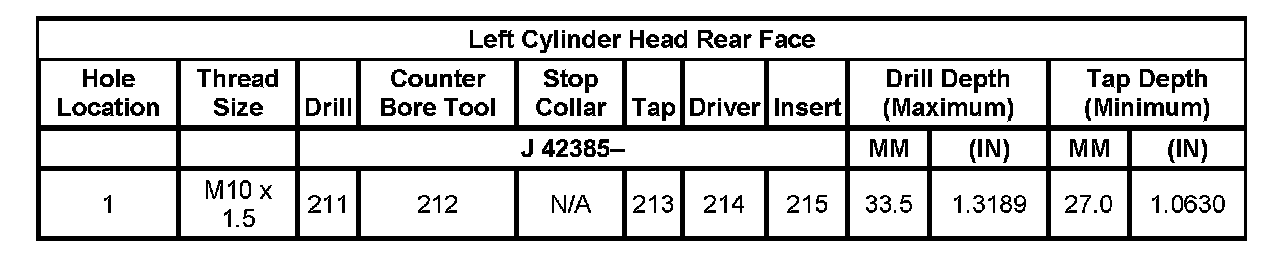

Left Cylinder Head Rear Face:

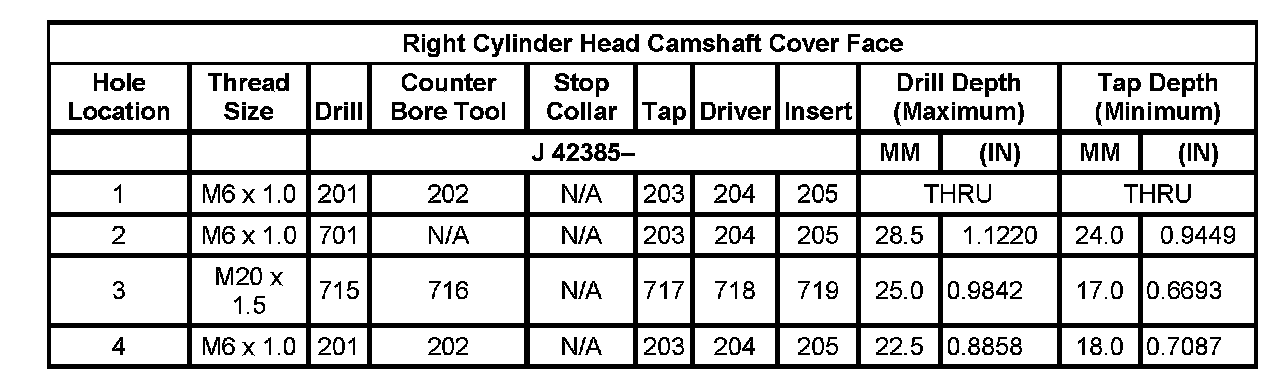

Right Cylinder Head Camshaft Cover Face:

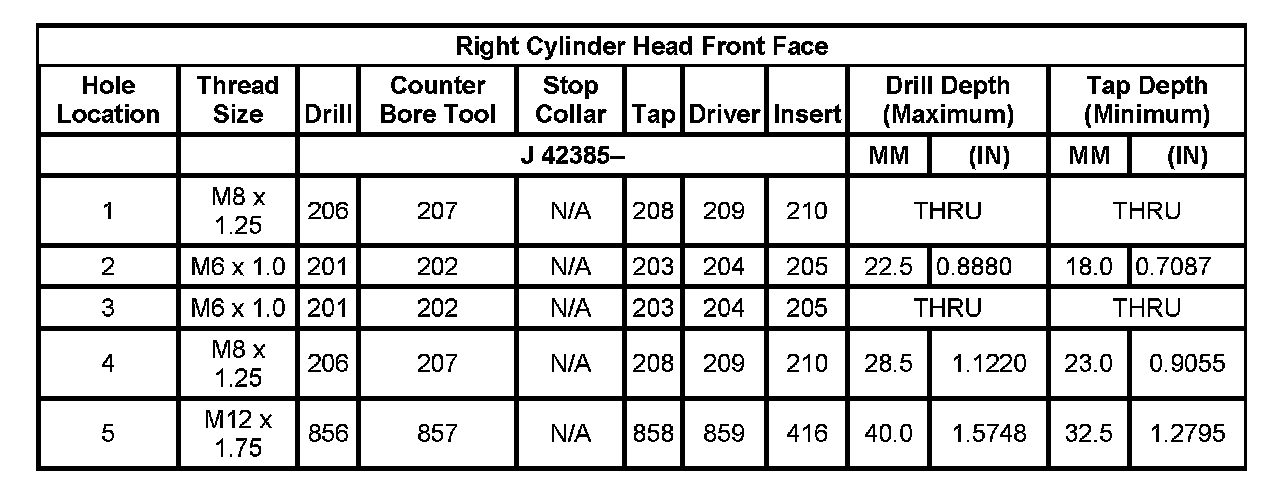

Right Cylinder Head Front Face:

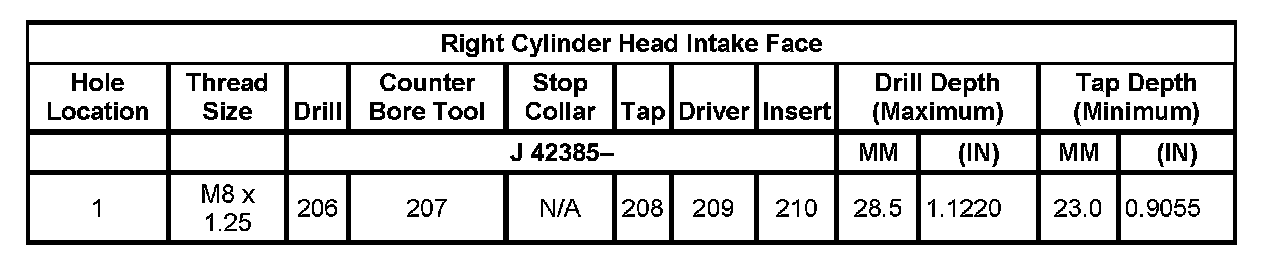

Right Cylinder Head Intake Face:

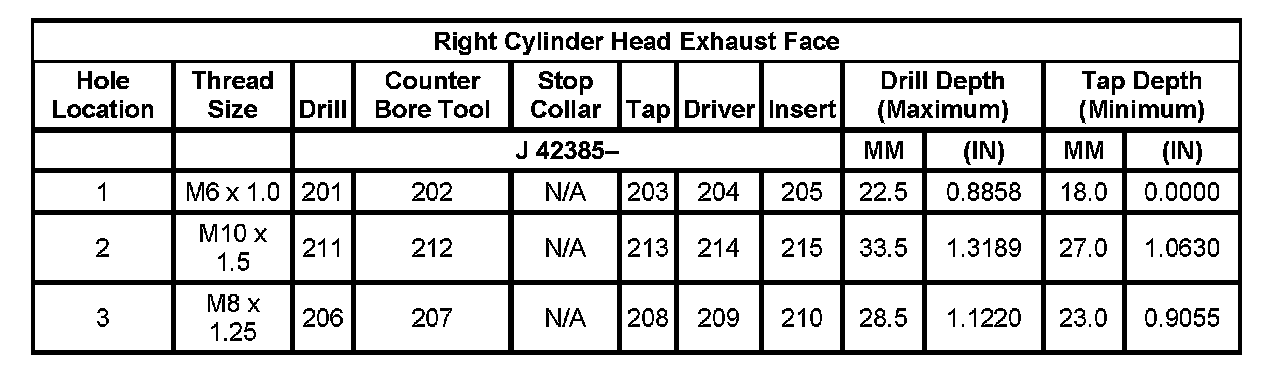

Right Cylinder Head Exhaust Face:

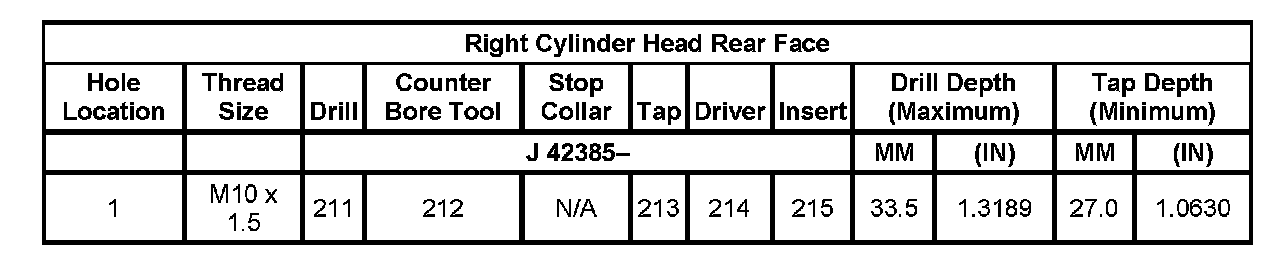

Right Cylinder Head Rear Face:

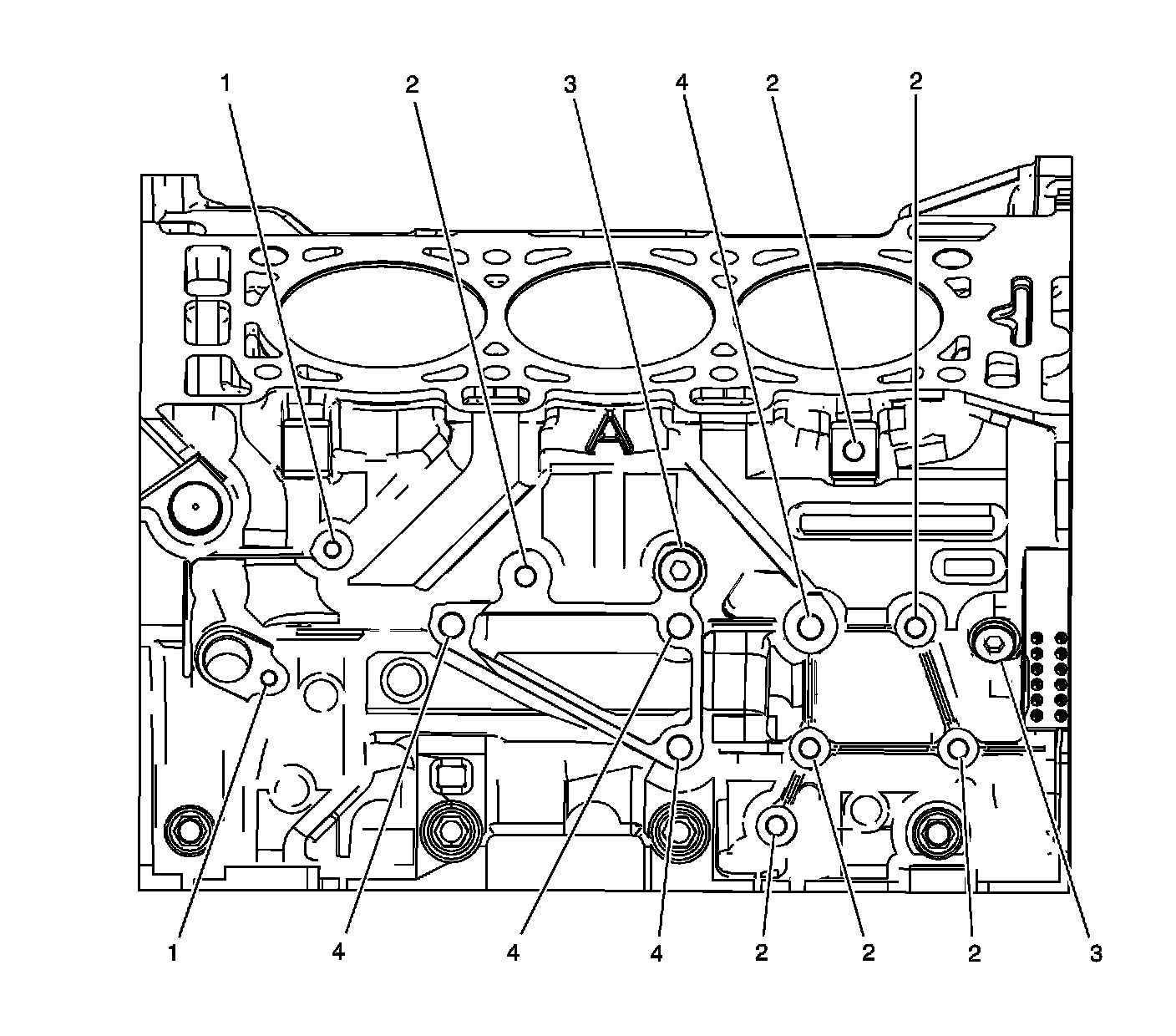

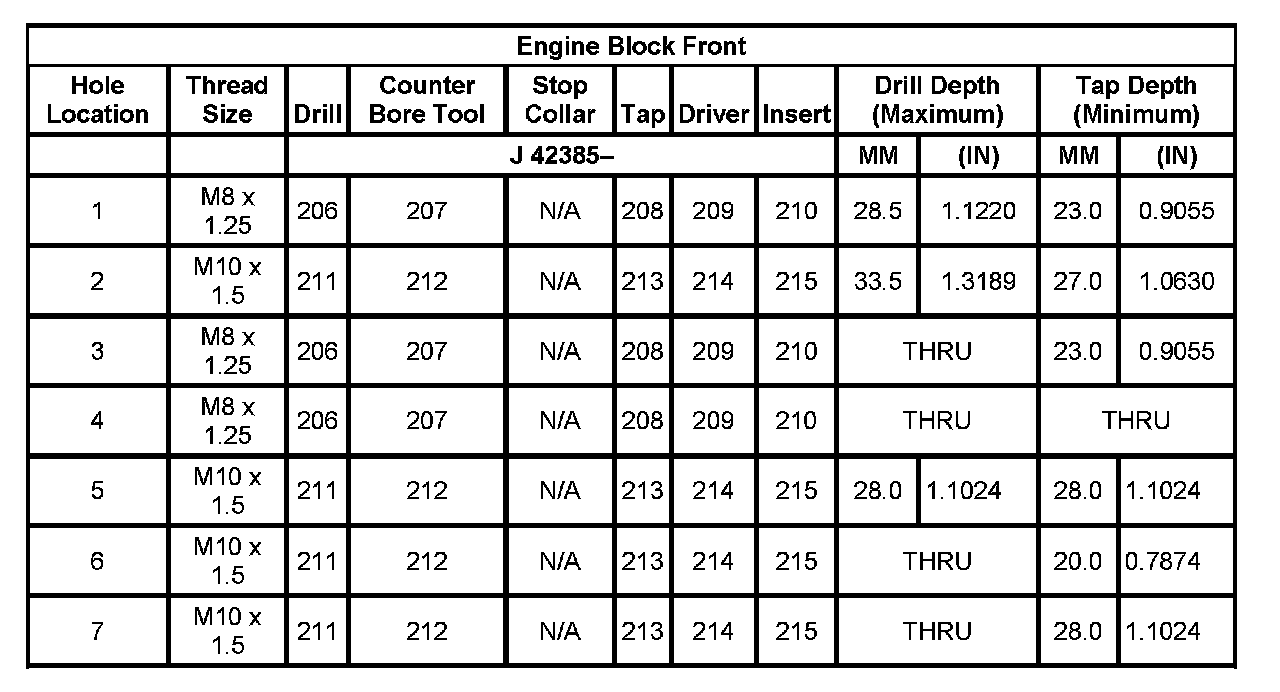

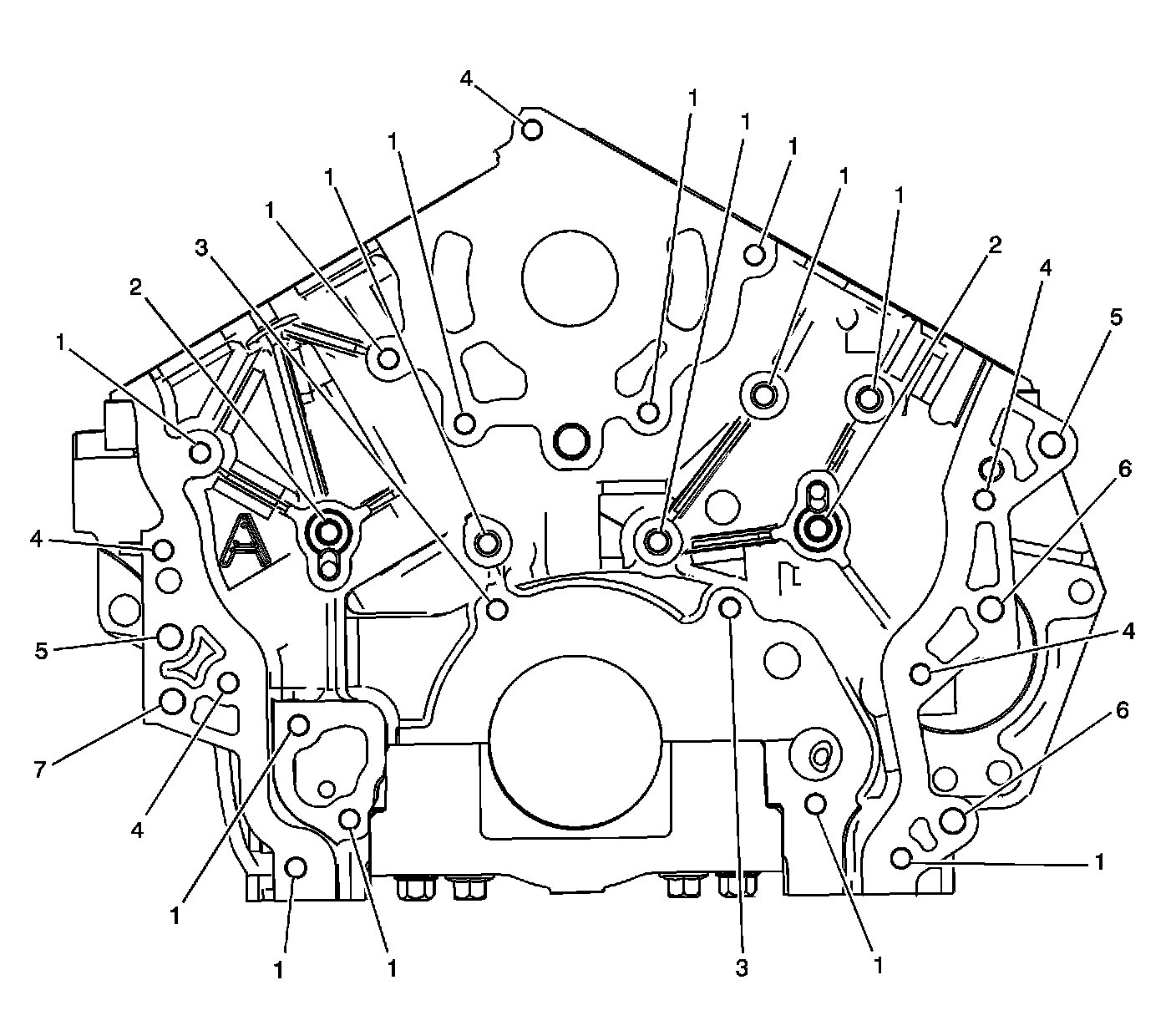

Engine Block Front:

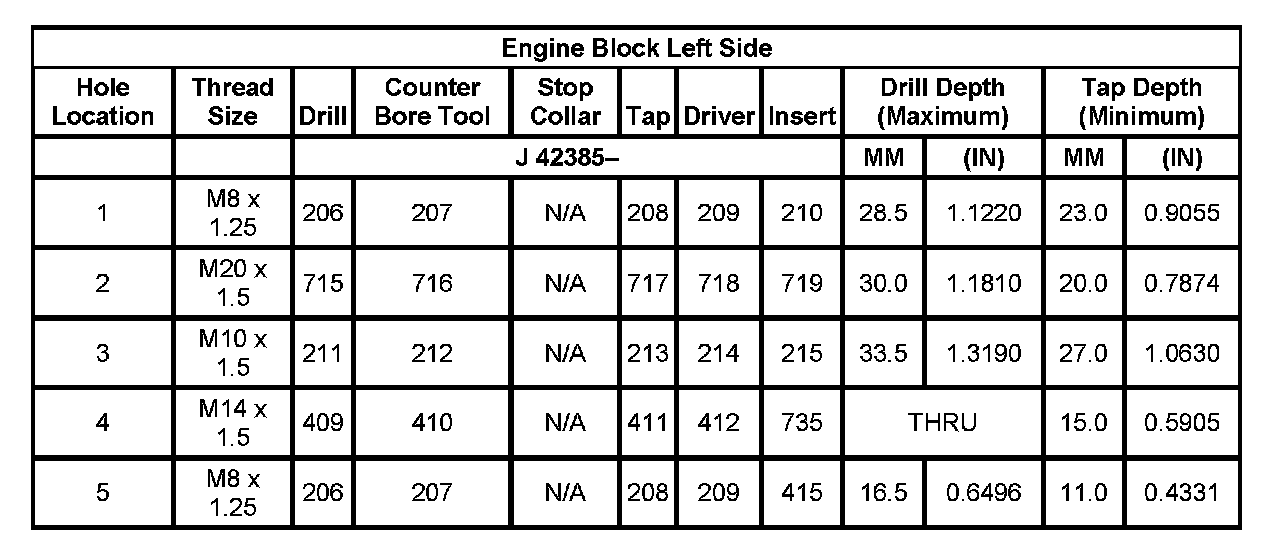

Engine Block Left Side:

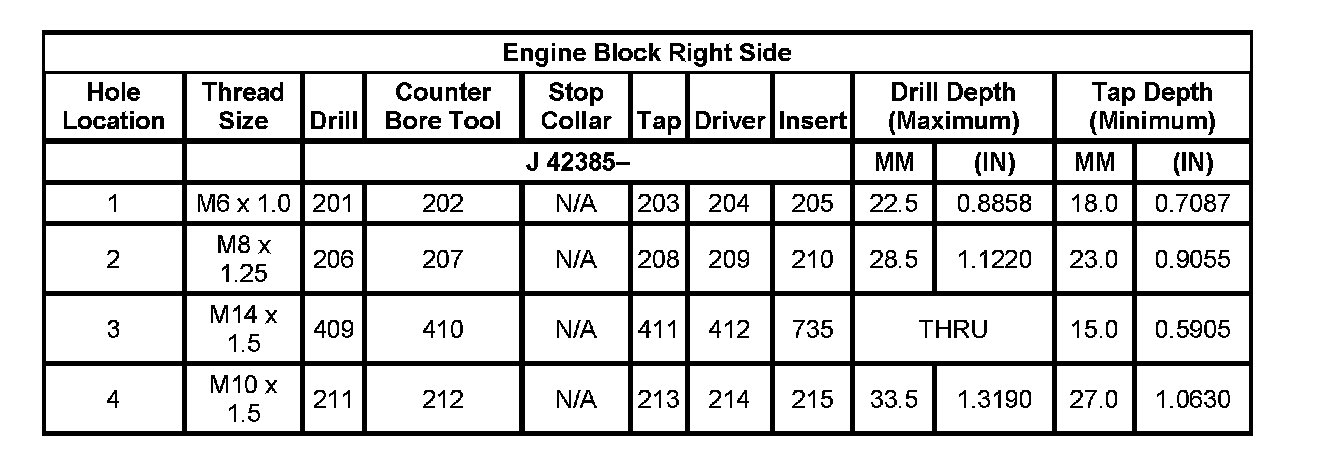

Engine Block Right Side:

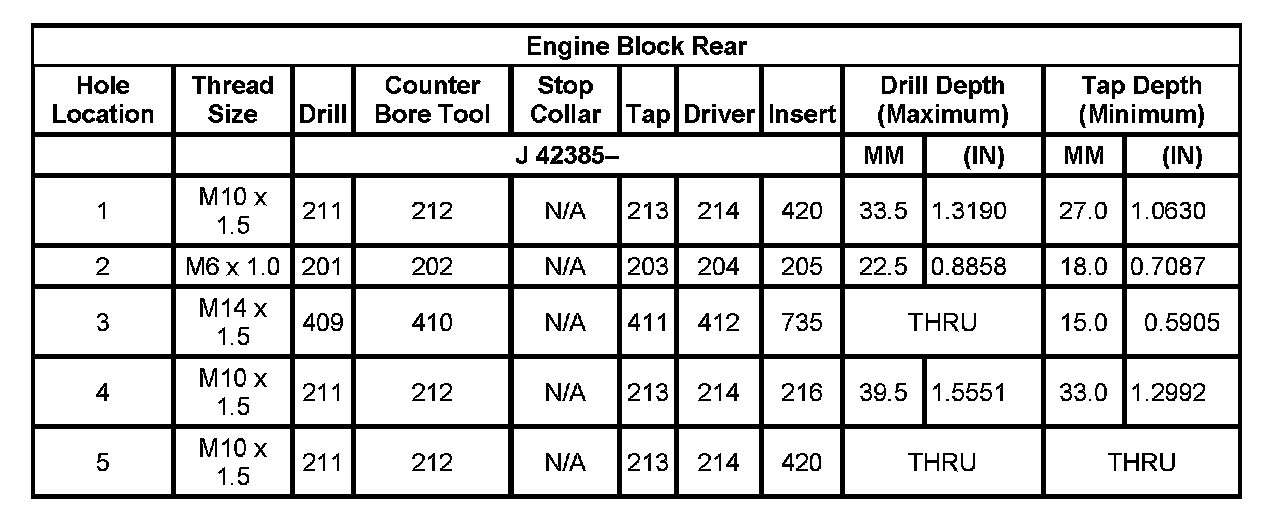

Engine Block Rear:

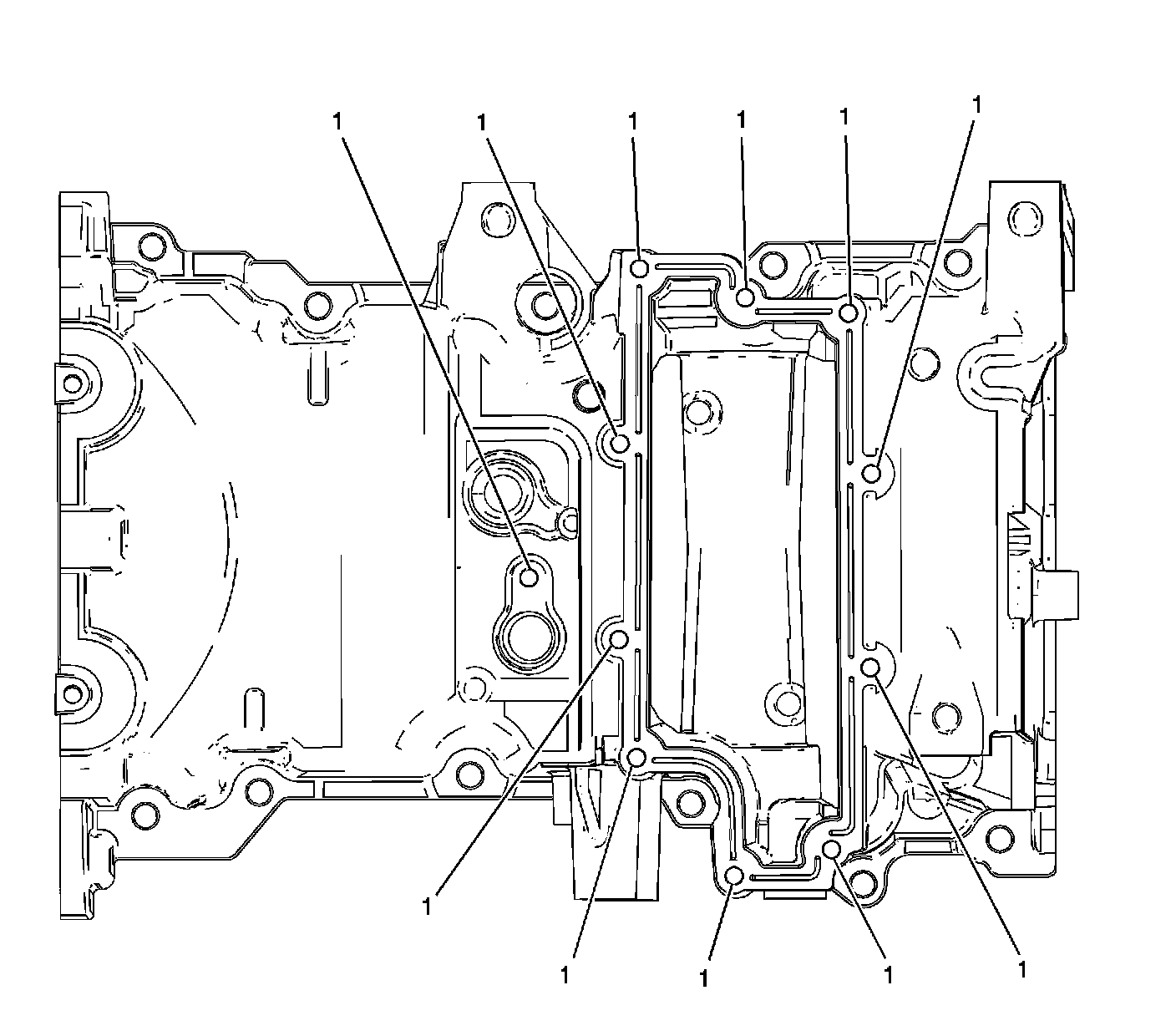

Engine Block Bottom:

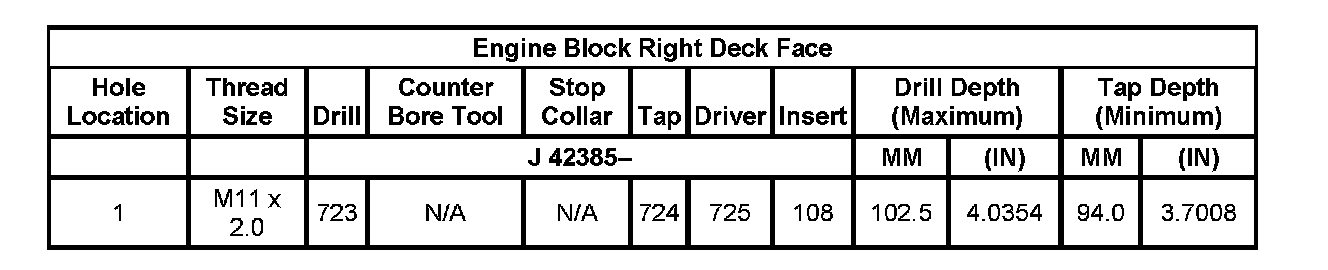

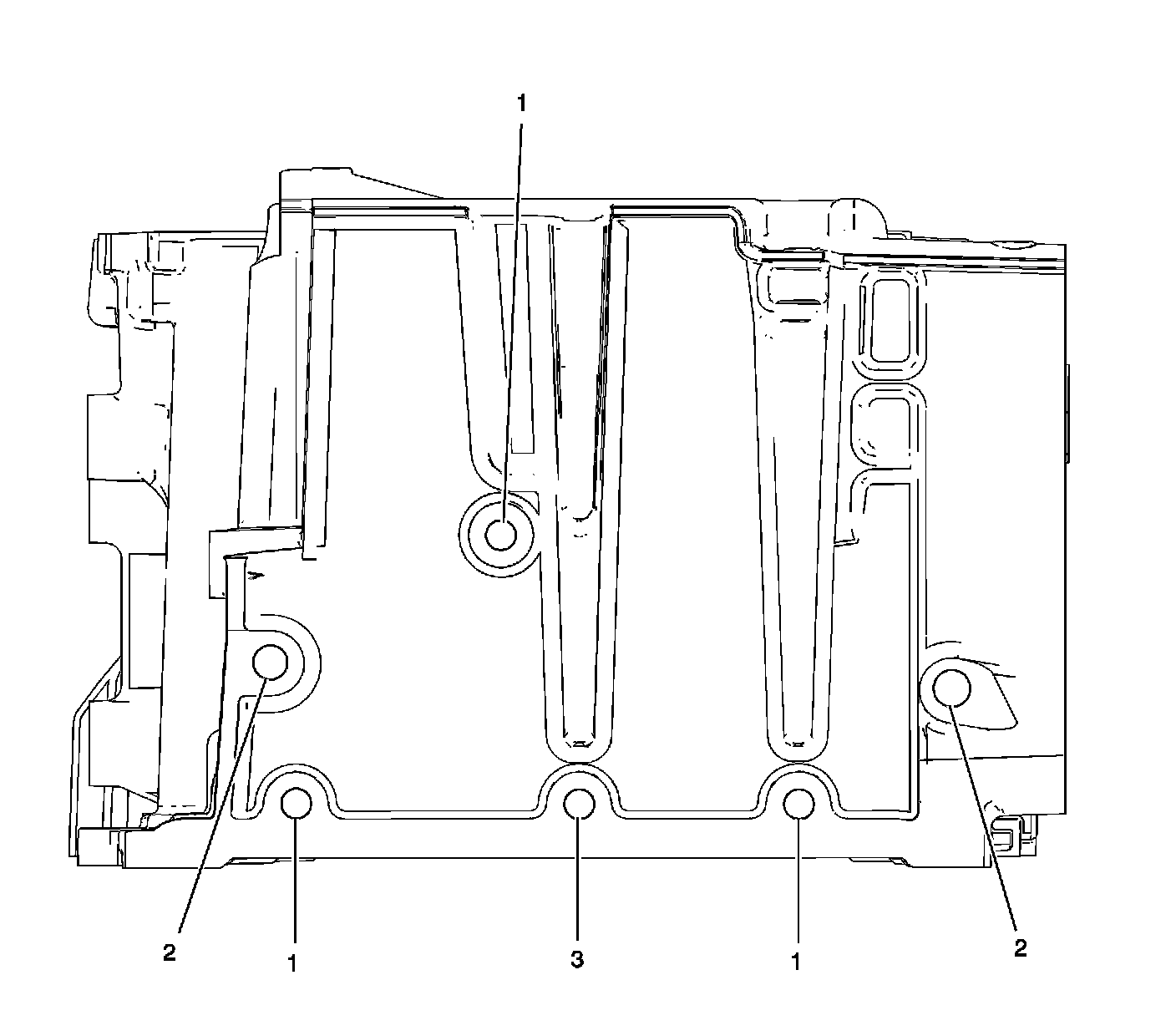

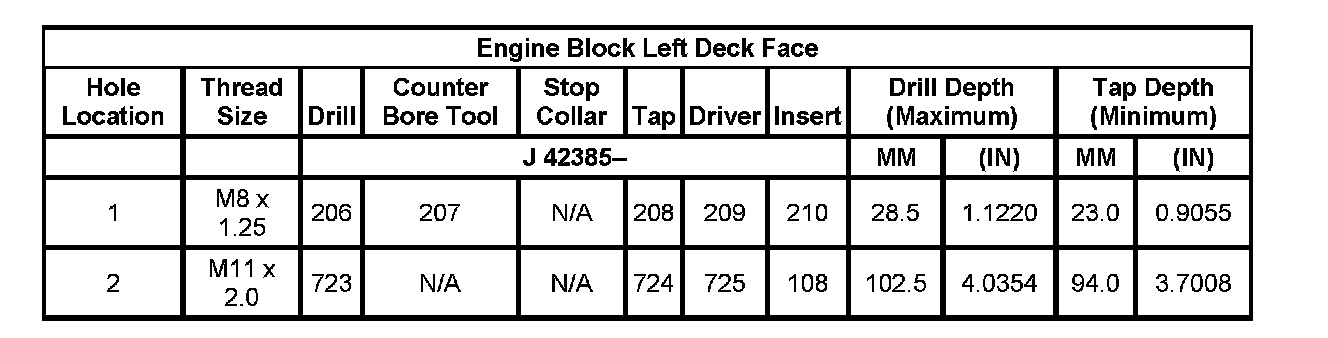

Engine Block Left Deck Face:

Engine Block Right Deck Face:

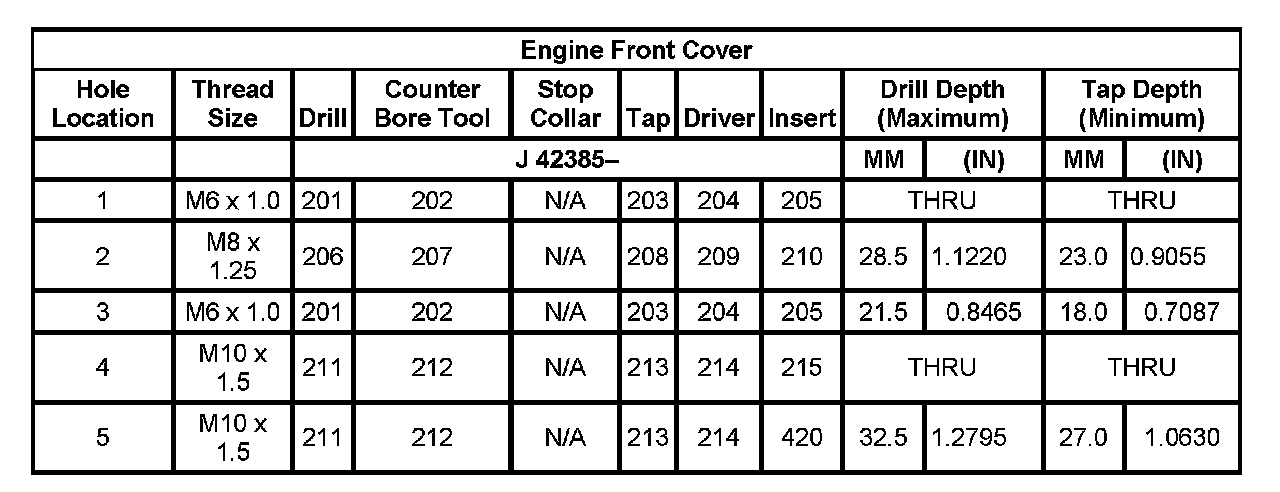

Engine Front Cover:

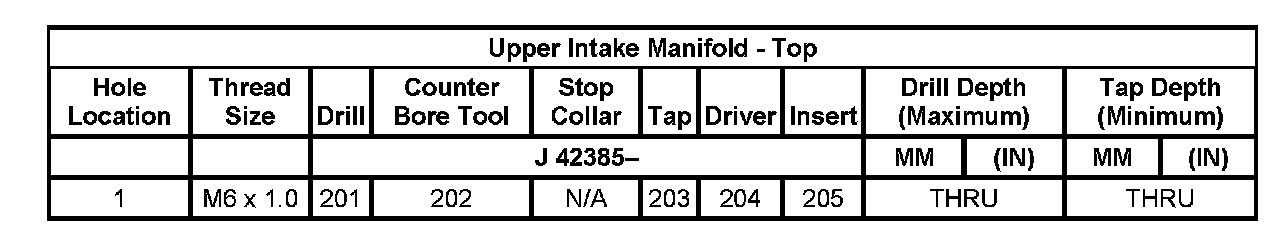

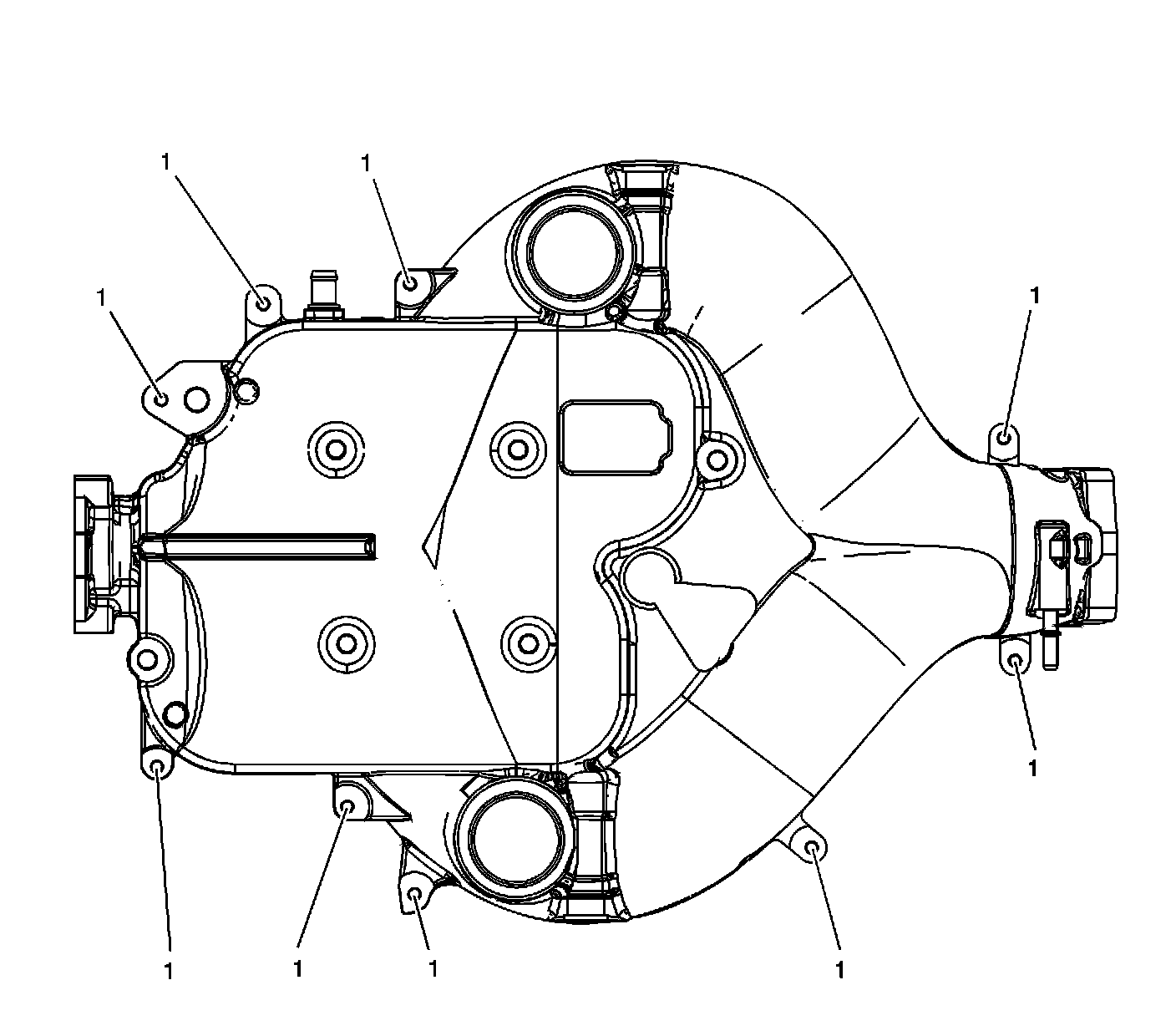

Upper Intake Manifold - Top:

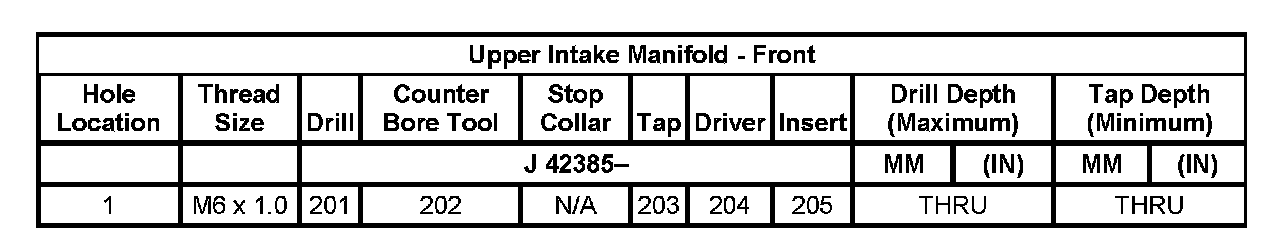

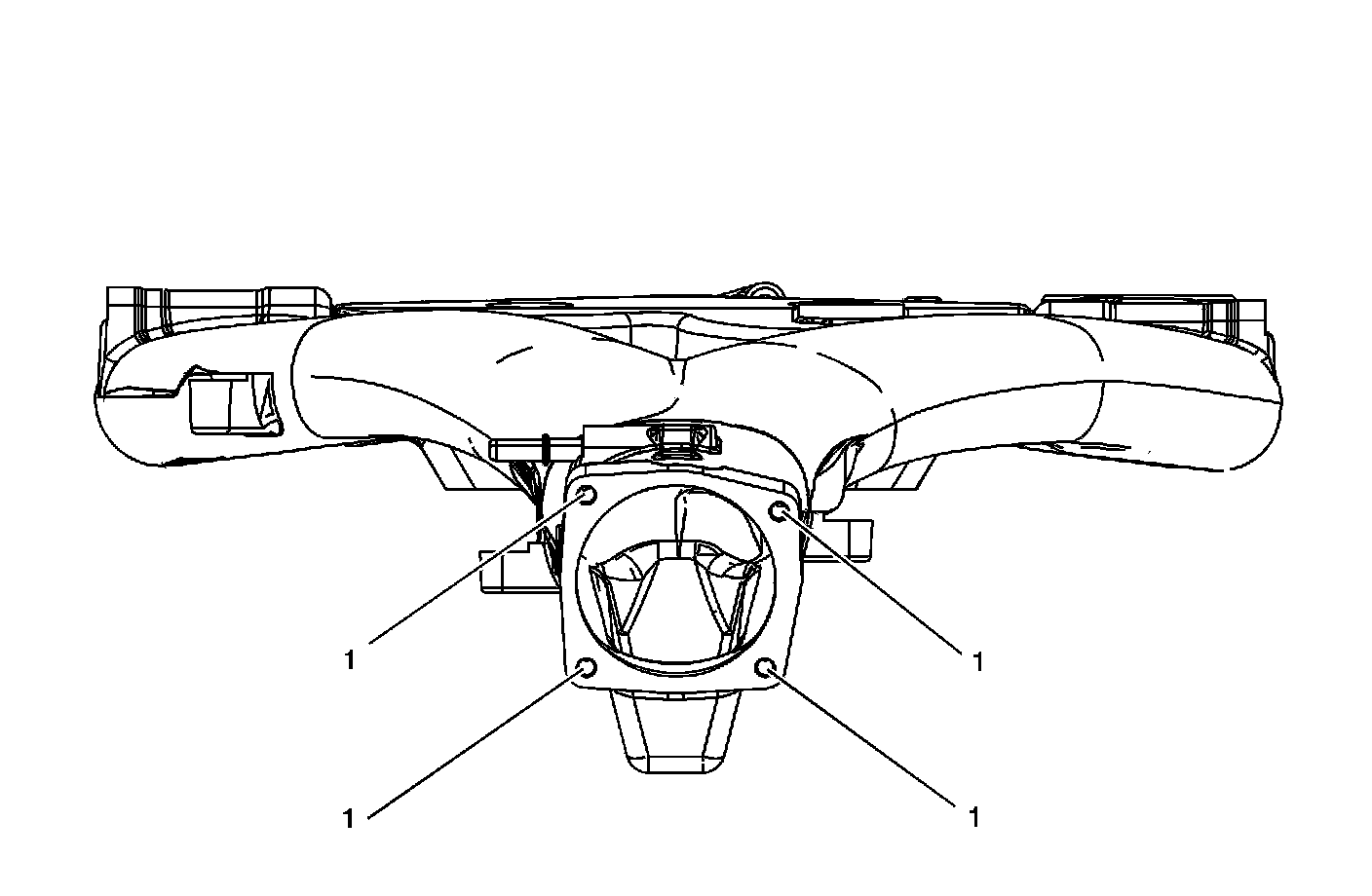

Upper Intake Manifold - Front:

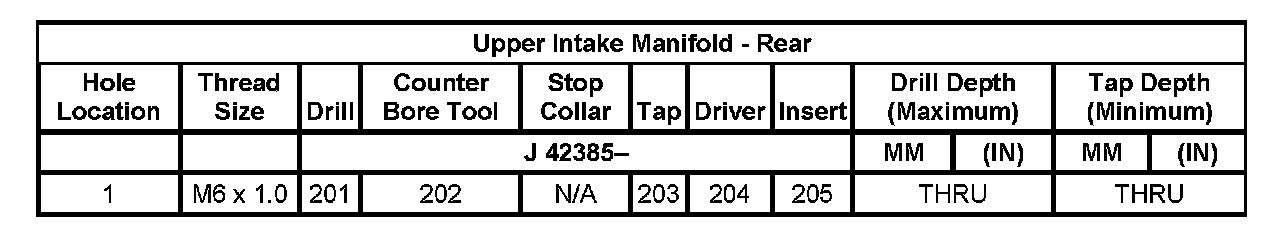

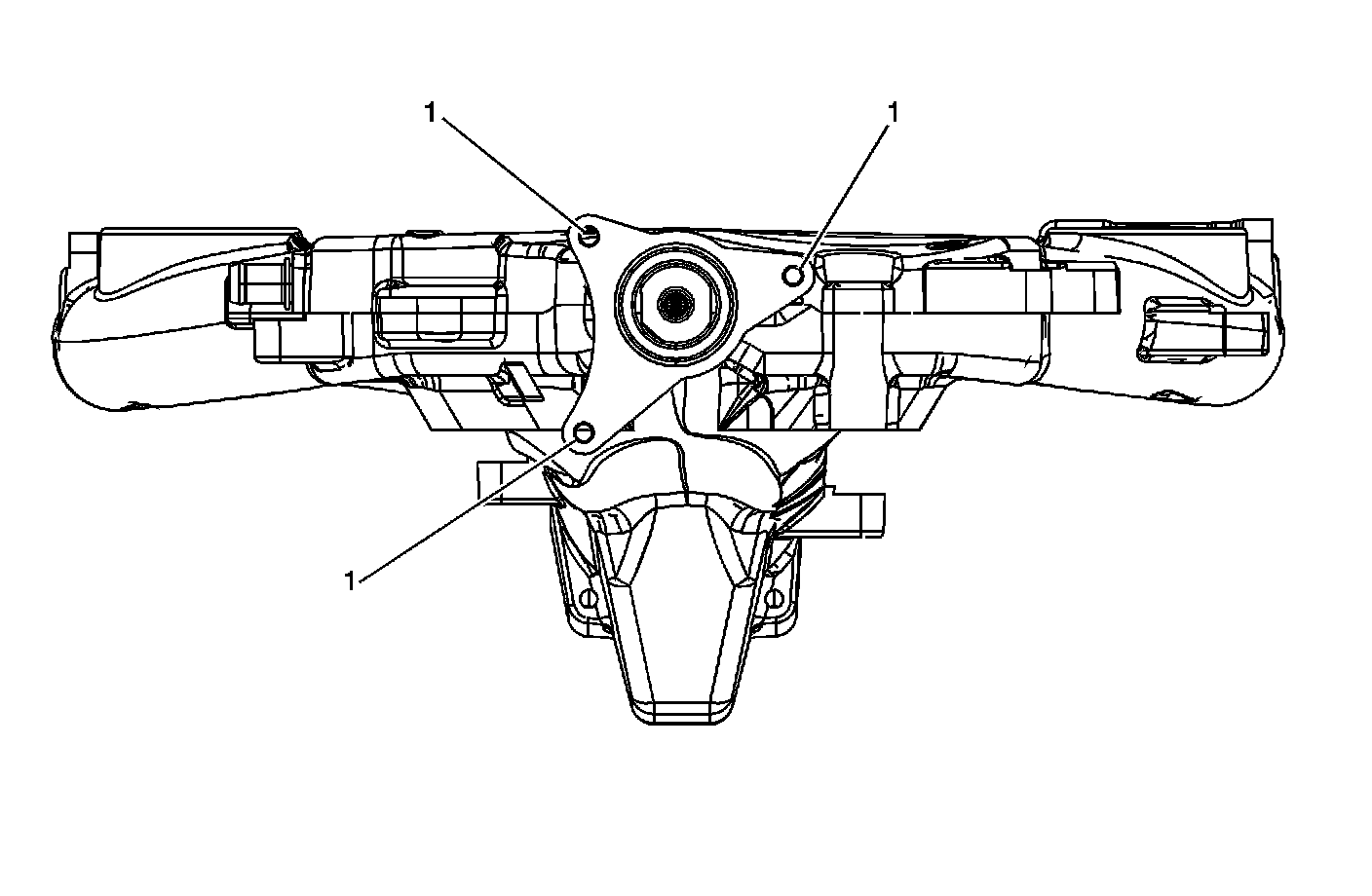

Upper Intake Manifold - Rear:

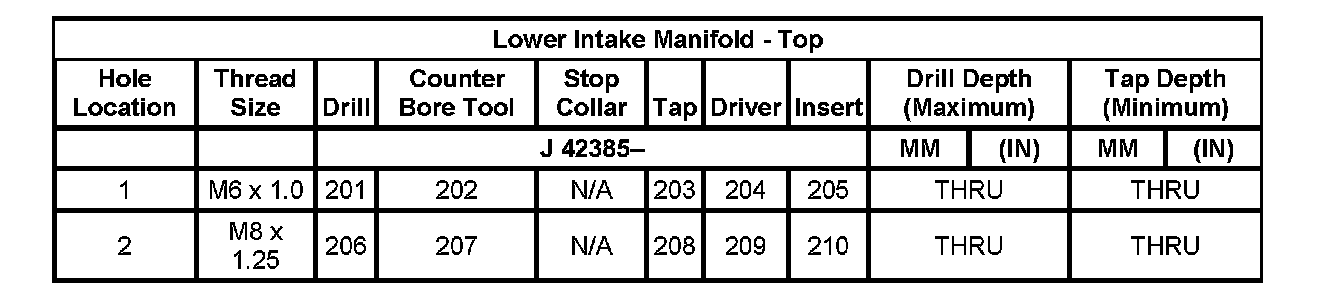

Lower Intake Manifold - Top:
