System Specifications

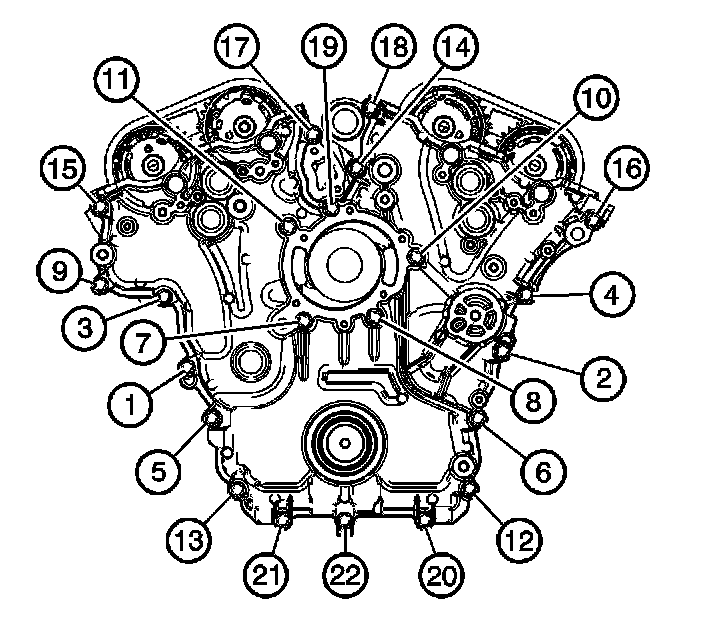

Engine Front Cover Bolt 23 Nm (17 ft. lbs.)

Secondary Camshaft Drive Chain
^ Tensioner Bolt 23 Nm (17 ft. lbs.)

Primary Camshaft Drive Chain
^ Tensioner Bolt 23 Nm (17 ft. lbs.)

Crankshaft Balancer Bolt
^ First Pass 100 Nm (74 ft. lbs.)
^ Final Pass 150 Degrees
