Normal Scan Tool Data Values
SCAN TOOL DATA LIST

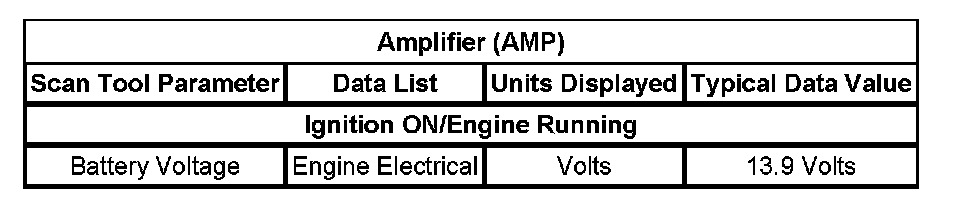

Amplifier (AMP):

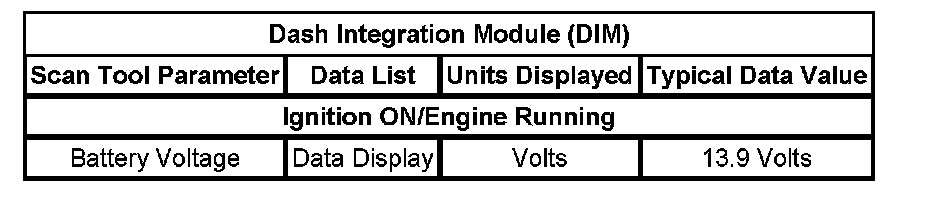

Dash Integration Module (DIM):

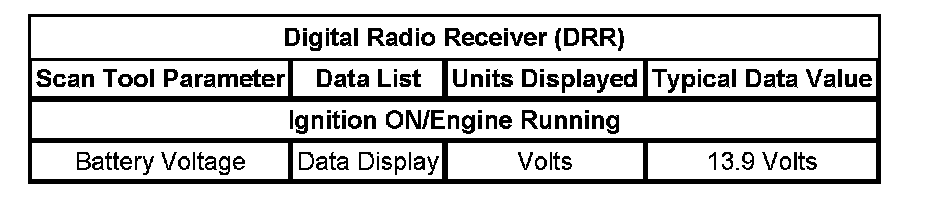

Digital Radio Receiver (DRR):

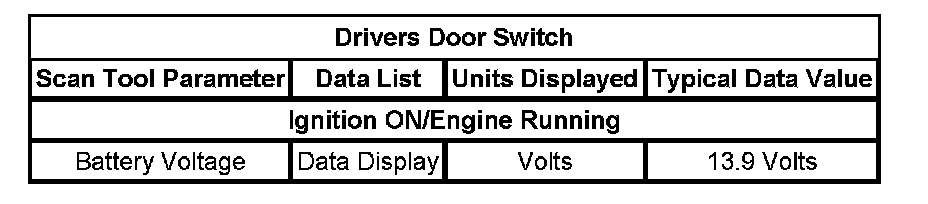

Drivers Door Switch:

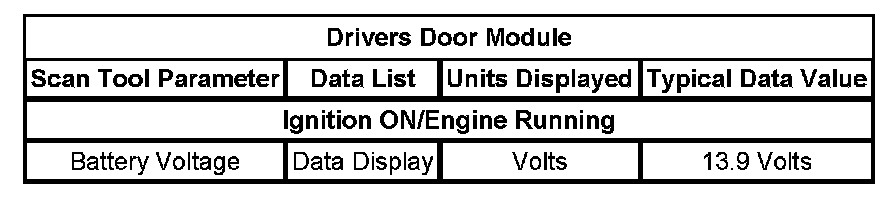

Drivers Door Module:

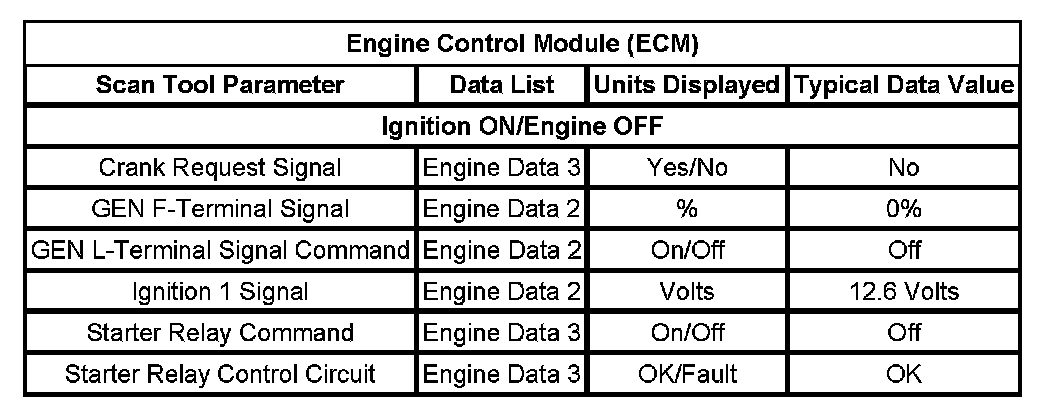

Engine Control Module (ECM):

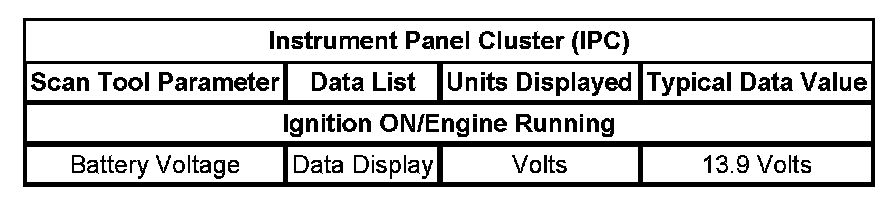

Instrument Panel Cluster (IPC):

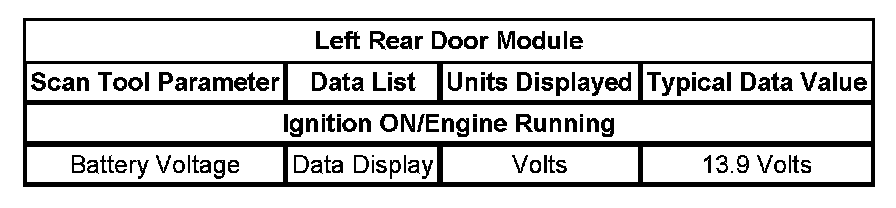

Left Rear Door Module:

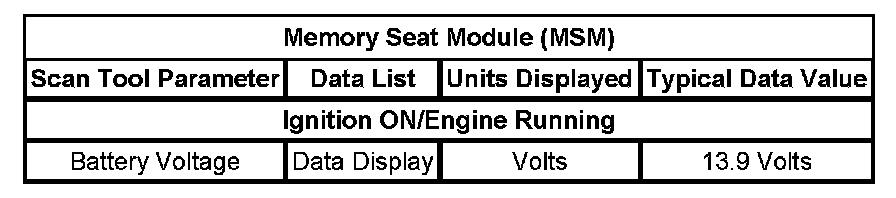

Memory Seat Module (MSM):

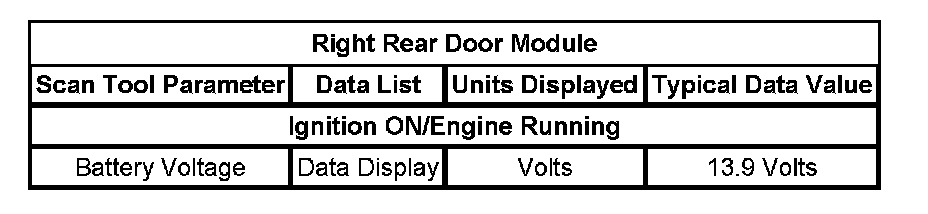

Right Rear Door Module:

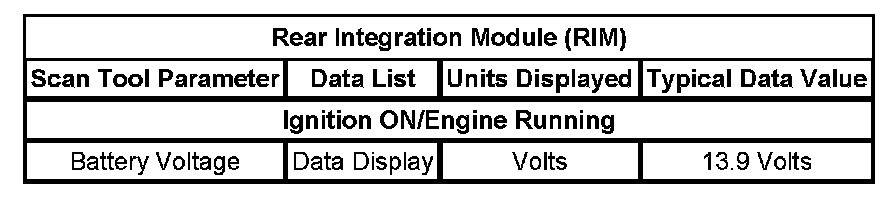

Rear Integration Module (RIM):

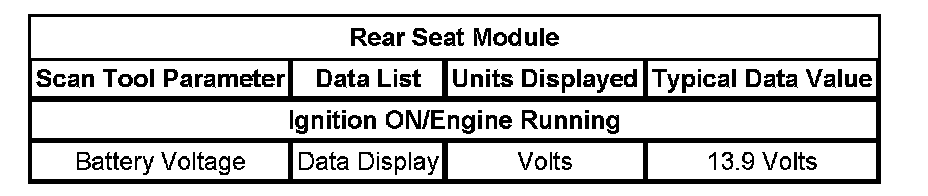

Rear Seat Module:

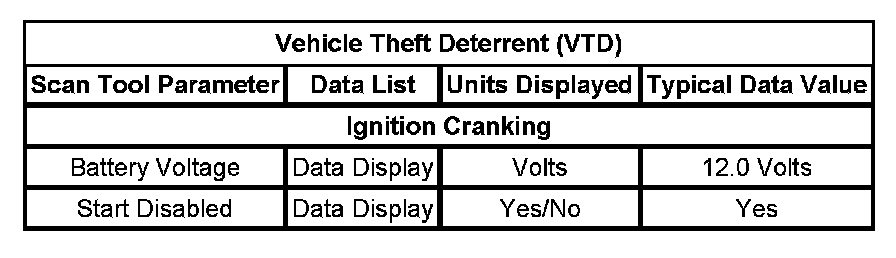

Vehicle Theft Deterrent (VTD):

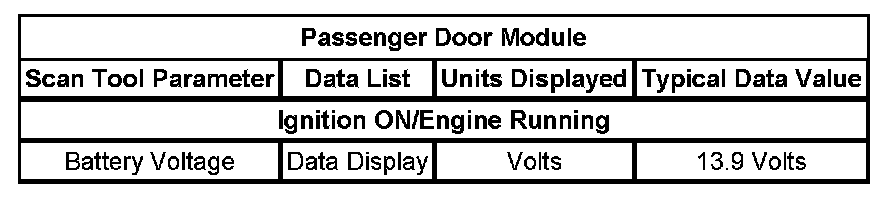

Passenger Door Module:

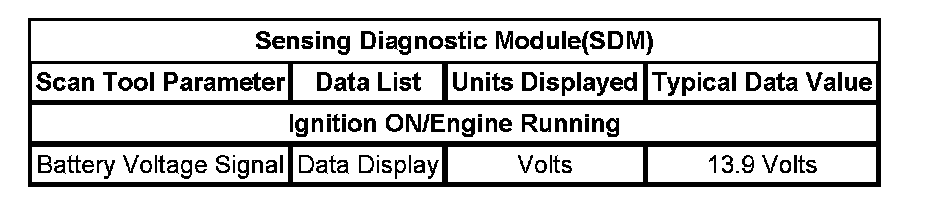

Sensing Diagnostic Module(SDM):

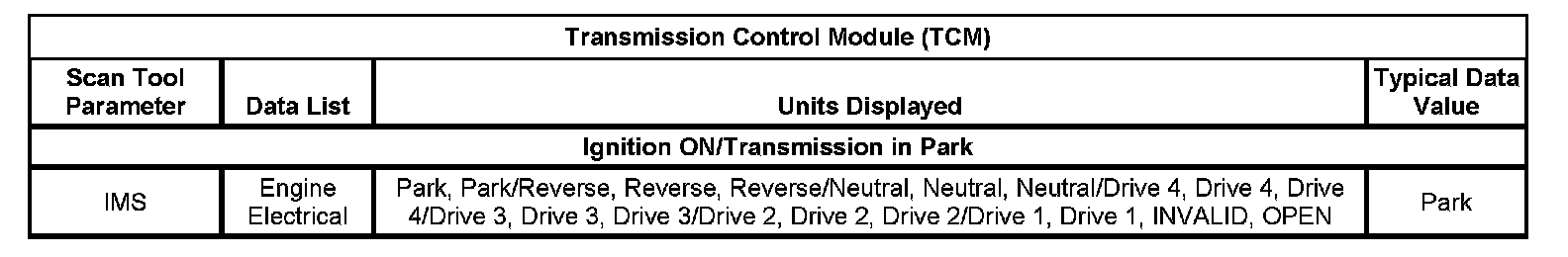

Transmission Control Module (TCM):
