System Specifications

Harmonic Balancer
First Pass Tighten the bolt to 50 Nm (37 ft. lbs.).
Final Pass Tighten the bolt an additional 120 degrees using the J45059

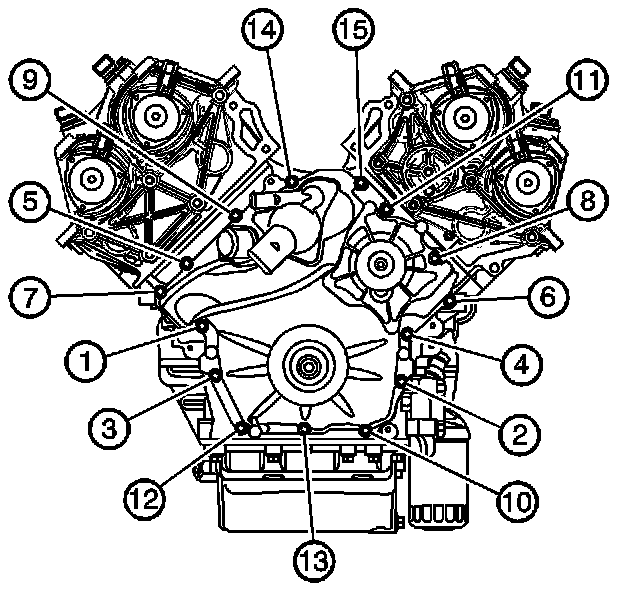

Tighten the engine front cover bolts in proper sequence to 15 Nm (11 ft. lbs.).

Tighten the secondary camshaft drive chain tensioner bolts to 25 Nm (18 ft. lbs.).
Tighten the primary camshaft drive chain tensioner bolts to 25 Nm (18 ft. lbs.).
