Connector Views

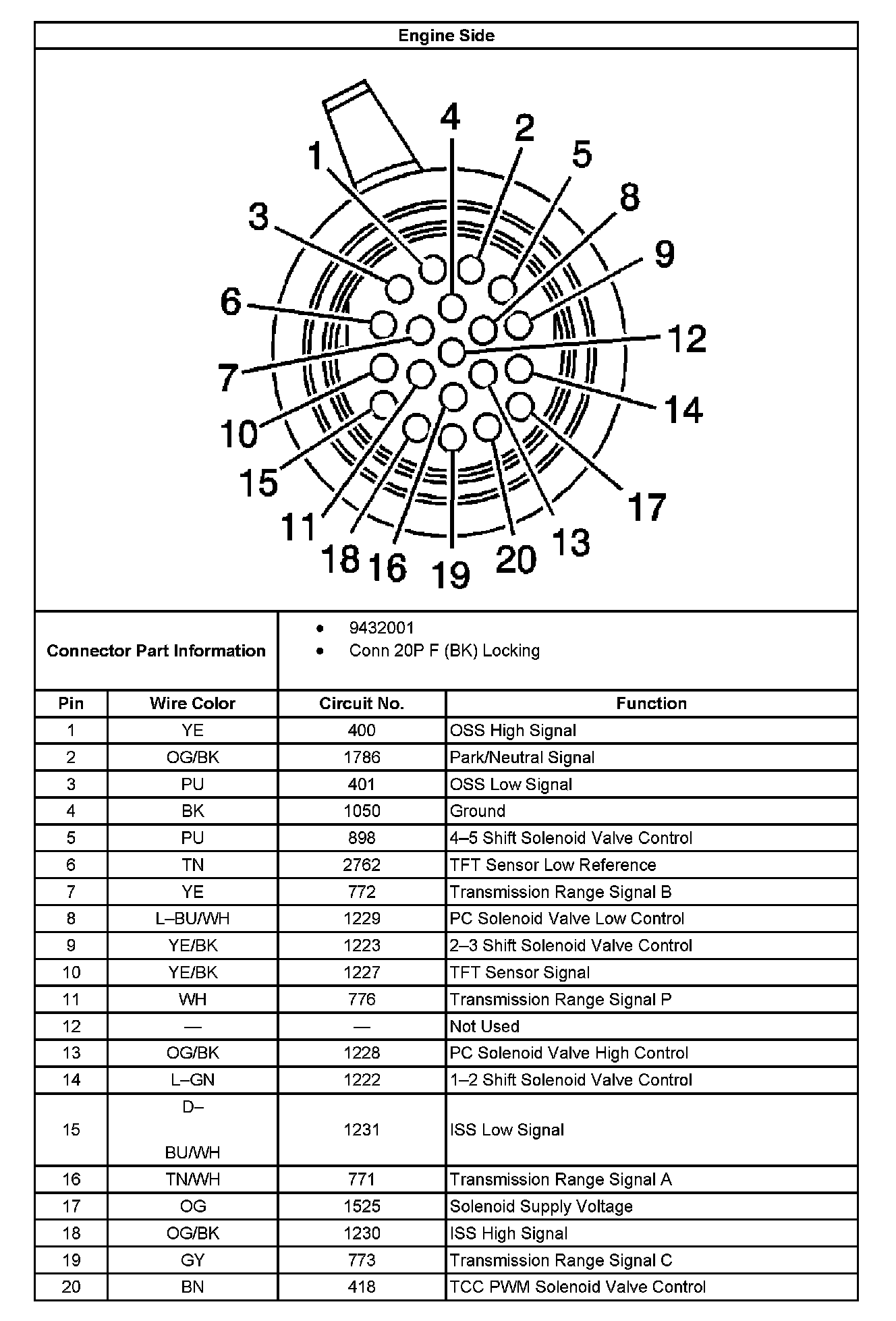

Automatic Transmission Inline 20-Way Connector:

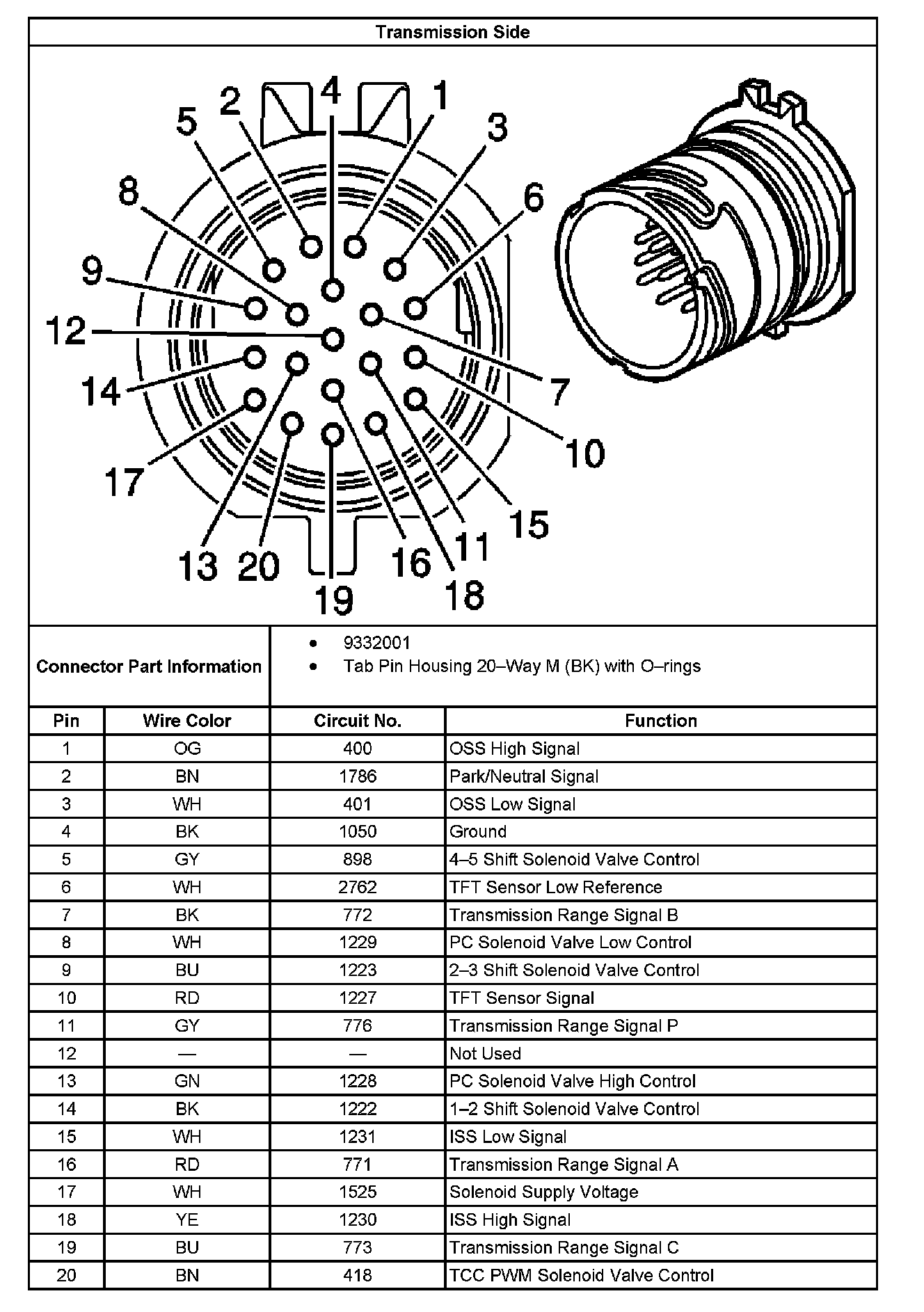

Automatic Transmission Inline 20-Way Connector:
