Installation Procedure

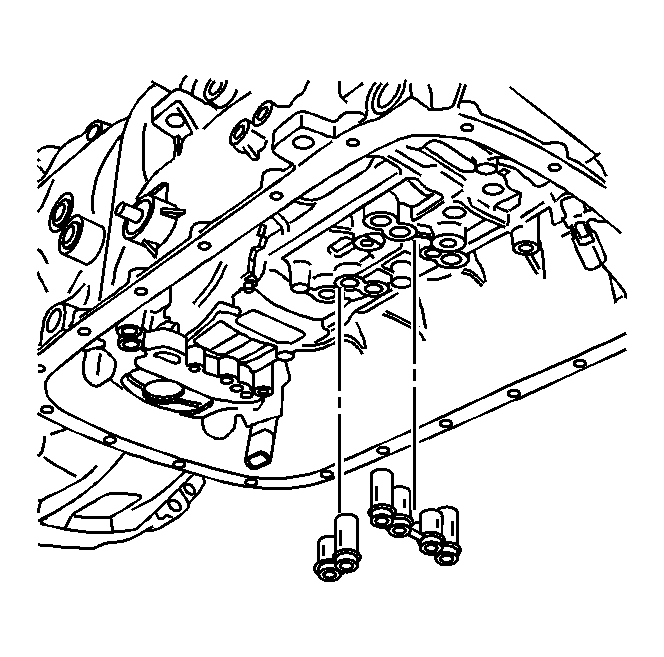

Fig 1: View Of Fluid Passage Sleeves

Courtesy of GENERAL MOTORS CORP.

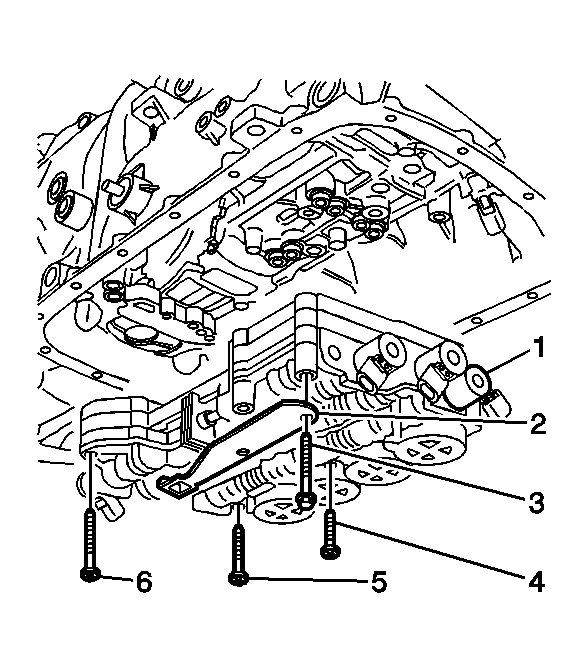

Fig 2: View Of Control Valve Body Accumulator Assembly, Manual Shaft Detent Assembly, & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the control valve body accumulator assembly (1) and manual shaft detent spring (2) to the transmission.
Install the manual shaft detent spring bolts (3) and hand tighten.

Fig 3: View Of Manual Shift Shaft Switch & Detent Lever Locating Pin, Manual Valve Link, & Detent Spring Roller

Courtesy of GENERAL MOTORS CORP.

Confirm that the manual shift shaft detent lever locating pin (2) is properly engaged with the manual valve link (1).
Confirm that the detent spring roller (4) is properly engaged with the manual shift shaft switch (3).

Fig 4: Locating Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

Install the control valve body accumulator assembly to the transmission case bolts (1-3) and hand tighten.

Fig 5: Control Valve Body Assembly Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: If the bolts are tightened at random, valve bores may become distorted and inhibit proper valve operation.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the control valve body assembly bolts in sequence.
Tighten: Tighten the bolts to 11 N.m (97 lb in).

Fig 6: Installing Spacer Between Manual Shaft Detent Lever & Spring

Courtesy of GENERAL MOTORS CORP.

Install a 0.8 mm spacer (2) between the manual shaft detent lever (1) and the manual shaft detent spring (3).
Tighten the detent spring bolts.
Tighten: Tighten the bolts to 11 N.m (97 lb in).
Remove the spacer (2).

Fig 7: View Of Transmission (Pan Removed)

Courtesy of GENERAL MOTORS CORP.

Connect the internal electrical wiring harness connectors to all internal electrical components (1-8).
Install the transmission fluid pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
