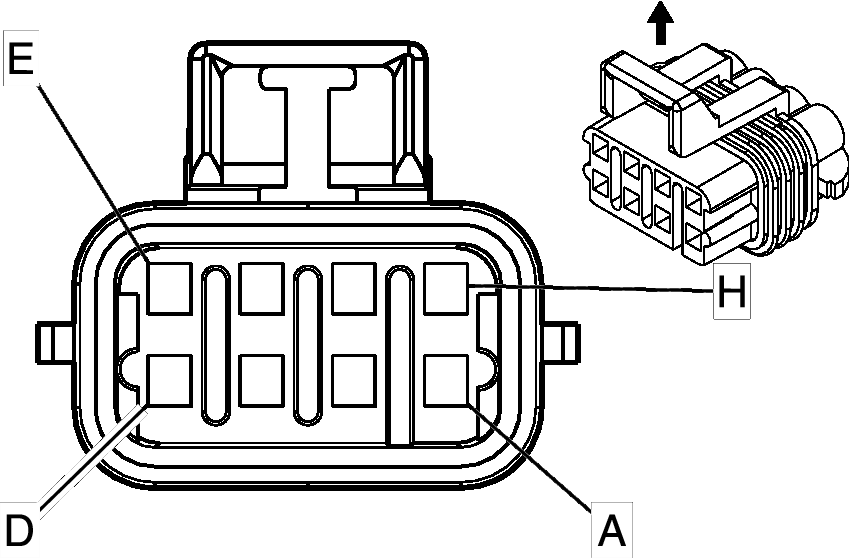

Ignition Coil/Module Odd Connector End View

Ignition Coil/Module Odd

GM684790Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047938
  • 8-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A BK/WH 1451 Ground
B OG 2127 Ignition control (7)
C D-GN 2125 Ignition Control (5)
D - - Unavailable
E BN 2129 Ignition Low Reference Bank 1
F L-BU 2123 Ignition Control (3)
G PU 2121 Ignition Control (1)
H PK/BK 5291 Powertrain Main Relay fused Supply
