Cruise Control Inoperative/Malfunctioning



CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS
Perform the following in order to avoid misdiagnosis:
- Ensure that the following cruise control switches are not stuck in the engaged position:
- On/Off switch
- Set/Coast switch
- Resume/Accel switch
- Inspect for proper operation of the stop lamps.
- Electromagnetic interference (EMI) on the speed sensor signal circuit may cause erratic cruise control operation.
- For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections.

TEST

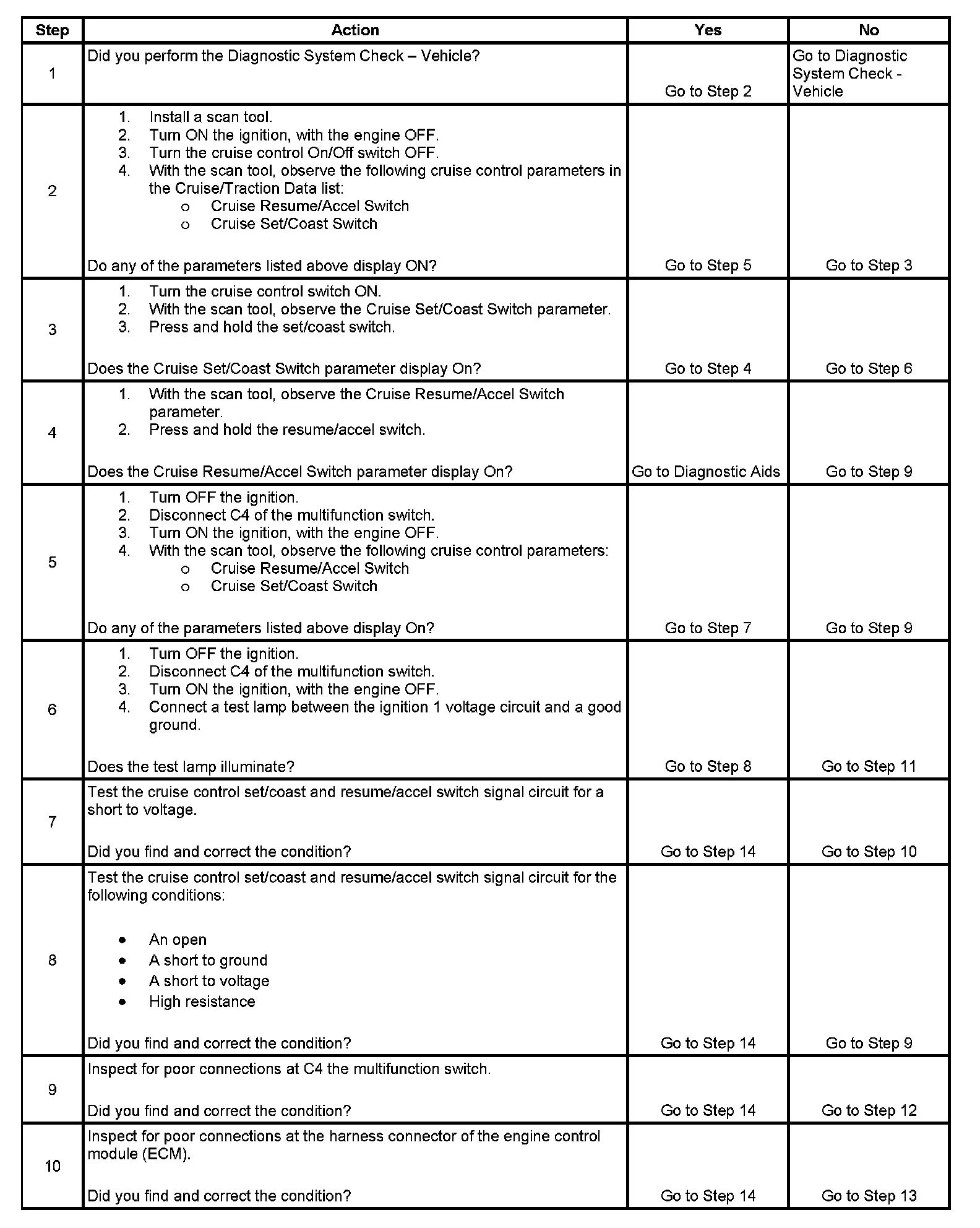

Step 1 - Step 10:




Step 11 - Step 14:
