Inflatable Restraint Sensing And Diagnostic Module (SDM)

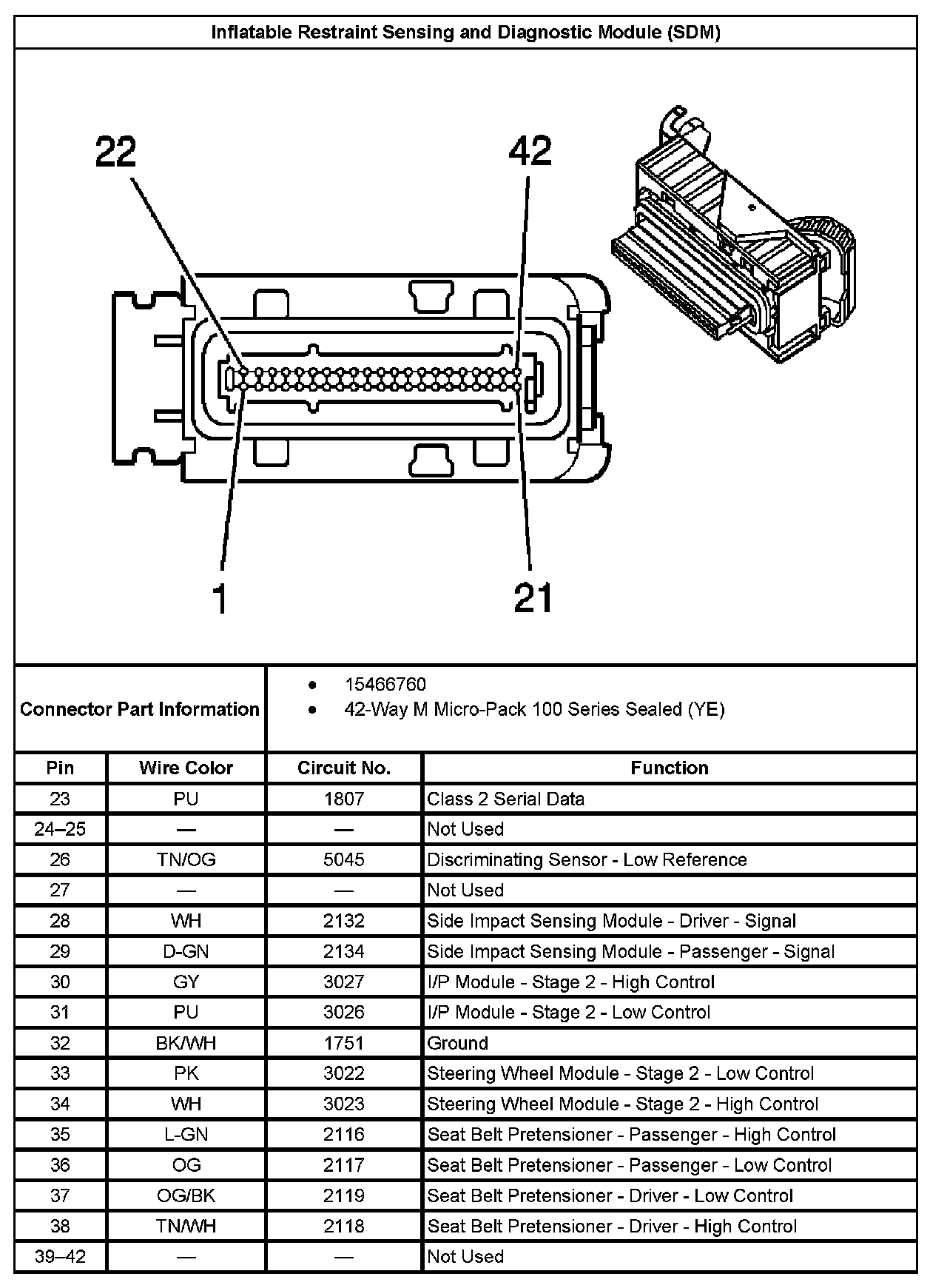

Inflatable Restraint Sensing and Diagnostic Module (SDM) Part 1:

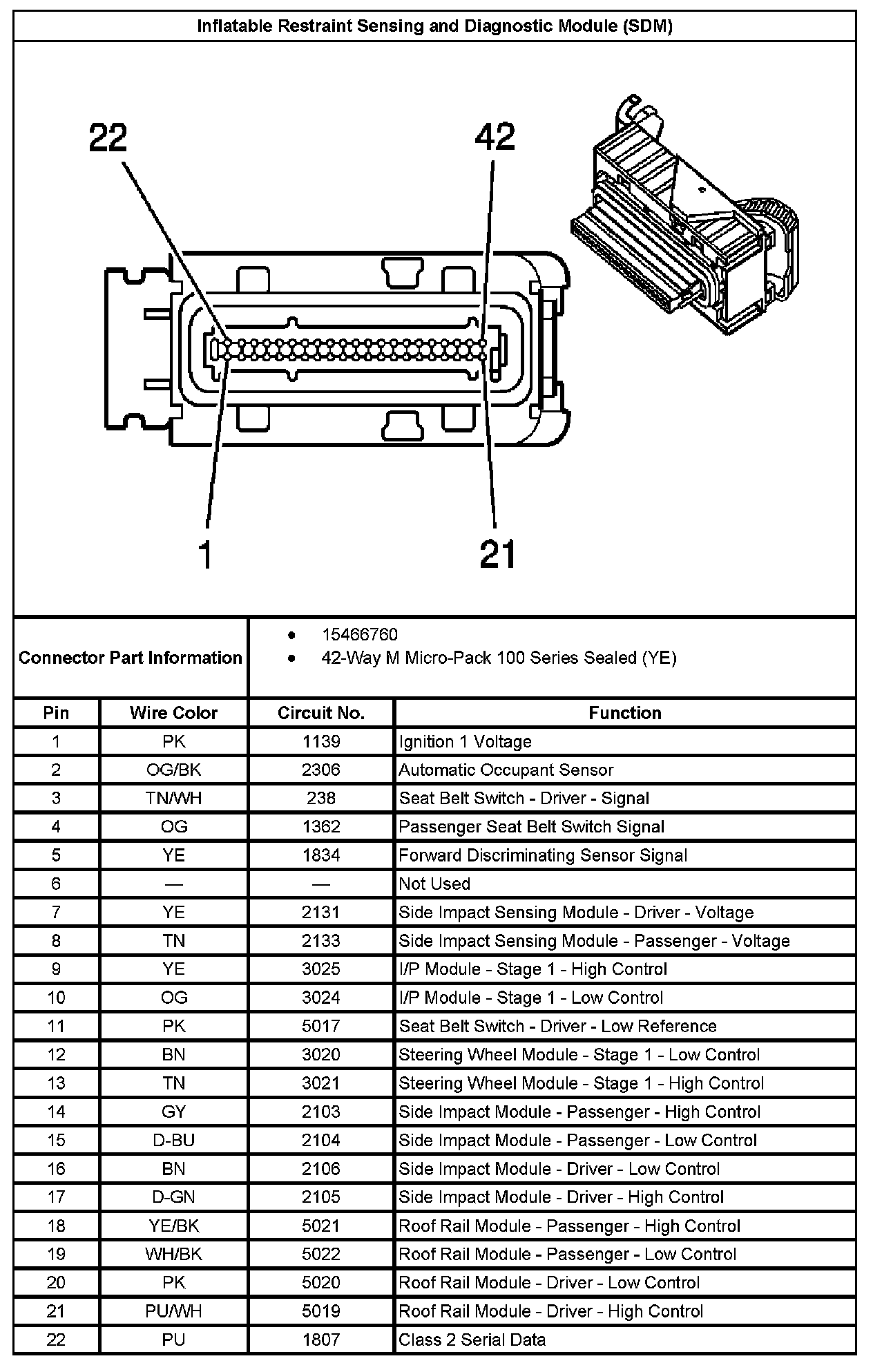

Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 2:
