Transmission Temperature Sensor/Switch, A/T

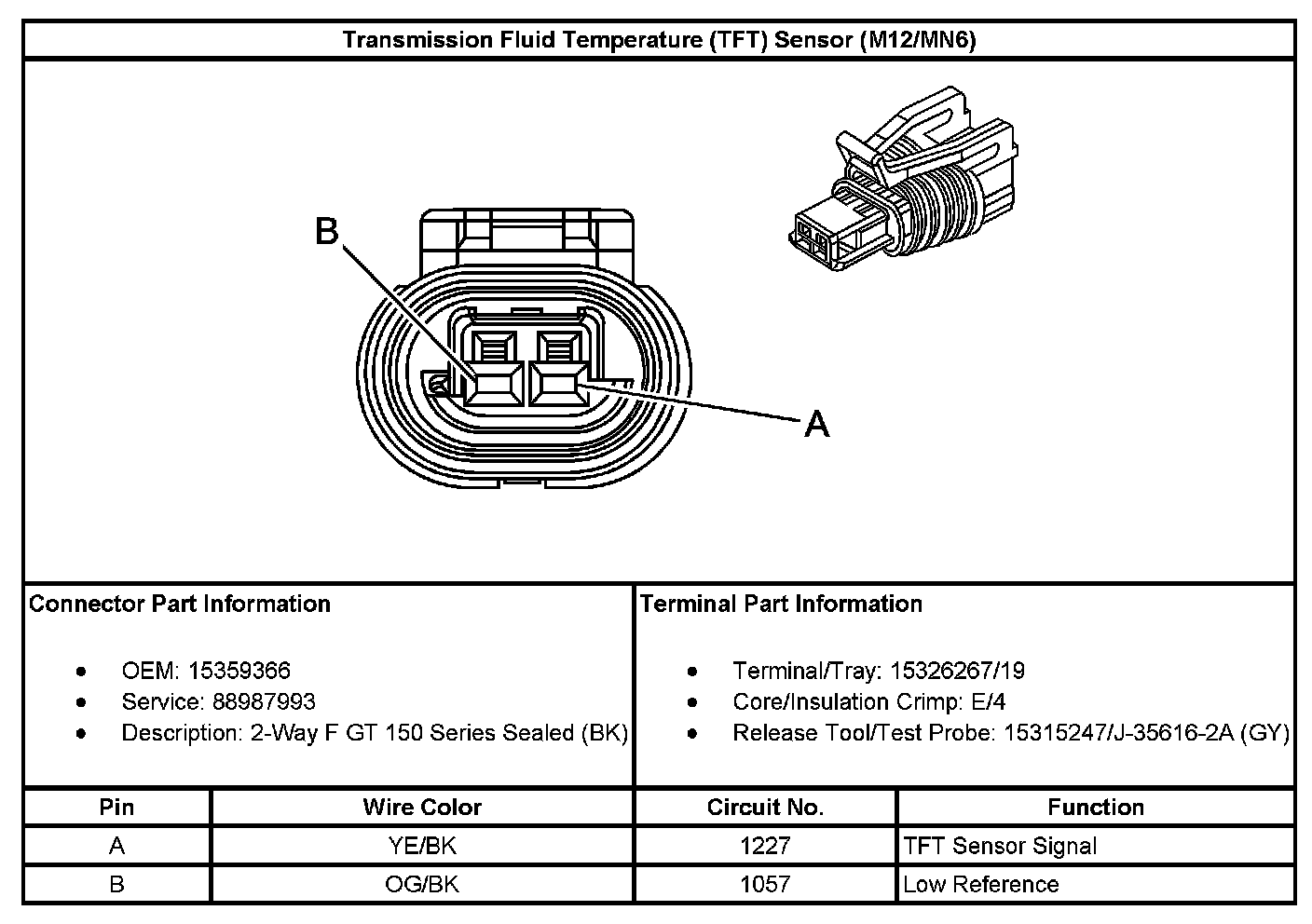

Transmission Fluid Temperature (TFT) Sensor (with RPO Code M12/MN6):
