Unit Repair Manual

Disassembled Views

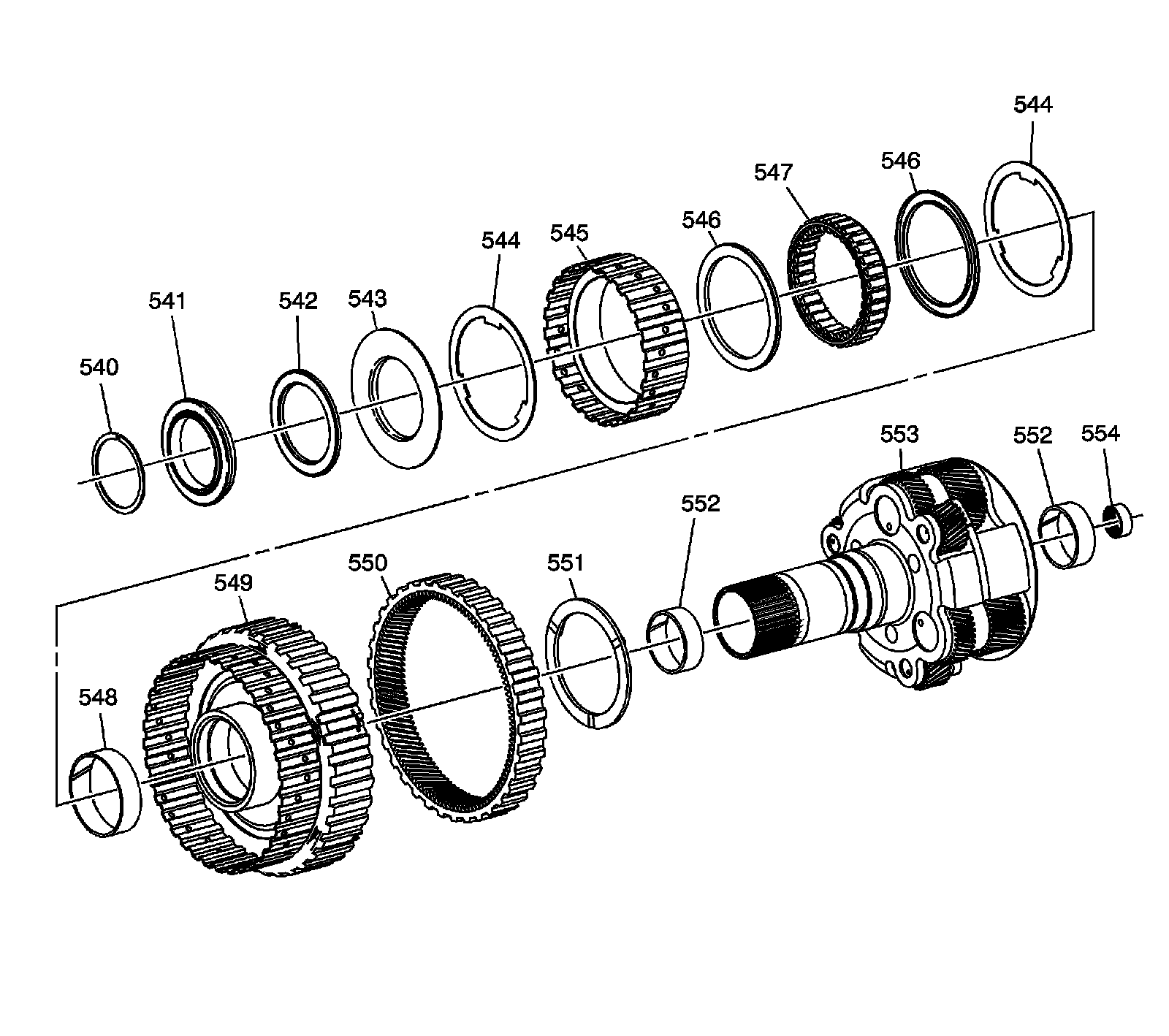

Planetary Carrier Assembly:

540 - Input and Reaction Carrier Outer Retainer Ring
541 - Input and Reaction Bearing Assembly
542 - 2nd Clutch Roller Inner Race Bearing Assembly
543 - 2nd Clutch Sprag Retainer
544 - 2nd Clutch Roller Outer Race Washer
544 - 2nd Clutch Roller Outer Race Washer
545 - 2nd Clutch Sprag Outer Race
546 - 2nd Clutch Sprag Assembly Retainer - 2
546 - 2nd Clutch Sprag Assembly Retainer - 2
547 - 2nd Clutch Sprag Assembly
548 - Input and Reaction Carrier Bushing
549 - 2nd Clutch Sprag Inner Race
550 - Reaction Internal Gear
551 - Reaction Internal Gear Flange Washer
552 - Reaction Carrier Bushing - 2
552 - Reaction Carrier Bushing - 2
553 - Input and Reaction Carrier
554 - Input and Reaction Bearing Assembly
