Unit Repair Manual

Disassembled Views

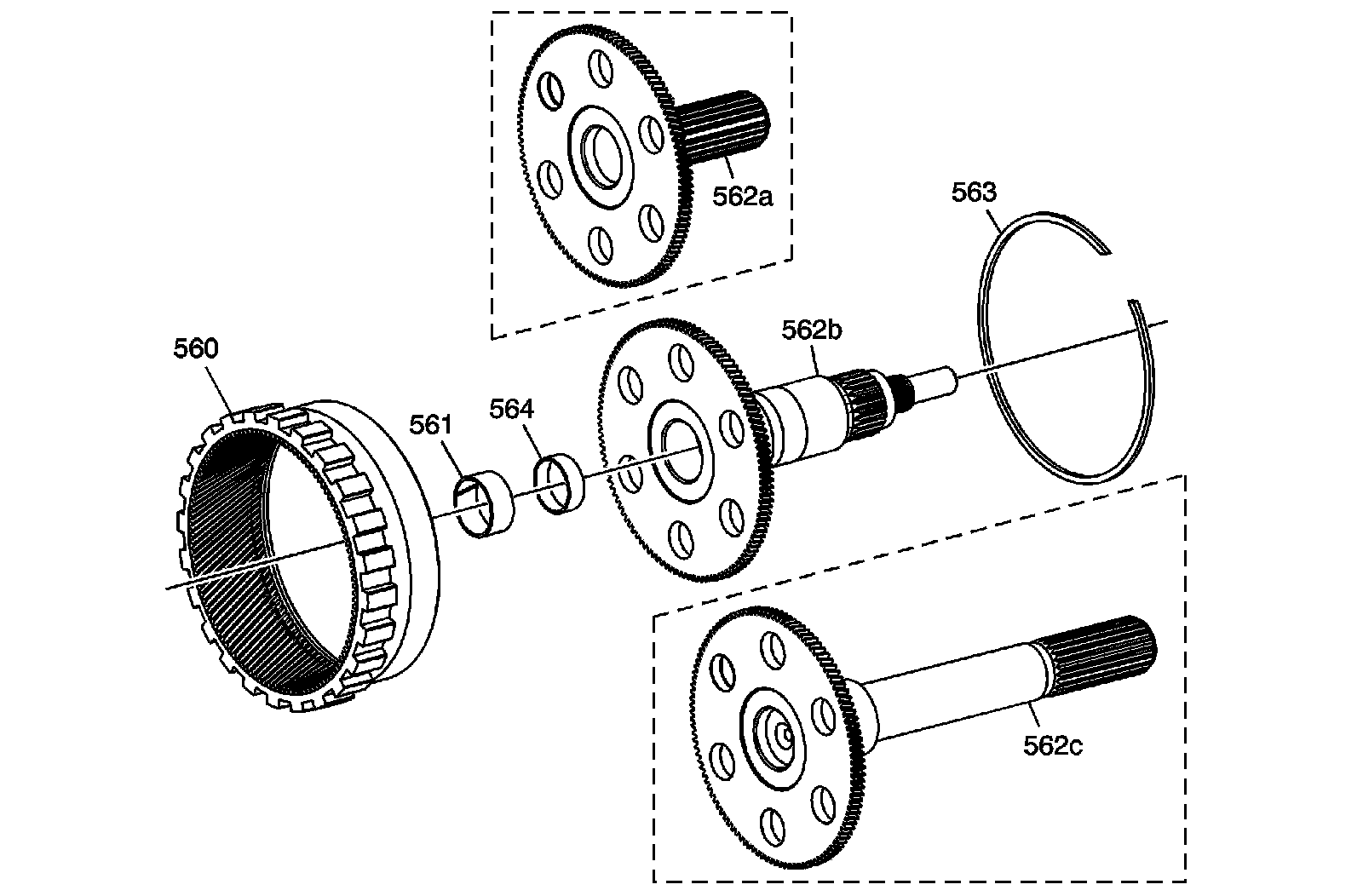

Rear Internal Gear Output Shaft Assembly:

560 - Rear Internal Gear
561 - Input and Reaction Carrier Bushing
562a - Output Shaft Assembly - Model Dependent
562b - Output Shaft Assembly - Model Dependent
562c - Output Shaft Assembly - Model Dependent
563 - Rear Internal Retainer Ring
564 - Cup Plug
