Power Steering Line/Hose: Service and Repair

Power Steering Cooler Pipe/Hose Replacement

Removal Procedure
1. Place a drain pan under the vehicle.
2. Remove the front air deflector. Refer to Air Deflector Replacement - Front in Body and Frame.

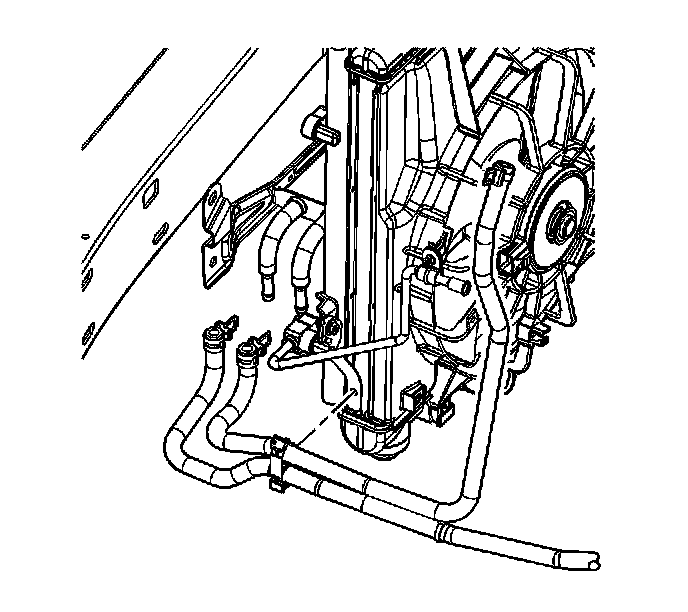

3. Disconnect the power steering cooler line from the power steering cooler.





4. Disconnect the power steering cooler pipe/hose from the power steering reservoir.
5. Remove the power steering cooler pipe/hose from the clip at the radiator
6. Remove the power steering cooler pipe/hose from the vehicle.

Installation Procedure
1. Install the power steering cooler pipe/hose to the vehicle.





2. Connect the power steering cooler pipe/hose to the power steering reservoir.
3. Connect the power steering cooler pipe/hose to the clip at the radiator.





4. Connect the power steering cooler pipe/hose to the power steering cooler.
5. Install the front air deflector. Refer to Air Deflector Replacement - Front in Body and Frame.
6. Remove the drain pan from under the vehicle.
7. Bleed the power steering system.
