System Specifications



Fastener Tightening Specifications

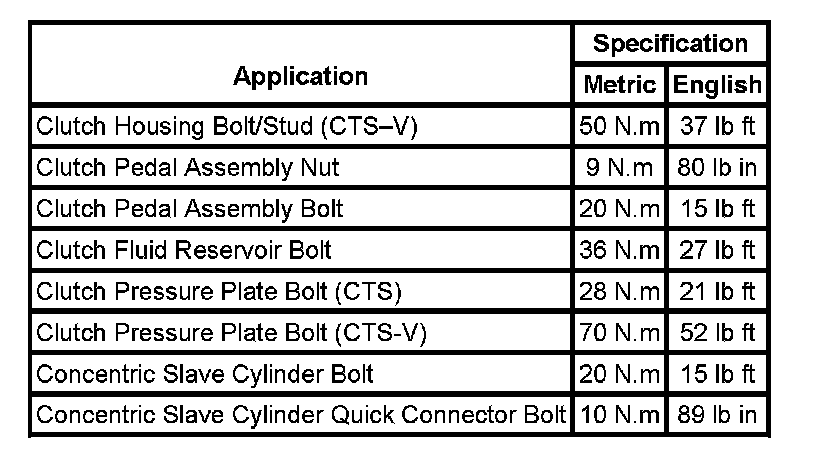

Fastener Tightening Specifications:

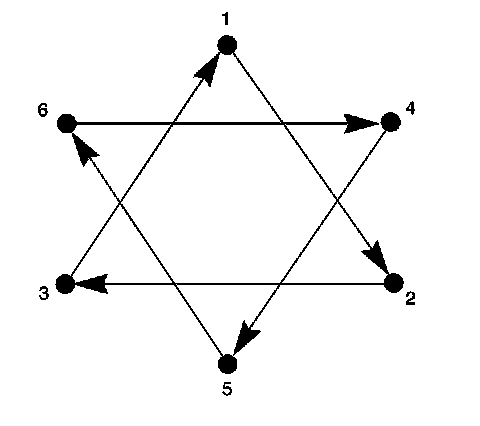

Tighten the clutch pressure plate bolts in the sequence shown, starting with the number one and following in numerical order.
