Object Detection Schematics

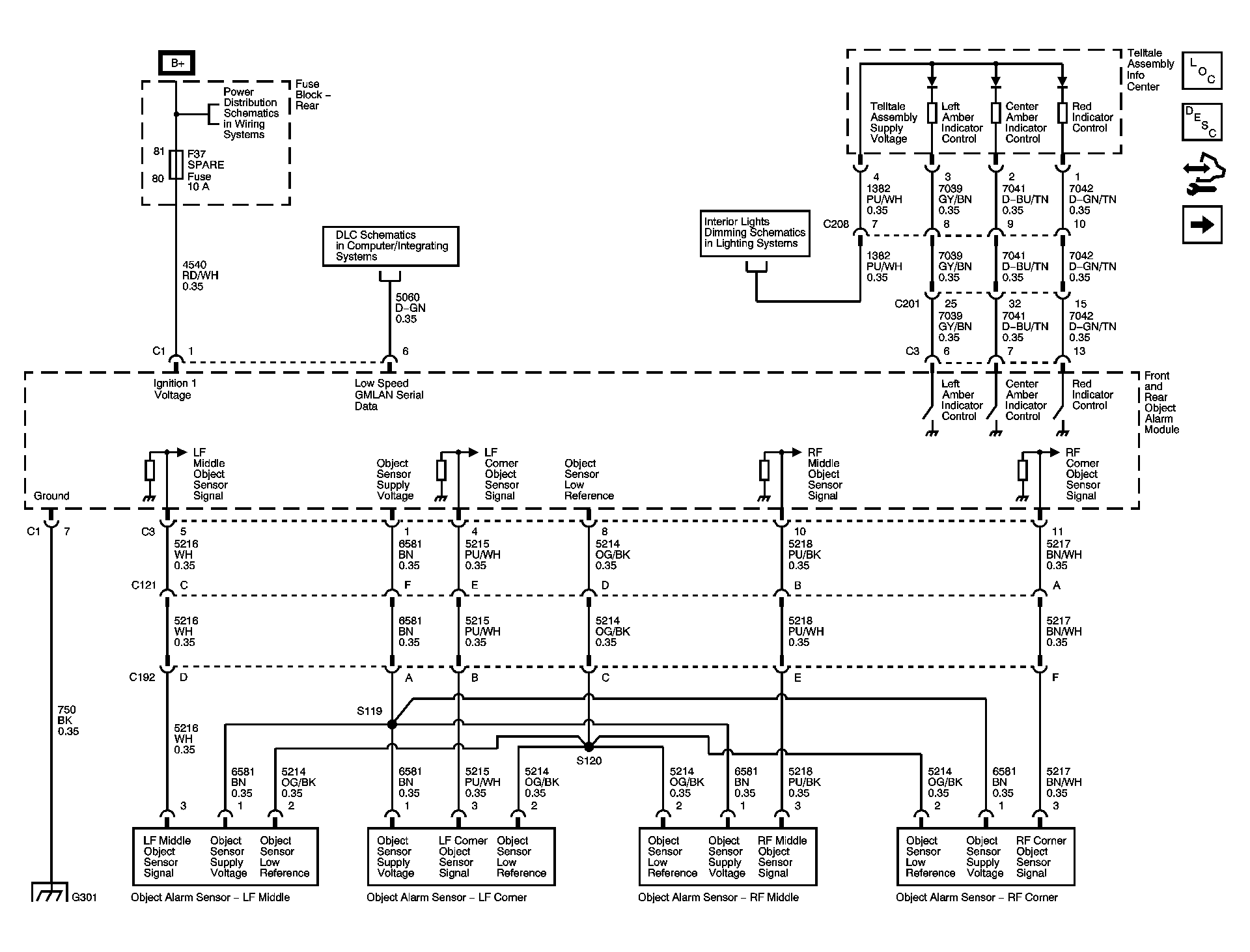

Fig 1: Front Park Assist - UFR
GM1616373Courtesy of GENERAL MOTORS CORP.

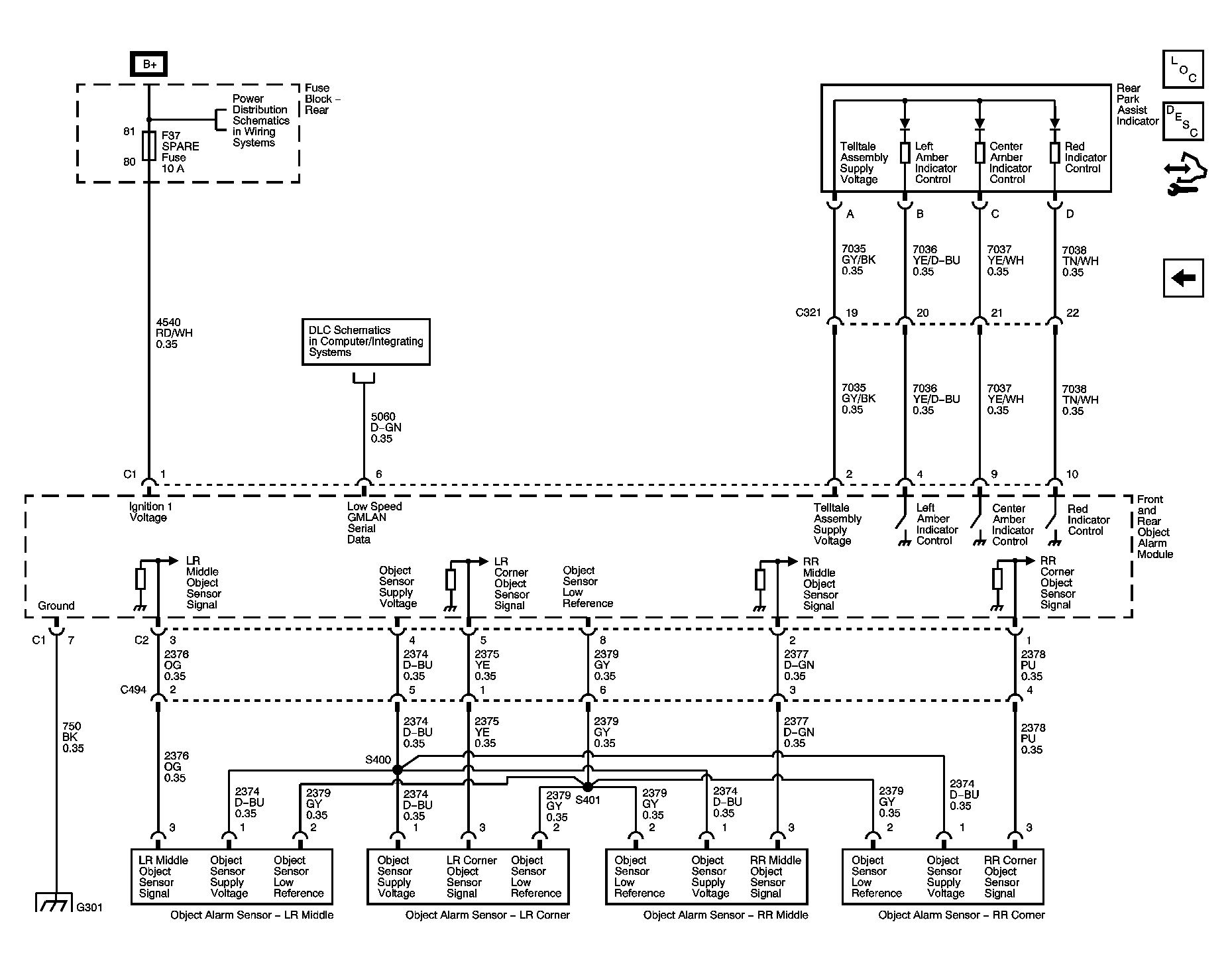

Fig 2: Rear Park Assist - UFR
GM1616374Courtesy of GENERAL MOTORS CORP.
