Power Seat Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

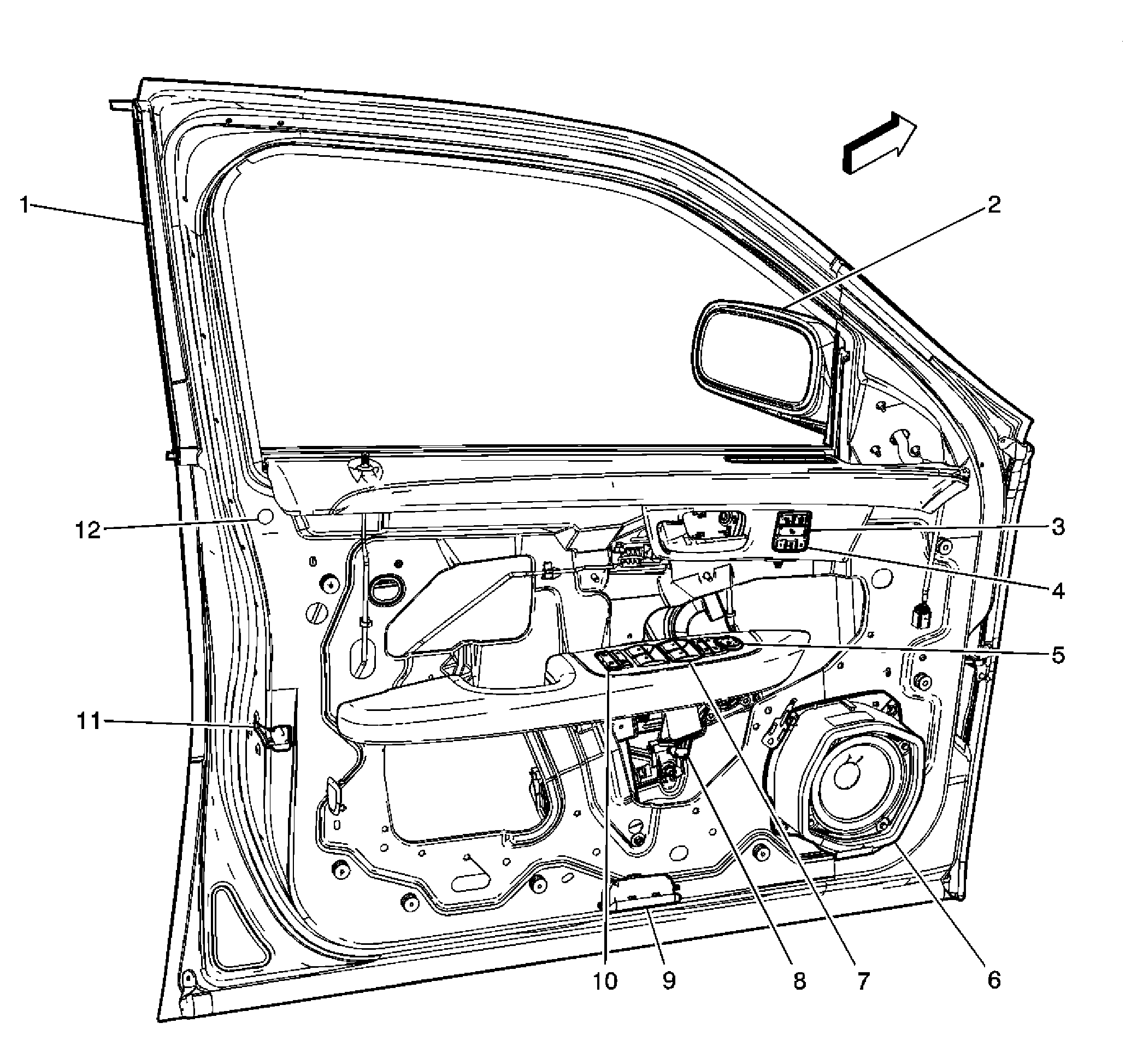

| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Outside Rearview Mirror - Driver |
| 3 | Heated and Cooled Seat Switch - Driver (KB6) |
| 4 | Memory/Personalization Function Switch (A45) |
| 5 | Mirror Switch |
| 6 | Speaker - LF Door |
| 7 | Window Switch - Driver Door |
| 8 | Window Motor - Driver |
| 9 | Courtesy Lamp - Left Front Door |
| 10 | Door Lock Switch Assembly |
| 11 | Door Latch Assembly - Driver |
| 12 | Door Lock Key Cylinder Switch - Driver |

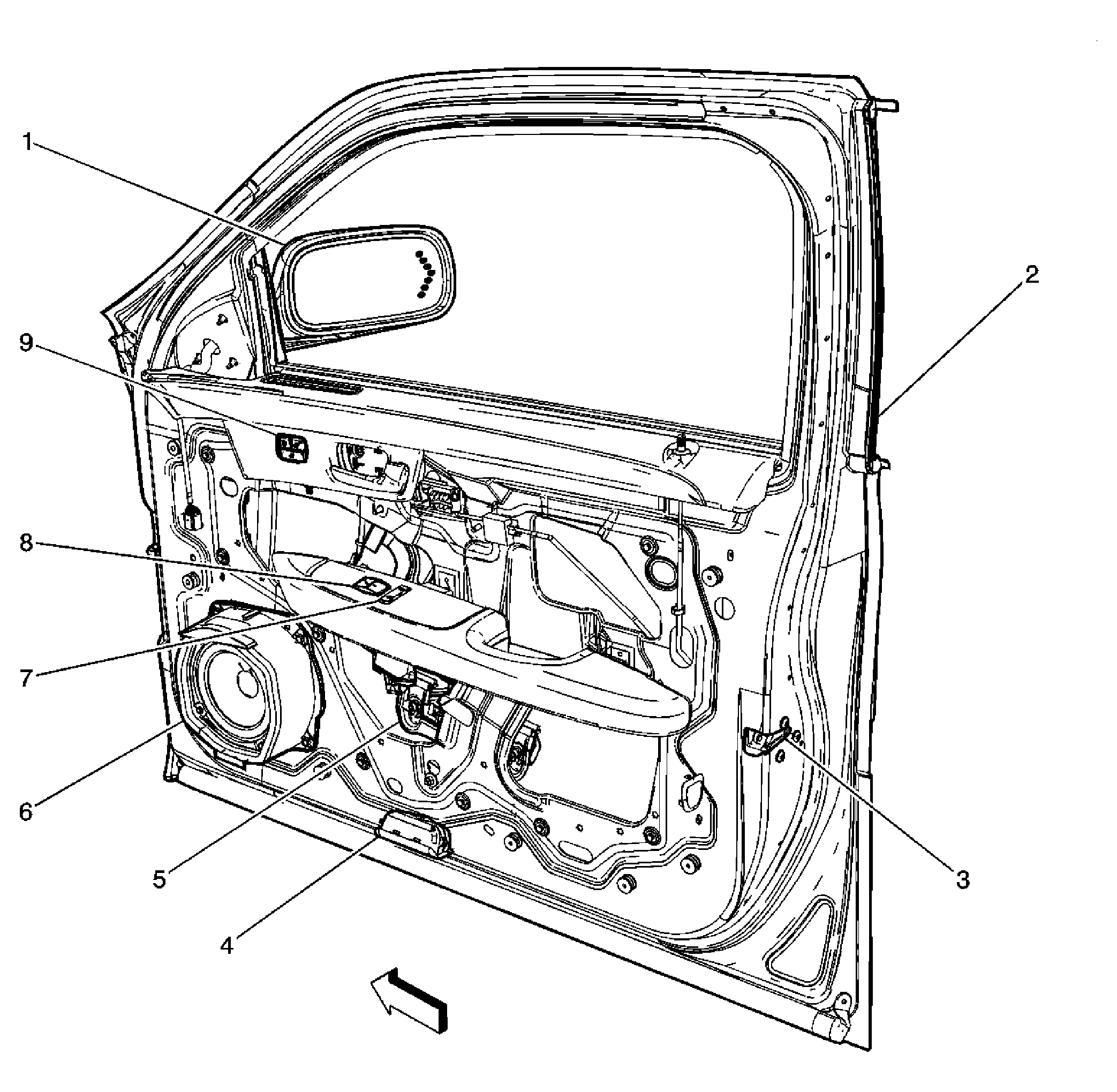

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Door Frame |
| 3 | Door Latch Assembly - Front Passenger |
| 4 | Courtesy Lamp - Right Front Door |
| 5 | Window Motor - Front Passenger |
| 6 | Speaker - RF Door |
| 7 | Window Switch - Front Passenger |
| 8 | Heated Seat Switch - Front Passenger |
| 9 | Heated Cooled Seat Switch (KB6) - Front Passenger |

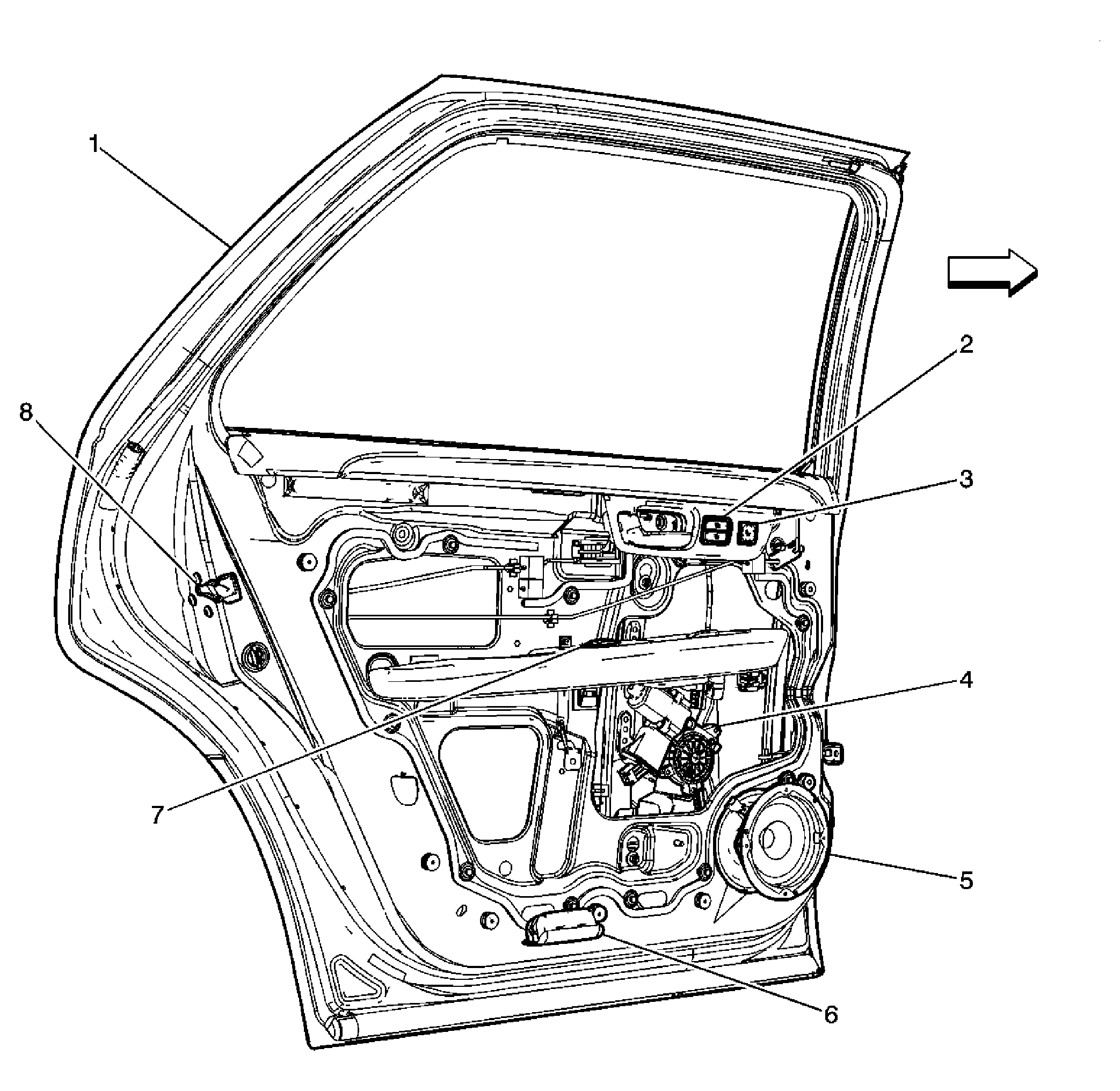

| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Heated Seat Switch - LR |
| 3 | Seat Lumbar Switch - LR (ARC) |
| 4 | Window Motor - LR |
| 5 | Speaker - LR Door |
| 6 | Courtesy Lamp - Left Rear Door |
| 7 | Window Switch - Left Rear |
| 8 | Door Latch Assembly - Left Rear |

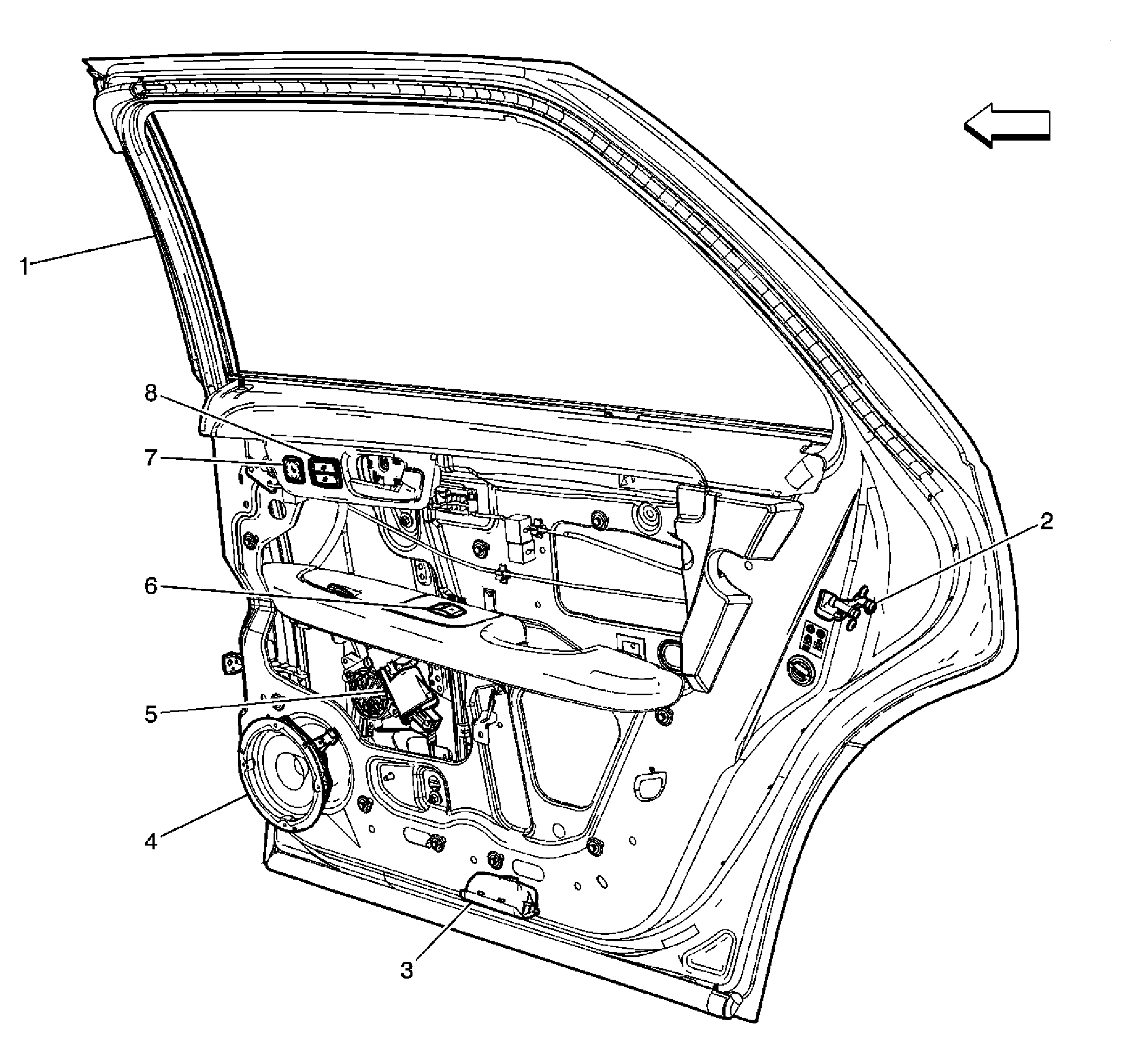

| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Door Latch Assembly - Right Rear |
| 3 | Courtesy Lamp - Right Rear Door |
| 4 | Speaker - RR Door |
| 5 | Window Motor - RR |
| 6 | Window Switch - Right Rear |
| 7 | Seat Lumbar Switch - RR (ARC) |
| 8 | Heated Seat Switch - RR |

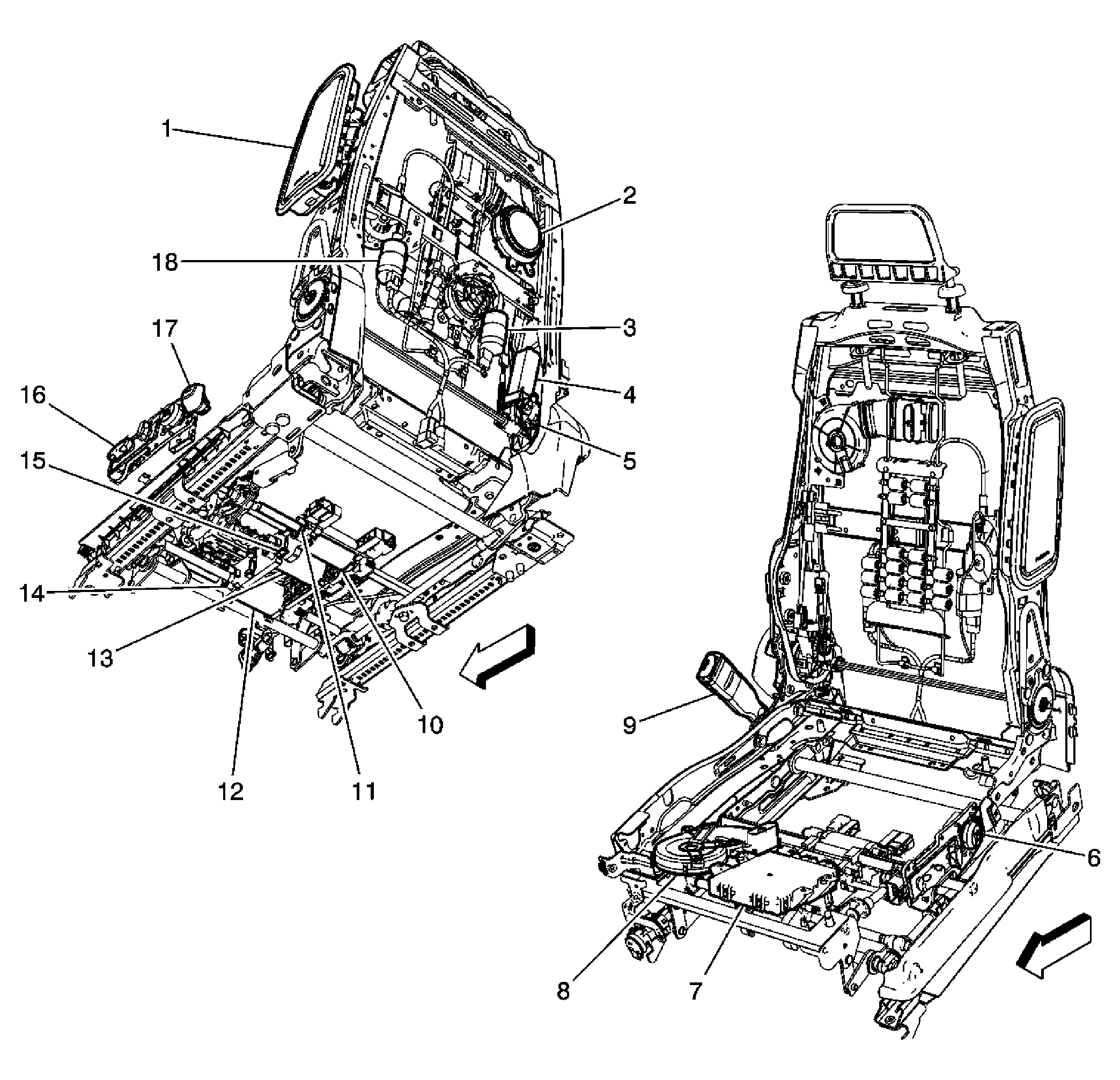

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Side Impact Module - Left |
| 2 | Seat Back Ventilation Heat and Cool Module - Driver (KB6) |
| 3 | Seat Lumbar Motor - Driver (AL2) |
| 4 | Seat Recline Motor - Driver (AG1/A45) |
| 5 | Seat Lumbar Switch - Driver (AL2/A45) |
| 6 | Memory Seat Module (MSM) (A45/AM3/KB6) |
| 7 | Seat Cushion Ventilation Heat and Cool Module - Driver (KB6) |
| 8 | Seat Belt Switch - Left |
| 9 | Seat Rear Vertical Motor - Driver |
| 10 | Seat Rear Vertical Position Sensor - Driver (A45) |
| 11 | Seat Horizontal Motor - Driver |
| 12 | Seat Adjuster Motor Assembly - Driver (AG1/A45) |
| 13 | Seat Horizontal Position Sensor - Driver (A45) |
| 14 | Seat Front Vertical Position Sensor - Driver (A45) |
| 15 | Seat Adjuster Switch - Driver (AG1/A45) |
| 16 | Seat Lumbar Massage Switch - Driver (AM3) |
| 17 | Seat Lumbar Massage Motor - Driver (AM3) |
| 18 | Seat Recline Position Sensor - Driver (A45) |

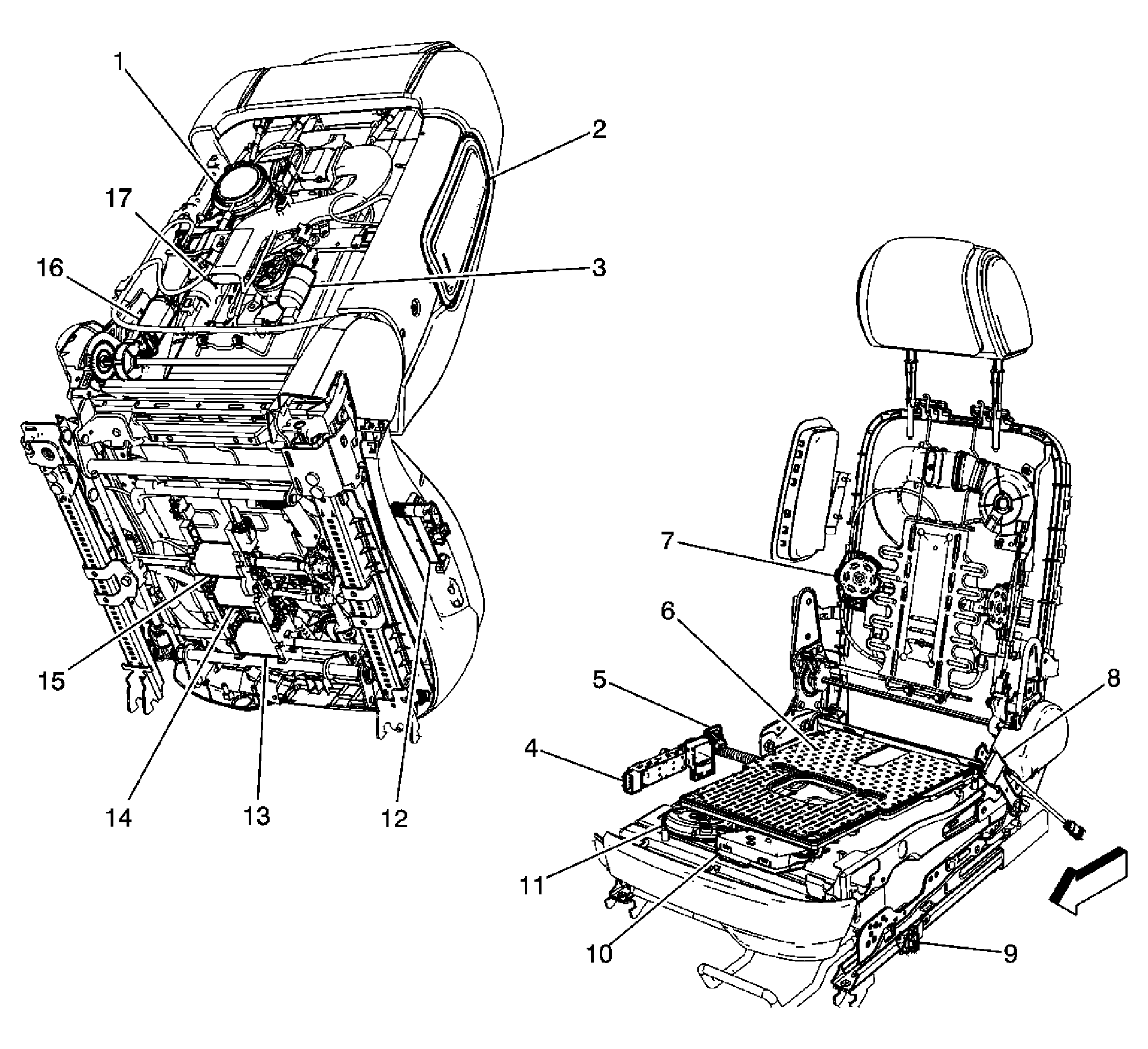

| Callout | Component Name |
|---|---|
| 1 | Seat Back Ventillation Heat and Cool Module - Passenger (KB6) |
| 2 | Inflatable Restraint Side Impact Module - Right |
| 3 | Seat Lumbar Motor - Front Passenger (AL2) |
| 4 | Seat Adjuster Switch - Passenger (AG2) |
| 5 | Seat Lumbar Massage Switch - Front Passenger (AM3) |
| 6 | Inflatable Restraint Passenger Presence System (PPS) Sensor |
| 7 | Seat Belt Switch - Right |
| 8 | Inflatable Restraint Seat Position Sensor (SPS) - Right |
| 9 | Climate Control Seat Module - Front (KB6) |
| 10 | Seat Cushion Ventillation Heat and Cool Module - Front Passenger (KB6) |
| 11 | Inflatable Restraint Passenger Presence System (PPS) Sensor Connector |
| 12 | Seat Horizontal Motor - Passenger |
| 13 | Seat Front Vertical Motor - Passenger |
| 14 | Seat Rear Vertical Motor - Passenger |
| 15 | Seat Recline Motor - Front Passenger (AG2) |
| 16 | Seat Lumbar Massage Motor - Front Passenger |

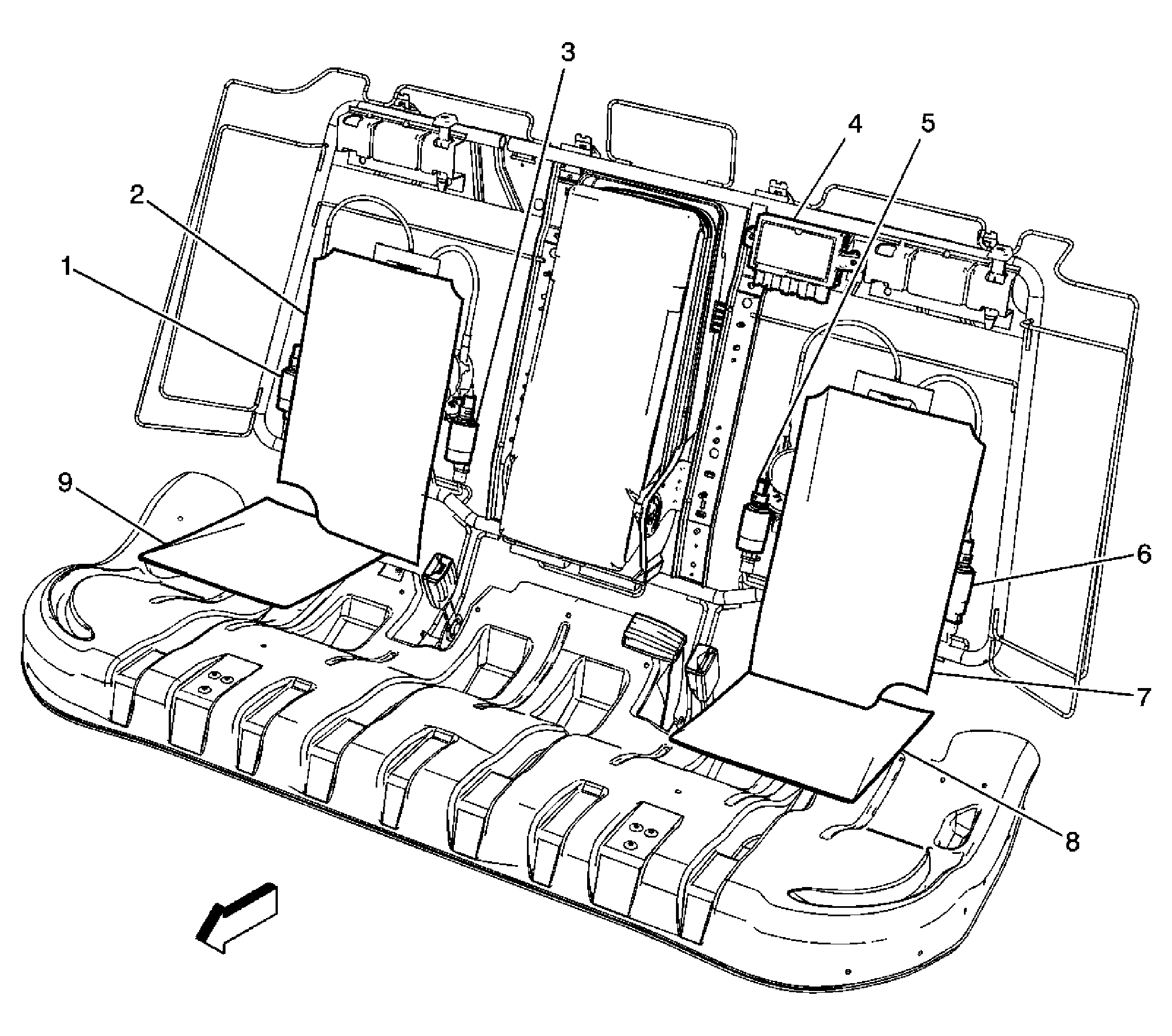

| Callout | Component Name |
|---|---|
| 1 | Rear Lumbar Motor |
| 2 | Heated Seat Element - RR Back |
| 3 | Rear Lumbar Motor |
| 4 | Heated Seat Module - Rear (KA6) |
| 5 | Rear Lumbar Motor |
| 6 | Rear Lumbar Motor |
| 7 | Heated Seat Element - LR Back |
| 8 | Heated Seat Element - LR Cushion |
| 9 | Heated Seat Element - RR Cushion |
