DTS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

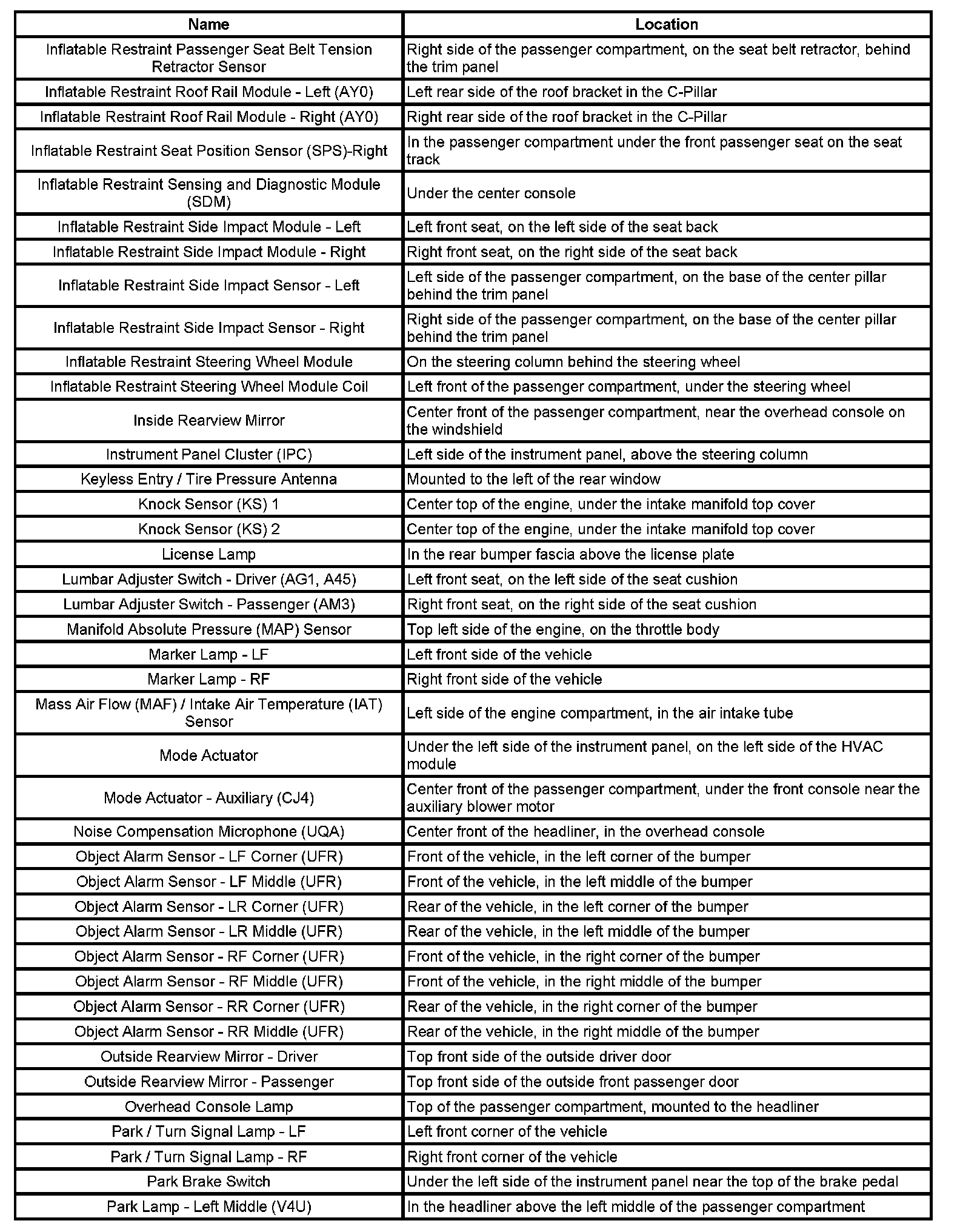

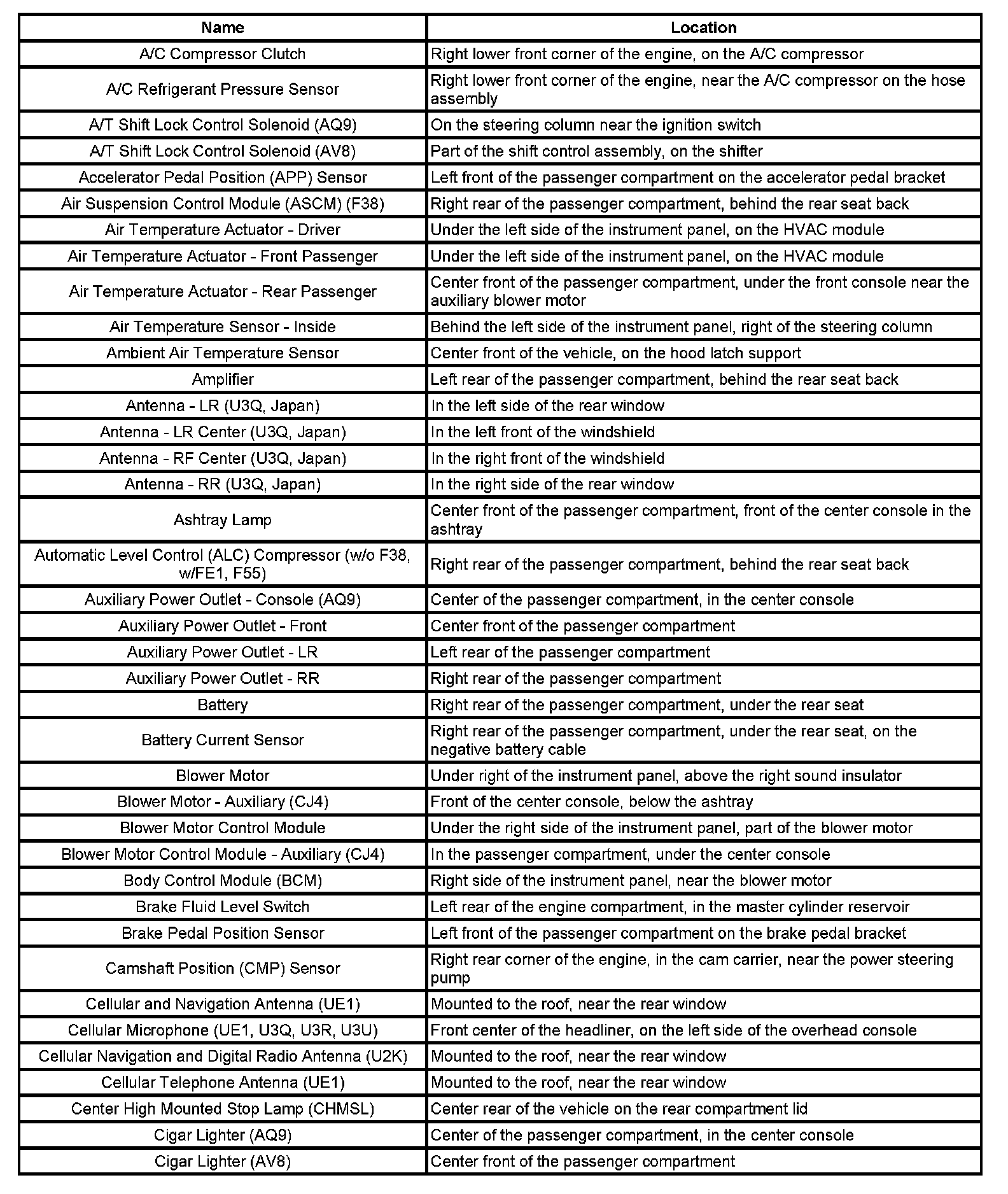

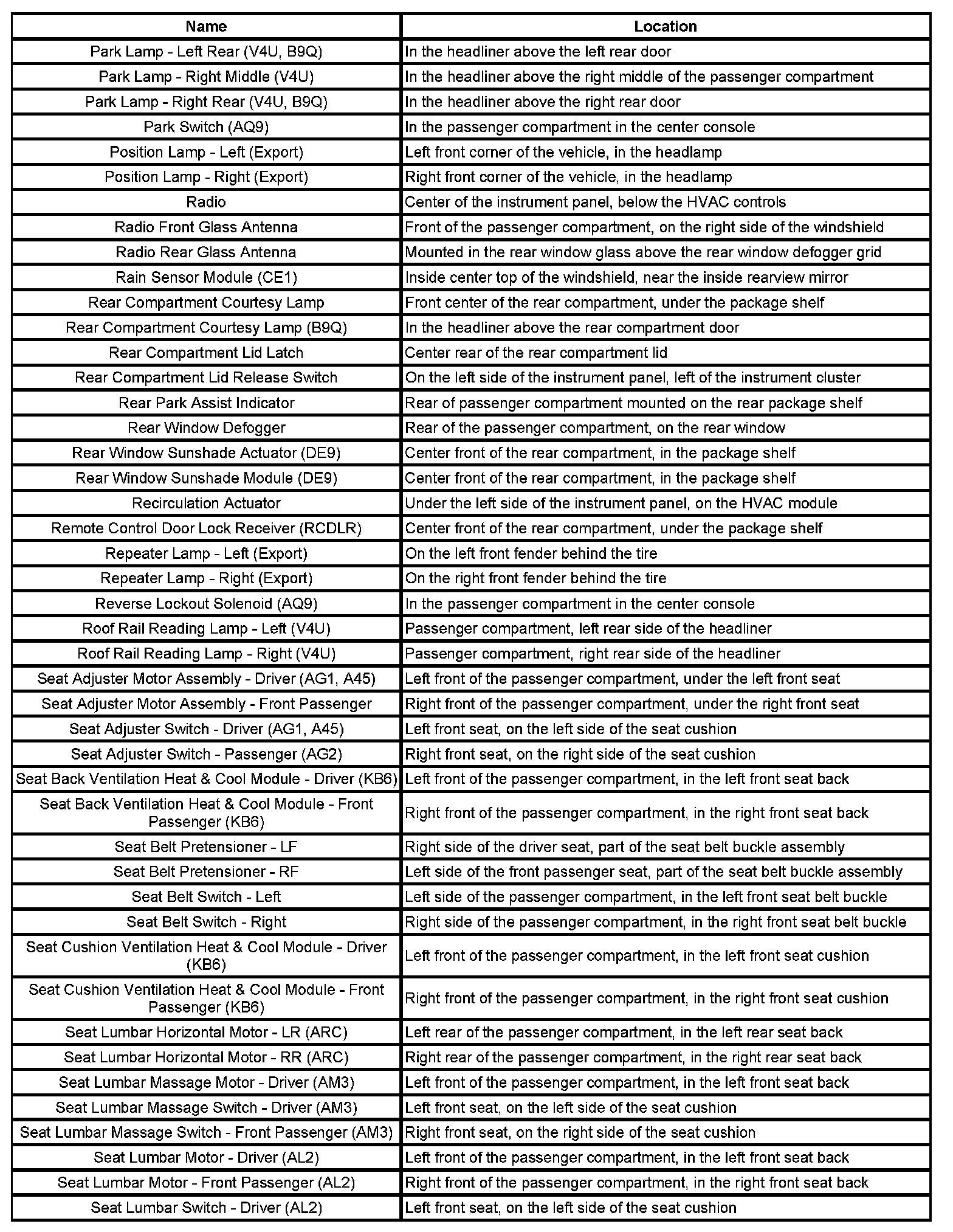

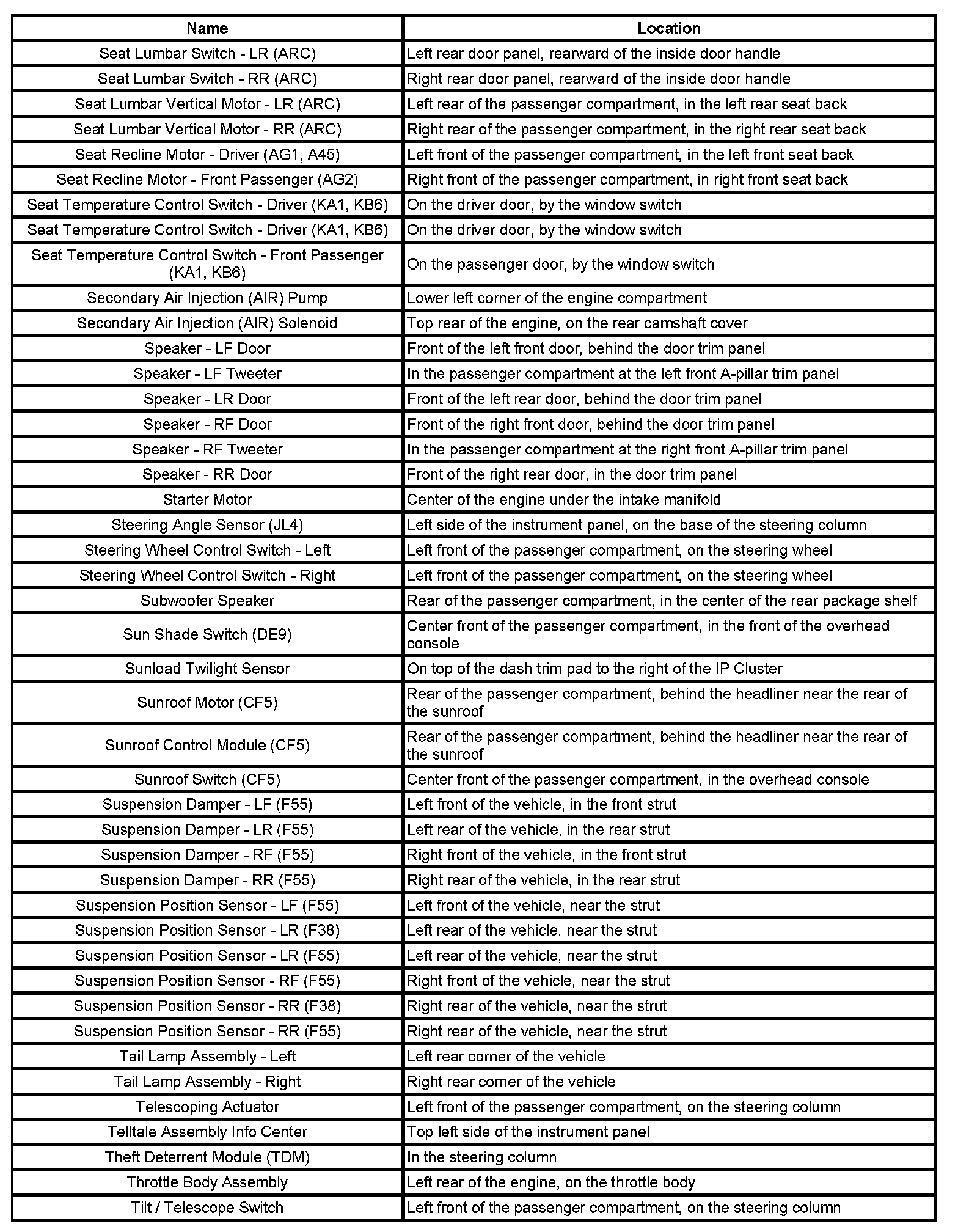

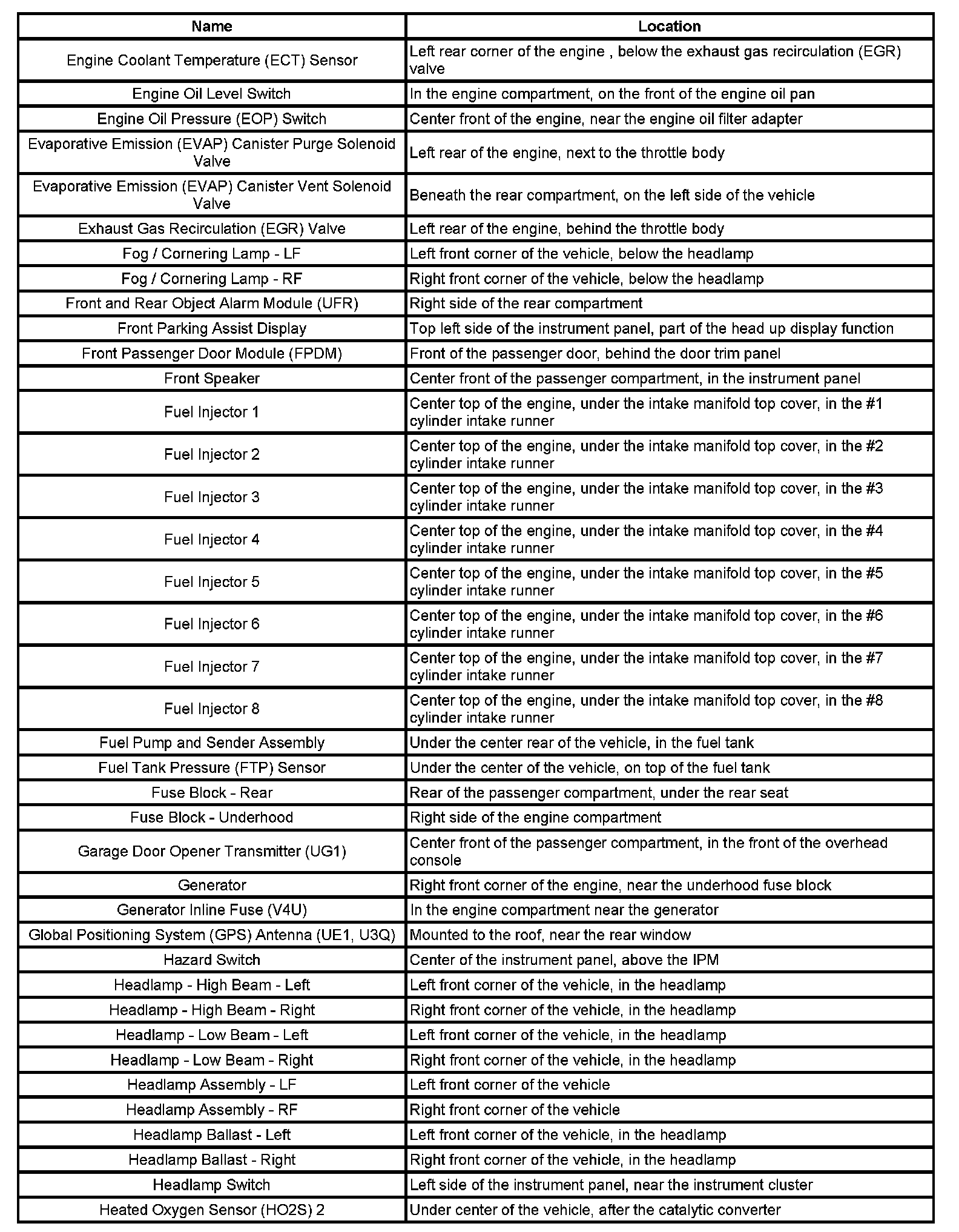

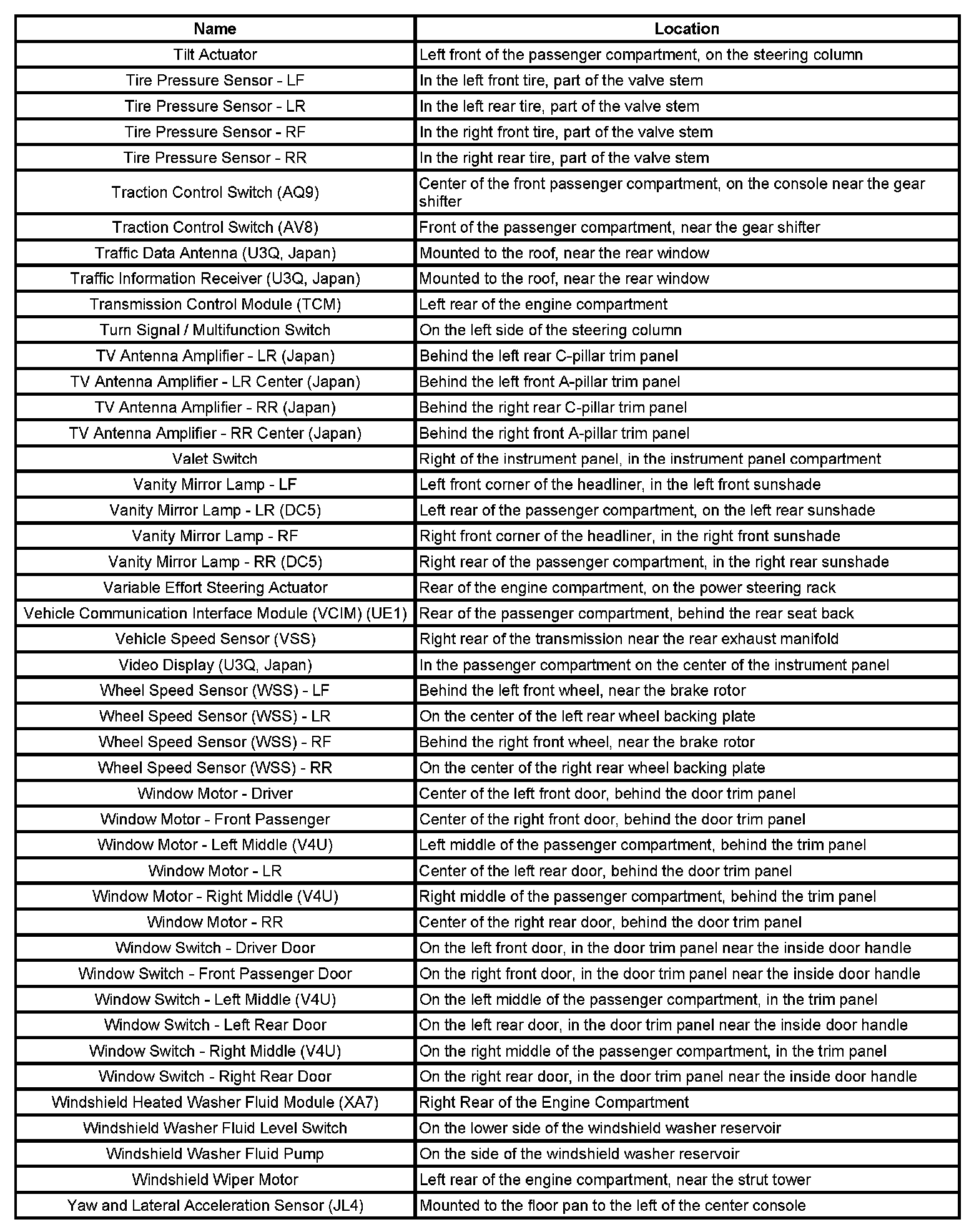

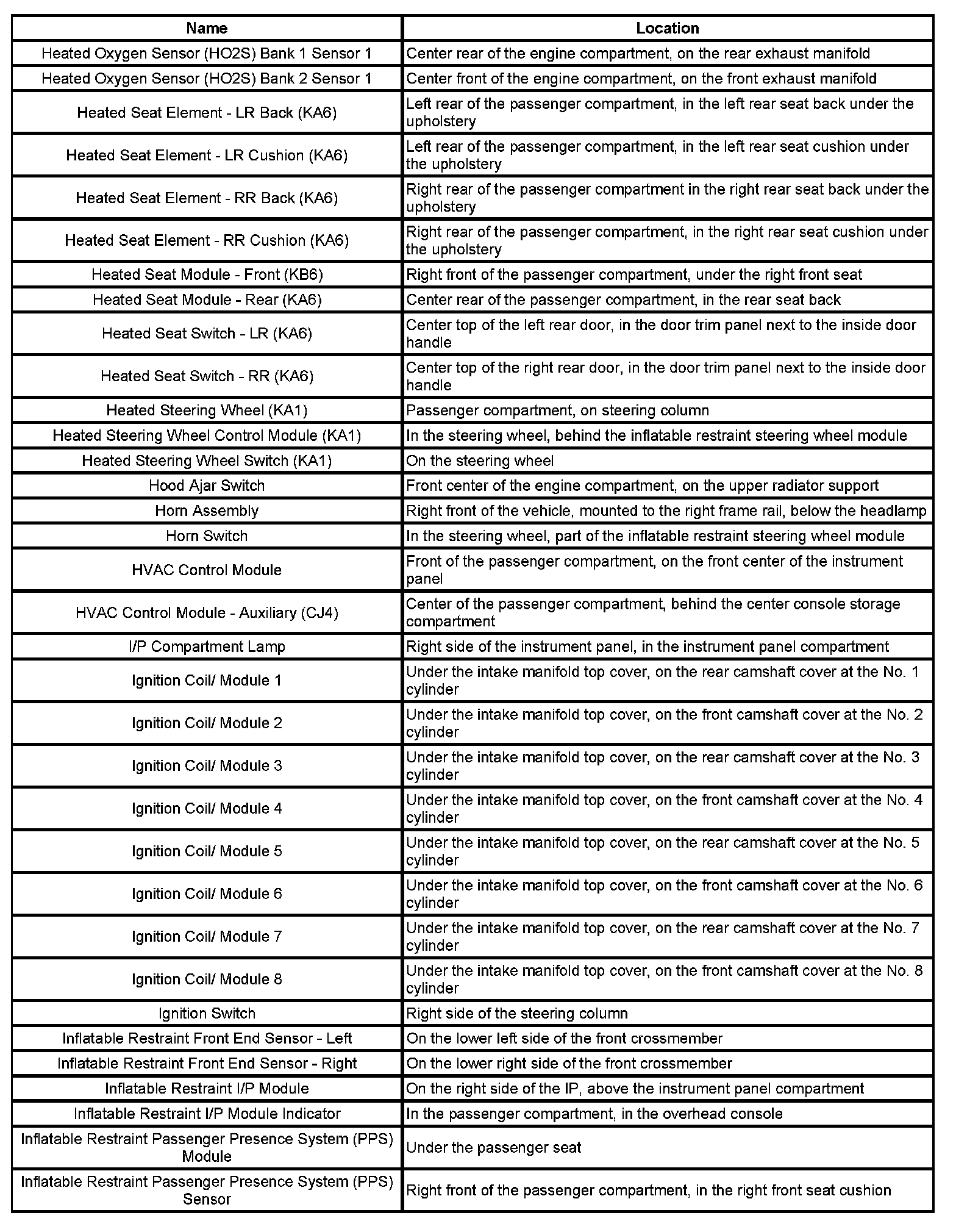

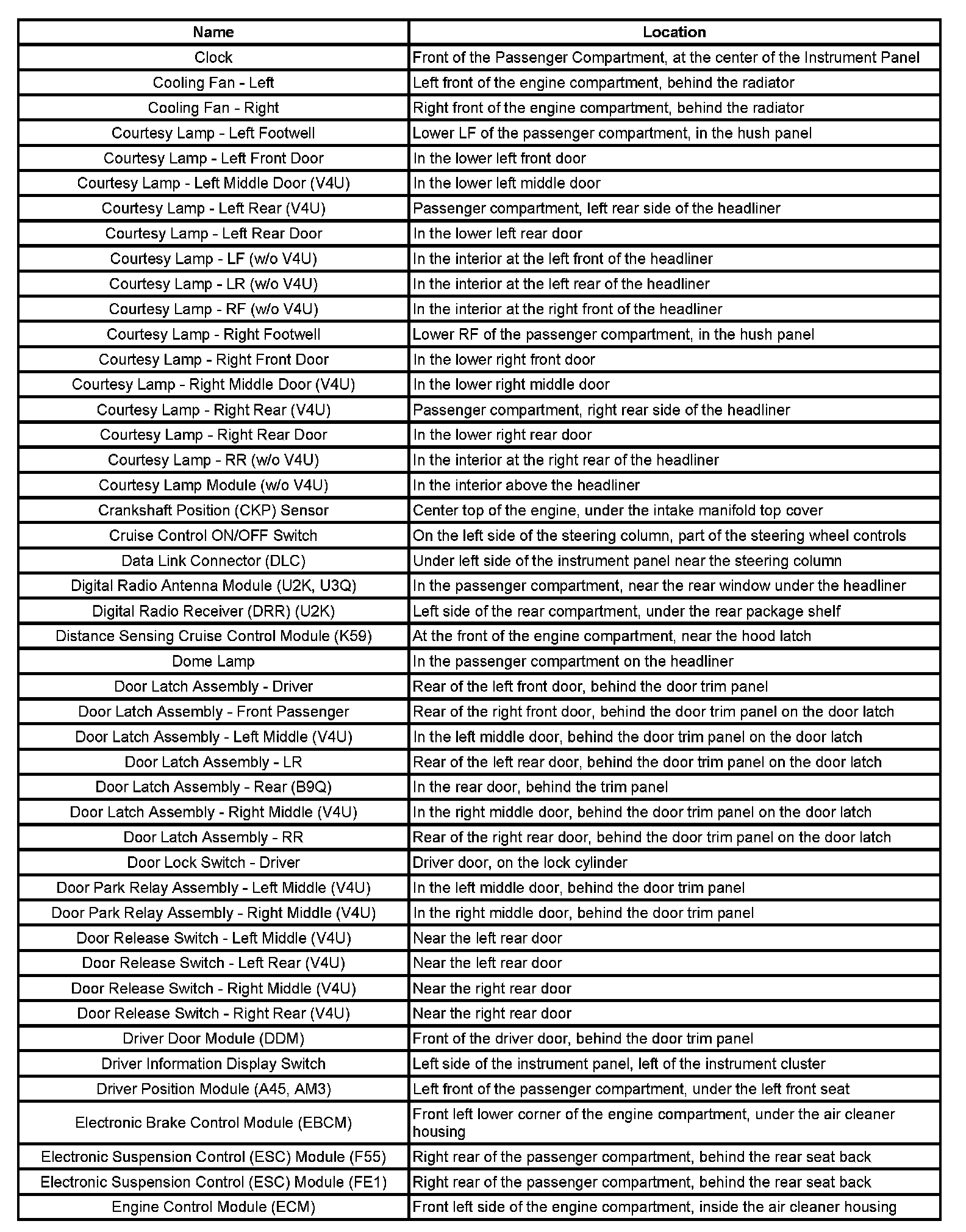

Components
A/C - Ci:
Cl - En:
En - He:
He - In:
In - Pa:
Pa - Se:
Se - Ti:
Ti - Ya:
