Disc Brake Component Specifications


Disc Brake Component Specifications

Caution: Two different designs of the front brake rotors and front brake pads are used on this vehicle. Do NOT interchange first design and second design parts, or a loss of braking and personal injury could occur.

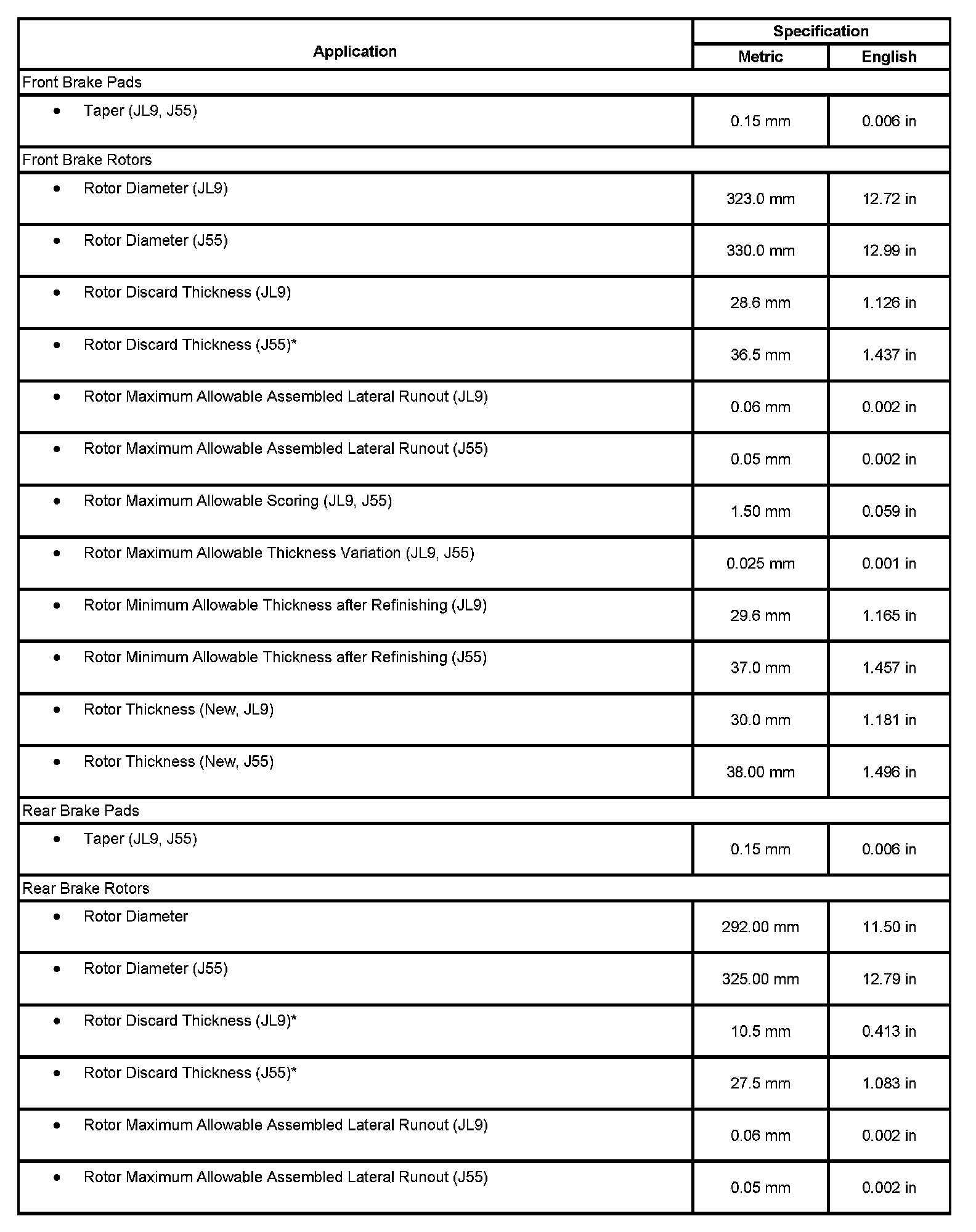

Disc Brake Component Specifications (Part 1):




Disc Brake Component Specifications (Part 2):
