Throttle Actuator Control (TAC) Module C2

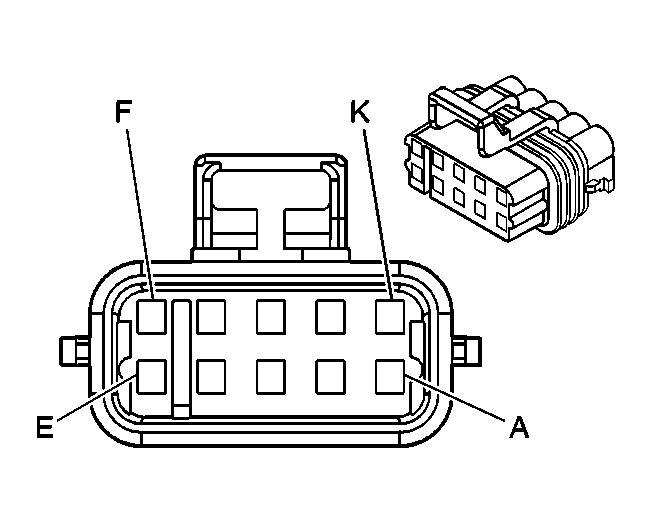

Fig 1: Throttle Actuator Control (TAC) Module C2 Connector View
GM666638Courtesy of GENERAL MOTORS CORP.
Engine Controls Connector parts Information

Connector Part Information
  • OEM: 12177081
  • Service: 15305916
  • Description: 10-Way F Metri-Pack 150 Series (BK)
Throttle Actuator Control (TAC) Module C2

Pin Wire Color Circuit No. Function
A - - Not Used
B PU 1272 5-Volt Reference
C L-BU 1162 APP Sensor 2 Signal
D TN 1274 Low Reference
E - - Not Used
F D-BU 1161 APP Sensor 1 Signal
G WH/BK 1164 5-Volt Reference
H     Not Used
J BN 1271 Low Reference
K - - Not Used
