Engine Controls Schematics

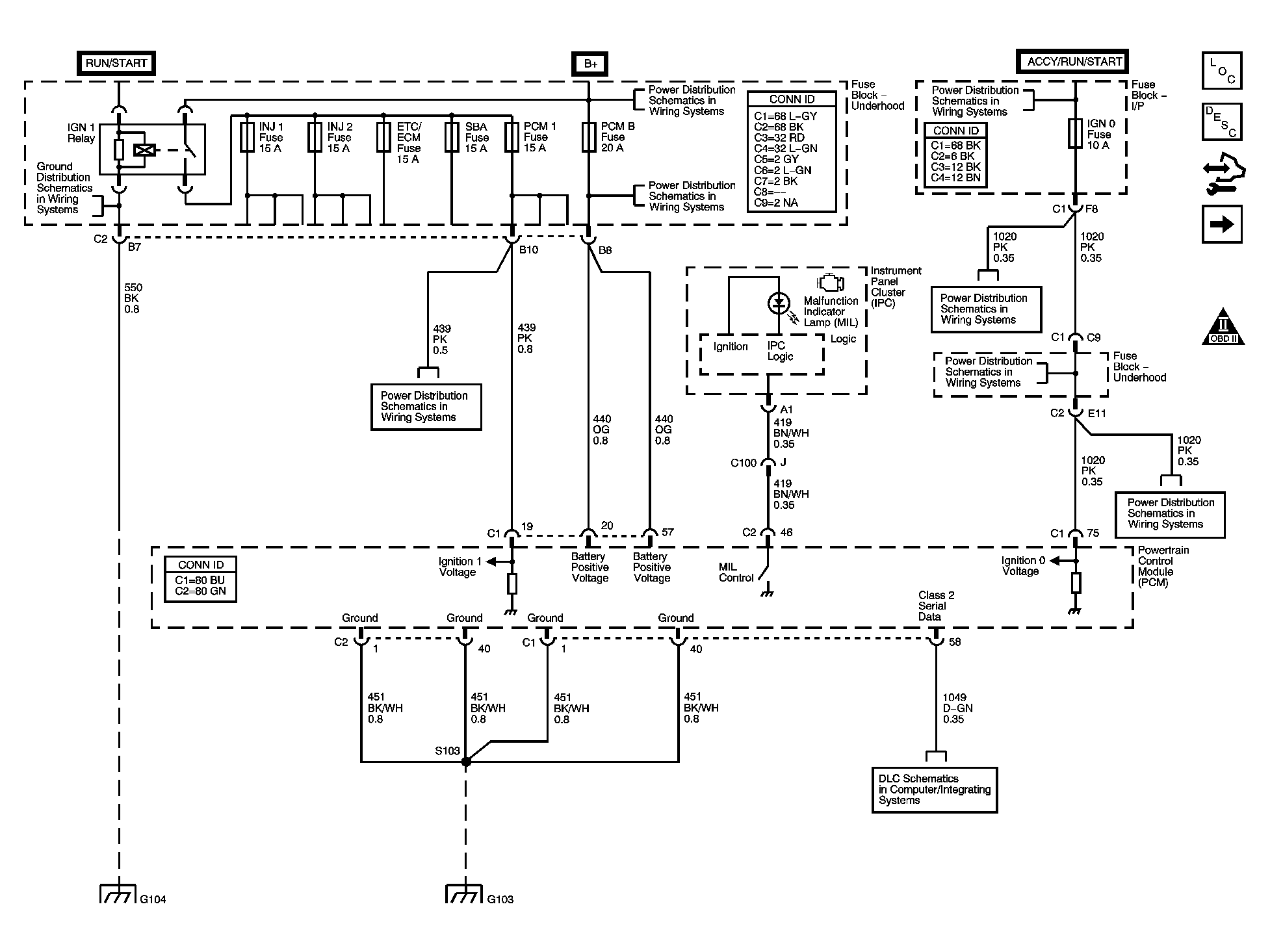

Fig 1: Modular Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure, Temperature, MAF, and VSS

Courtesy of GENERAL MOTORS CORP.

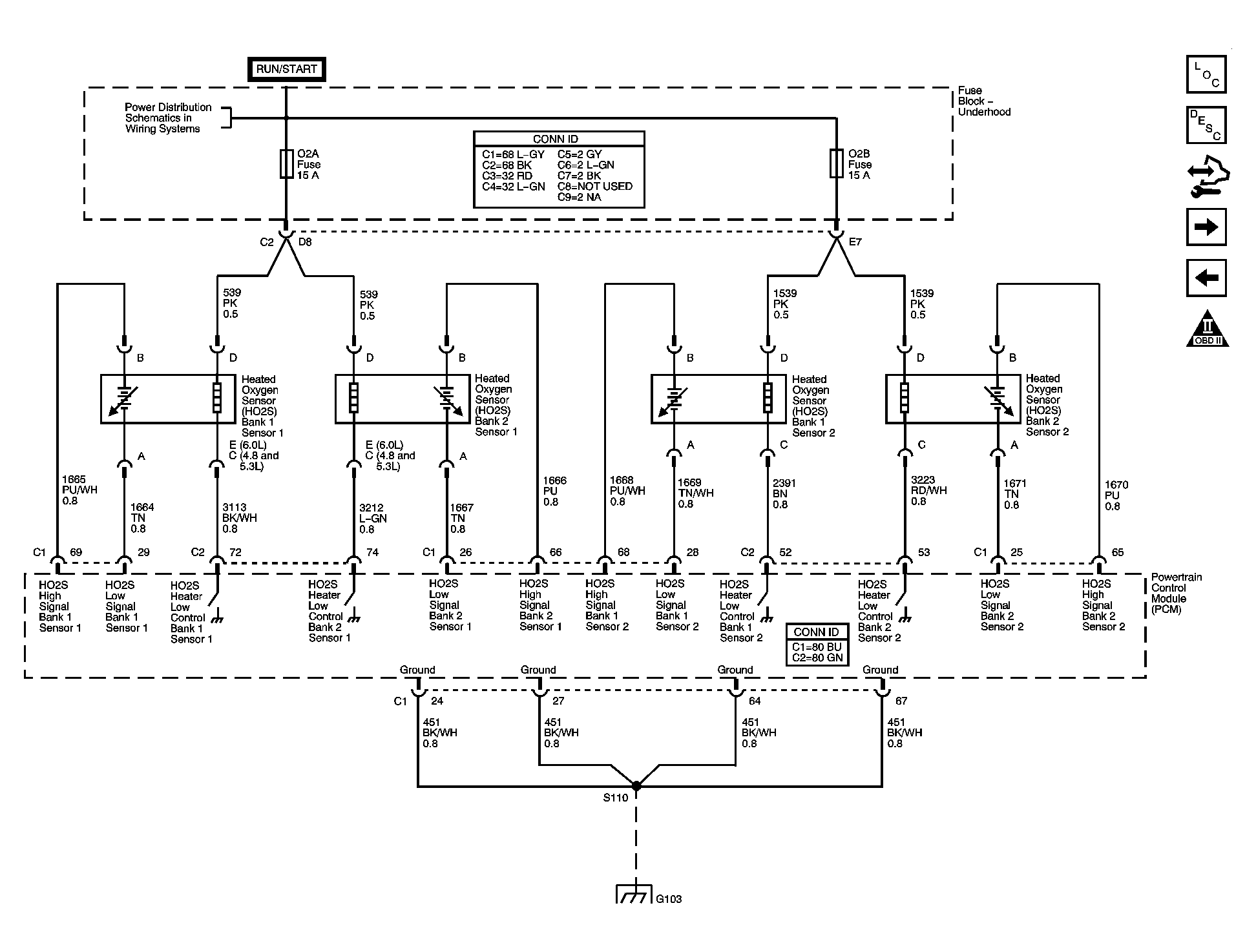

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - Electronic Throttle Control

Courtesy of GENERAL MOTORS CORP.

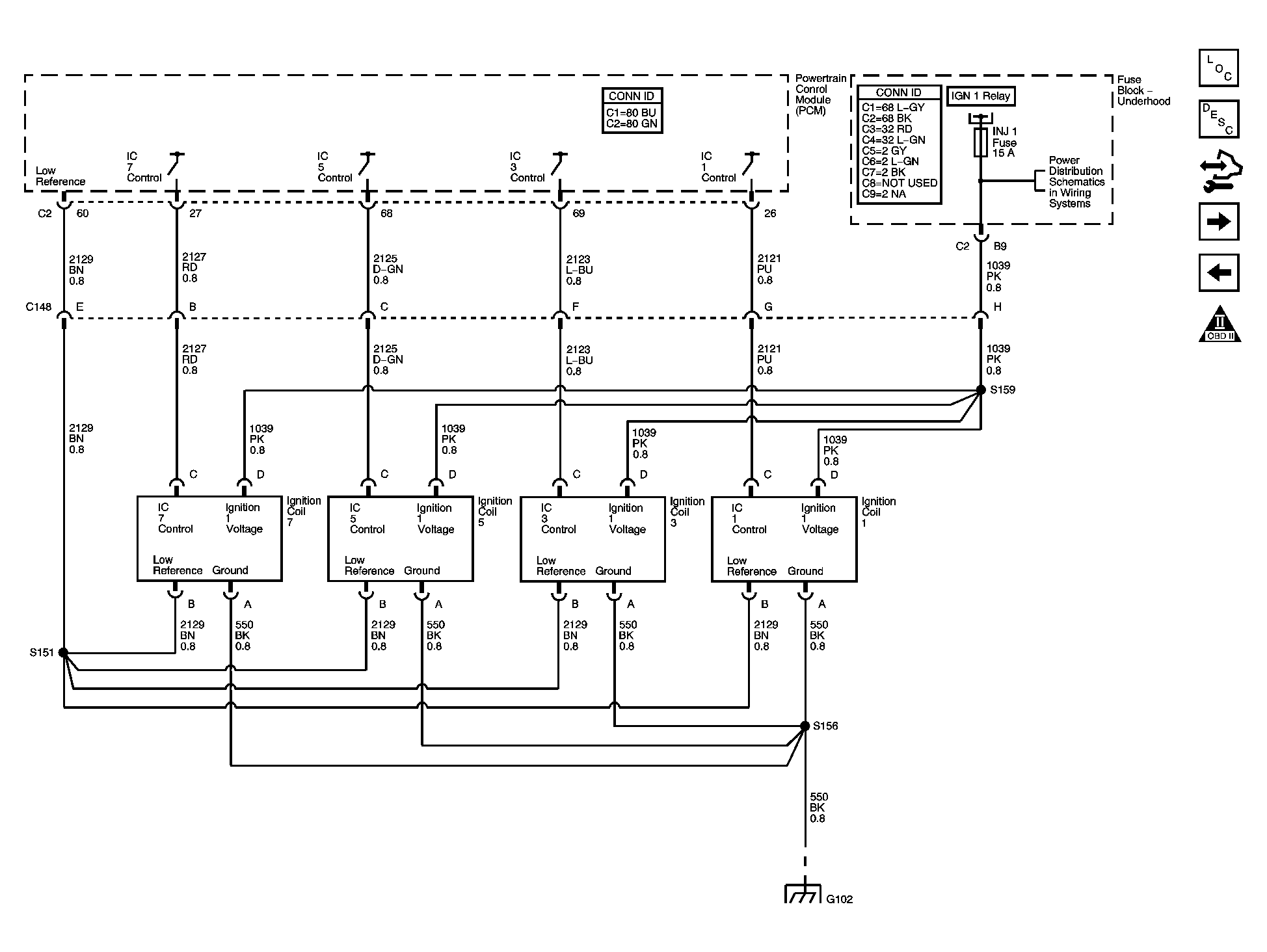

Fig 6: Ignition Controls - Ignition System Coils 1, 3, 5, and 7

Courtesy of GENERAL MOTORS CORP.

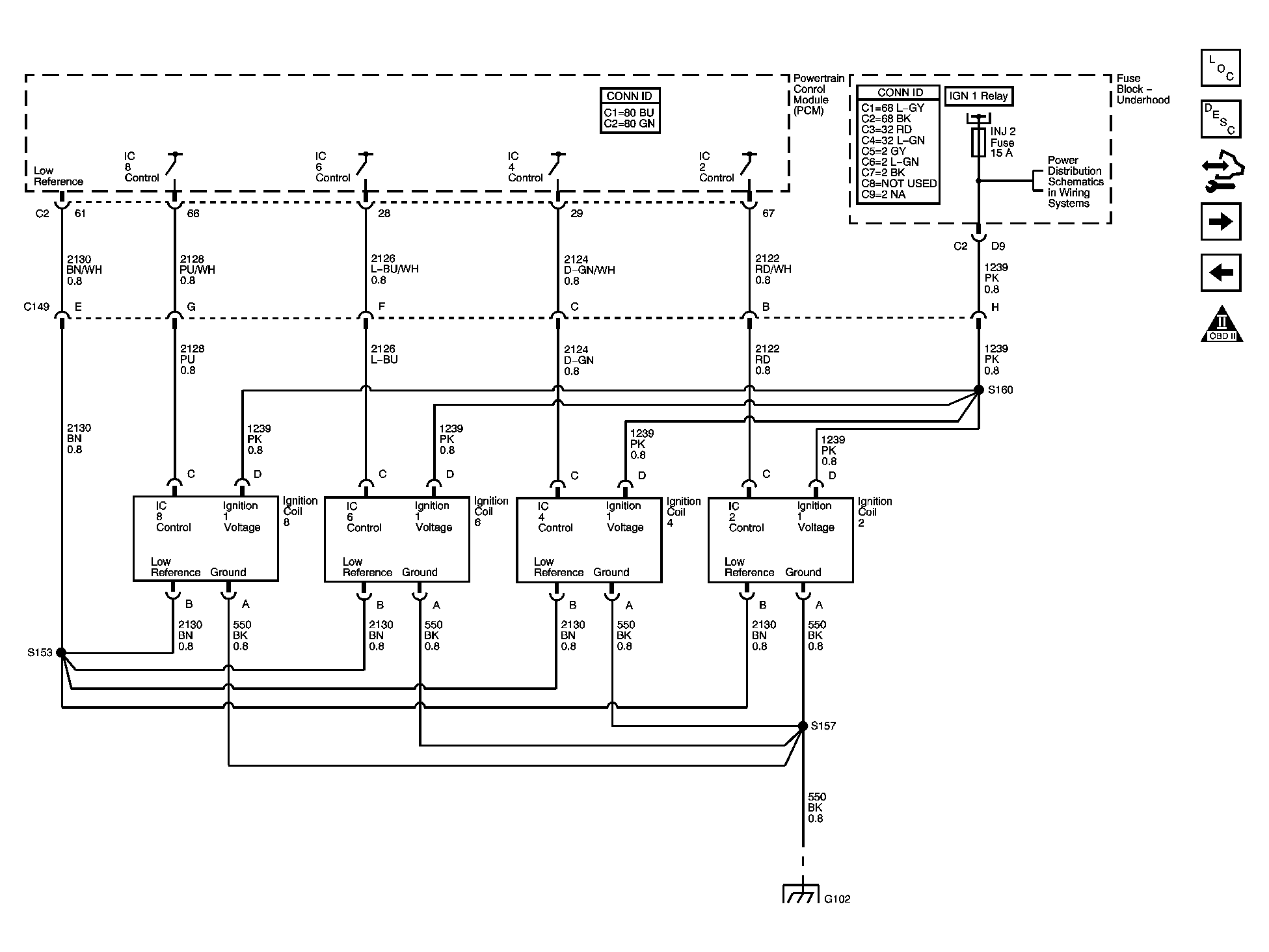

Fig 7: Ignition Controls - Ignition System Coils 2, 4, 6, and 8

Courtesy of GENERAL MOTORS CORP.

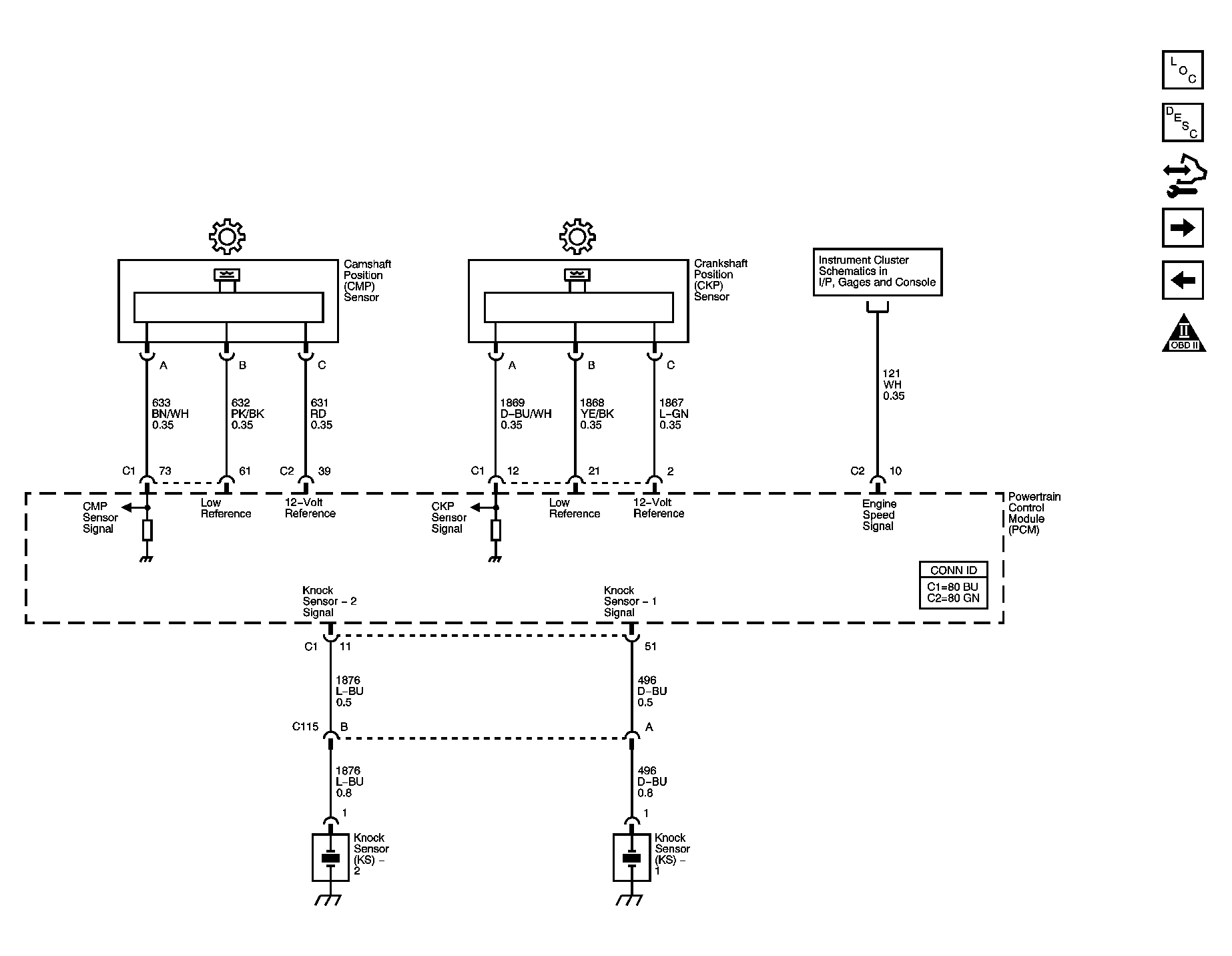

Fig 8: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

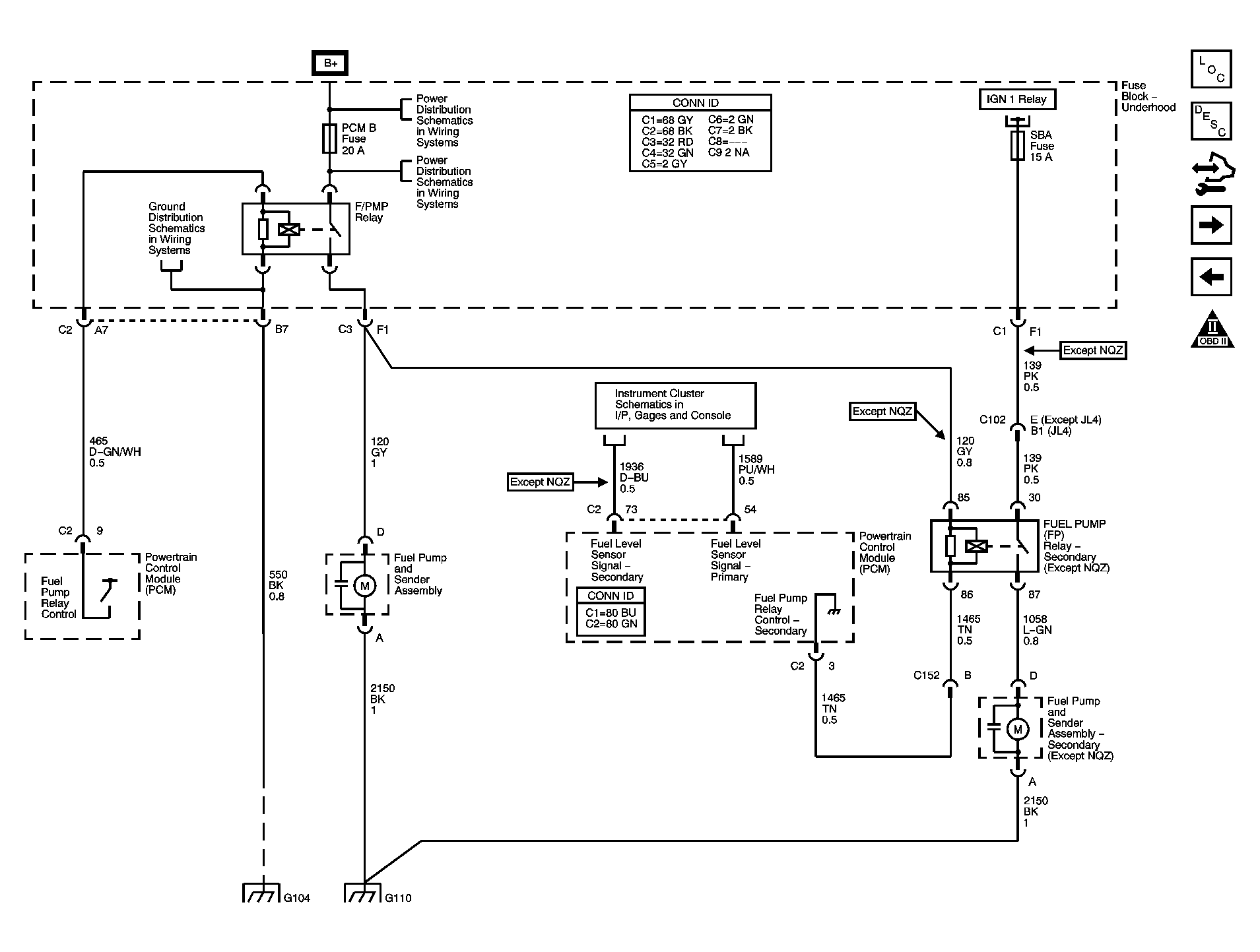

Fig 9: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

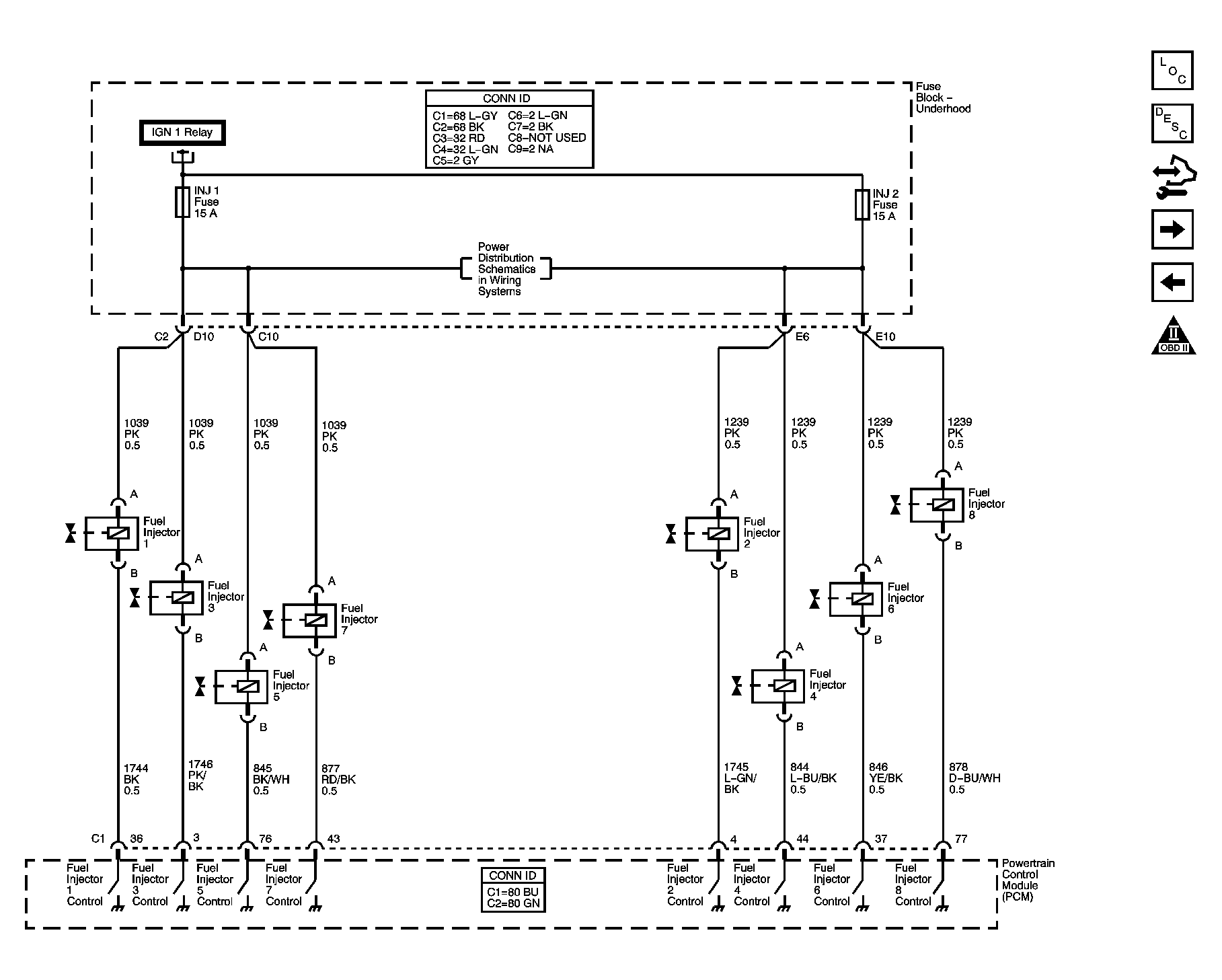

Fig 10: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

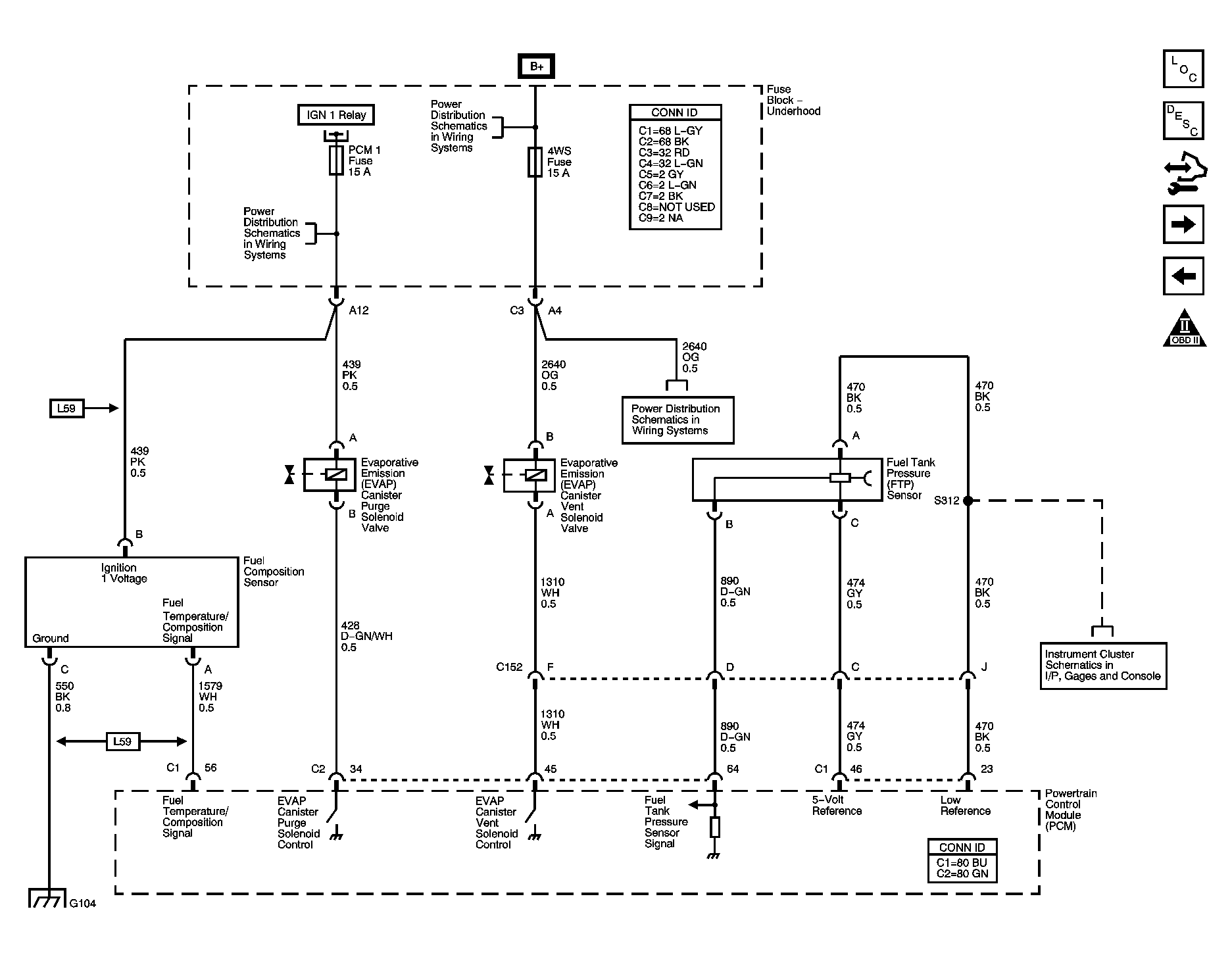

Fig 11: Fuel Controls - EVAP Controls and Fuel Consumption

Courtesy of GENERAL MOTORS CORP.

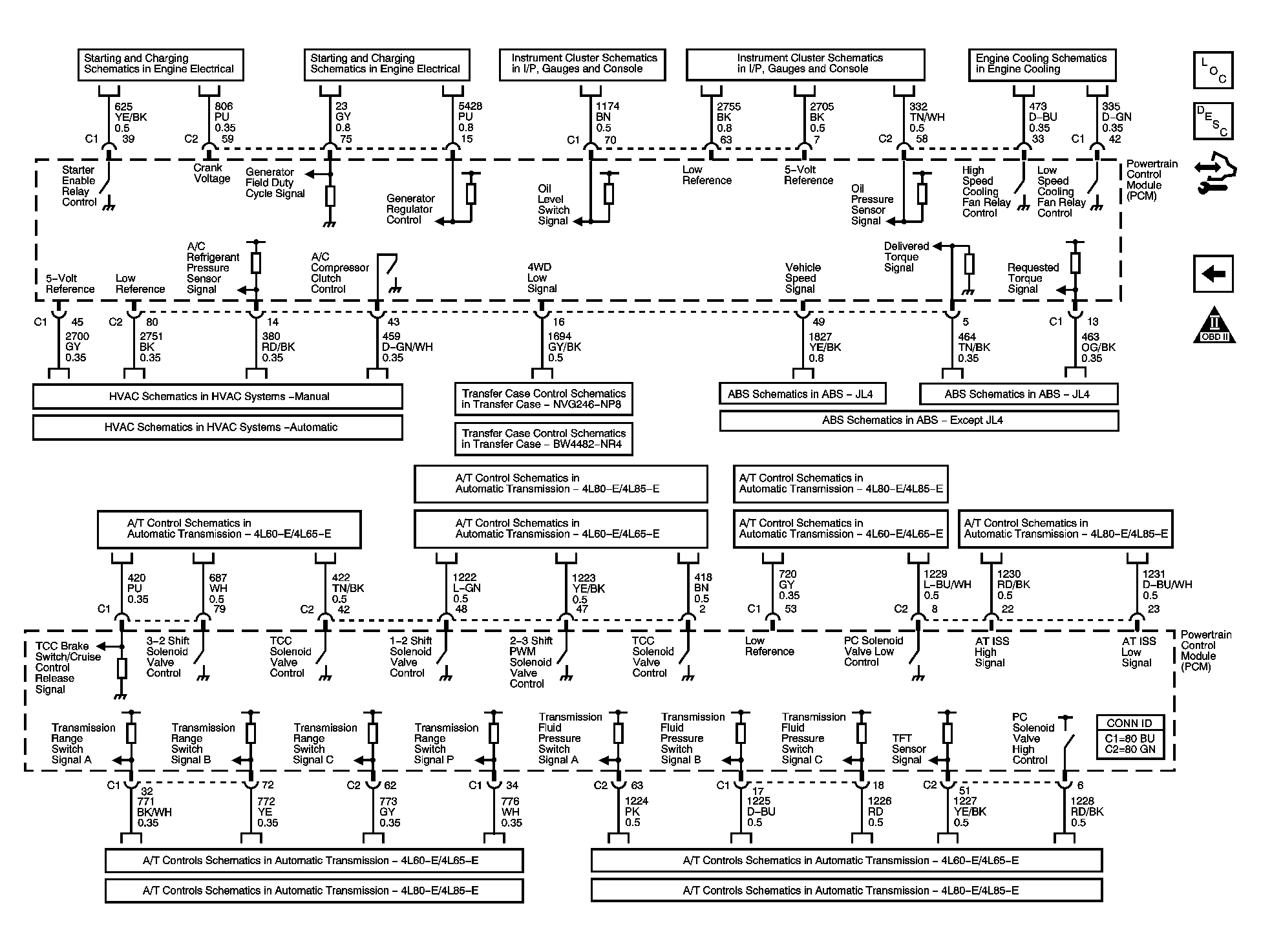

Fig 12: Transmission and Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
