Driver Door Module (DDM) Connector End View

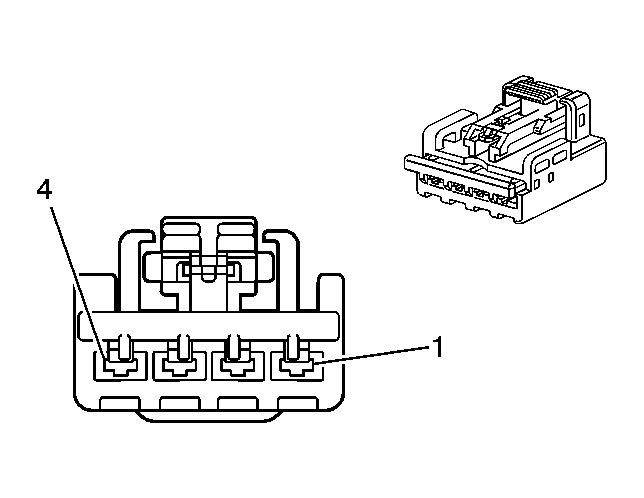

Driver Door Module (DDM) C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15411588 4-Way F AMP 2.8 mm Sealed (BK)
Pin	Wire Color	Circuit No.	Function
1	BN	165	Power Window Motor Left Front Down Control
2	OG	1240	Battery Positive Voltage
3	D-BU	164	Power Window Motor Left Front Up Control
4	BK	1050	Ground

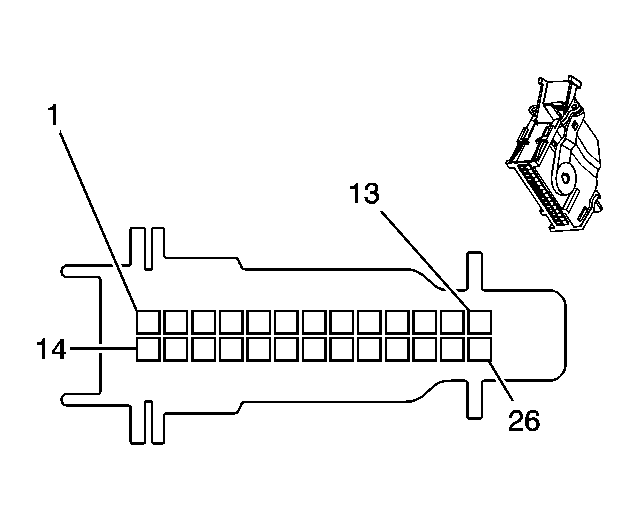

Driver Door Module (DDM) C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15398841 26-Way F AMP Lever Assist (BK)
Pin	Wire Color	Circuit No.	Function
1	YE	5129	Adjustable Pedals Relay Rearward Control
2	D-BU	536	Driver Door Key Switch Low Reference
3	BN	1183	Left Front Door Switch Low Reference
4	D-BU	660	Left Courtesy Lamp Control
5-9	-	-	Not Used
10	GY	1690	Automatic Day/Night Mirror Signal
11	L-BU	2114	Left Turn Signal Lamps Supply Voltage
12	PK	1691	Automatic Day/Night Mirror Low Reference
13	D-BU/WH	149	Courtesy Lamp Supply Voltage
14	OG	4140	Battery Positive Voltage
15	L-GN	262	Driver Door Key Switch Signal
16-17	-	-	Not Used
18	GY/BK	745	Left Front Door Ajar Switch Signal
19	-	-	Not Used
20	TN	294	Door Lock Actuator Unlock Control
21	GY	295	Door Lock Actuator Lock Control
22	BN	1046	DDM Class 2 Serial Data
23	-	-	Not Used
24	L-BU	5499	Adjustable Pedals Relay Control
25	L-BU	5499	Adjustable Pedals Relay Control
26	PU	5130	Adjustable Pedals Relay Forward Control

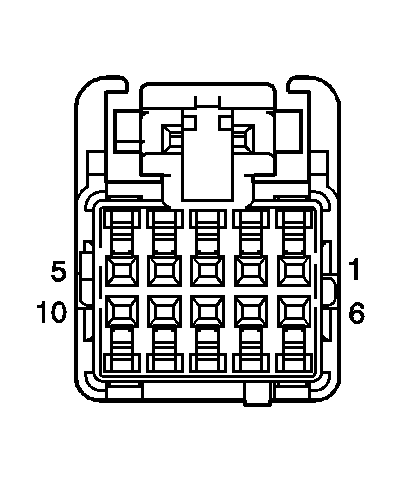

Driver Door Module (DDM) C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		6383393-7 10-Way F 0.64 mm Unsealed AMP (BU)
Pin	Wire Color	Circuit No.	Function
1	BN/WH	-	Left Turn Signal Low Reference
2	GY/BK	-	Left Turn Signal Control
3	BK	-	Driver Mirror Heating Element Low Reference
4	PU	-	Mirror Sensor Low Reference
5	-	-	Not Used
6	OG/BK	-	Left Door Exterior Courtesy Lamp Supply Voltage
7	GY	-	Automatic Day/Night Mirror Signal
8	PK	-	Automatic Day/Night Mirror Low Reference
9	BK	-	Left Door Exterior Courtesy Lamp Ground
10	-	-	Not Used

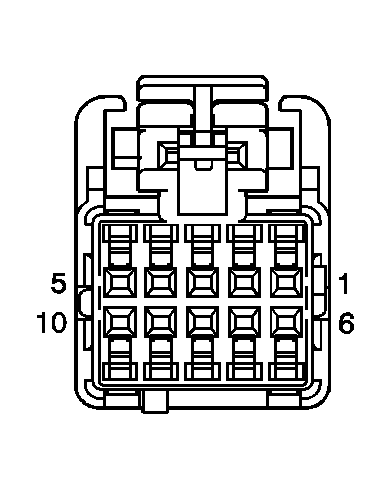

Driver Door Module (DDM) C4

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		6383393-5 10-Way F 0.64 mm Unsealed AMP (BK)
Pin	Wire Color	Circuit No.	Function
1	YE	-	Driver Folding Mirror Motor Extend Control
2	OG	-	Mirror Heating Element Supply Voltage
3	RD	-	Driver Mirror Horizontal Position Sensor Signal
4	D-GN	-	5-Volt Reference
5	D-BU	-	Driver Mirror Vertical Position Sensor Signal
6	L-BU	-	Driver Folding Mirror Motor Retract Control
7	YE	-	Driver Mirror Right/Down Motors Common
8	L-BU	-	Driver Mirror Motor Right Control
9	L-GN	-	Driver Mirror Motor Down Control
10	-	-	Not Used

Driver Door Module (DDM) C5

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		683394-4 12-Way F 0.64 mm Unsealed AMP (GN)
Pin	Wire Color	Circuit No.	Function
1	WH/BK	-	Driver Heated Seat Medium Temperature Indicator Control
2	YE	-	Driver Heated Seat Low Temperature Indicator Control
3	GY	-	Driver Heated Seat Back Only Mode Switch Signal
4	L-BU	-	Memory/Heated Seat Switch Backlight
5	PK	-	Memory 2 Switch Signal
6	TN	-	Adjustable Pedals Forward Control
7	D-GN	-	Driver Heated Seat High Temperature Indicator Control
8	BK	-	Driver Heated Seat Back Only Indicator Control
9	D-BU	-	Driver Heated Seat Temperature Switch Signal
10	RD	-	Memory 1 Switch Signal
11	BN	-	Switch Power
12	OG	-	Electronic Adjustable Pedals Rearward Control
