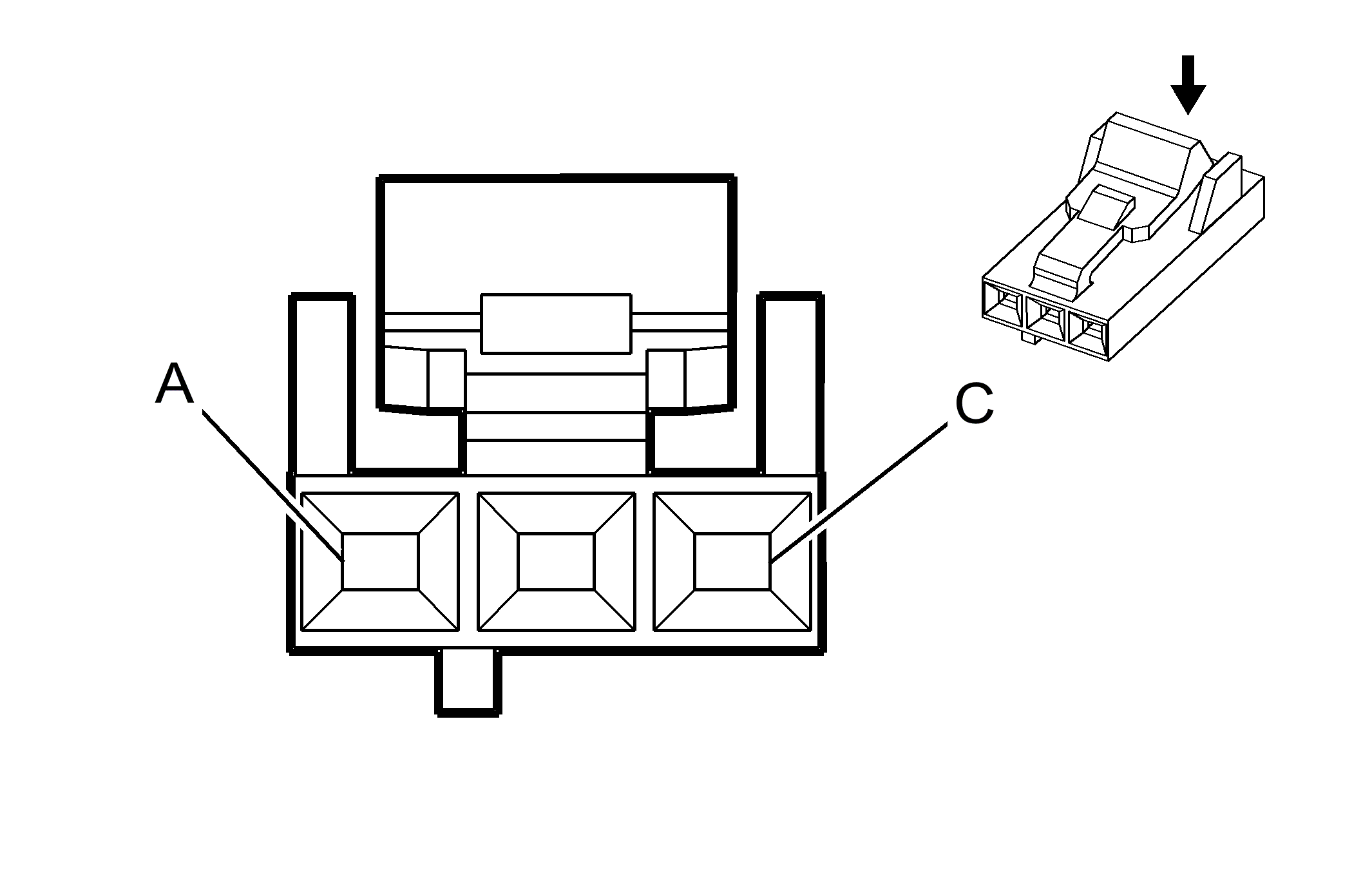

Seat Horizontal Position Sensor Connector End View
Seat Horizontal Position Sensor - Driver
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 104257-2
- 3-Way F Amp (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
RD |
940 |
12-Volt Reference |
| B |
L-BU |
569 |
Horizontal Seat Motor Position Sensor Signal |
| C |
BK |
950 |
Low Reference |
