Steering Wheel and Column Component Views

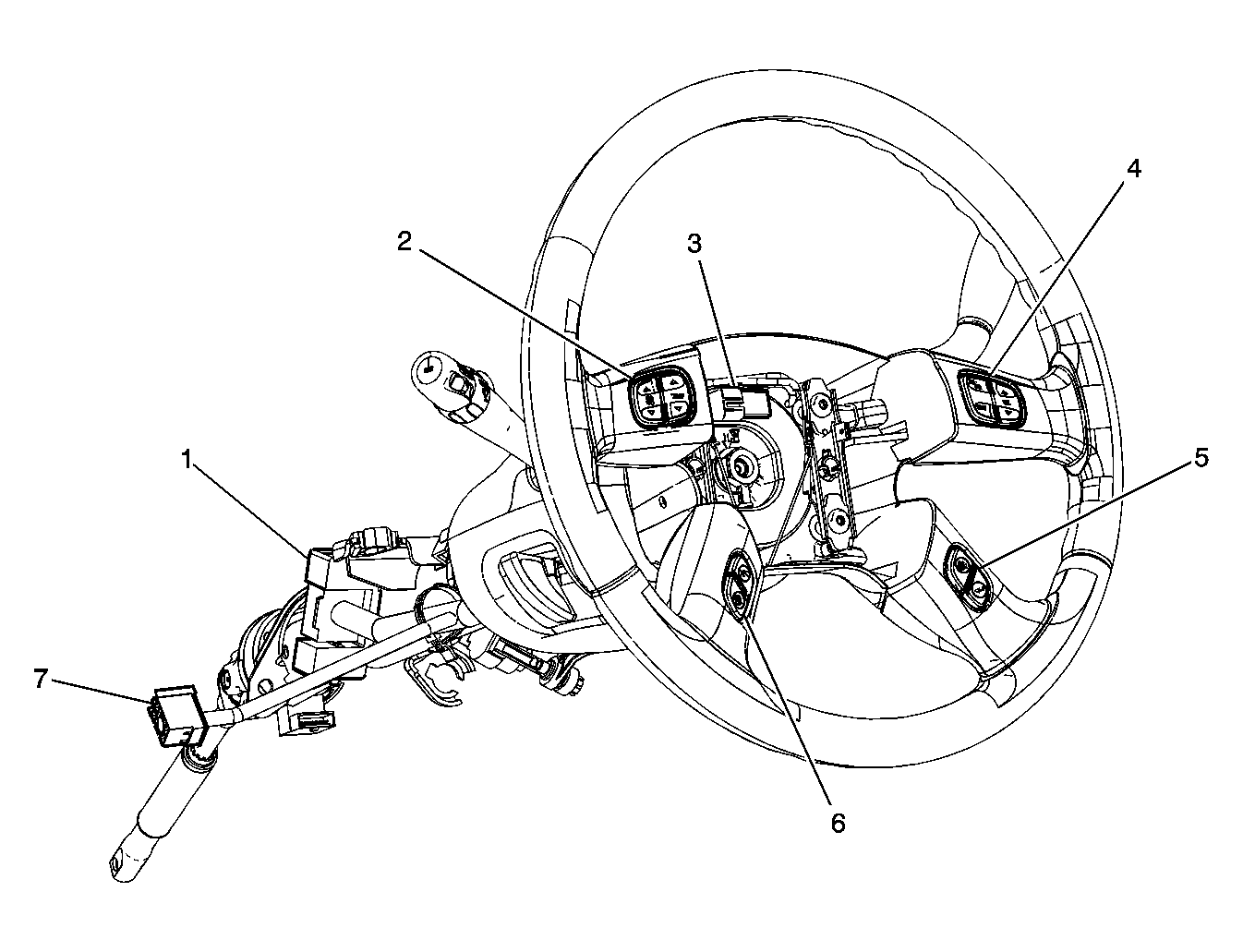

Fig 1: Steering Wheel and Column Components
GM1625966Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C201
2 Upper Left - Radio
3 C277
4 Upper Right - Radio
5 Lower Right - DIC
6 Lower Left - DIC
7 I/P Fuse Block C2
