Defogger Schematics

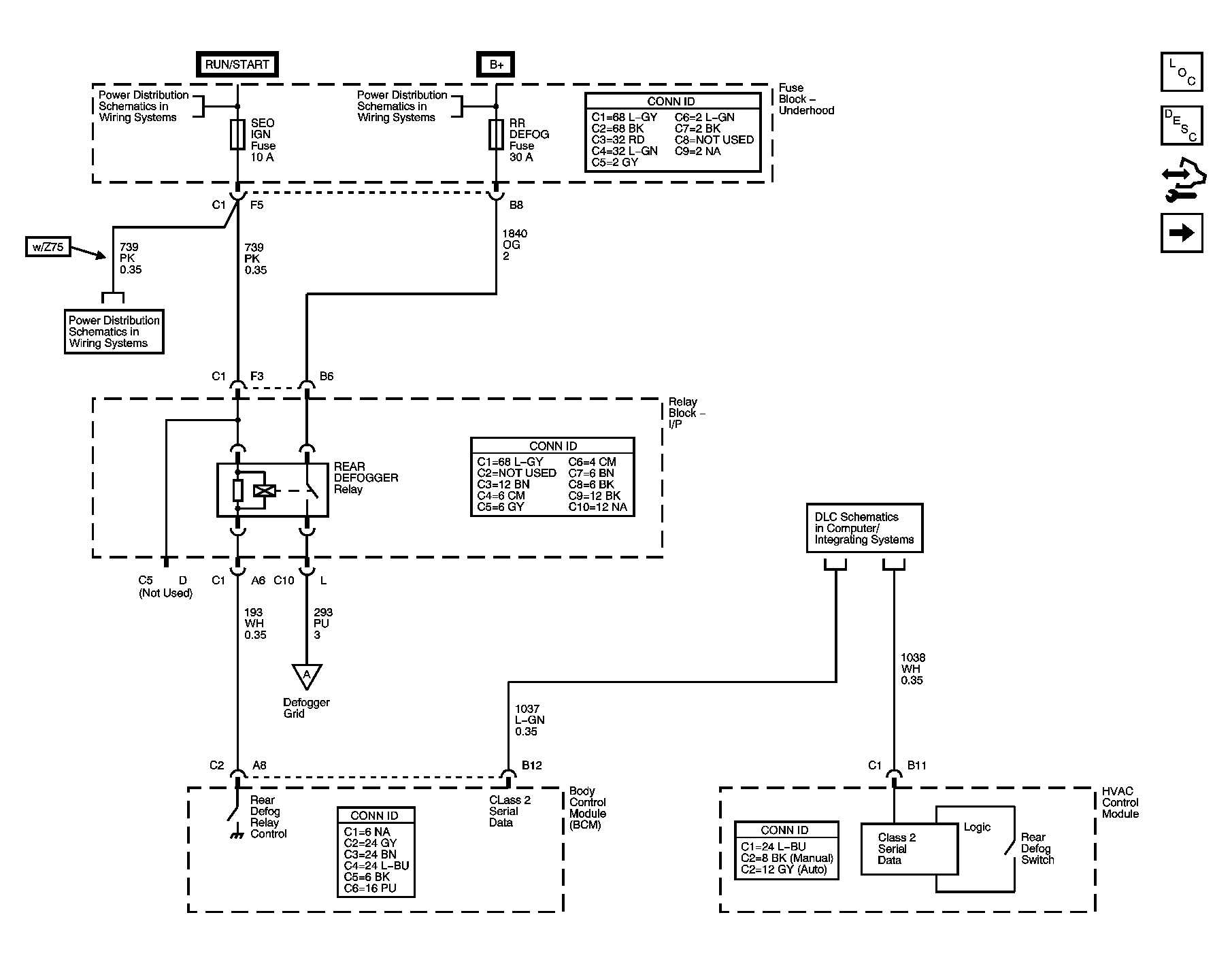

Fig 1: Rear Window Defogger Controls
GM1608444Courtesy of GENERAL MOTORS CORP.

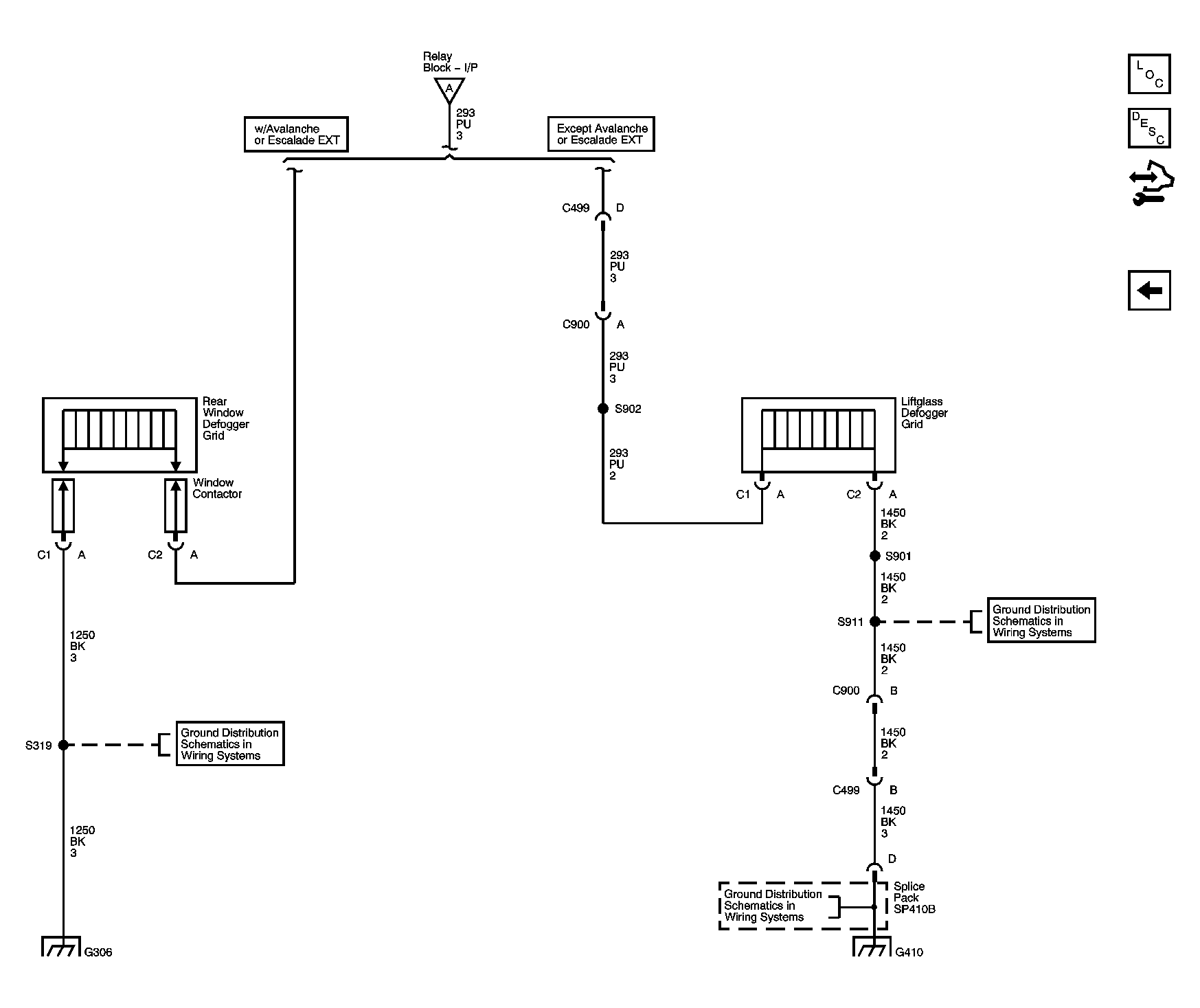

Fig 2: Defogger Grid and Ground
GM1608445Courtesy of GENERAL MOTORS CORP.
