Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

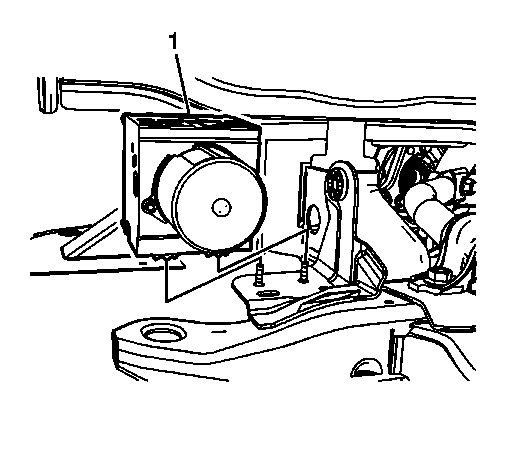

    Fig 1: View of BPMV
    GM1906553Courtesy of GENERAL MOTORS CORP.
  1. Install the BPMV (1).
    2. NOTE: Refer to Fastener Notice .

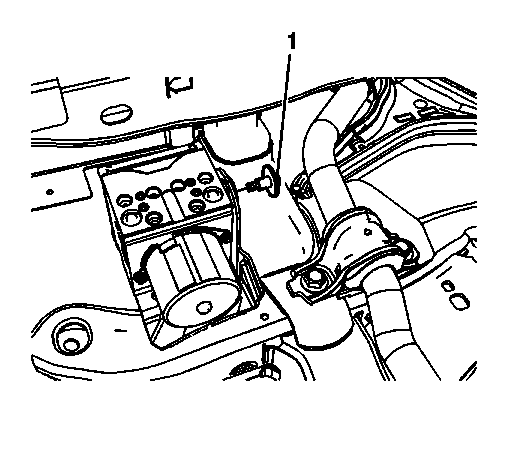

    Fig 2: Identifying BPMV Bolt
    GM1906552Courtesy of GENERAL MOTORS CORP.
  2. Install the BPMV bolt (1).

    Tighten:  Tighten the bolt to 11 N.m (97 lb in).

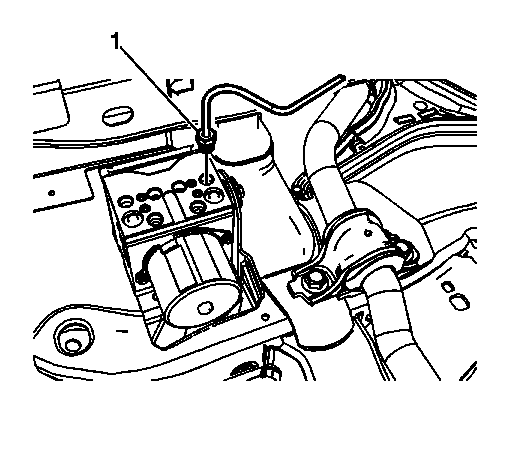

    3. Fig 3: Identifying RF Brake Pipe Fitting
    GM1906551Courtesy of GENERAL MOTORS CORP.
  3. Connect the RF brake pipe fitting (1).

    Tighten:  Tighten the brake pipe fitting to 18 N.m (13 lb ft).

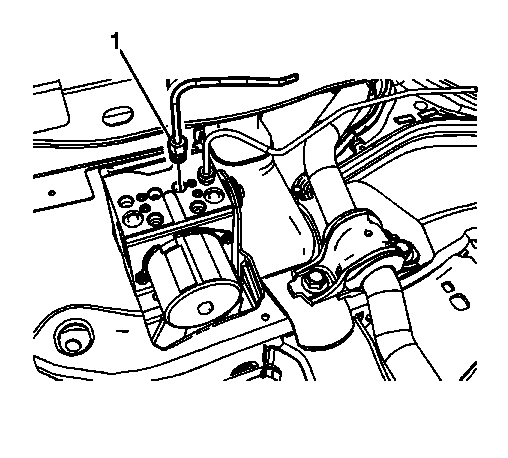

    4. Fig 4: View of LR Brake Pipe Fitting
    GM1906549Courtesy of GENERAL MOTORS CORP.
  4. Connect the LR brake pipe fitting (1).

    Tighten:  Tighten the brake pipe fitting to 18 N.m (13 lb ft).

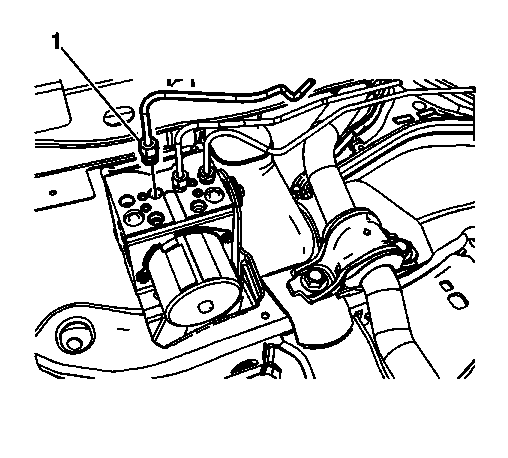

    5. Fig 5: View of RR Brake Pipe Fitting
    GM1906547Courtesy of GENERAL MOTORS CORP.
  5. Connect the RR brake pipe fitting (1).

    Tighten:  Tighten the brake pipe fitting to 18 N.m (13 lb ft).

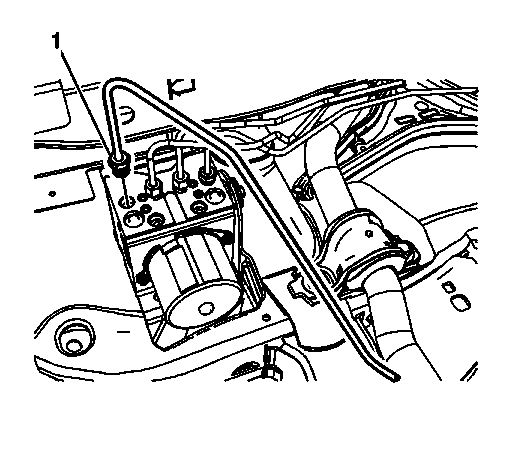

    6. Fig 6: Identifying LF Brake Pipe Fitting
    GM1906546Courtesy of GENERAL MOTORS CORP.
  6. Connect the LF brake pipe fitting (1).

    Tighten:  Tighten the brake pipe fitting to 18 N.m (13 lb ft).

  7. Connect the EBCM electrical connector
  8. Position the washer solver container and install the fasteners. Refer to Windshield Washer Solvent Container Replacement (Minus CE4) or Windshield Washer Solvent Container Replacement (With CE4) .
  9. Install the front air deflector shield. Refer to Front Air Deflector Replacement .
  10. Lower the vehicle.
    11. Fig 7: Identifying Primary BPMV Inlet Brake Pipe Fitting
    GM1906545Courtesy of GENERAL MOTORS CORP.
  11. Connect the primary .

    Tighten:  Tighten the brake pipe fitting to 32 N.m (24 lb ft).

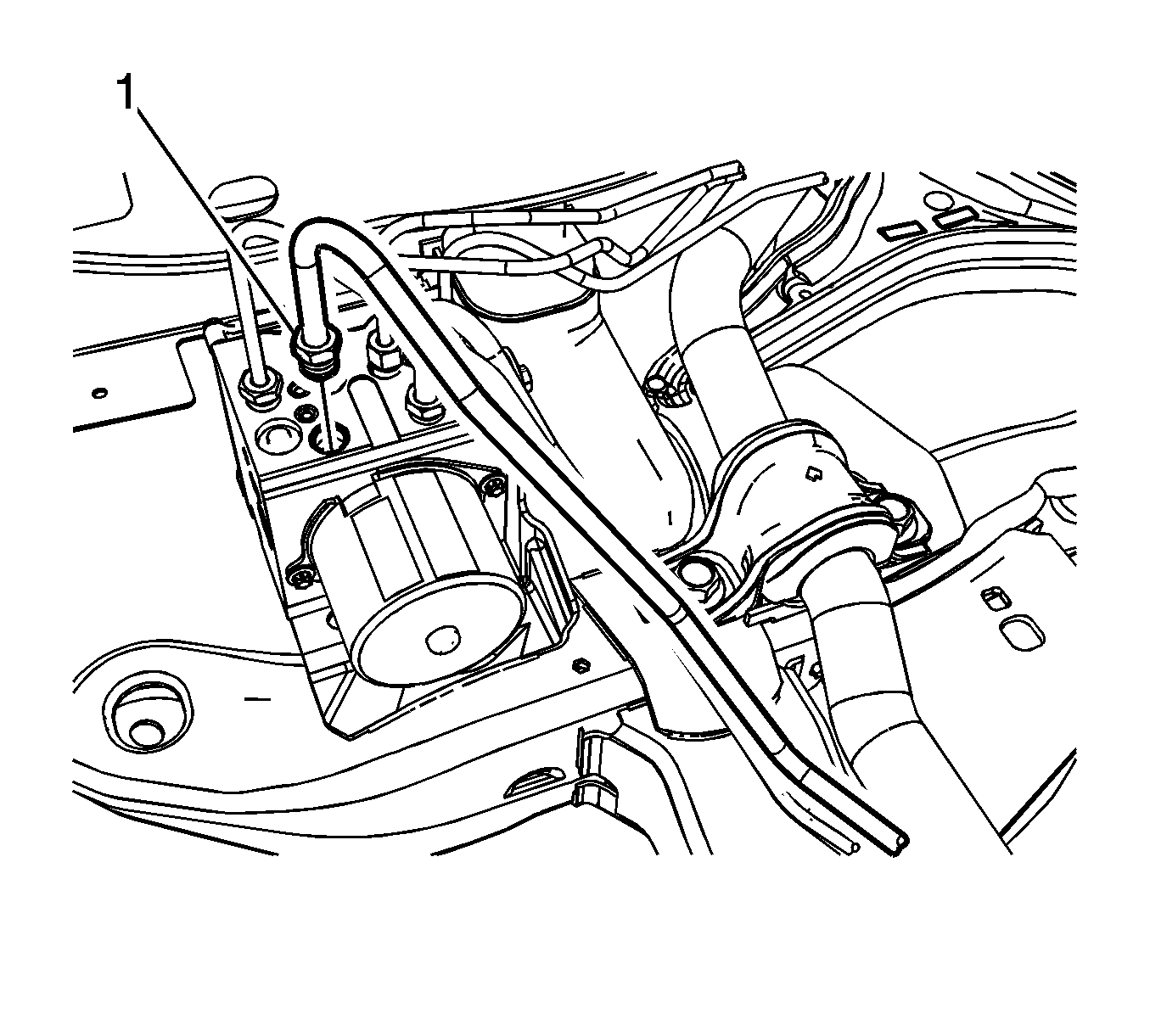

    12. Fig 8: View of Pressure Modulator Valve (BPMV) Inlet Brake Pipe Fitting
    GM1906544Courtesy of GENERAL MOTORS CORP.
  12. Connect the secondary BPMV inlet brake pipe fitting (1).

    Tighten:  Tighten the brake pipe fitting to 32 N.m (24 lb ft).

  13. Install the RH front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
  14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Side Post) .
  15. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
  16. Perform the Antilock Brake System Automated Bleed Procedure .
  17. Perform the Diagnostic System Check - Vehicle .
