Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

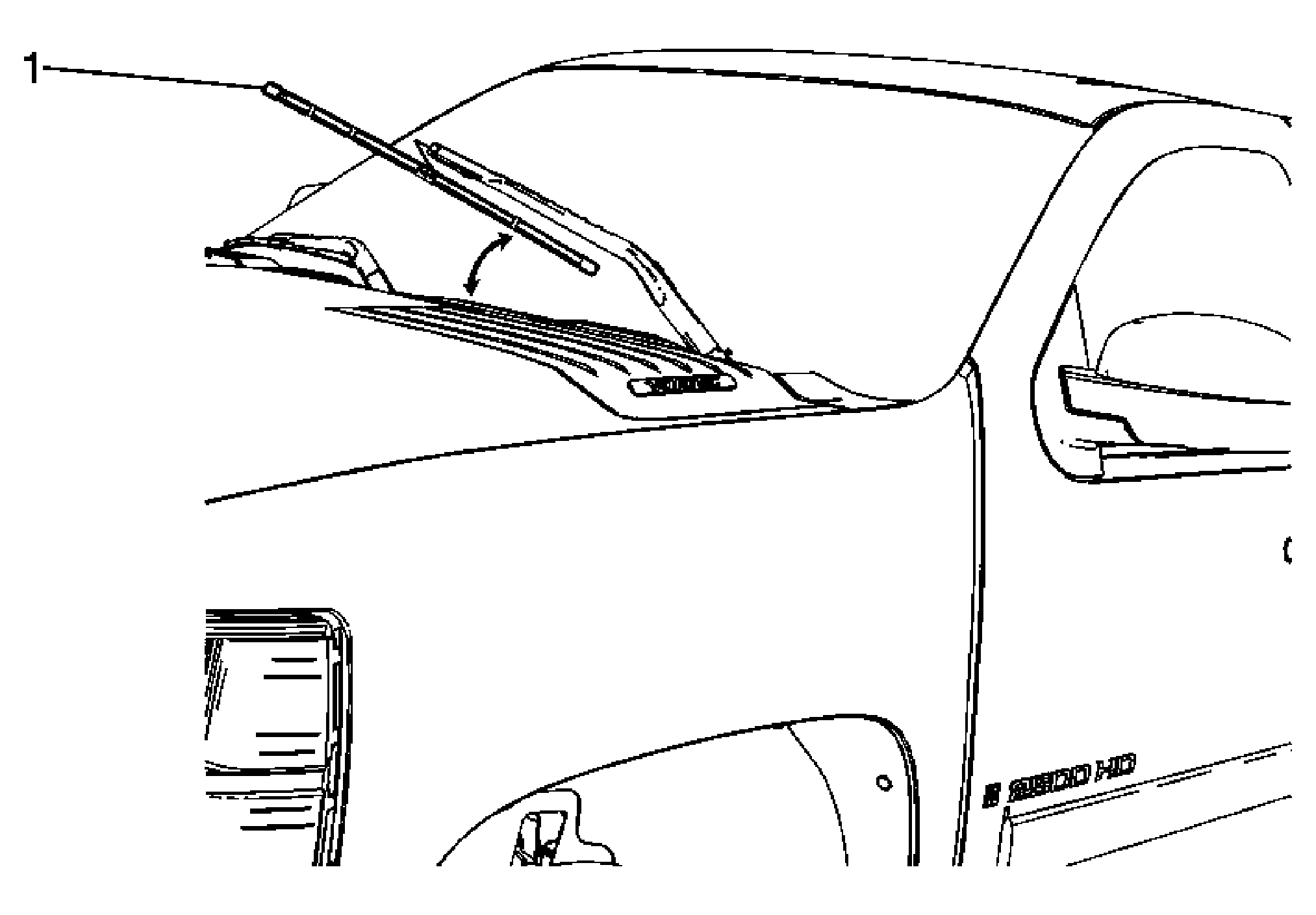

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the wiper arm to the full up position (service up).
1	Windshield Washer Arm Assembly Procedure Squeeze both tabs on the end of the wiper arm and rotate the blade away from the arm to remove. Slide the wiper blade slightly forward and remove. Discard if rubber appears worn or does not wipe the windshield clean.

Callout

Component Name

Preliminary Procedure:
Raise the wiper arm to the full up position (service up).

Windshield Washer Arm Assembly

Procedure

Squeeze both tabs on the end of the wiper arm and rotate the blade away from the arm to remove.
Slide the wiper blade slightly forward and remove.
Discard if rubber appears worn or does not wipe the windshield clean.
