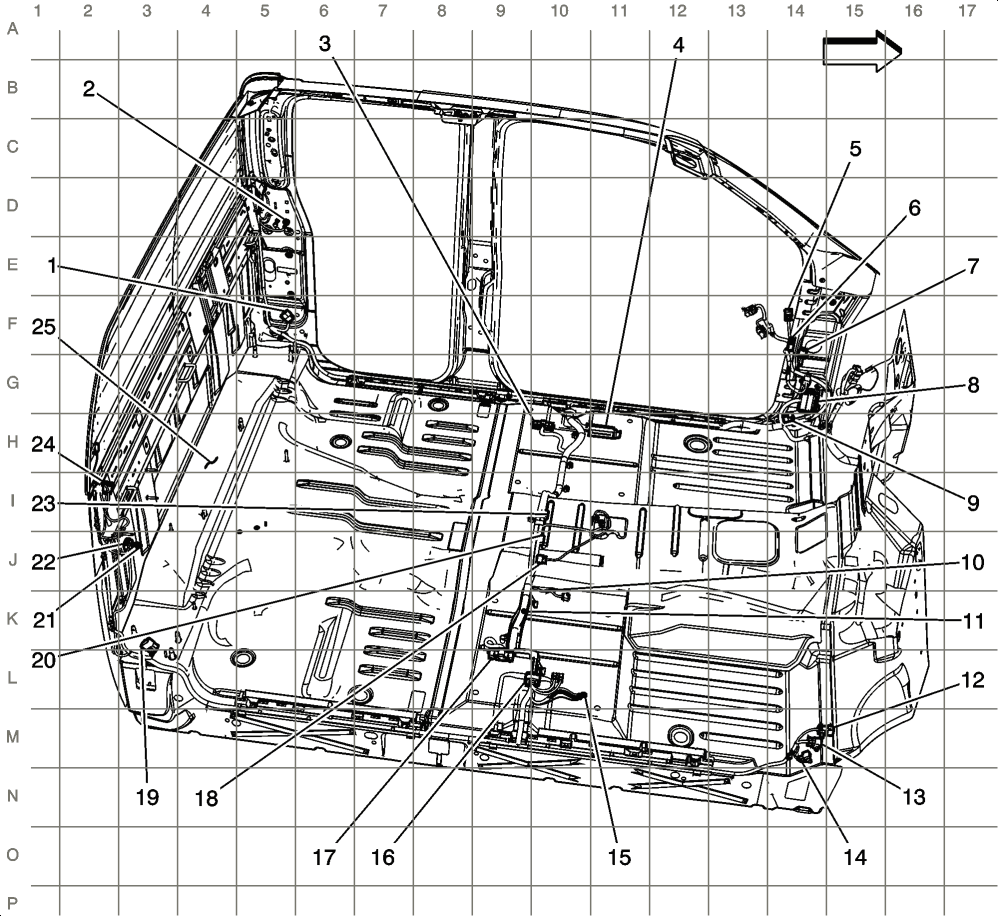

Body Harness (Extended Cab)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | X700 |
| 2 | G303 |
| 3 | X303 |
| 4 | Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 5 | X501 (YE9 without AN3/DL3) |
| 6 | X275 |
| 7 | X208 (A48) |
| 8 | X202 |
| 9 | X500 (YE9 without AN3/DL3) |
| 10 | G301 |
| 11 | J304 |
| 12 | X200 |
| 13 | X601 (ASF) |
| 14 | X600 (YE9 without AN3/DL3) |
| 15 | G302 |
| 16 | JX339 |
| 17 | X305 |
| 18 | X319 (AZ3/D07 with UQ3) |
| 19 | X800 |
| 20 | J302 |
| 21 | G304 |
| 22 | X320 (A48) |
| 23 | J303 |
| 24 | X322 (UD7) |
| 25 | Floor Panel |
