Rearview Camera (SPO Rearview Camera)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

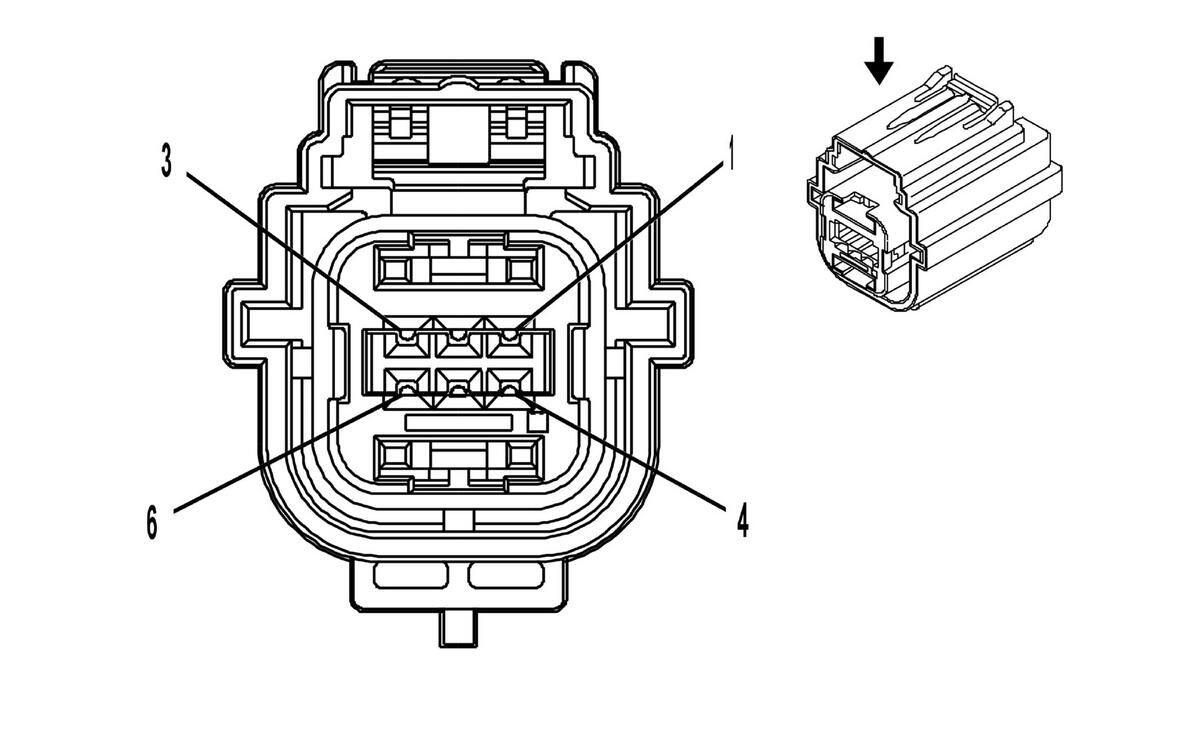

Fig 1: Rearview Camera (SPO Rearview Camera)

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 GY/D-BU	7641	Camera Video Signal (+)
2	0.5 WH	6799	Drain Wire
3	0.5 L-GN	38	Backup Lamp Relay Control
4	0.35 GY/OG	7642	Camera Video Signal (-)
5	0.5 BK	1851	Ground
6	0.5 PK	1639	Ignition Voltage

Connector Part Information

Harness: Rearview Camera Chassis
OEM: 1924211-1
Service: Service by Harness - See Part Catalog
Description: 6-Way F 0.64 Series Sealed (NA)

Terminal Part Information

Terminal/Tray: SAIT-A03T-M064/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215A/J-35616-64B (L-BU)
