Front Upper Speaker Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

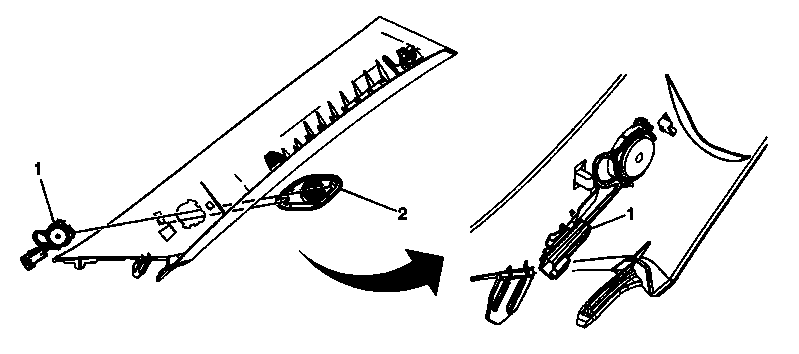

Fig 1: View Of Radio Windshield Side Garnish Molding Speaker Assembly & Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
1	Speaker Assembly, Radio Windshield Side Garnish Molding TIP: Press in the tabs on the speaker to release from the windshield pillar.
2	Speaker Grille, Radio Windshield Side Garnish Molding TIP: Press in on the tabs of the speaker grille to release from the windshield pillar.
