Data Link Connector (DLC) Schematics
WARNING:
This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

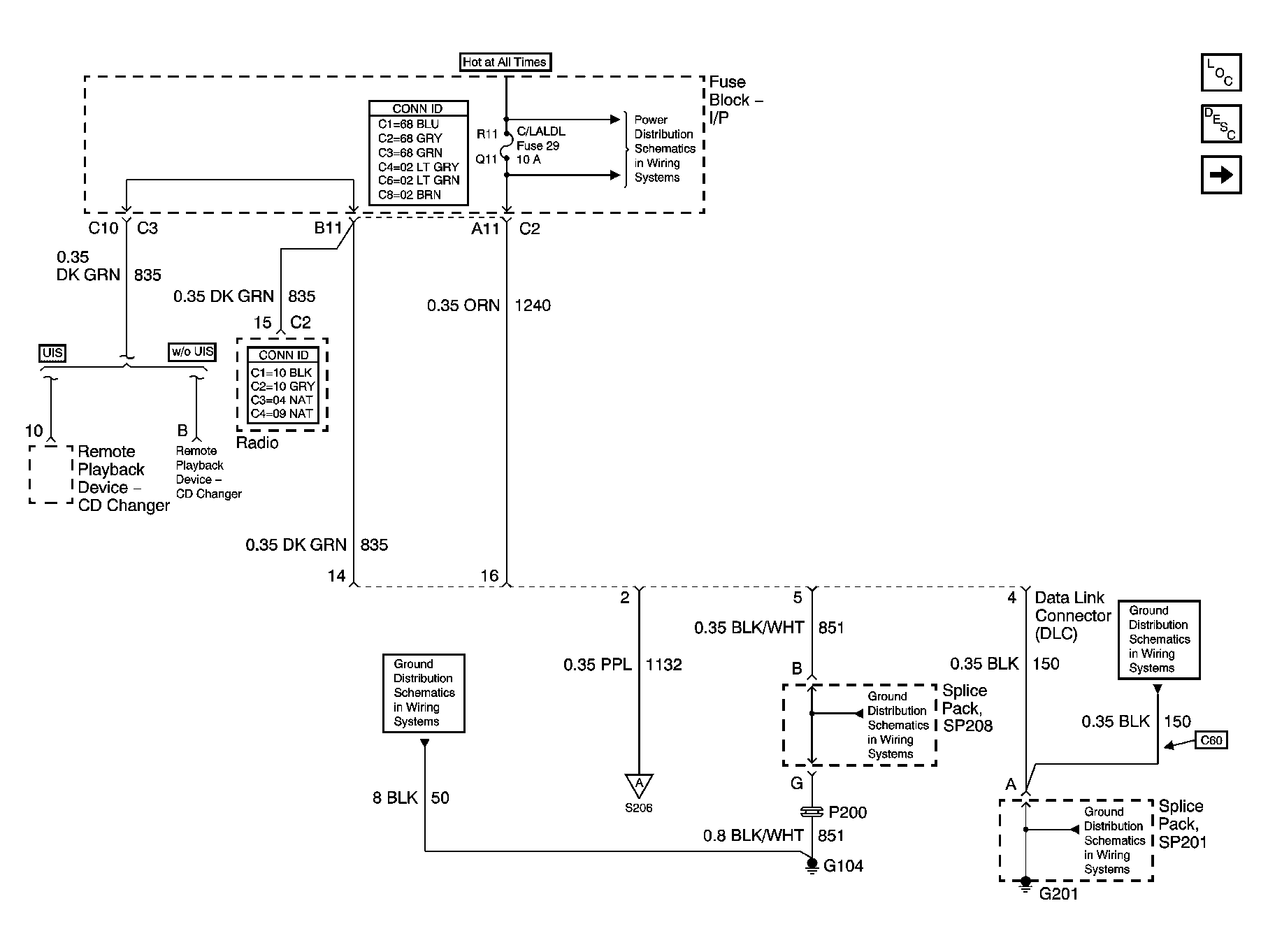

Fig 1: Power And Ground Schematic
Courtesy of GENERAL MOTORS CORP.

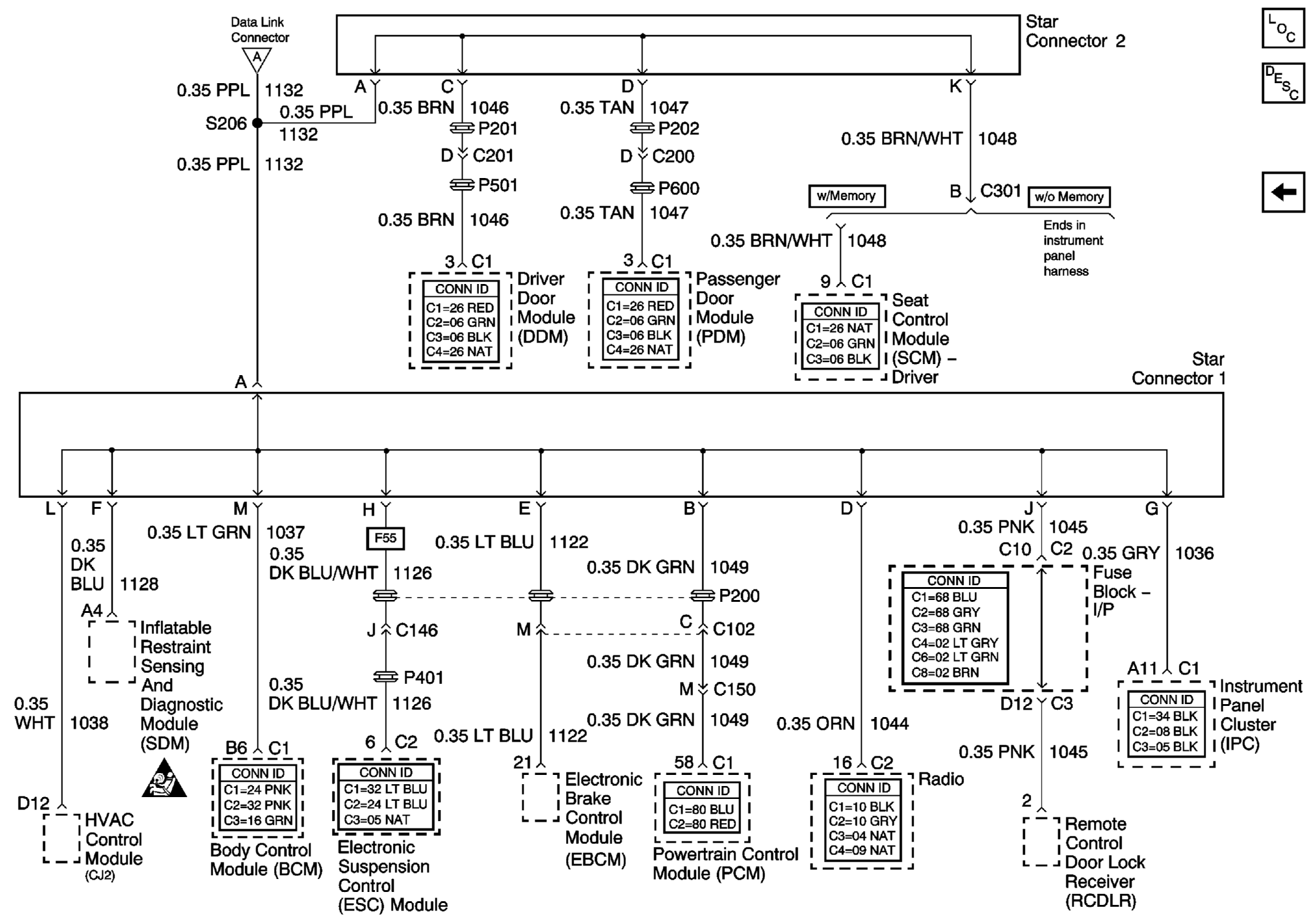

Fig 2: Star Connectors Schematic
Courtesy of GENERAL MOTORS CORP.
