Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Driver Door Module Terminal Identification (DDM) - C1

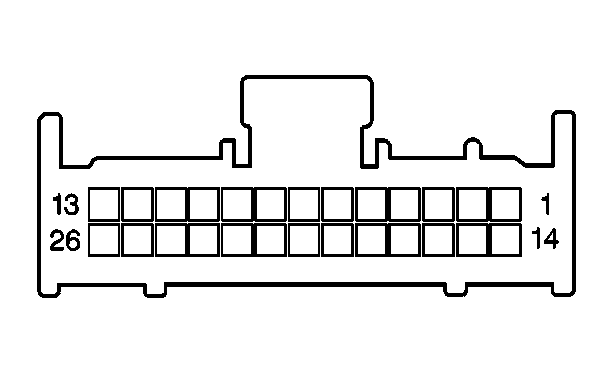

GM333020Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160773
  • 26-Way F (RED)
Pin Wire Color Circuit No. Function
1 ORN 2140 Battery Positive Voltage
2 - - Not Used
3 BRN 1046 DDM Class 2 Serial Data
4 - - Not Used
5 GRY 788 5 Volt Reference
6 BLK/WHT 1251 Ground
7-9 - - Not Used
10 GRY/BLK 745 Left Front Door Ajar Switch Signal
11-12 - - Not Used
13 LT GRN 262 Driver Door Key Switch Signal
14 BLK/WHT 1451 Ground
15 GRY 786 Driver Mirror Horizontal Position Sensor Signal
16 DK GRN 784 Driver Mirror Vertical Position Sensor Signal
17-18 - - Not Used
19 WHT 81 Driver Mirror Motor Right Control
20 LT BLU 82 Driver Mirror Motor Left Control
21 YEL 88 Driver Mirror Motor Up Control
22 LT GRN 89 Driver Mirror Motor Down Control
23-26 - - Not Used
Driver Door Module Terminal Identification (DDM) - C2

GM62480Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089527
  • 6-Way F Metri-Pack 280 Series (GRN)
Pin Wire Color Circuit No. Function
A - - Not Used
B GRY 295 Door Lock Actuator Lock Control
C BLK 150 Ground
D - - Not Used
E DK BLU 164 Power Window Motor Front Up Control
F - - Not Used
Driver Door Module Terminal Identification (DDM) - C3

GM62456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A
-		 ORN 2640 Battery Positive Voltage
B ORN 267 Heated Mirror Element Supply Voltage
C BRN 165 Power Window Motor Front Down Control
D TAN 294 Door Lock Actuator Unlock Control
E - - Not Used
F BLK 450 Ground
Driver Door Module Terminal Identification (DDM) - C4

GM154608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160773
  • 26-Way F (NAT)
Pin Wire Color Circuit No. Function
1 LT GRN 1499 Driver Mirror Select Switch Signal
2 LT BLU/WHT 1497 Passenger Mirror Select Switch Signal
3 WHT 1512 Driver Mirror Switch Right Signal
4 LT BLU 1516 Driver Mirror Switch Left Signal
5 LT GRN 1514 Driver Mirror Switch Down Signal
6 YEL 1517 Driver Mirror Switch Up Signal
7 BRN 501 Power Window Master Switch Left Front Up Signal
8 GRY 1136 Power Window Master Switch Left Front Down Signal
9 BLK 150 Ground
10-13 - - Not Used
14 RED/BLK 780 Driver Door Lock Switch Lock Signal
15 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
16 DK BLU 660 Driver Mirror Select Indicator Control
17 WHT 615 Memory 1 Switch Signal
18 PPL 616 Memory 2 Switch Signal
19 DK BLU 1461 Memory 1 Select Indicator Control
20 DK BLU/WHT 1504 Memory 2 Select Indicator Control
21 GRY 157 Interior Lamp Control
22 ORN 580 Battery Positive Voltage
23 LT BLU 661 Passenger Mirror Select Indicator Control
24 LT BLU 166 Power Window Master Switch Right Front Up Signal
25 TAN 167 Power Window Master Switch Right Front Down Signal
26 - - Not Used
Door Latch Terminal Identification - Driver C1

GM35437Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052636
  • 2-Way F Metri-Pack 150 Series (GRN)
Pin Wire Color Circuit No. Function
A BLK/WHT 1451 Ground
B LT GRN 262 Driver Door Key Switch Signal
Door Latch Terminal Identification - Driver C2

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162187
  • 4-Way F Metri-Pack 150.2 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B GRY/BLK 745 Left Front Door Ajar Switch Signal
C - - Not Used
D BLK 150 Ground
Door Latch Terminal Identification - Driver C3

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300008
  • 2-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Latch Terminal Identification - Passenger C1 (Japan)

GM35437Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052636
  • 2-Way F Metri-Pack 150 Series (GRN)
Pin Wire Color Circuit No. Function
A BLK/WHT 1451 Ground
B LT GRN 265 Passenger Door Key Switch Signal
Door Latch Terminal Identification - Passenger C2

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162187
  • 4-Way F Metri-Pack 150.2 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 150 Ground
B - - Not Used
C BLK/WHT 746 Right Front Door Ajar Switch Signal
D - - Not Used
Door Latch Terminal Identification - Passenger C3

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300008
  • 2-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Switch Terminal Identification - Driver

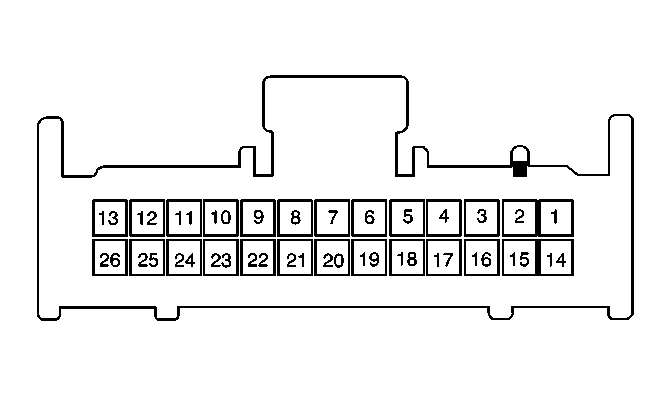

GM154608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160773
  • 26-Way F (NAT)
Pin Wire Color Circuit No. Function
1 LT GRN 1499 Driver Mirror Select Switch Signal
2 LT BLU/WHT 1497 Passenger Mirror Select Switch Signal
3 WHT 1512 Mirror Right Switch Input
4 LT BLU 1516 Driver Mirror Switch Left Signal
5 LT GRN 1514 Driver Mirror Switch Down Signal
6 YEL 1517 Driver Mirror Switch Up Signal
7 BRN 501 Power Window Master Switch Left Front Up Signal
8 GRY 1136 Power Window Master Switch Left Front Down Signal
9 BLK 150 Ground
10-13 - - Not Used
14 RED/BLK 780 Driver Door Lock Switch Lock Signal
15 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
16 DK BLU 660 Left Courtesy Lamp Control
17 WHT 615 Memory 1 Switch Signal
18 PPL 616 Memory 2 Switch Signal
19 DK BLU 1461 Memory 1 Select Indicator Control
20 DK BLU/WHT 1504 Memory 2 Select Indicator Control
21 GRY 157 Interior Lamp Control
22 ORN 580 Battery Positive Voltage
23 LT BLU 661 Passenger Mirror Select Indicator Control
24 LT BLU 166 Power Window Master Switch Right Front Up Signal
25 TAN 167 Power Window Master Switch Right Front Down Signal
26 - - Not Used
Door Switch Terminal Identification - Front Passenger

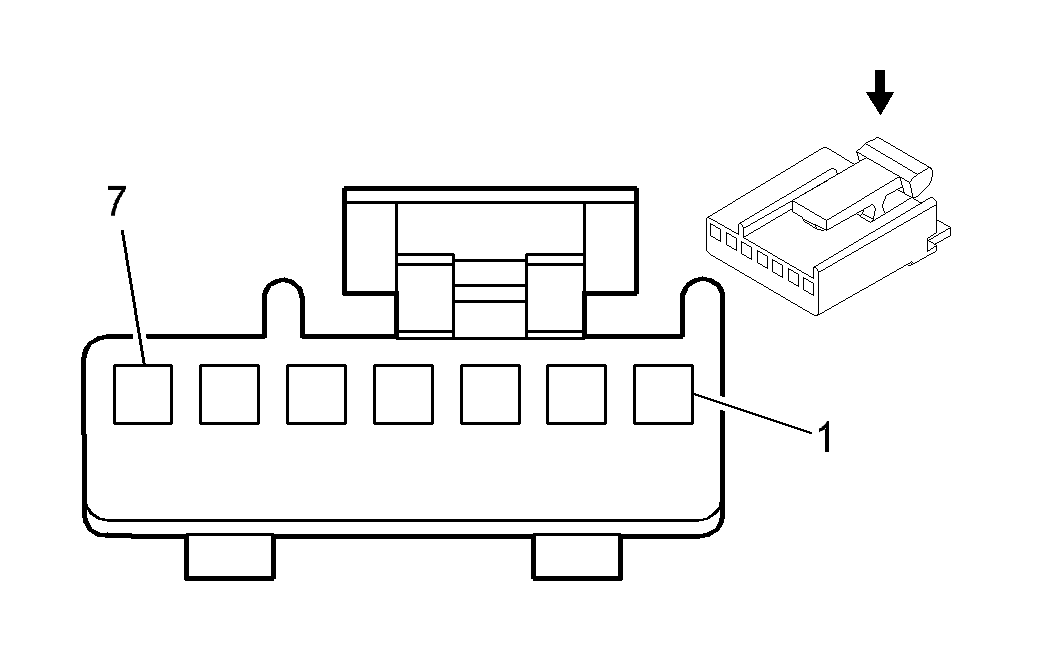

GM258171Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065873
  • 7-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
1 GRY 157 Courtesy Lamp Control
2 ORN 580 Battery Positive Voltage
3 RED/BLK 780 Driver Door Lock Switch Lock Signal
4 LT BLU 166 Power Window Master Switch Right Front Up Signal
5 BLK 150 Ground
6 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
7 TAN 167 Power Window Master Switch Right Front Down Signal
Outside Rearview Mirror Terminal Identification - Driver C1

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A YEL 88 Driver Mirror Motor Up Control
B BLK 450 Ground
C LT GRN 89 Driver Mirror Motor Down Control
D GRY 1690 Automatic Day/Night Mirror Signal
E ORN 267 Heated Mirror Element Supply Voltage
F WHT 81 Driver Mirror Motor Right Control
G PNK 1691 Automatic Day/Night Mirror Low Reference
H LT BLU 82 Driver Mirror Motor Left Control
Outside Rearview Mirror Terminal Identification - Driver C2

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 788 5 Volt Reference
B DK GRN 784 Driver Mirror Vertical Position Sensor Signal
C BLK/WHT 1251 Ground
D GRY 786 Driver Mirror Horizontal Position Sensor Signal
Outside Rearview Mirror Terminal Identification - Passenger C1

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN/WHT 1498 Passenger Mirror Motor Down Control
B BLK 450 Ground
C PPL/WHT 889 Passenger Mirror Motor Down Control
D - - Not Used
E ORN 267 Heated Mirror Element Supply Voltage
F RED/WHT 881 Passenger Mirror Motor Right Control
G - - Not Used
H GRY 90 Passenger Mirror Motor Left Control
Outside Rearview Mirror Terminal Identification - Passenger C2

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 788 5 Volt Reference
B BRN 787 Passenger Mirror Vertical Position Sensor Signal
C BLK/WHT 1251 Ground
D LT BLU/BLK 785 Passenger Mirror Horizontal Position Sensor Signal
Passenger Door Module Terminal Identification (PDM) - C1

GM154608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160773
  • 26-Way F (RED)
Pin Wire Color Circuit No. Function
1 ORN 2340 Battery Positive Voltage
2 - - Not Used
3 TAN 1047 PDM Class 2 Serial Data
4 - - Not Used
5 GRY 788 5 Volt Reference
6 BLK/WHT 1251 Ground
7-9 - - Not Used
10 BLK/WHT 746 Right Front Door Ajar Switch Signal
11-12 - - Not Used
13 LT GRN 265 Passenger Door Key Switch Signal (Japan)
14 BLK/WHT 1451 Ground (Japan)
15 LT BLU/BLK 785 Passenger Mirror Horizontal Position Sensor Signal
16 BRN 787 Passenger Mirror Vertical Position Sensor Signal
17-18 - - Not Used
19 RED/WHT 881 Passenger Mirror Motor Right Control
20 GRY 90 Passenger Mirror Motor Left Control
21 BRN/WHT 1498 Passenger Mirror Motor Up Control
22 PPL/WHT 889 Passenger Mirror Motor Down Control
23-26 - - Not Used
Passenger Door Module Terminal Identification (PDM) - C2

GM62480Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089527
  • 6-Way F Metri-Pack 280 Series (GRN)
Pin Wire Color Circuit No. Function
A - - Not Used
B GRY 295 Door Lock Actuator Lock Control
C BLK 150 Ground
D - - Not Used
E DK BLU 164 Power Window Motor Front Up Control
F - - Not Used
Passenger Door Module Terminal Identification (PDM) - C3

GM62456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A
-		 ORN 2240 Battery Positive Voltage
B ORN 267 Heated Mirror Element Supply Voltage
C BRN 165 Power Window Motor Front Down Control
D TAN 294 Door Lock Actuator Unlock Control
E - - Not Used
F BLK 450 Ground
Passenger Door Module Terminal Identification (PDM) - C4

GM154608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160773
  • 26-Way F (NAT)
Pin Wire Color Circuit No. Function
1-6 - - Not Used
7 LT BLU 166 Power Window Master Switch Right Front Up Signal
8 TAN 167 Power Window Master Switch Right Front Down Signal
9 BLK 150 Ground
10-13 - - Not Used
14 RED/BLK 780 Driver Door Lock Switch Lock Signal
15 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
16-20 - - Not Used
21 GRY 157 Courtesy Lamp Control
22 ORN 580 Battery Positive Voltage
23-26 - - Not Used
Window Motor Terminal Identification - Driver

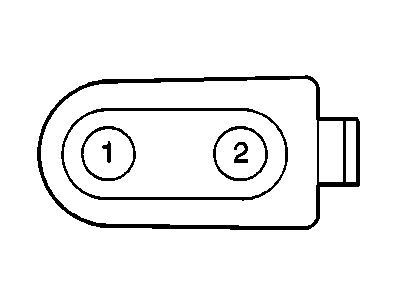

GM82380Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186550
  • 2-Way F (BLK)
Pin Wire Color Circuit No. Function
1 DK BLU 164 Power Window Motor Left Front Up Control
2 BRN 165 Power Window Motor Left Front Down Control
Window Motor Terminal Identification - Passenger

GM82380Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186550
  • 2-Way F Metri Pack 280 (BLK)
Pin Wire Color Circuit No. Function
1 DK BLU 164 Power Window Motor Front Up Control
2 BRN 165 Power Window Motor Front Down Control
scientia non olet · About LEMON Manuals
